Week 9 - Attachment Feature Creation - Challenge 1

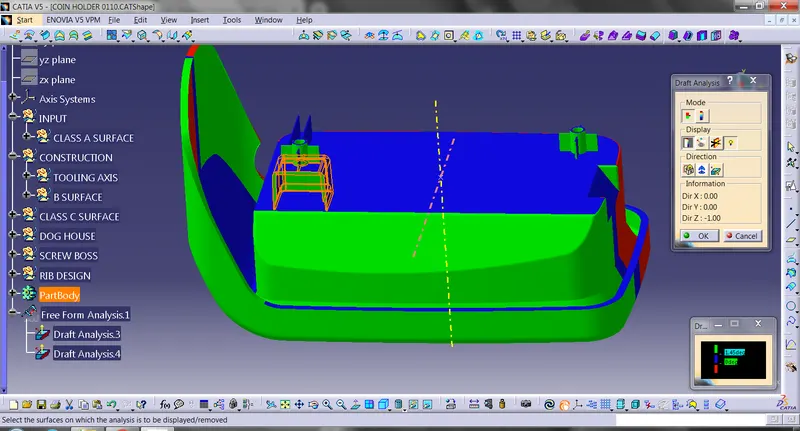

Draft analysis:

Draft analysis is used to checking the component where are the areas making problem. draft analysis is help to find out problem creating areas before manufacturing. The critical area will be shown by higlighted by colours.

Tooling Axis:

For draft analysis we need tooling axis. Tooling axis is a direction which core & cavity is open. First step check the component and select a direction which is possible direction for core&cavity open. Create two line on critical area and bisect the two line we get tooling axis.
