Week 9 - Attachment Feature Creation - Challenge 2

Create the Dog House for the Door Trim considering the design rules

"C" is where the doghouse contacts the backside of the surface

• Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).

• The height of ( B ) should be between 3.0 – 6.0 mm

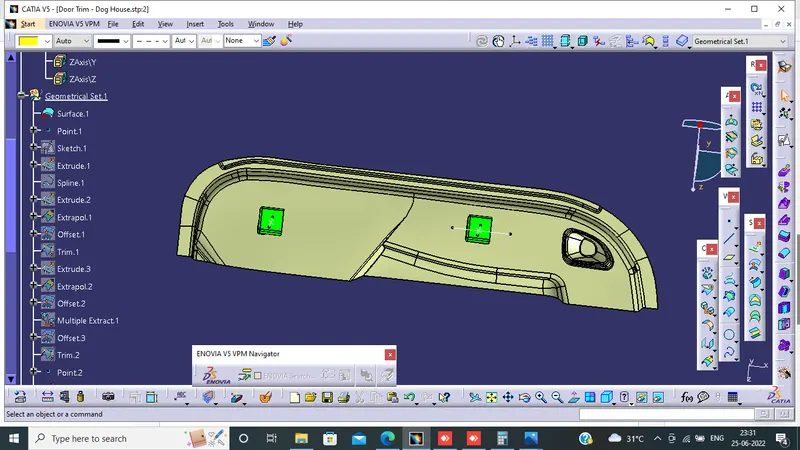

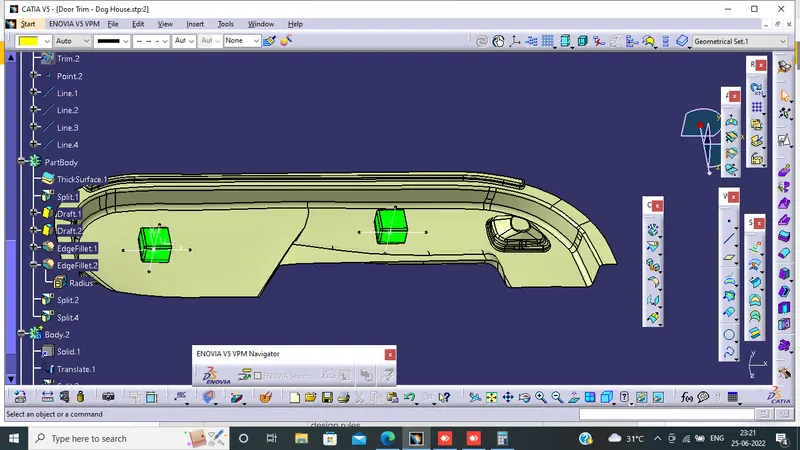

• as per design rules we created a dog house on given surface:
•
•

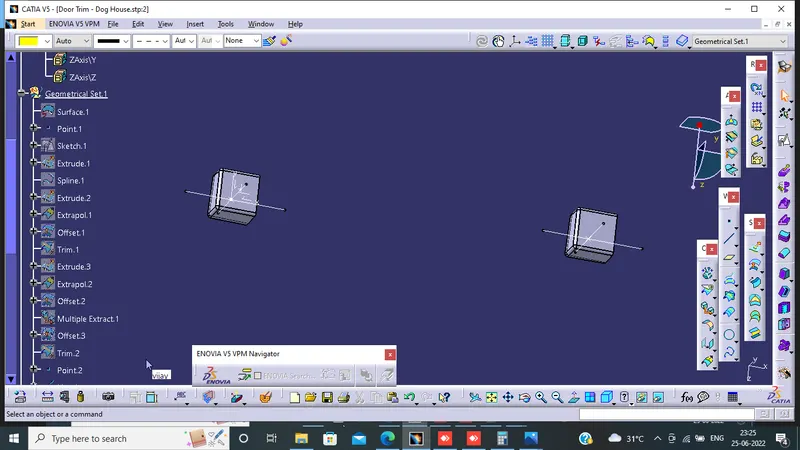

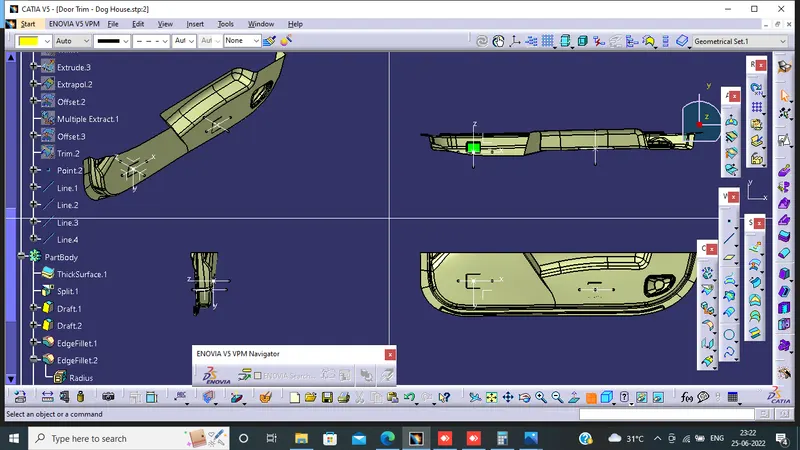

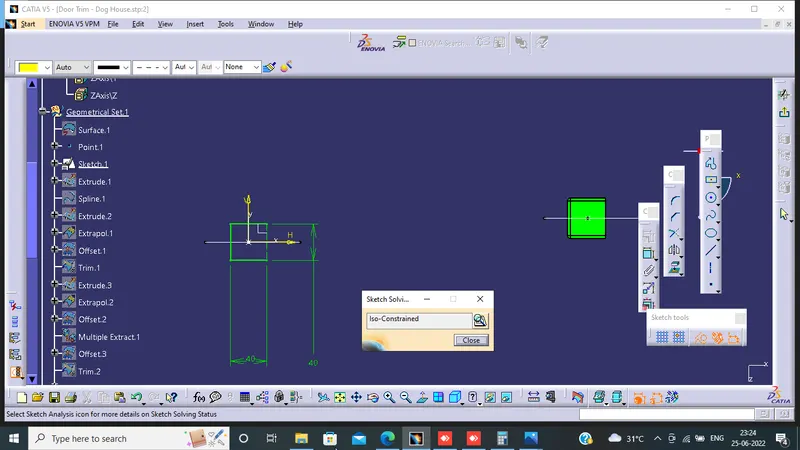

• first we have to take axis andcreate tooling axis and take sketch and extrude the surface and ues the required commands draw the dog house
•
•

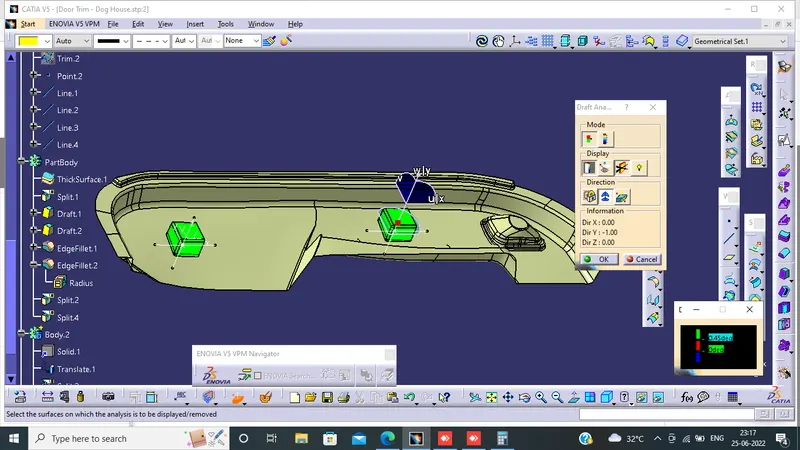

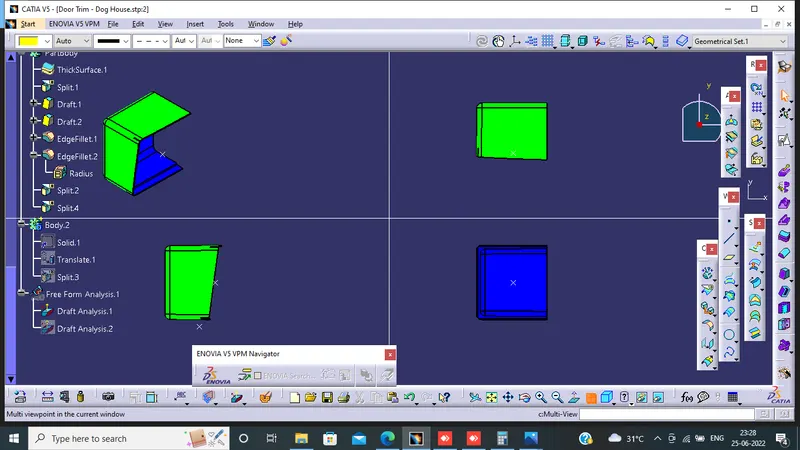

• after complesition of diagram change intlo solid body and do the draft analysis
•
•
