Week 9 - Attachment Feature Creation - Challenge 2
Screw Boss Design:
- Let the boss be ccomodating M6 Screw
- Hence ID of Boss =5.2mm
- OD= Hole Size + (0.6 T)*2 = 5.2 +(0.6 *2.5) *2 =8.2 mm
- Fillet = 0.25 mm
- Draft= 0.5 degrees
- four ribs are required for Screw Boss Support
- Rib Thickness = 0.4 T=0.4 *2.5 =1 mm
- Draft of Ribs = 0.5 degree

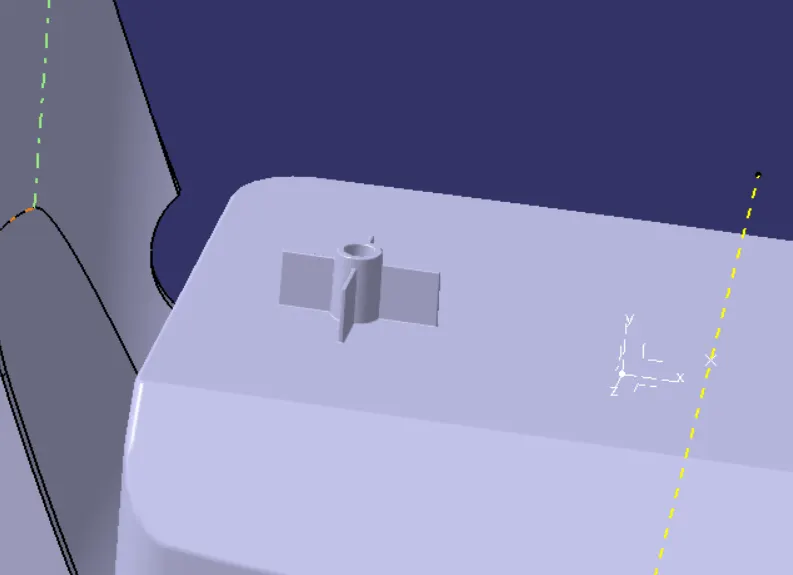

Screw Boss with Ribs:

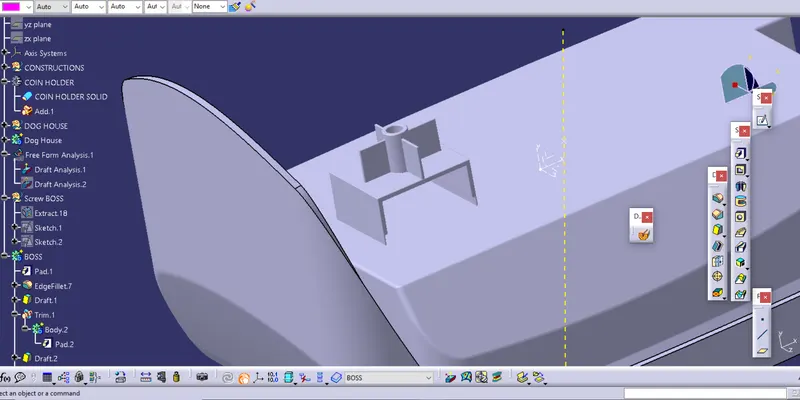

Dog House Design:
Inputs required:

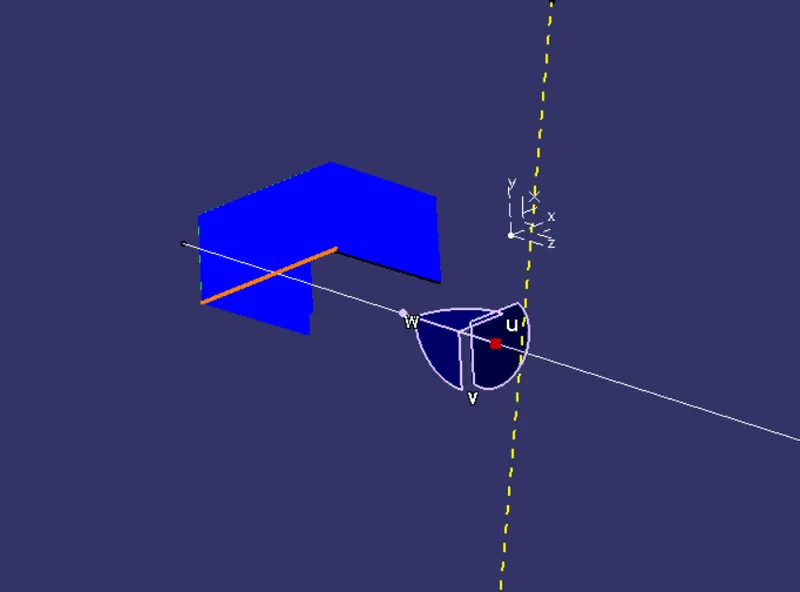

- Tooling Axis
- Side Core Axis
- Position of Screw Boss
