Week 9 - Attachment Feature Creation - Challenge 2

Draft Analysis

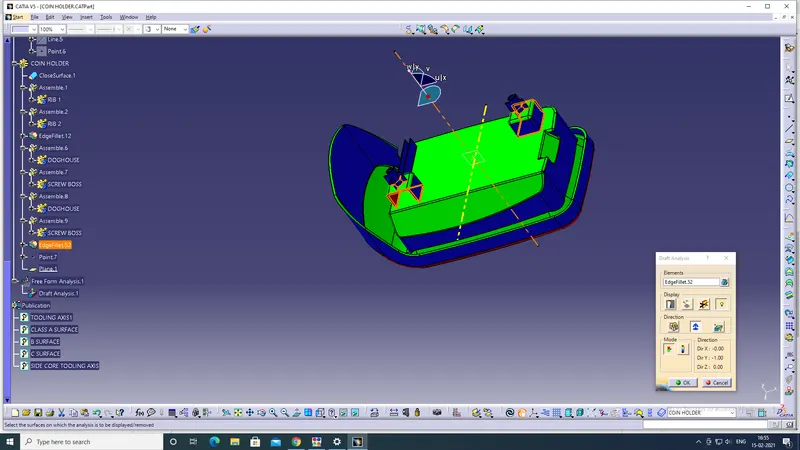

firstly main tooling axis is created by extracting the base and drwaing two lines and by intersecting the lines to form a bisecting line . this is taken as the main tooling axis. then a side core axis is created by point on the surace and creating a bisecting line by taking the side walls and creating an intersection line by which we can take the side core tooling axis. by this method the draft analysis is analysed. firstly the tooling direction is placed on the main tooling axis and the draft analysis is done. then draft analysis is done by placing the tooling direction on the side core axis
