Week 9 - Attachment Feature Creation - Challenge 2

TOOLING AXIS

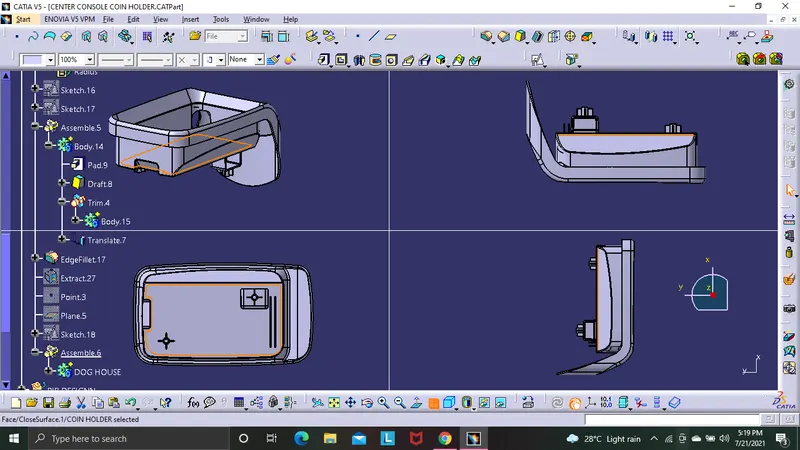

in thisn part the tooling axis is created by taking the extraxt of the base of the coin holder and place the poin on the center and thus the tooling axis in created

but for the dog houise the draft should be given in side to in another direction so an side core tooling axis is created along the direction of z

and thus the dogg house inside surface wall is drafter by the pulling direction along z direction

DRAFT ANALYSIS

after designing the dog house the analysis is made for detecting the errors at first the analysis is made for the outer surface of the wall and checked for the draft analysis and the minimum thicknesss given is 1.5

and the it is allowed to checked for the inside walll an d the draft is taken
