Week 9 - Attachment Feature Creation - Challenge 2

FORMATION OF CLASS B CREATION

1. first i tok a opint on the surface and then i took line using line directon.
2. then i extract the surface using multiple extract then i offset the surface then untrimed .
3. then extrapolate and trimed'
4. then i gave fillets using edge fillets.
5. then for sweep took a boundary of class a surface and sweep profile type line and draft direction guide curve boundary of class a surface draft direction class a surface angle 87 deg , length 5mm.

6. then i joind the class a surface and sweep.
7. after that i trimed join with class b suraface.

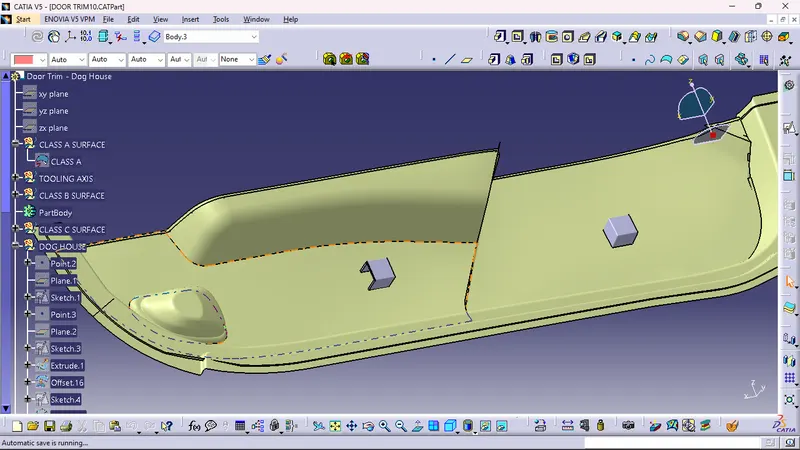

FORMATIN OF DOG HOUSE

1. took a point on the surface create a palne with the reference of a surface then positioned sketch
2. draw a center ractangle dimention it.
3. extrued the sketch or sweep the sketch.
4. the i took another palne from the same point for offseting the palne.
5. draw a another rectangle on the top using a multi section and trimed.
6. then i gave a fillet.
7. then using a thicking surface command and a solid body.
