Week 9 - Attachment Feature Creation - Challenge 2

1. For the Given Class A surface draft analysis is done on it.

2. By offsetting the Class B surface, the fillets which were failing were recreated.

3. Finally by using the reference to surface ot method/ by draft direction method there is a class C surface creation done.

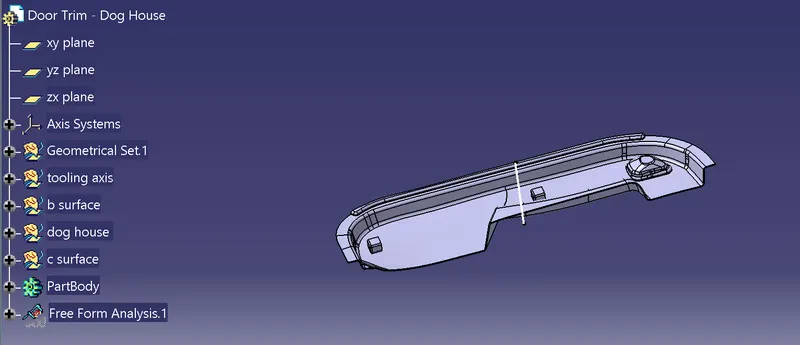

4. Finally its is converted to plastic part and draft analysis is done.
