Week 9 - Attachment Feature Creation - Challenge 2

AIM:

To create the Dog House for the Door Trim considering the design rules.

PROCEDURE:

CLASS A

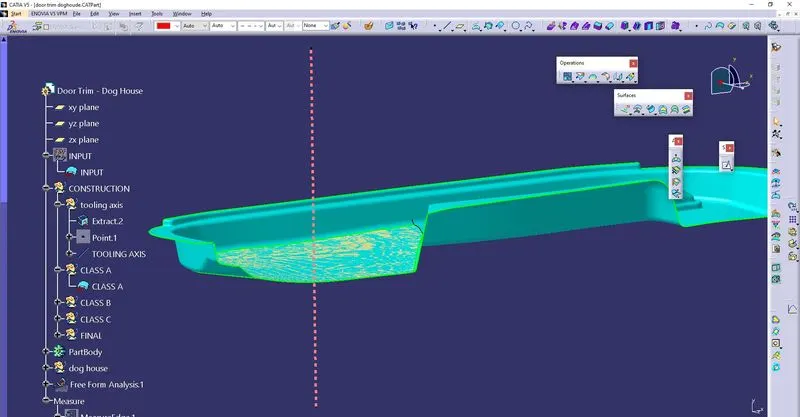

TOOLING AXIS:

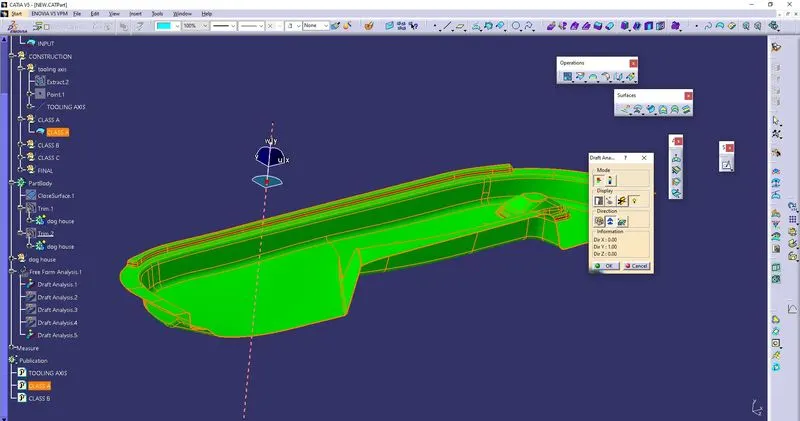

Class A draft analysis:

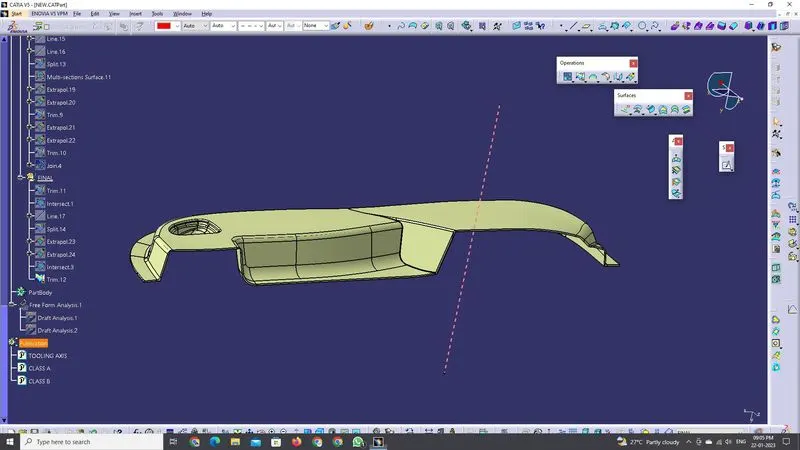

Class B:

Created Class B by off-setting class A and the missing patches are trimmed with a thickness of 2.5mm.

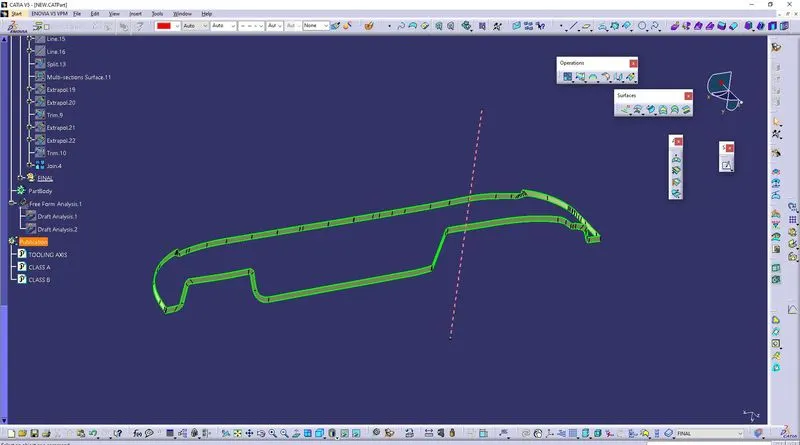

Class C: creating class c by sweep using class A with maintaining 3-degree respect to the tooling axis.

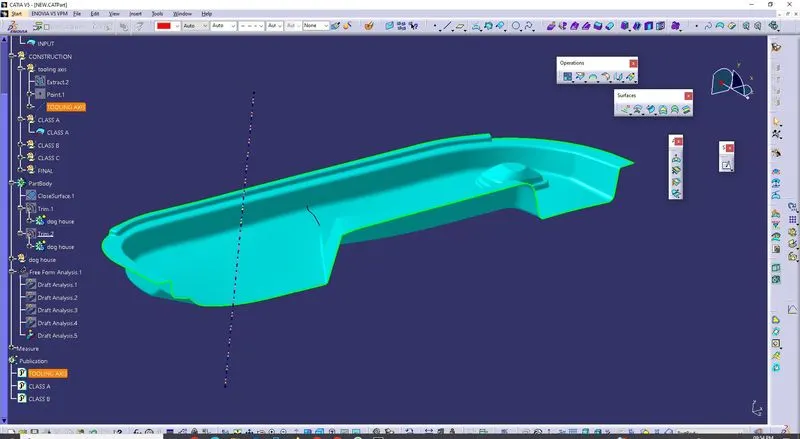

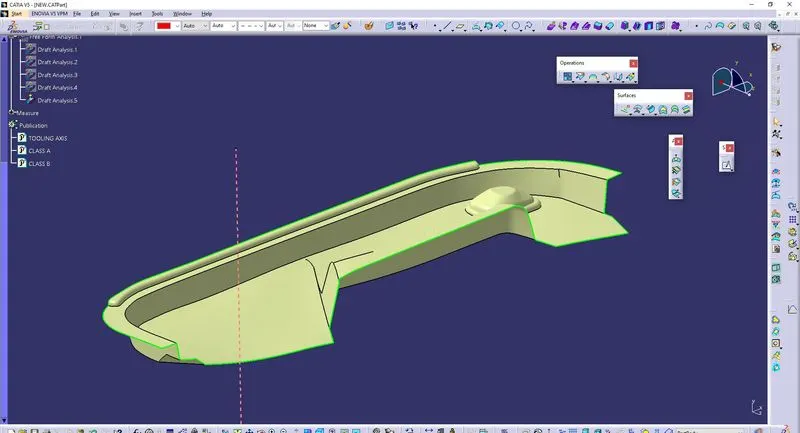

FINAL: CLOSED PART

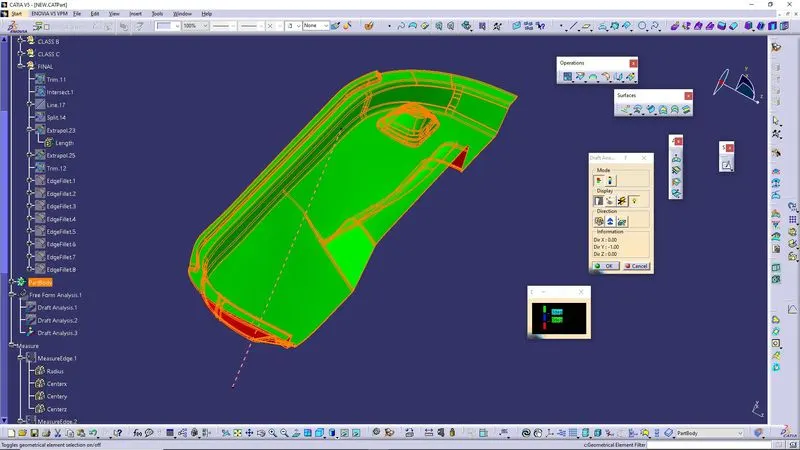

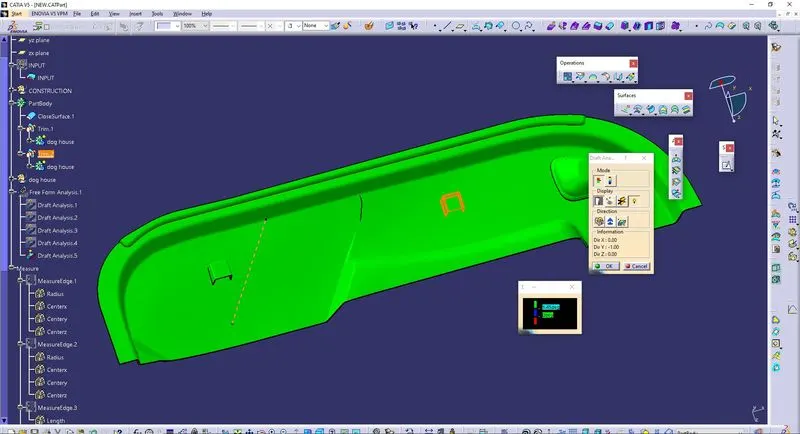

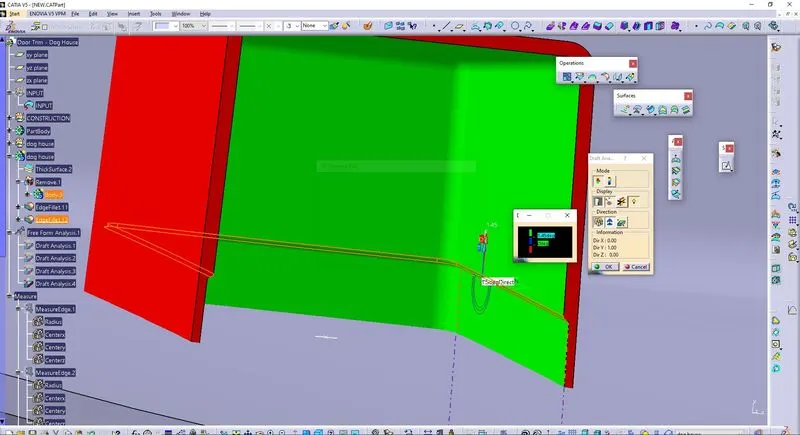

FINAL CLOSED SOLID PART WITH DRAFT ANALYSIS:

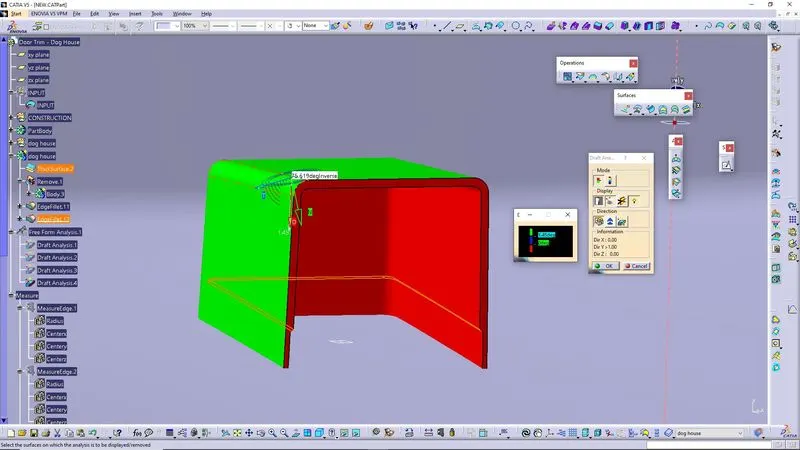

DOOG HOUSE FEATURE:

• Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).

• The height of ( B ) should be between 3.0 – 6.0 mm

RESULT:

THE DOG HOUSE FEATURE WAS CREATED AND THE DRAFT ANGLE WAS CHECKED.
