Week 9 - Attachment Feature Creation - Challenge 2

Create the Dog House for the Door Trim considering the design rules mentioned in the video. Consider the thickness of the part to be 2.5 mm.

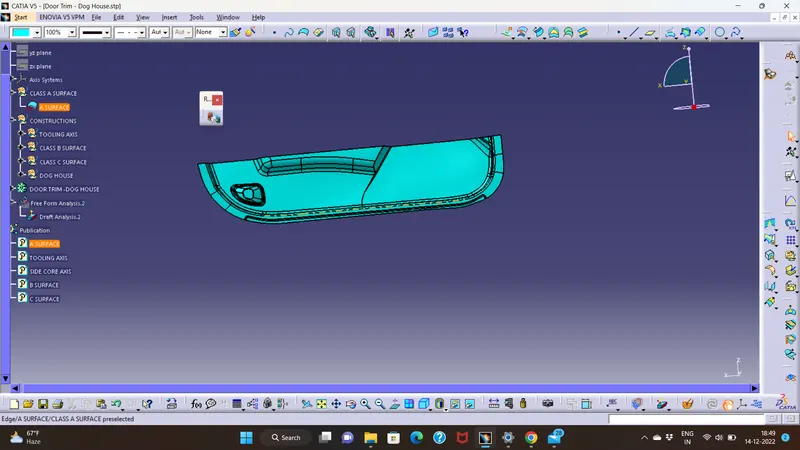

Given surface

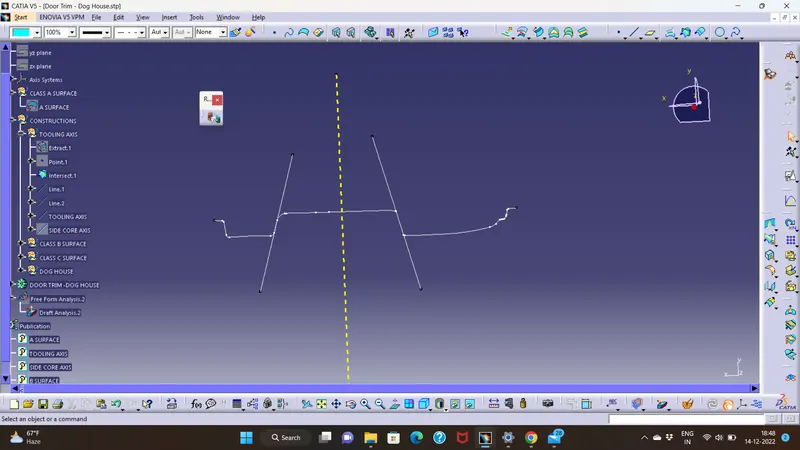

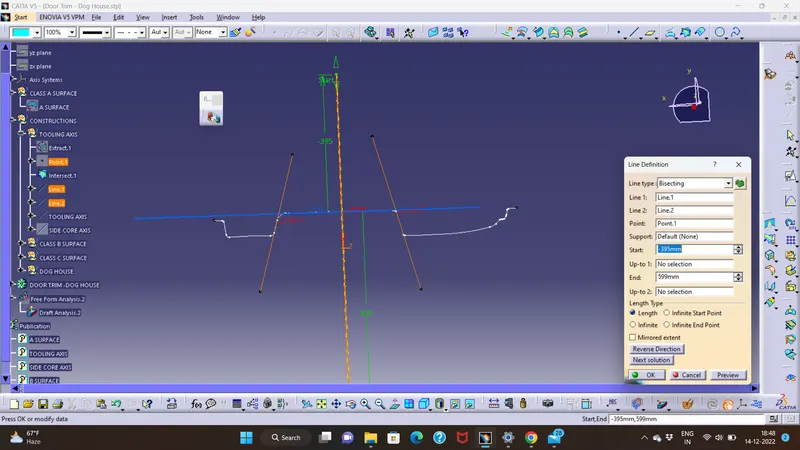

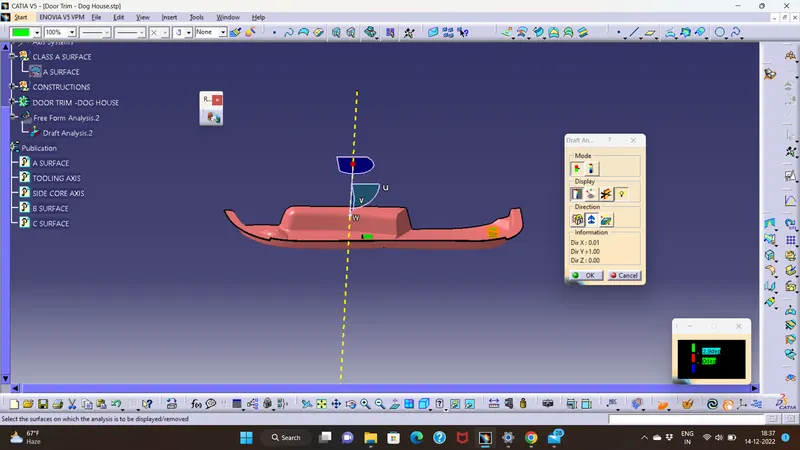

Create tooling axis

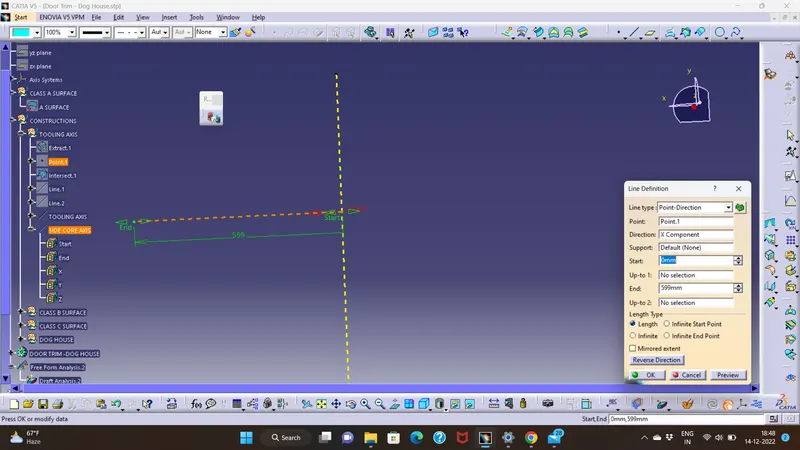

side core axis

b surface

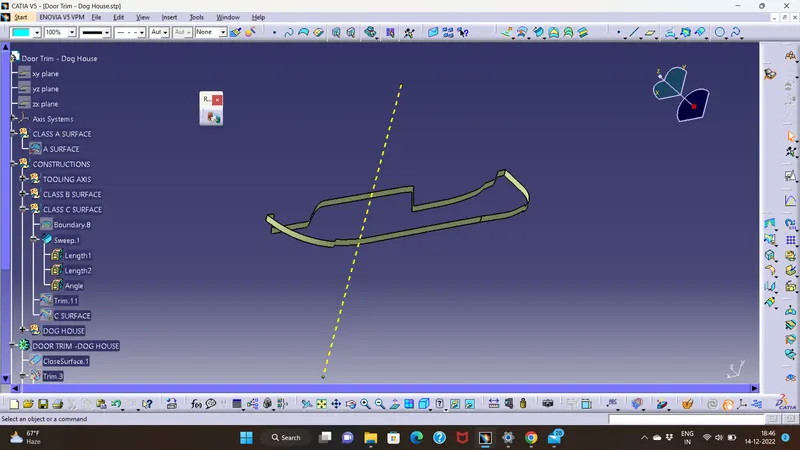

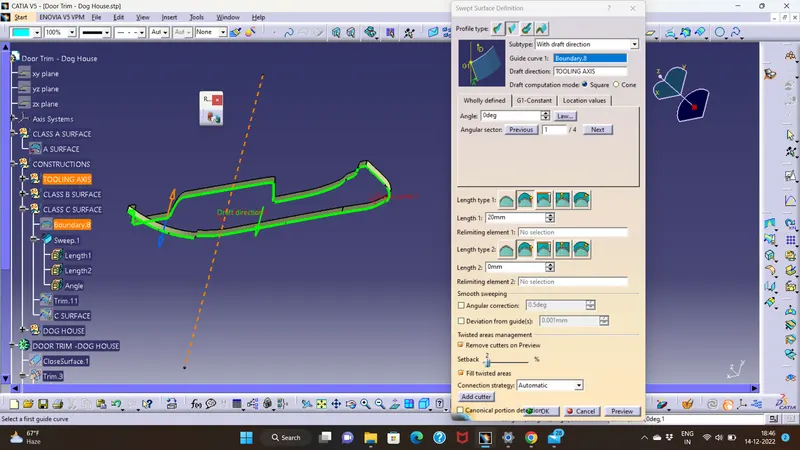

c surface

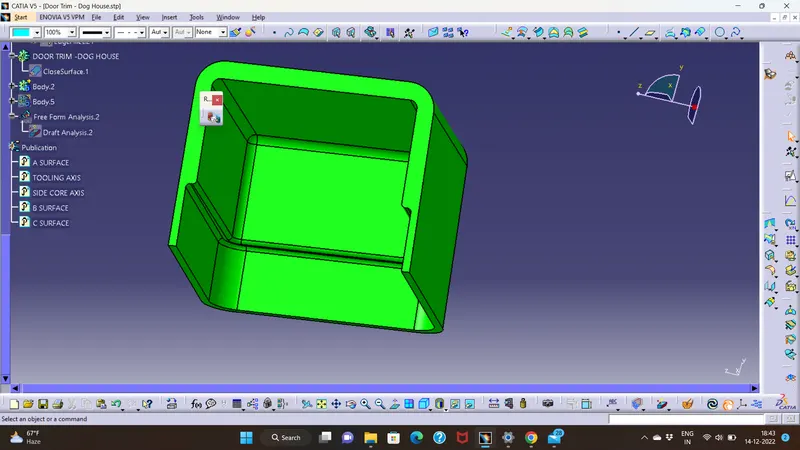

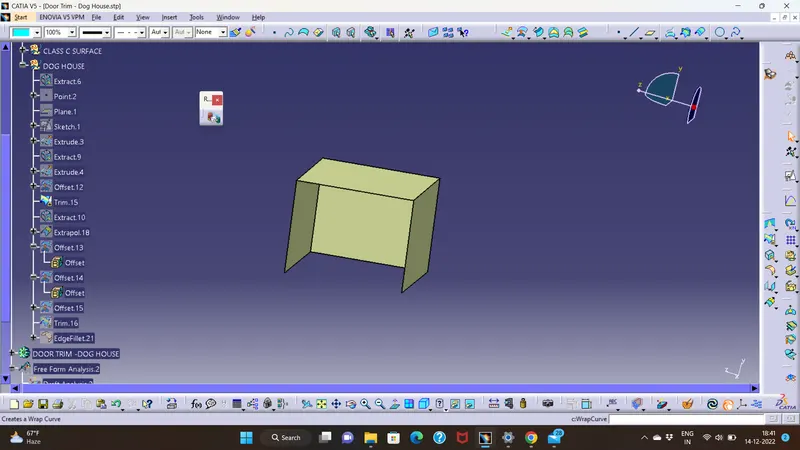

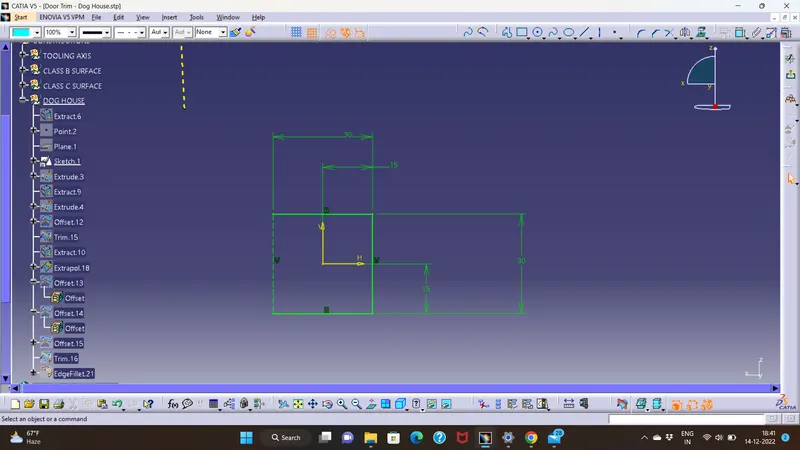

create dog douse

use thikness 2.5mm

draft 0.5

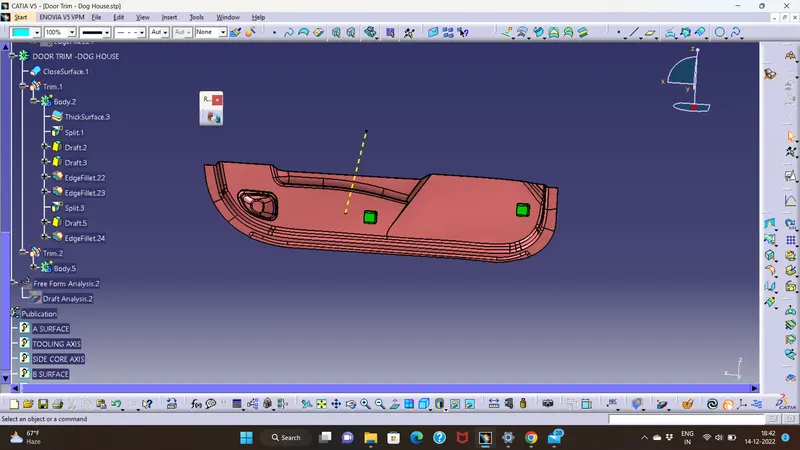

inner side fillets 1mm & 0.25

outer side fillets 3mm

inner side cuts 1.5mm

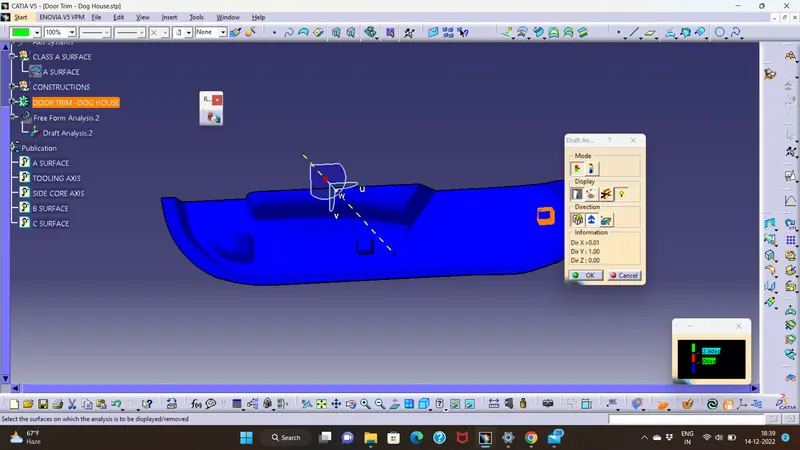

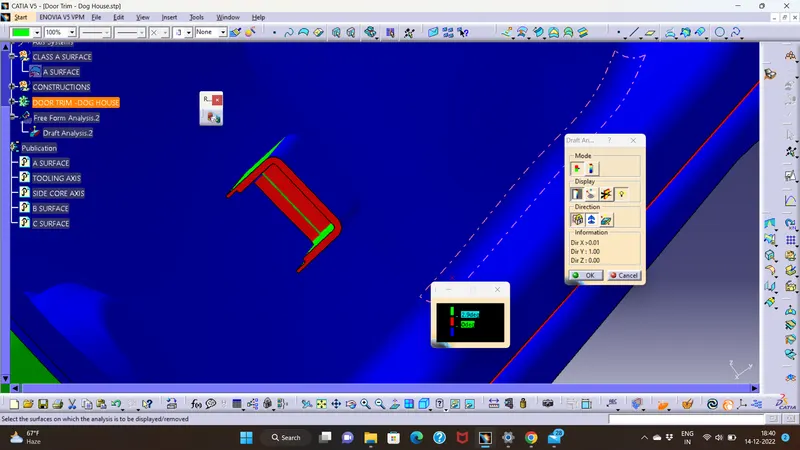

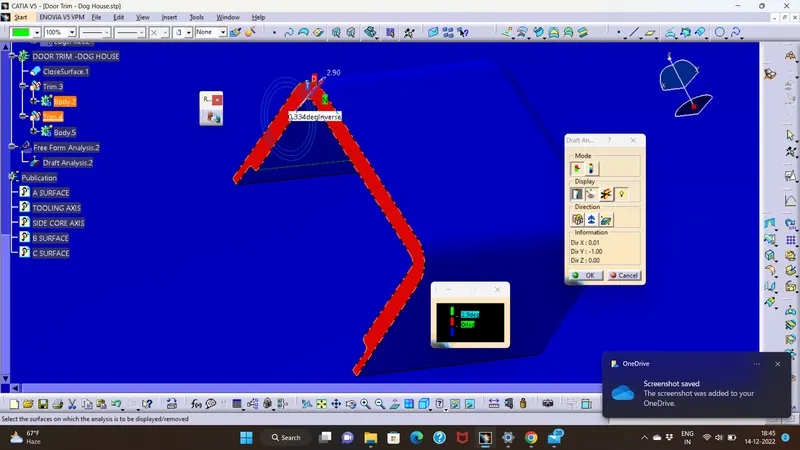

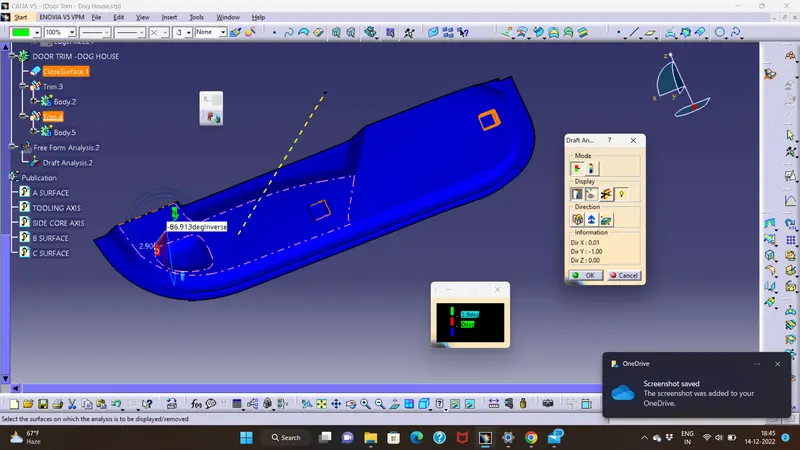

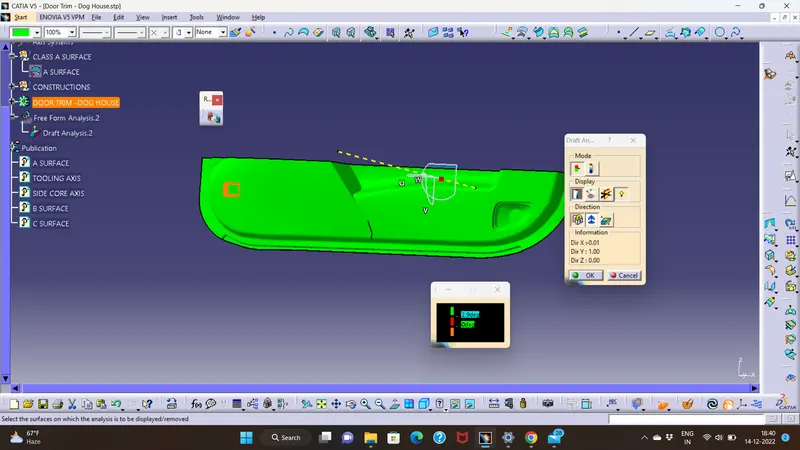

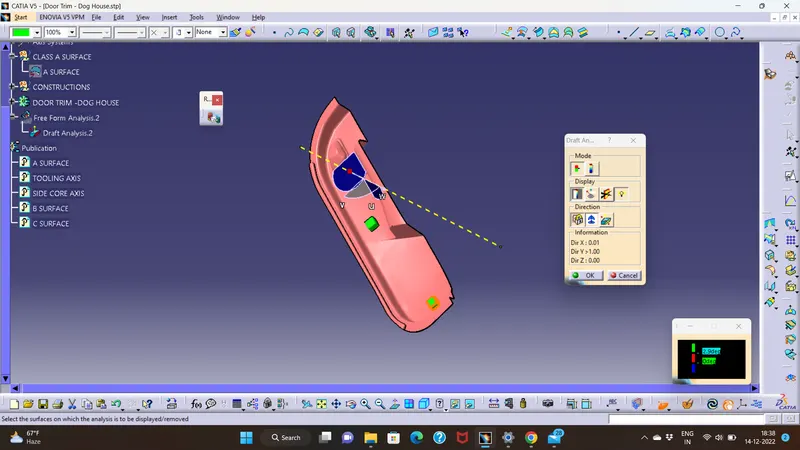

draft analysis

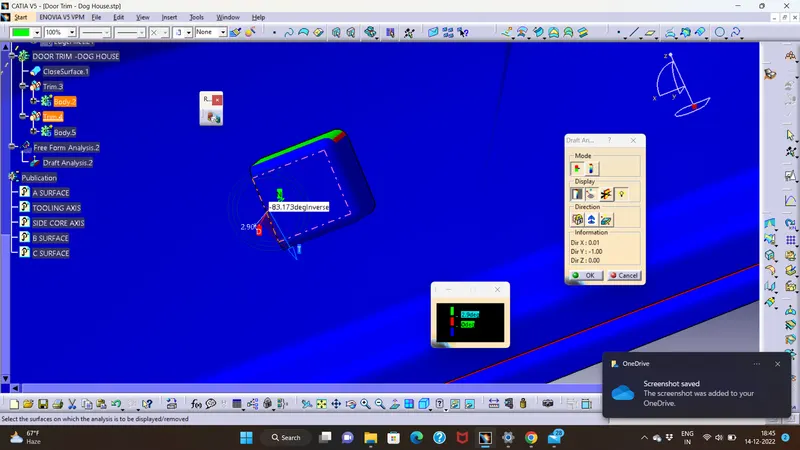

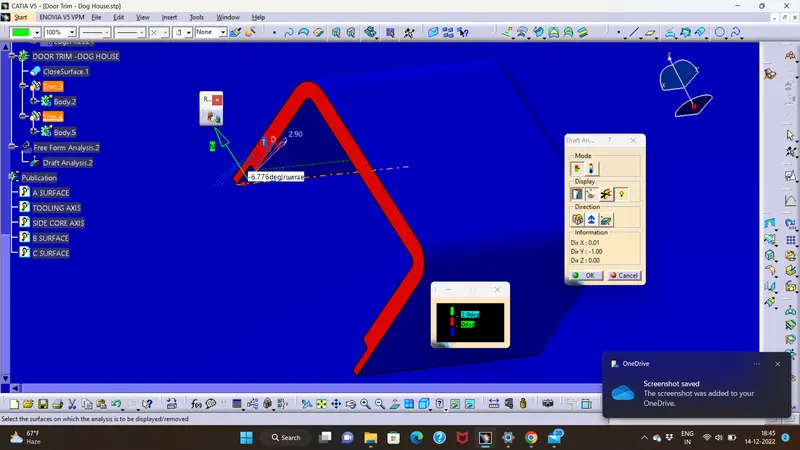

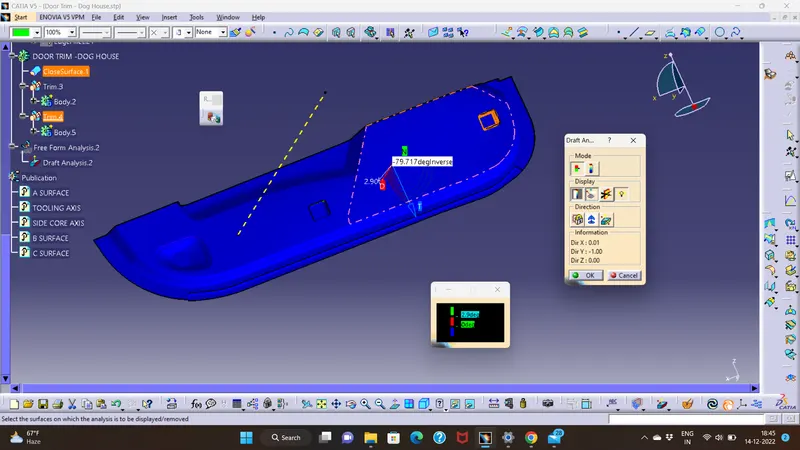

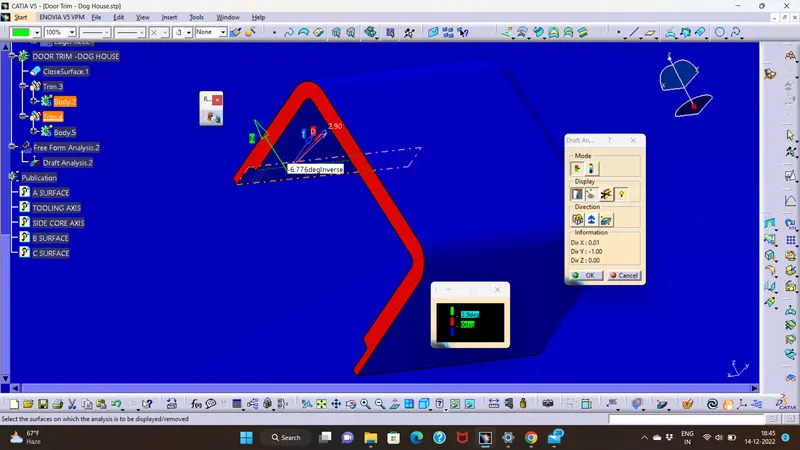

draft angels

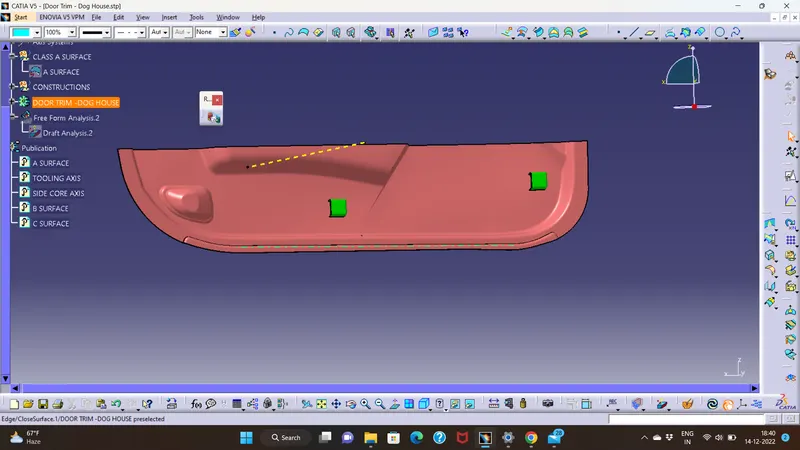

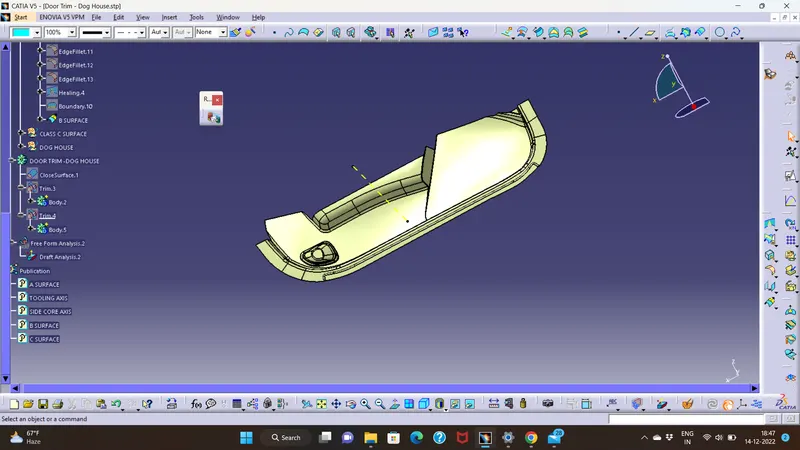

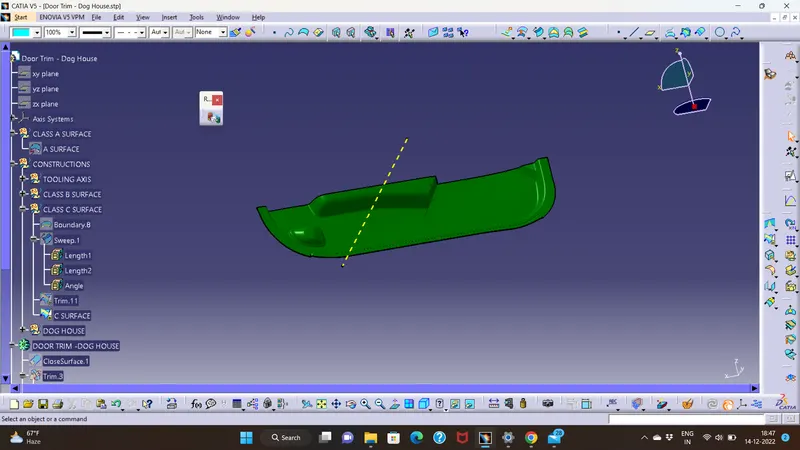

complete surface
