Week 9 - Attachment Feature Creation - Challenge 2

AIM

Create the Dog House for the Door Trim considering the design rules mentioned in the video. Consider the thickness of the part to be 2.5 mm.

TOOLING AXIS FOR CLASS A SURFACE

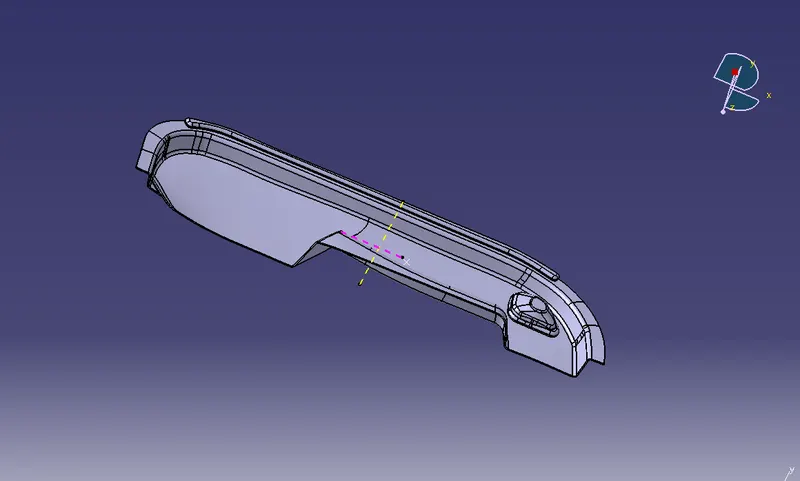

To create the tooling axis examine the class A surface .Then consider y direction is suitable for creating the tooling axis because in ths direction we have projected profile and most of the surfaces clearing along this direction . Generally tooling axis is created using bisecting line method but here A line created normal to the surface in the y direction and considered as the main tooling axis.

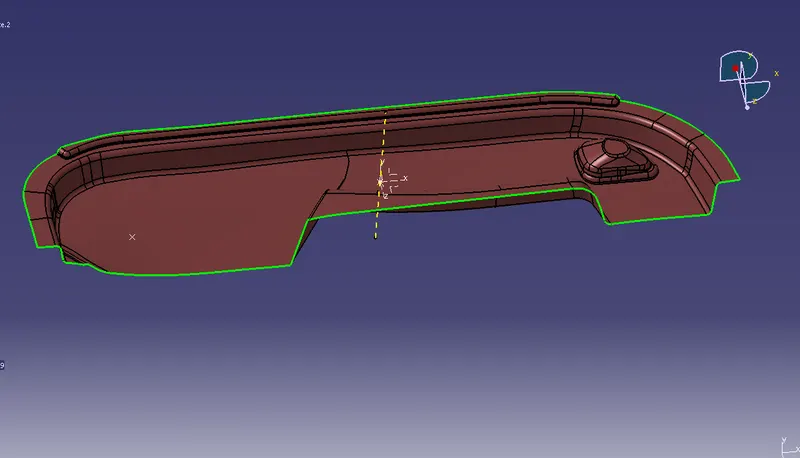

fig.1. Tooling axis

DRAFT ANALYSIS OF CLASS A SURFACE

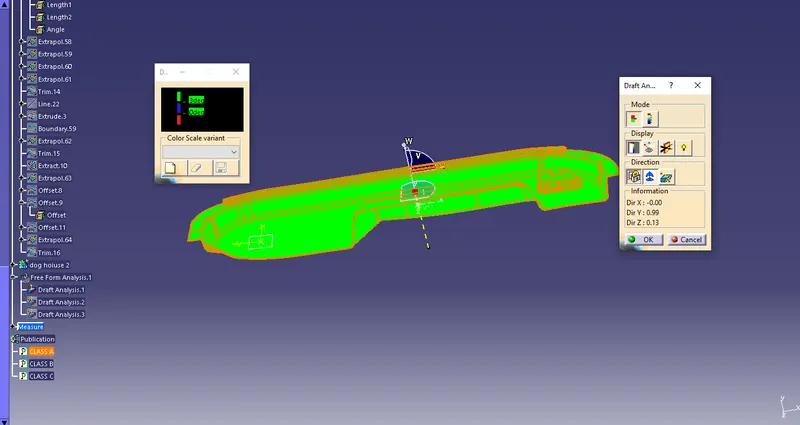

draft analysis performed on the given class A surface along the main tooling direction to check the minimum draft angle 3 degree on all surfaces. Here some areas on the class A surface not clearing the draft because some errors in class A surface .

fig.2 draft analysis of classs A surface

CLASS B SURFACE

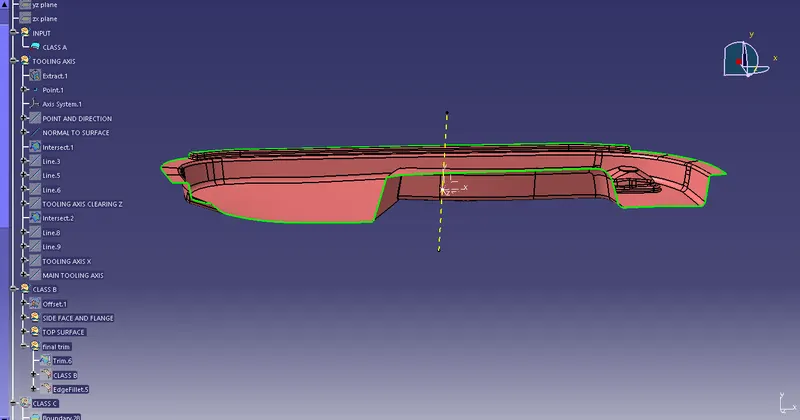

Class B surface is created by offseting the classs A surface and patches filled .class B surface shown in fig .3.

fig .3.class B surface

CLASS C SURFACE

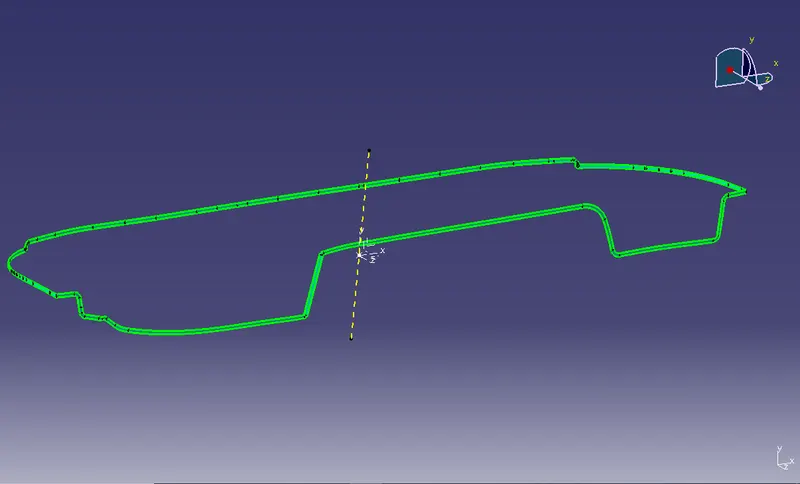

Class C surface created by using class A surface as a reference for sweep with reference surface operation .The guide curve is boundary of the class A surface .

fig.4.Class C surface

Then join class A surface with class C surface and finally trim with class B surface to get a closed body .finally close surface tool used to create the solid body.

fig.5. solid body

DOGHOUSE DESIGN

design consideration

"C" is where the doghouse contacts the backside of the surface

• Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).

• The height of ( B ) should be between 3.0 – 6.0 mm

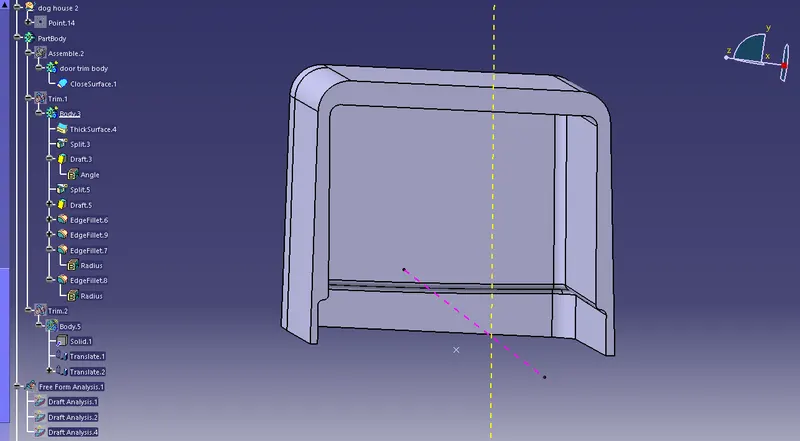

fig.6. doghouse

doghouse created by considering the design rules .height of b is between 3-6 mm .doghouse wall thickness at the intersion is 0.7mm which is less than 40% of main wall thickness.

DRAFT ANALYSIS OF DOGHOUSE

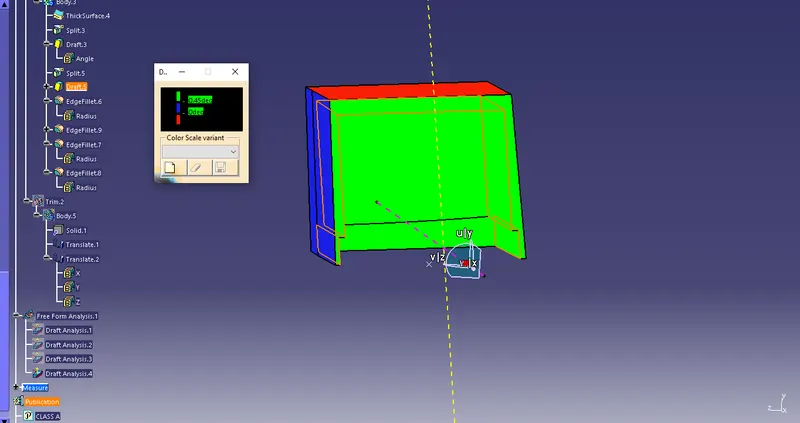

draft analysis is performed on the doghouse along main tooling axis direction to check the doghouse has minimum draft angle 1.5 degree on the outer surfaces.here the doghouse has minimum draft shown in fig.7

fig.7. draf analysis along main tooling axis

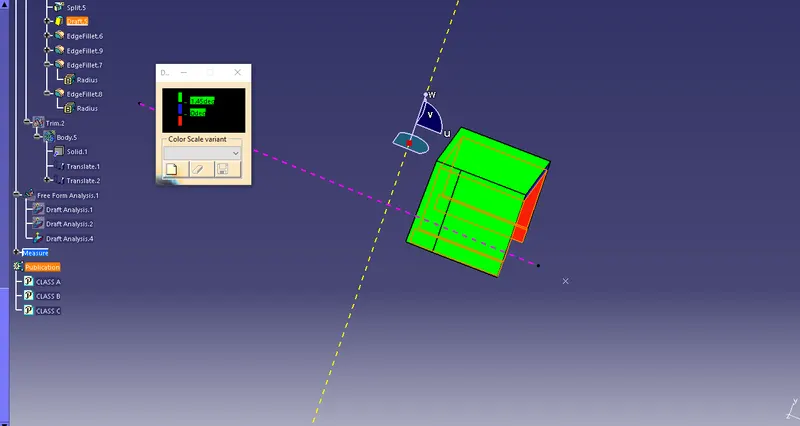

Then repeat the draft analysis to check the daft of inside surfaces of dog house using sidecore axis .side core axis created in the X direction .here the doghouse has minimum dafrt 0.5 degree .

fig.8. draft analysis along side core axis

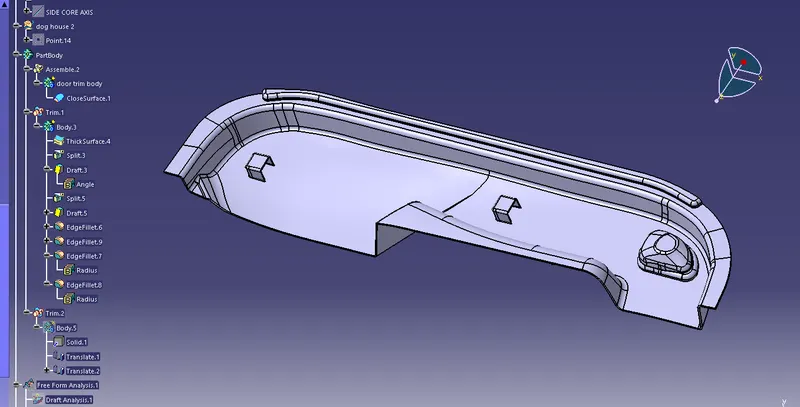

fig.9. door trim with doghouse

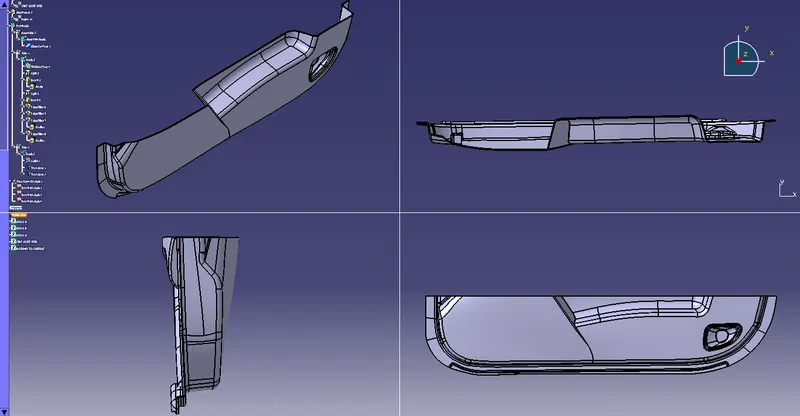

fig.10.different views

CONCLUSION

The Dog House for the Door Trim Created successfully
