Week 9 - Attachment Feature Creation - Challenge 1

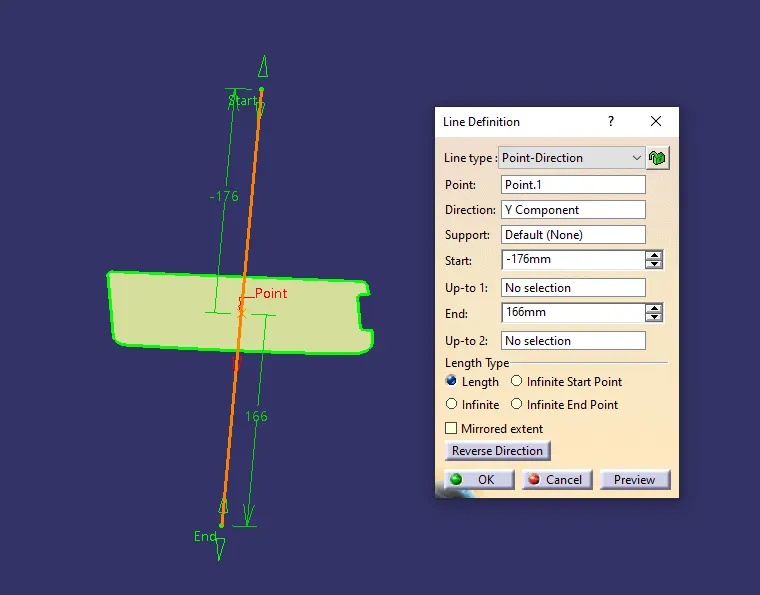

Tooling Axis creation :

• Extract the base surface.
• Create point on the middle sufrace.
• On that point create a line and name it as Tooling Axis.

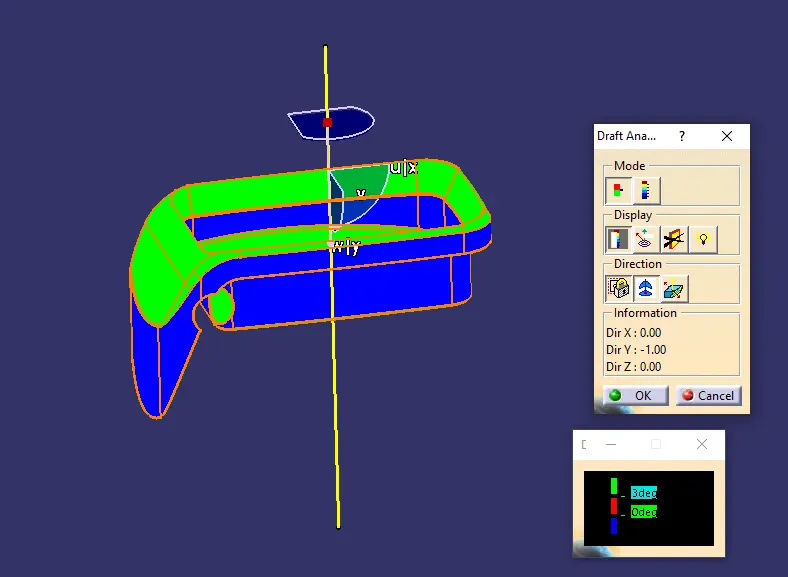

Draft Analysis :

• In Drafting Analysis first have to check the given class A Surface joined r not.
• Next create a tooling axis as explained above.
• Go to instert>>Analysis>>Feature draft analysis.
• Make sure that in customize view parameters command in shading it has to be in material status.
• Now drag the red coloured point on the compass to match the tooling axis which we have created.
• Then click on the lock icon under the display command and a point will appear on your screen and top the point on the surface of the fan cover.
• Change angle degree to 3 Degrees and lick on ok.

Tooling Axis :

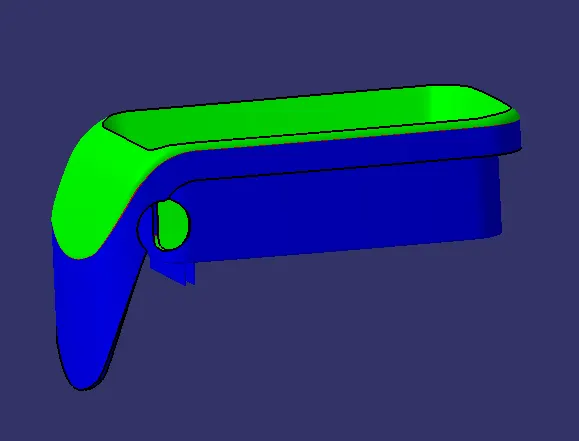

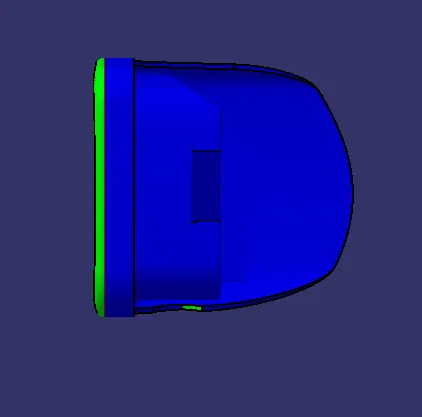

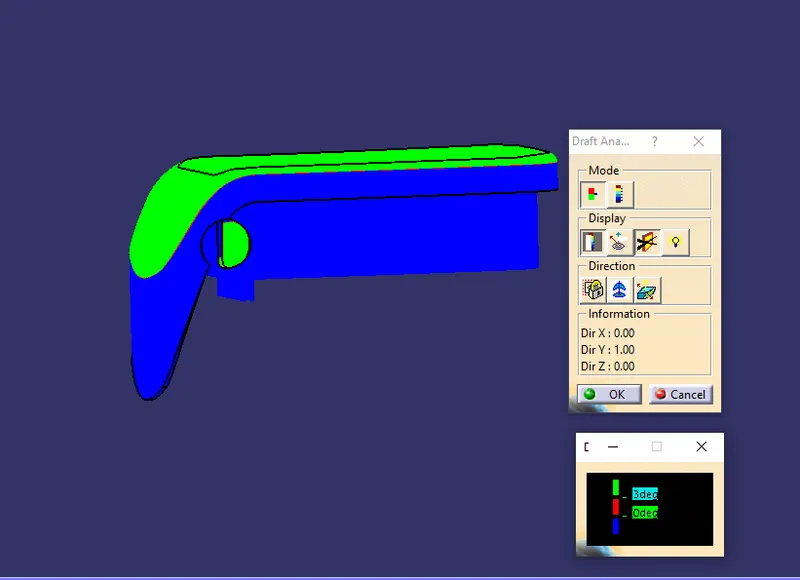

Draft analysis :

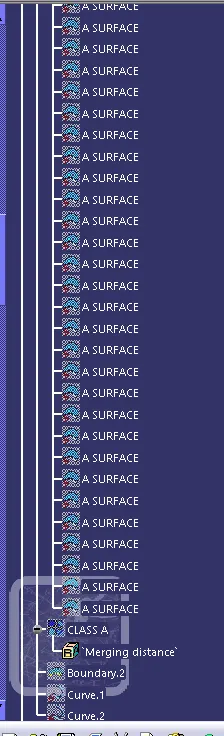

Class A-surface

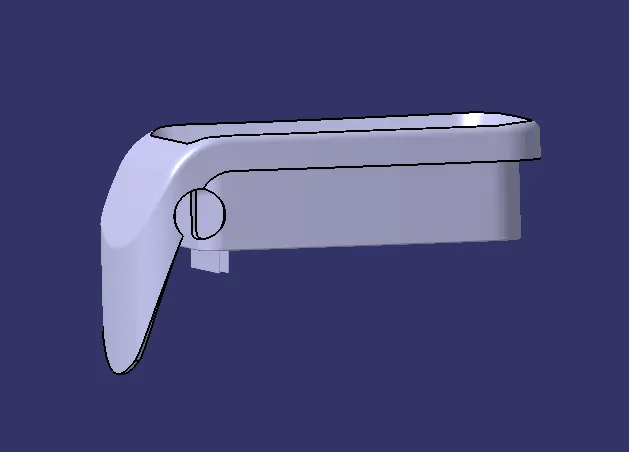

Final Component with Rib :

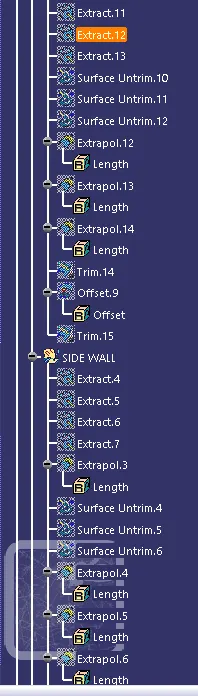

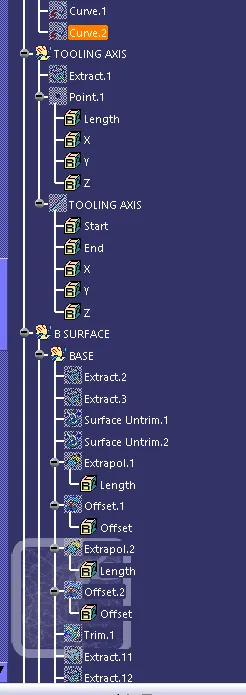

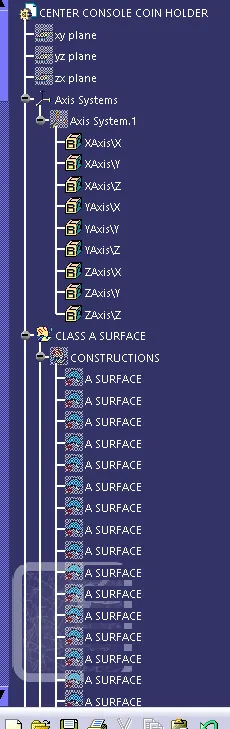

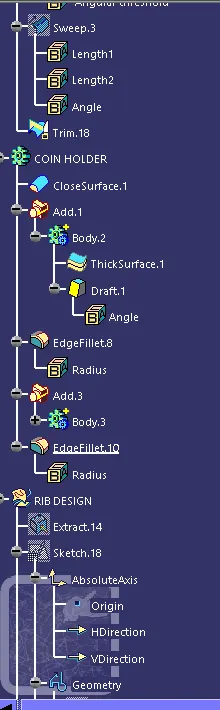

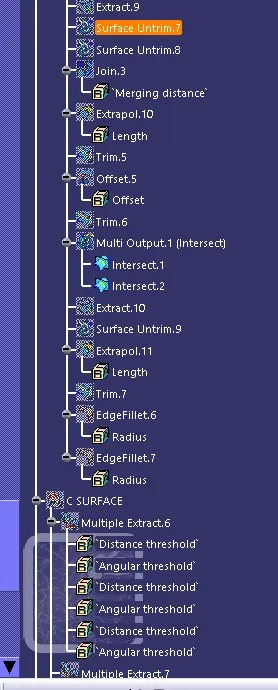

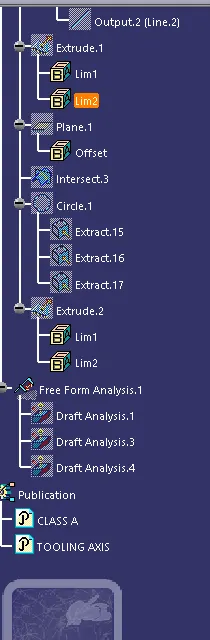

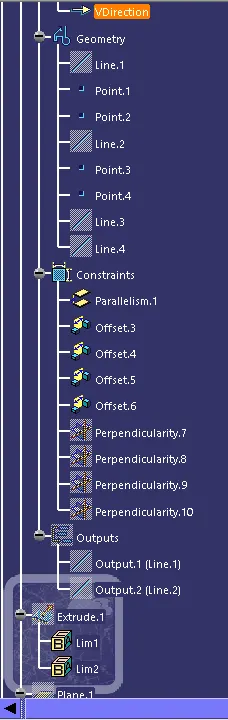

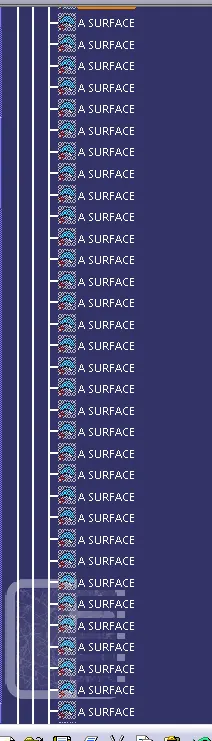

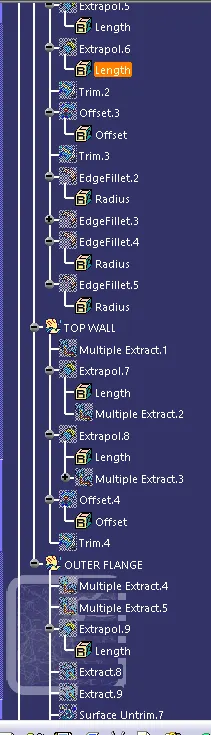

Tree Structure :

Views :

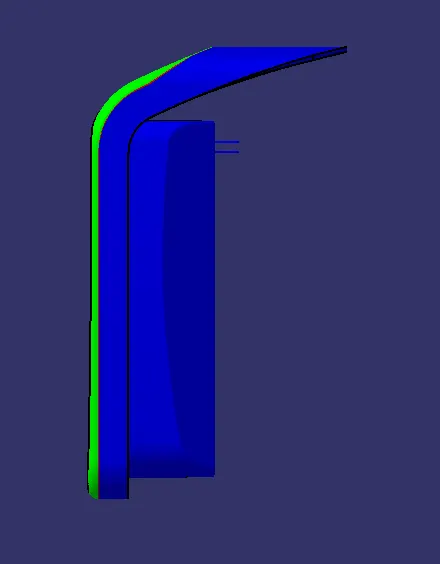

Isometric View

Front View

Side View

Top View
