Week 9 - Attachment Feature Creation - Challenge 1

Aim

To create an out featured rib on the center
console coin holder.
Procedure
Firstly open the coin holder using the open

rib-

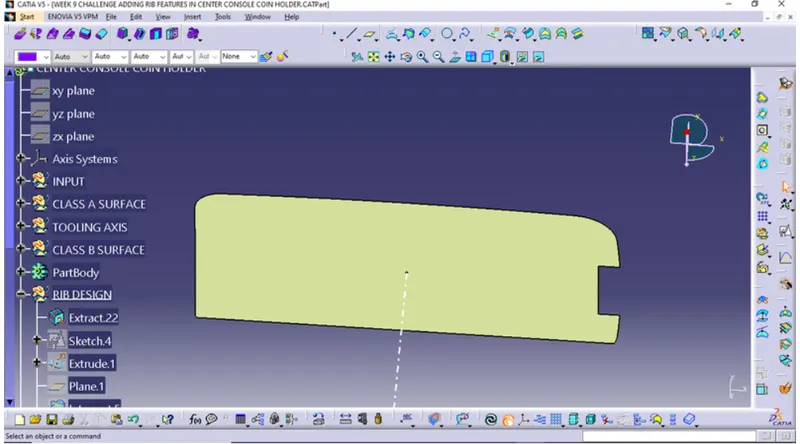

To create a rib first extract the base surface of the coin holder.

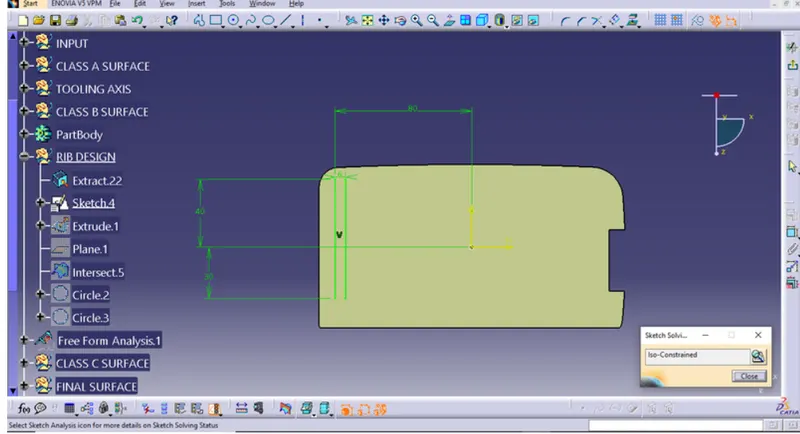

Create a positioning sketch draw a line, constraint it, and define it as an output

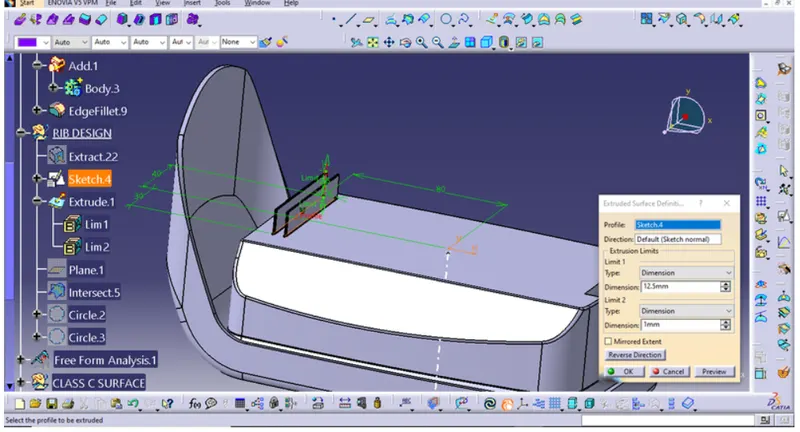

Extrude the output line using extrude
CLASS C SURFACE
Go to part design, create a part body and assign thickness to the extruded line.
Draft the thickened rib with an angle of 0.5

deg.
After drafting, measure that the top surface is greater than 0.75mm.

Now give the fillets to the edges of 0.25mm all
Assemble the rib body with a coin holder.

Similarly, create another rib with a distance of 2:1 ratio to the created rib.

Using formula

Y/X=2 (as per preference from the video)

Height of rib Y= 12.5

Distance between ribs X=?

X=12.5/2

Y=6.25

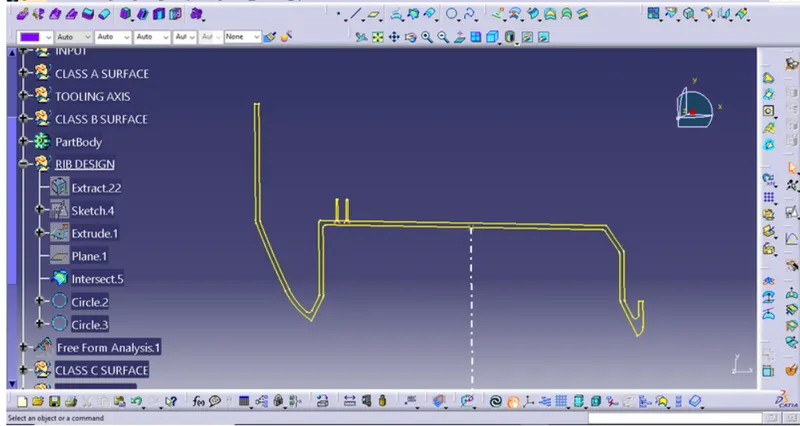

Now create an intersection using a YX plane to determine the rib root thickness.

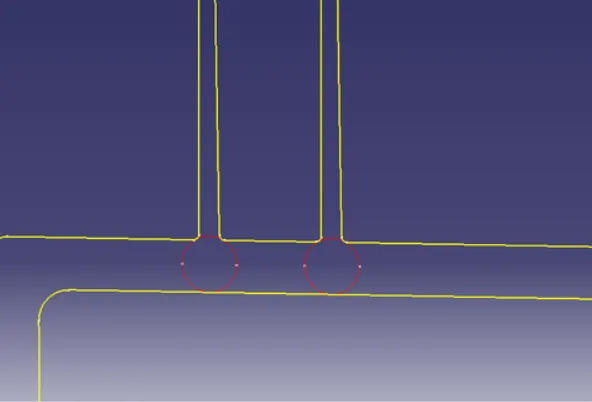

Create a tangent circle by selecting the

extracted curves and line.

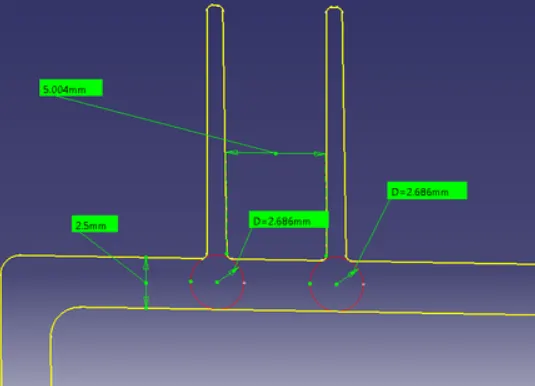

By using a measuring tool to measure the

distance, height, and thickness.
Draft analysis

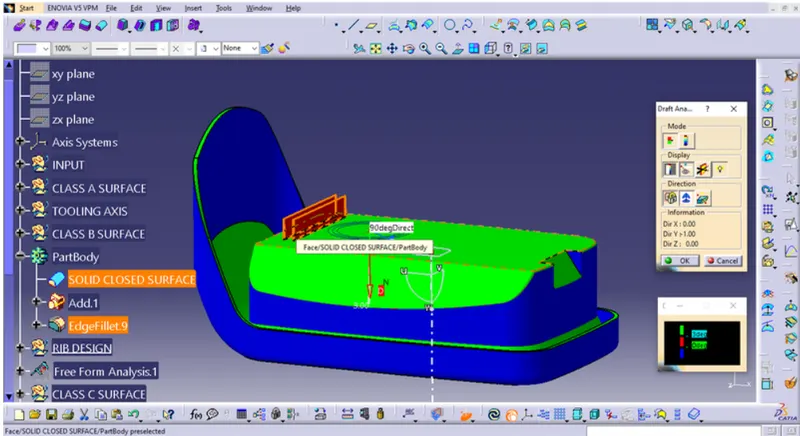

After the outer features ribs are created go to insert select analysis and click on feature draft analysis.

Select the compass and position it on the

tooling axis.

Click on the body to see the color scale.
Result

The outer features ribs have been created.
