Week 9 - Attachment Feature Creation - Challenge 1

Thickness of wall = 2.5 mm

Hence,

Thickness of Rib = 40% o T = 0.4* 2.5 = 1 mm

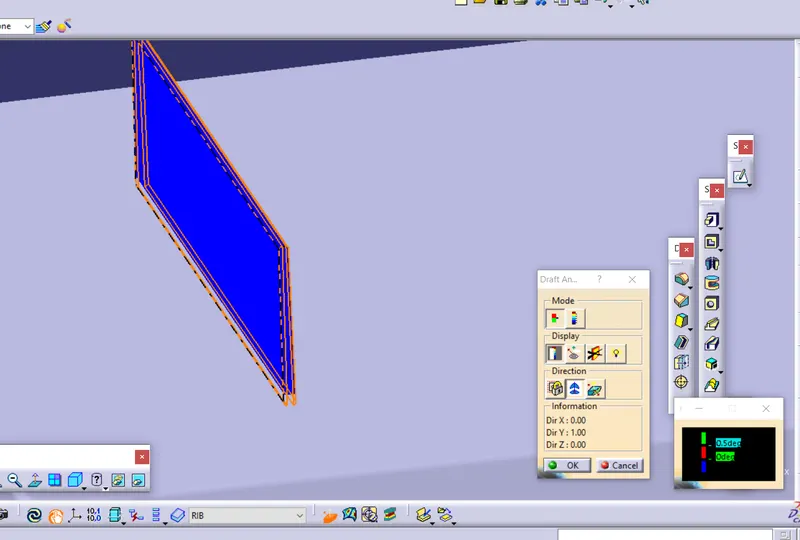

Draft = 0.5 degree along Tooling Axis

Height = 5 * T = 5*2.5 = 12.5 mm

Minimum thickness at tip = 0.75mm

Fillet Radius = 0.25 mm

Root Thickness = 1.3 * T =1.3 * 2.5 = 3.25 maximum

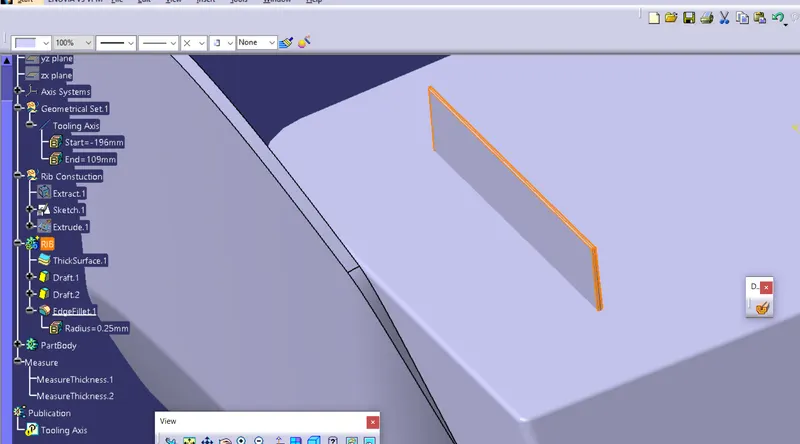

RIB CREATED AS PER DESIGN RULES:

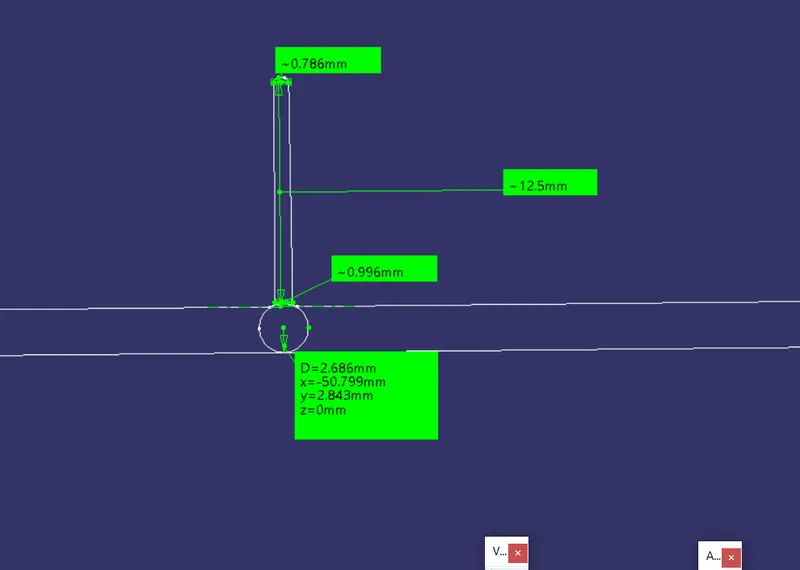

Verifiction of RIB dimensio:
