Week 9 - Attachment Feature Creation - Challenge 1

AIM-

To create an out featured rib on the centre console coin holder

PROCEDURE-

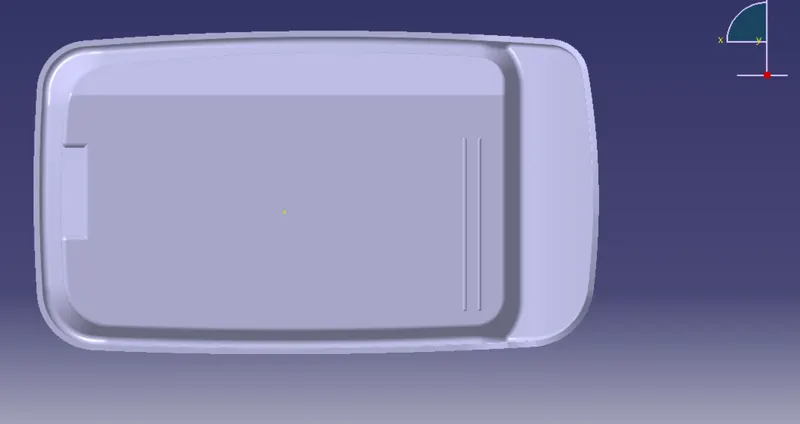

Firstly open the coin holder using the open command

RIB-

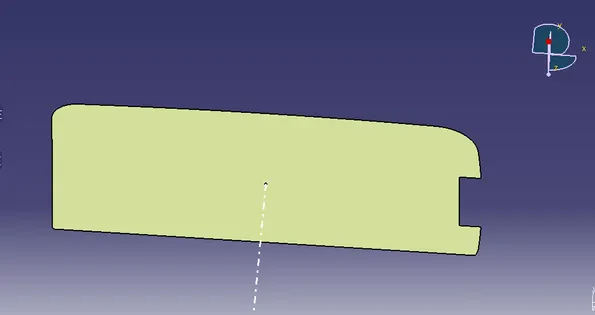

To create a rib first extract the base surface of the coin holder

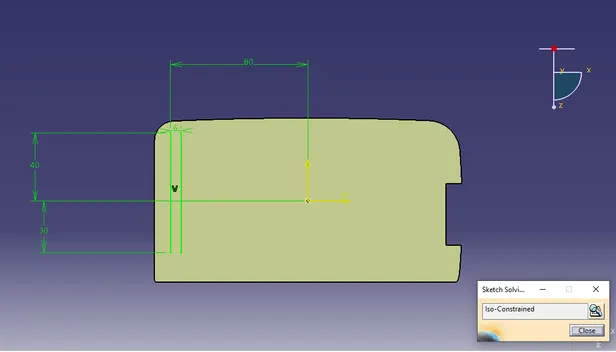

CREATE POSITION SKETCH DRAW A LINE , CONSTRAINT IT AND DEFINE IT AS AN OUTPUT FEATURE

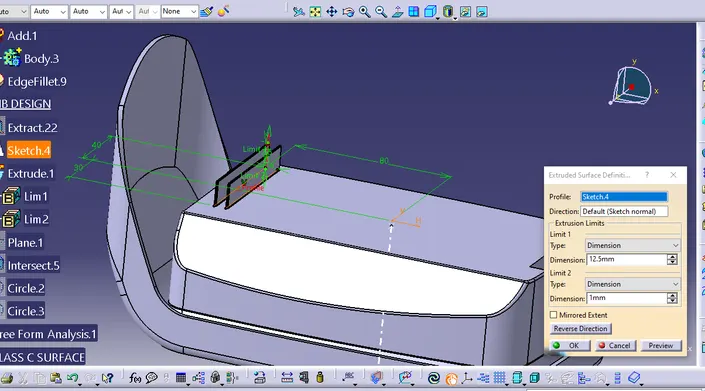

EXTRUDE THE OUTPUT LINE USING EXTRUDE COMMAND

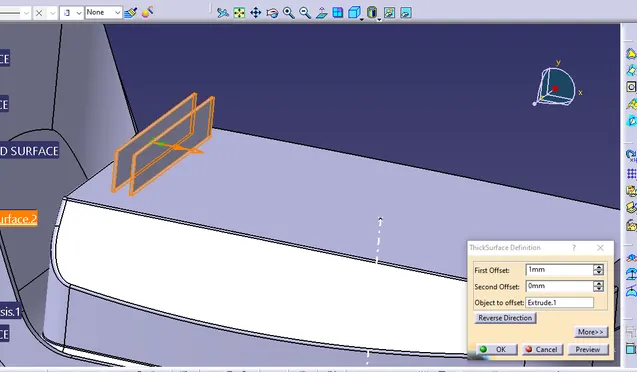

GO TO PART DESIGN CREATE A PART BODY AND ASSIGN thickness to the extruded line

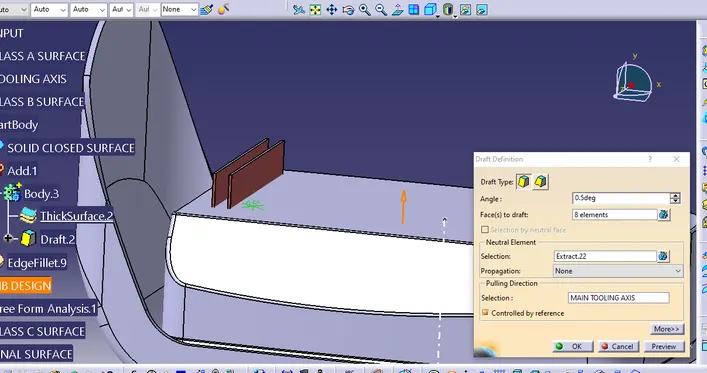

DRAFT THE THICKENED RIB WITH AN ANGLE OF 0.5 DEG.

AFTER DRAFTING MEASURE THAT THE TOP SURFACE IS GREATER THAN 0.75MM

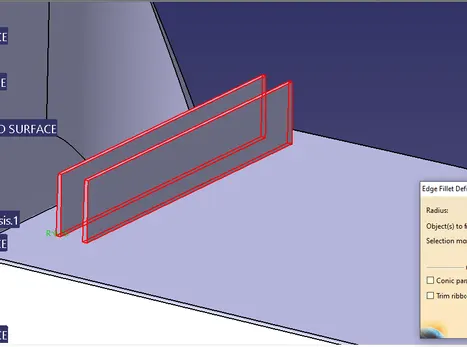

NOW GIVE THE FILLETS TO THE EDGES OF 0.25MM ALL SIDES.

ASSEMBLE THE RIOB BODY WITH COIN HOLDER

SIMILLARLY CREATE ANOTHER RIB WITH A DISTANCE OF 2:1 RATIO THE CREATED RIB

USING FORMULA

Y/X = 2

HEIGHT OF RIB Y = 12.5

DISTANCE BETWEEN RIBS X=?

X=12.5/2

Y=6.25

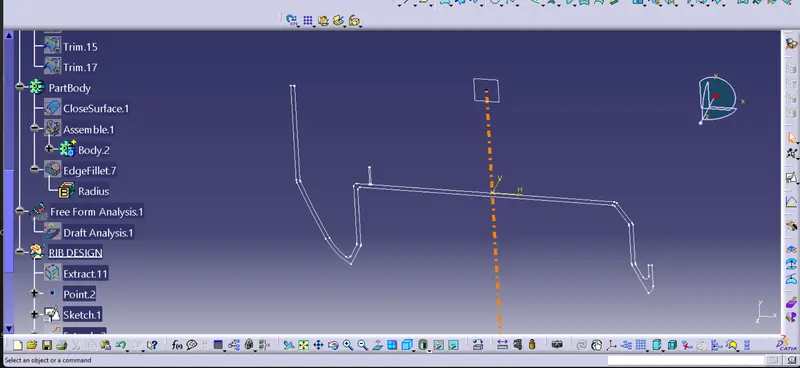

NOW CREATE AN INTERSECTION USING A YX PLANE TO DETERMINE THE RIB ROOT THICKNESS.

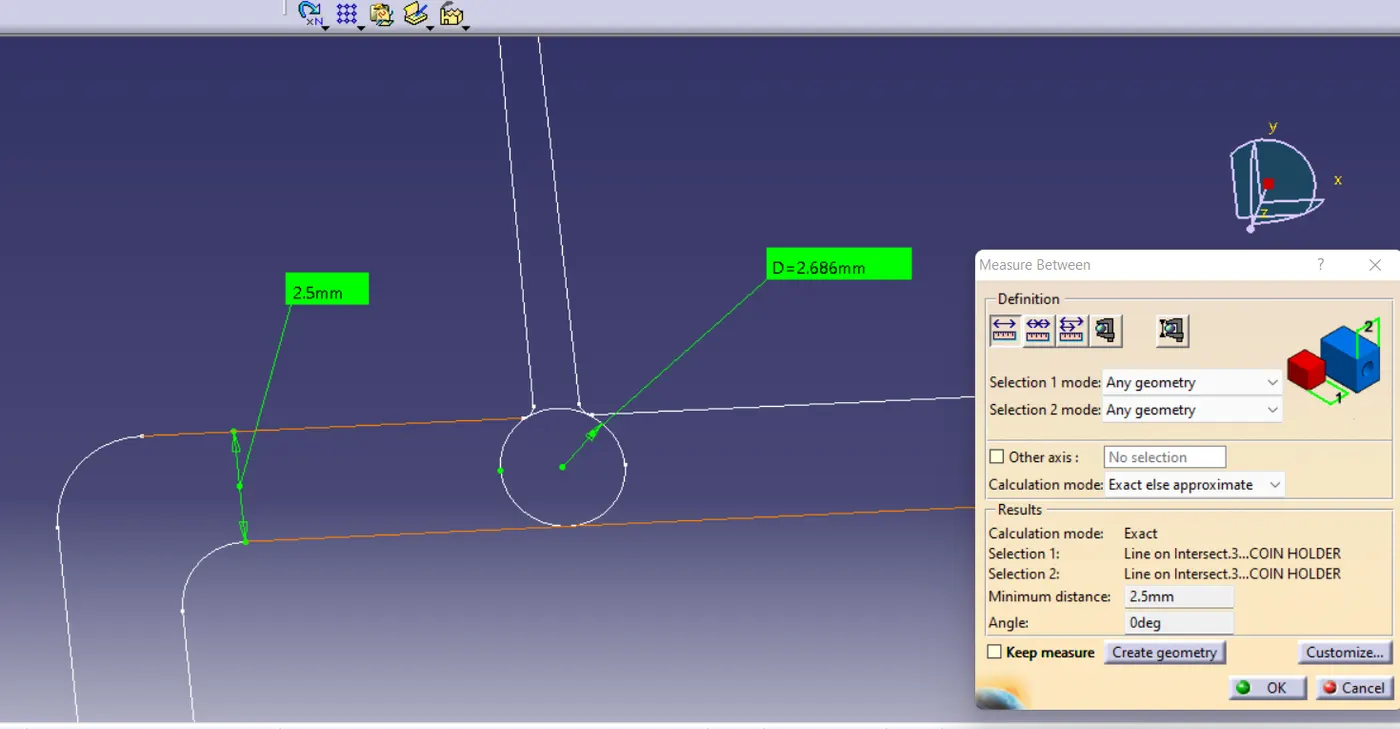

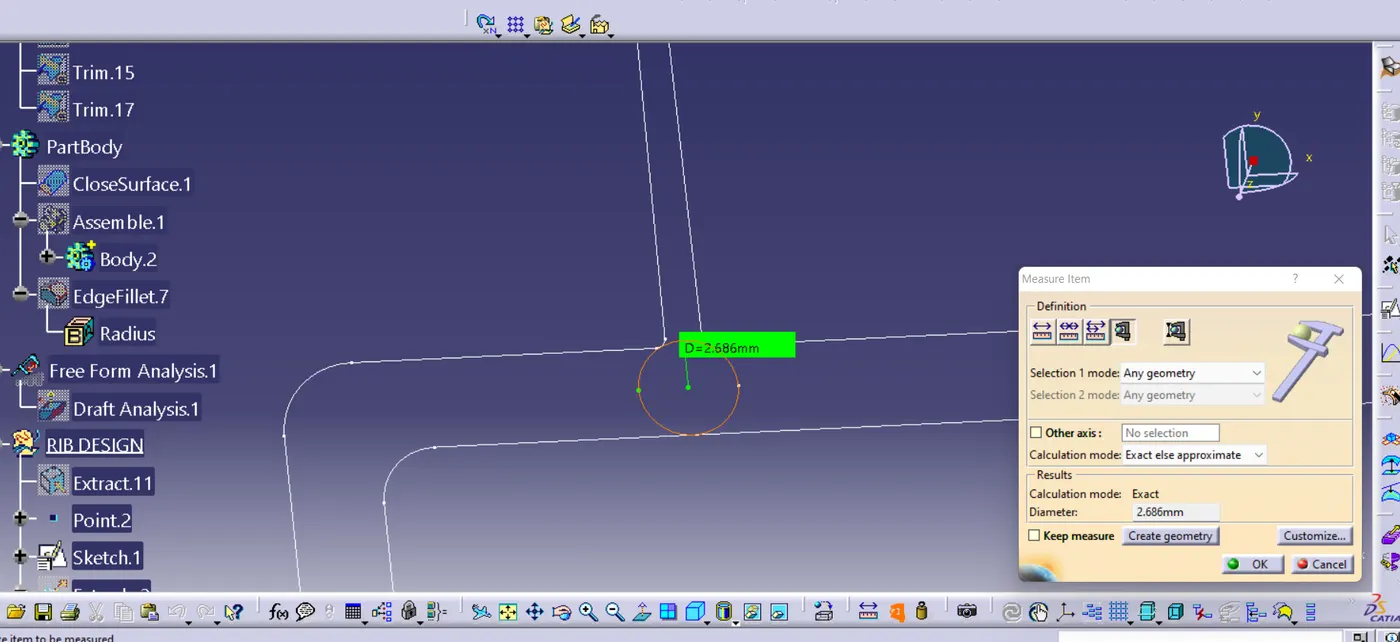

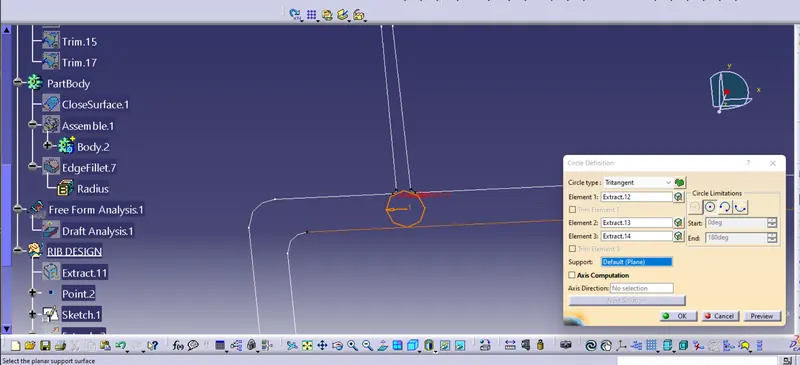

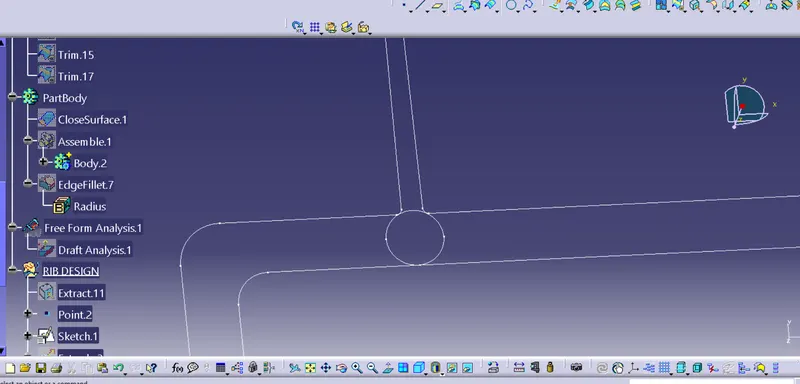

CREATE A TRITANGENT CIRCLE BY SELECTION THE EXTRACTED CURVES AND LINE

BY USING MEASURING TOOL MEASURE THE DISTANCE HEIGHT AND THICKNESS

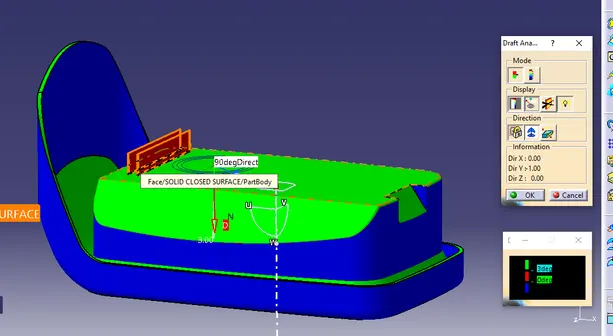

DRAFT ANALYSIS

ATFER THE OUTER FEATURES RIBS ARE CREATED GO TO INSERT SELECT ANALYSIS AND CLICK ON FEATURE DRAFT ANALYSIS

SELECT ON THE COMPASS AND POSITION ON THE TOOLING AXIS

CLICK THE BODY TO SEE COLOUR SCALE.

RESULT

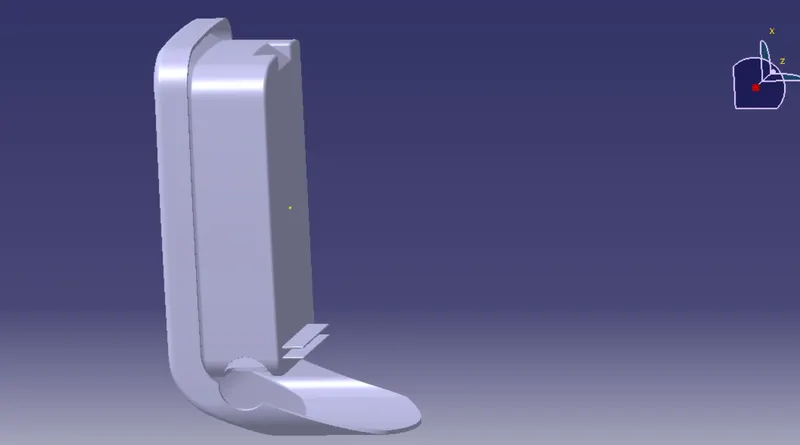

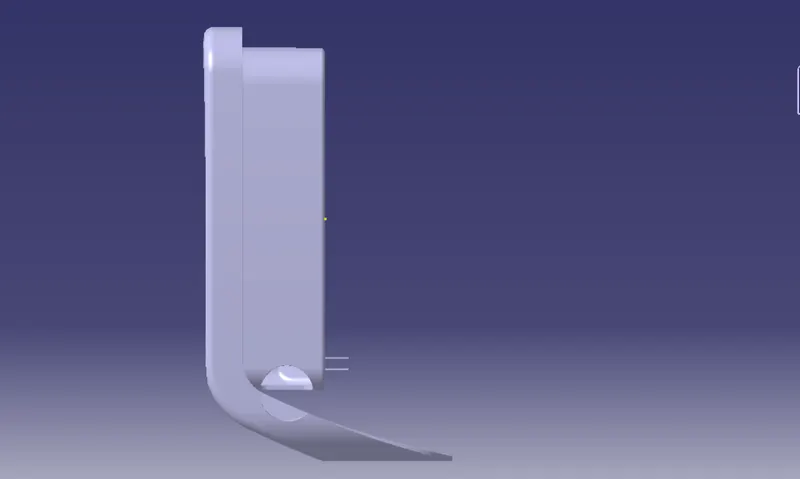

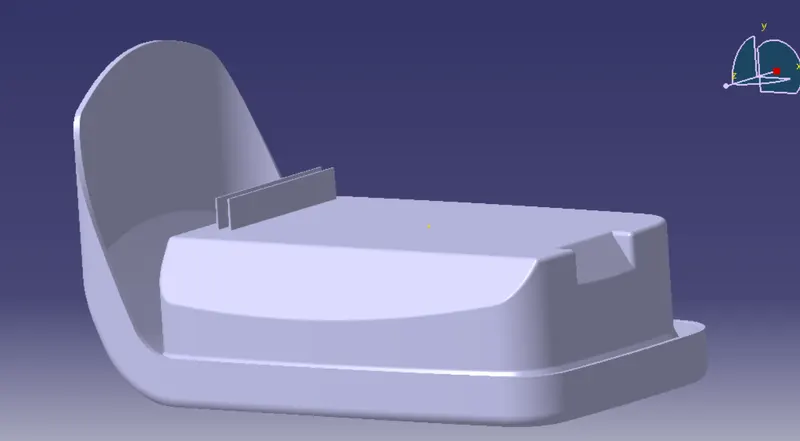

THE OUTER FEATURE RIB HAS BEEN CREATED

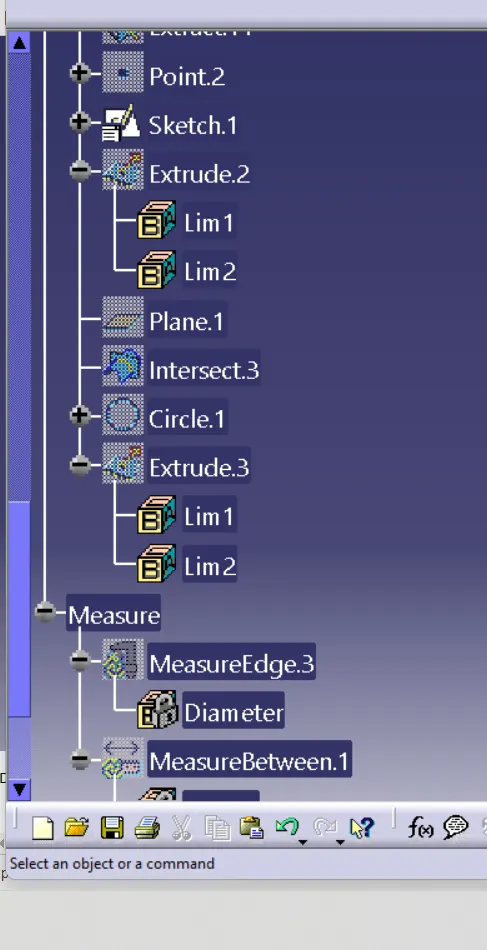

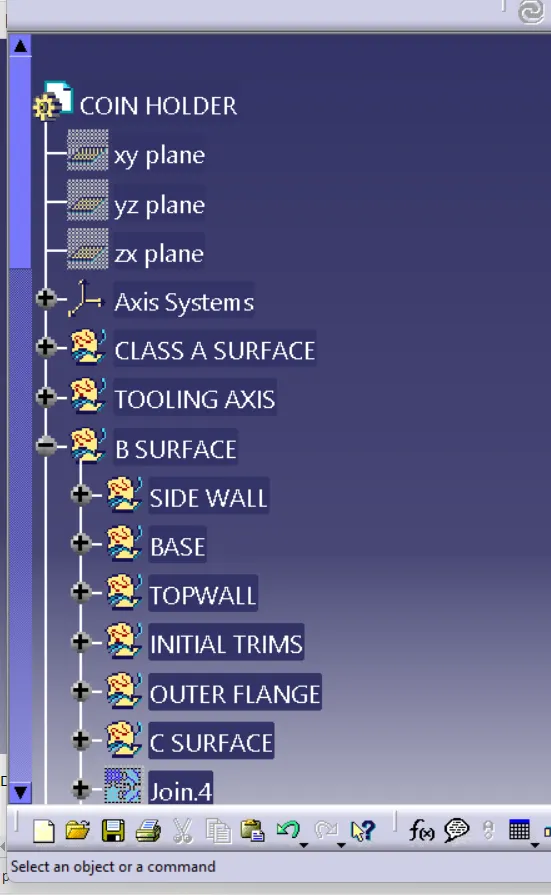

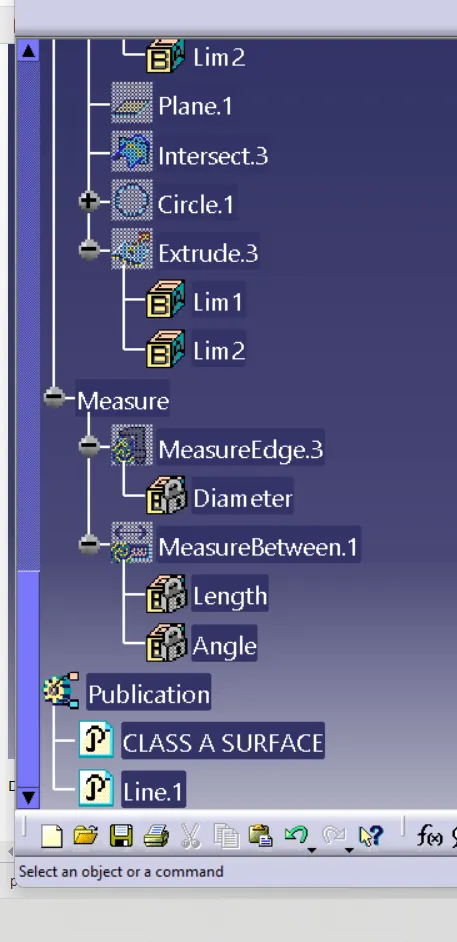

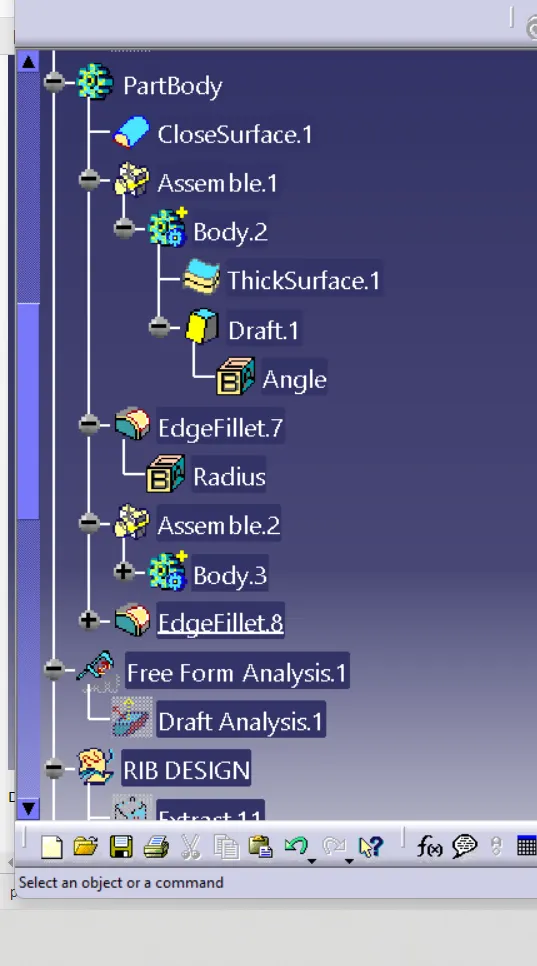

DEIGN TREE STRUCTURE
