Week 9 - Attachment Feature Creation - Challenge 1
Draft analysis
we will do draft analysis on plastic components to konow the in which direction we will get maxmimum clearence for a part to ease ejection in injuction moulding
generally we will follow two methods to create tooling axis
- bisecting method
- using compass

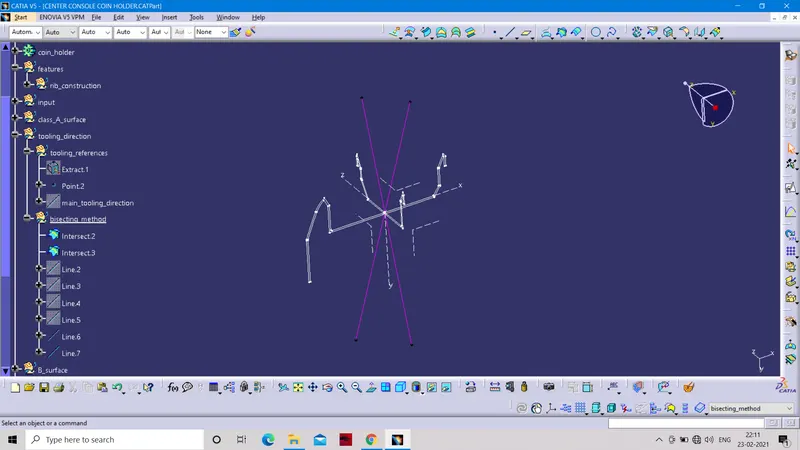

bisecting method : this method start with two input lines and one point and we are goining to create bisect between two lines with the help of point . we will check drfat analysis with the help of bisecting line. following steps were used while creating bisection tooling direction
intersecting componet with xy and yz panes

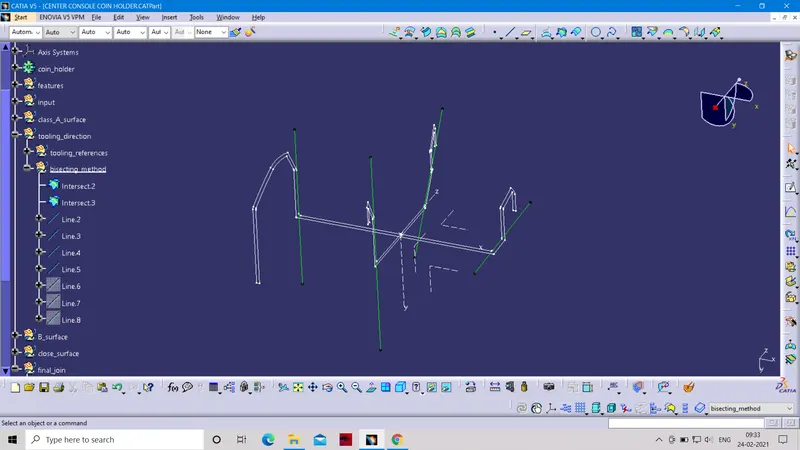

creating four lines with line command inputs are intresected elements.
created two bisecting lines with the help of four individual lines.

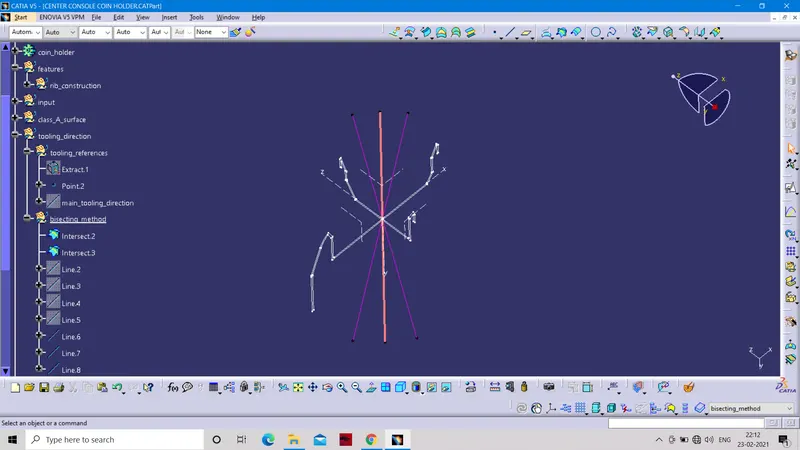

with the help of this two bisecting lines again created one more bisecting as a input of above two lines that will become tooling direction by using bisecting method.

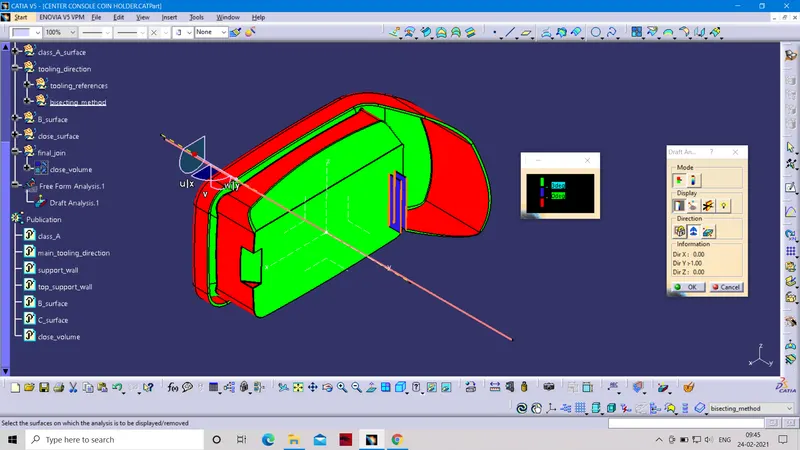

draft analysis with main tooling direction

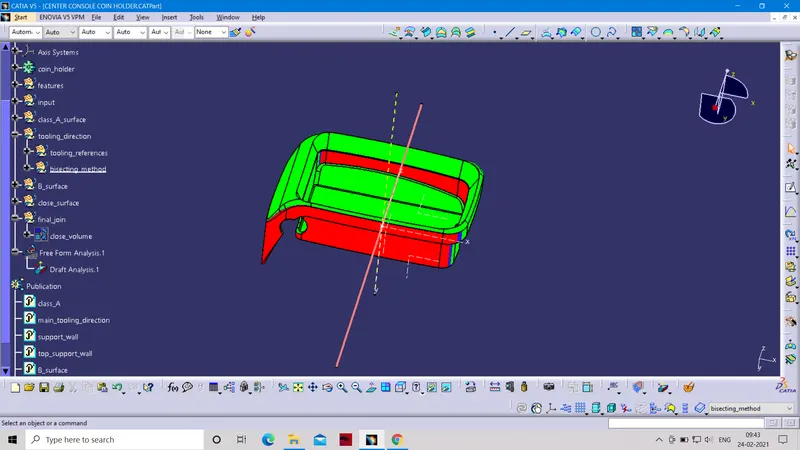

draft analysis with bisecting tooling axis

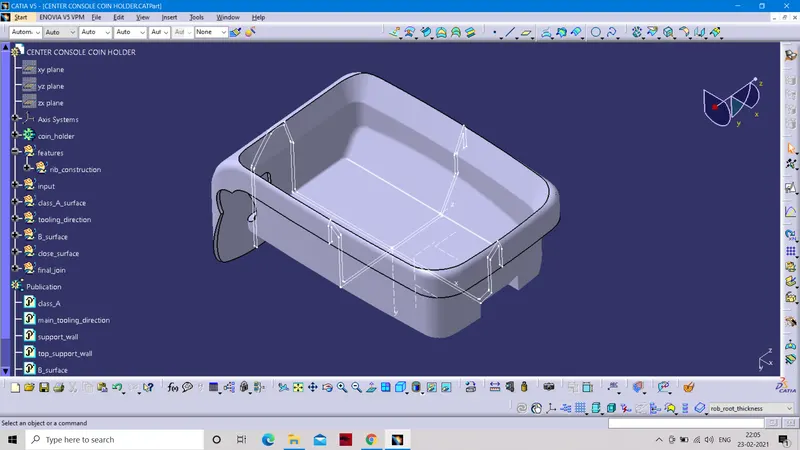

model views

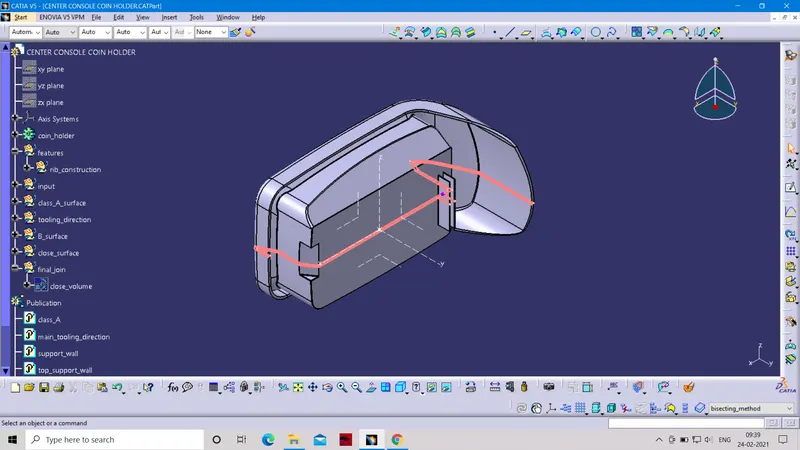

isometric view

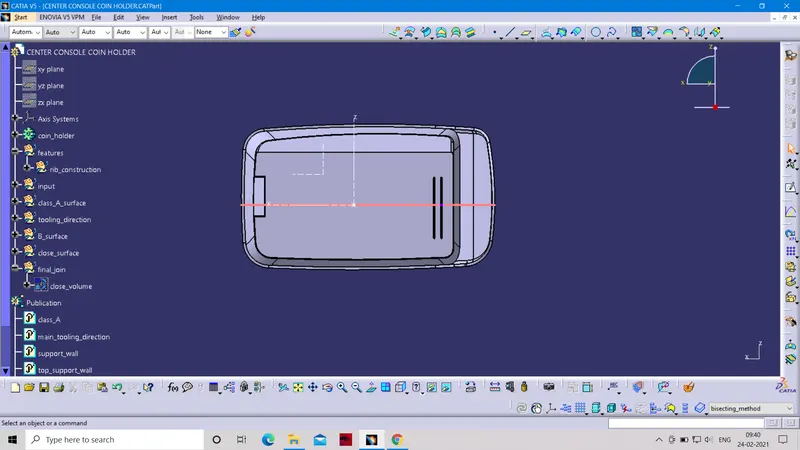

front view

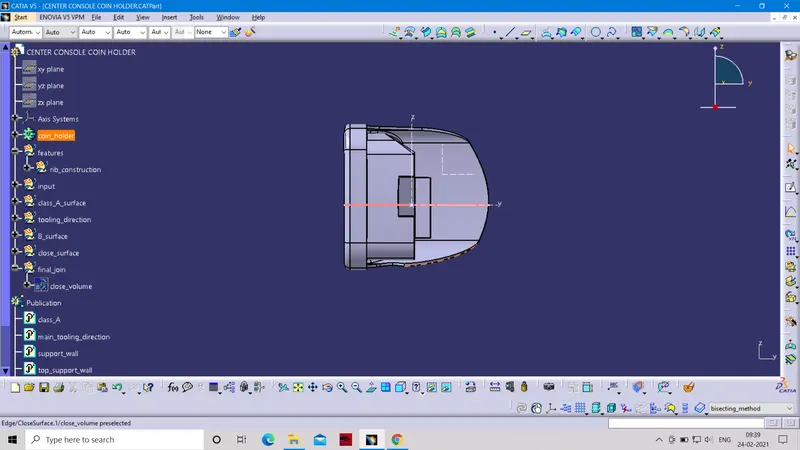

side view

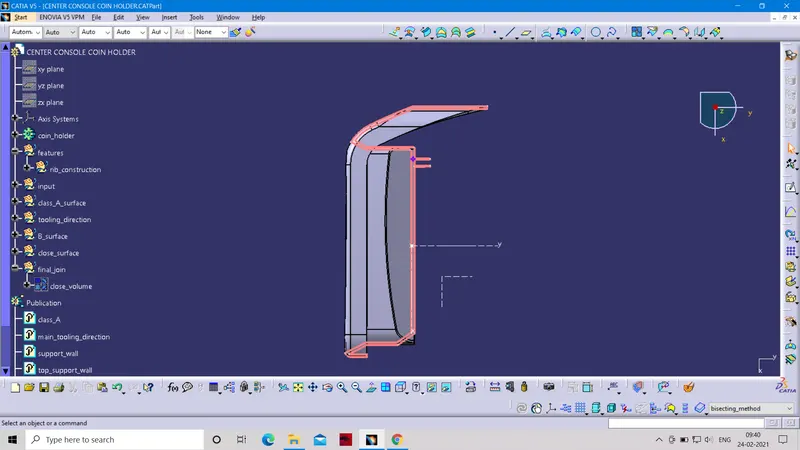

top view
