Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

Draft anlysis : This is one sort of analysis to do on the plastic parts to know about in which direction we will get maximum clearence of componet from the mold.

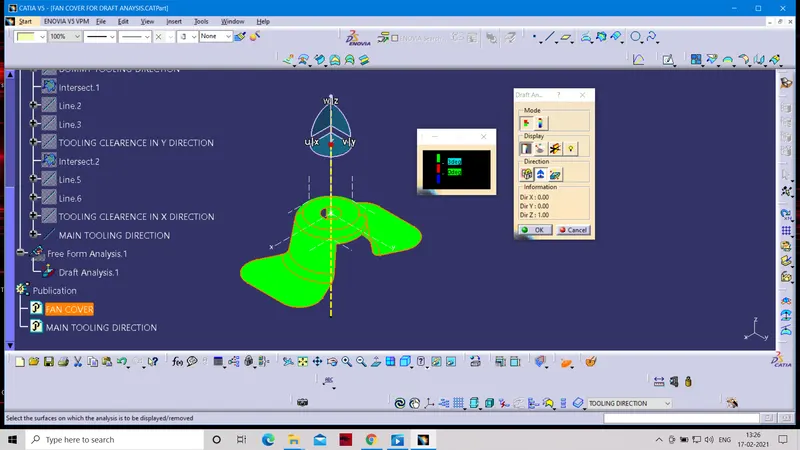

screen shot of fan cover

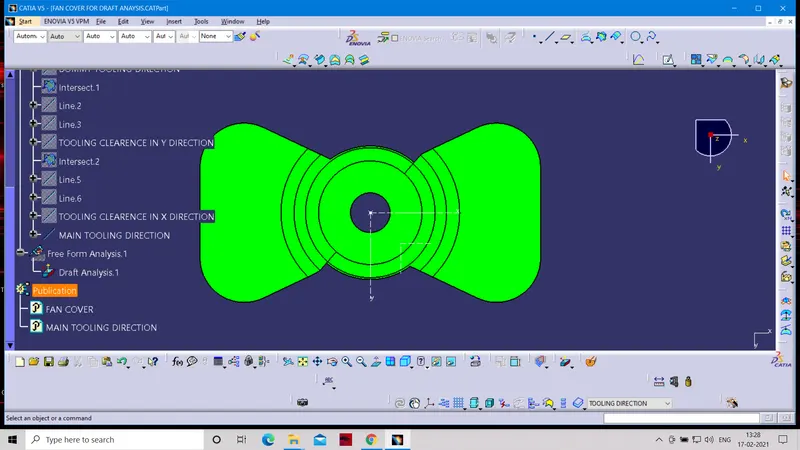

Normal direction to the main tooling direction
