Week 9 - Attachment Feature Creation - Challenge 1

AIM : To create Ribs on Coin Holder

INTRODUCTION:

Ribs are thin wall-like structures that add support and rigidity to injection molded parts. They are thinner than primary walls and are used to
support these walls, as well as bosses, by running perpendicular to these structures. Ribs are often used to replace thick wall sections to avoid
sink marks, warp, and voids. By placing ribs in a load bearing direction, such as long unsupported stretches of your part, instead of making a
section thicker, you can retain the support and rigidity you want and eliminate problems caused by thick walls.

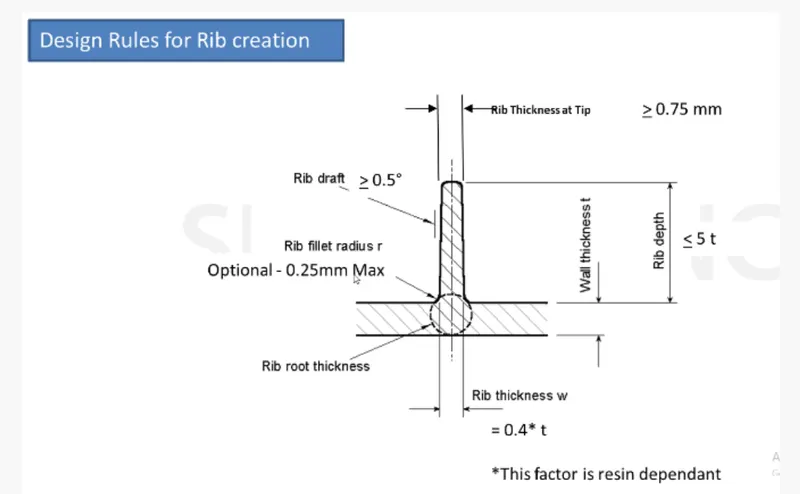

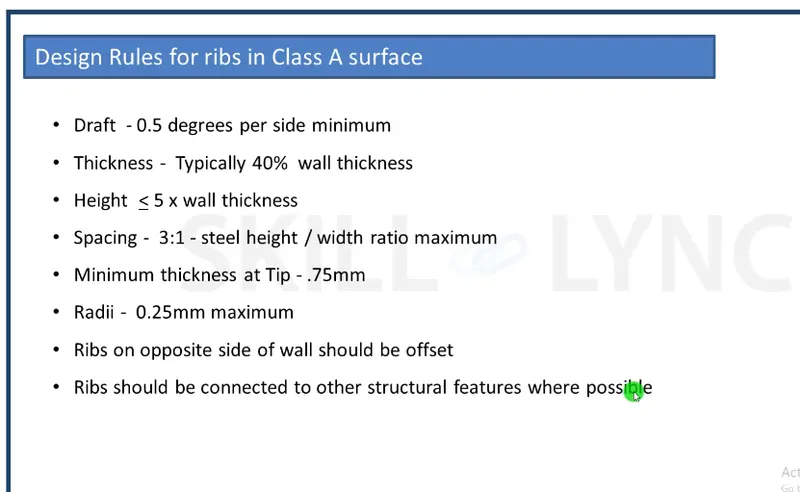

DIMENSIONS:

Given Component:

COIN HOLDER

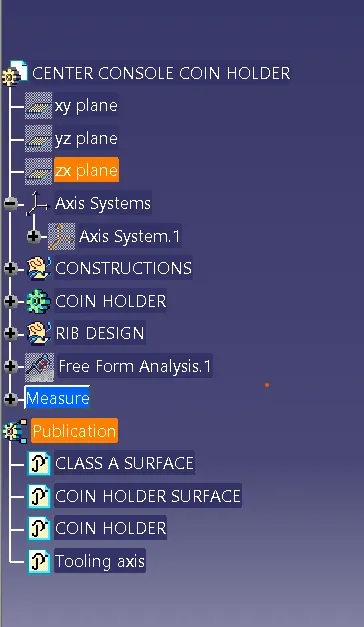

Tree Structure:

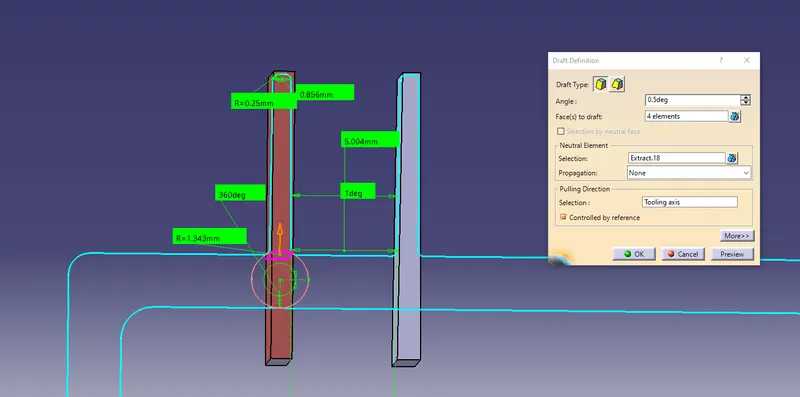

INTERSECTION LINE With measuring dimentions given:

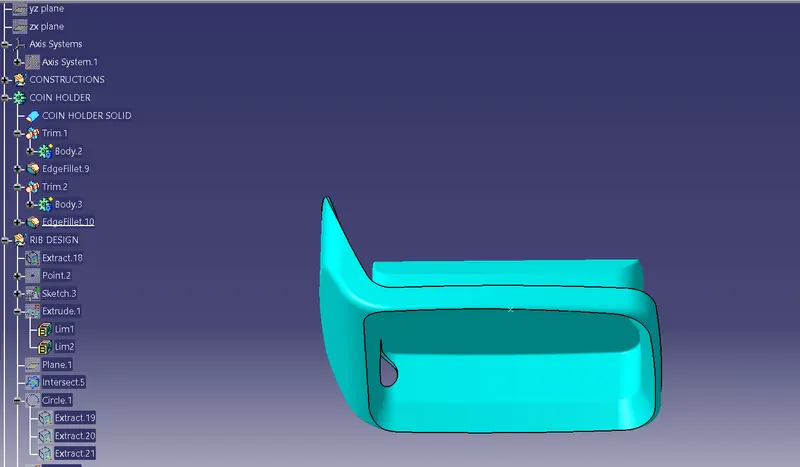

FINAL OUTPUT OF RIBS IN COIN HOLDER:
