Week 9 - Attachment Feature Creation - Challenge 1

REPORT ON DRAFT ANALYSIS

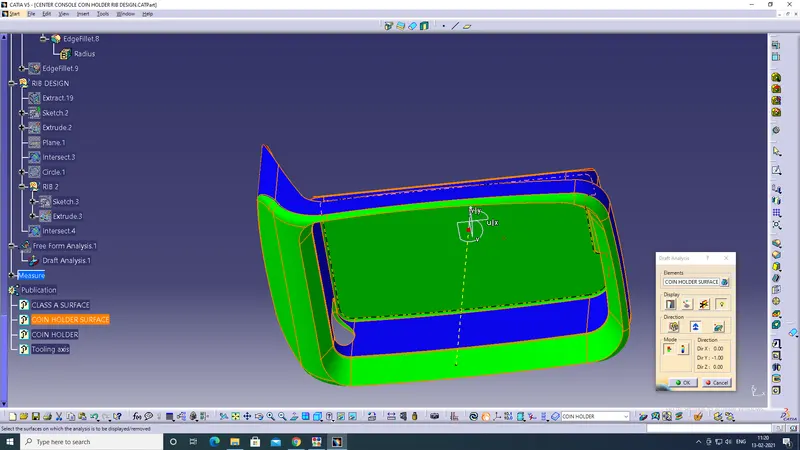

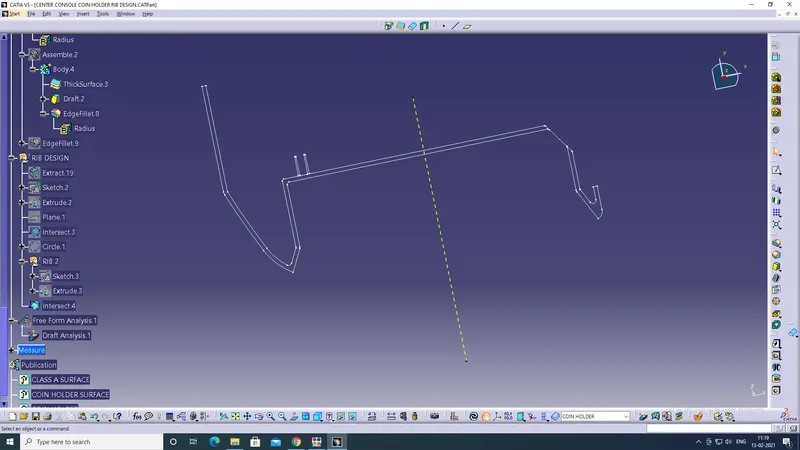

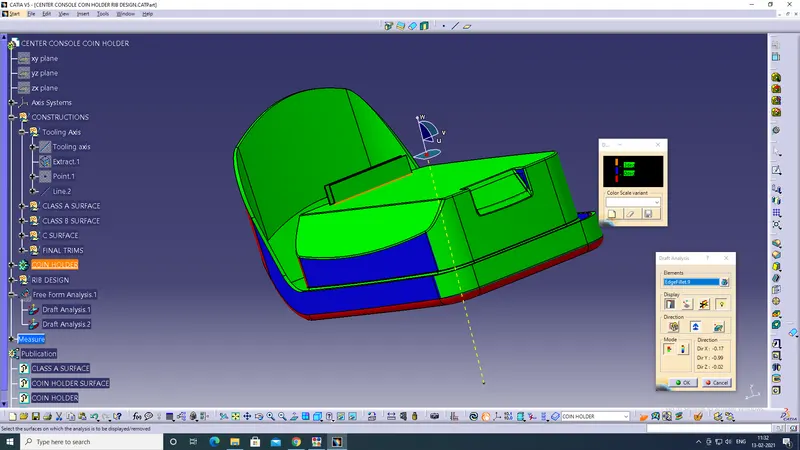

Firstly the tooling axis is drawn by bisecting the surface and creating line on the surface. tehn we check for draft analysis . the draft analysis is done by inserting draft analysis and taking the draft direction on the tooling axis and selecting the surfaces and creating the direction and checking thje draft angle. the minimum draft angle for surfaces is 3 degrees
