Week 8 Worm Gear Challenge

Aim: Aim of task is to performa transient structural analysis of a half cut worm gear. Then finding out the total deformation, equivalent stress and strain values.

Details of simulation: Material used for the simulation structural steel. Simulation is run in 15 steps. Worm need to be rotated such that it almost reaches the half cut portion of gear.

Results:

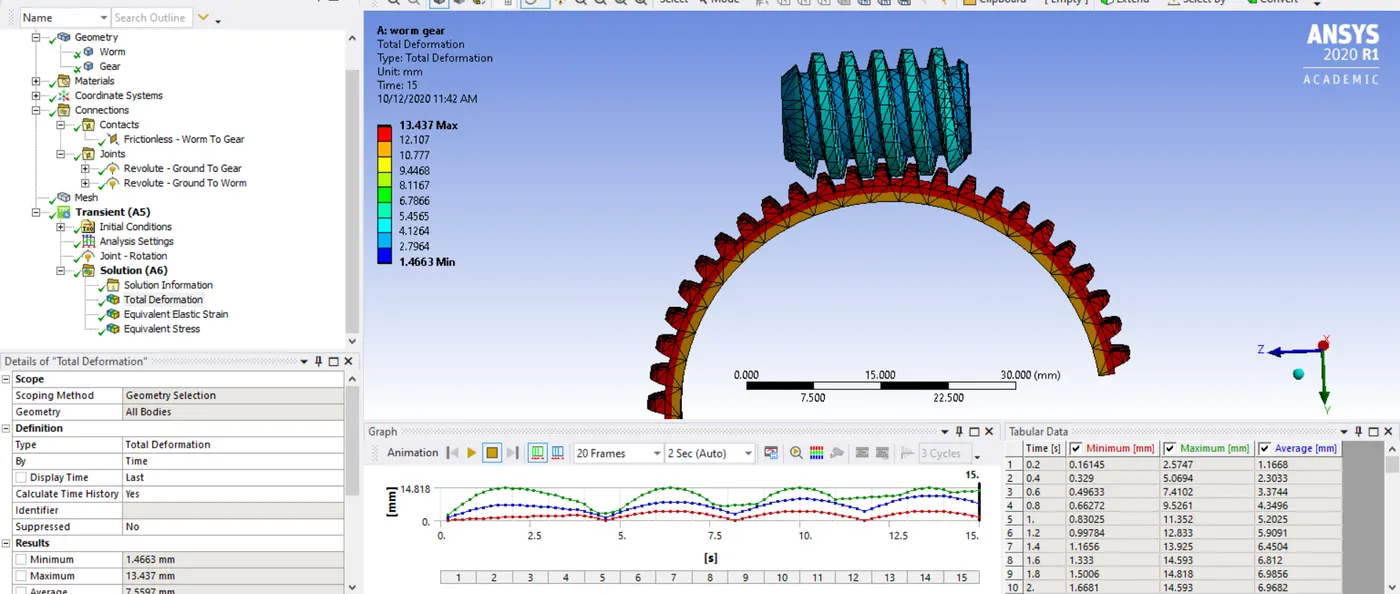

Total deformation:

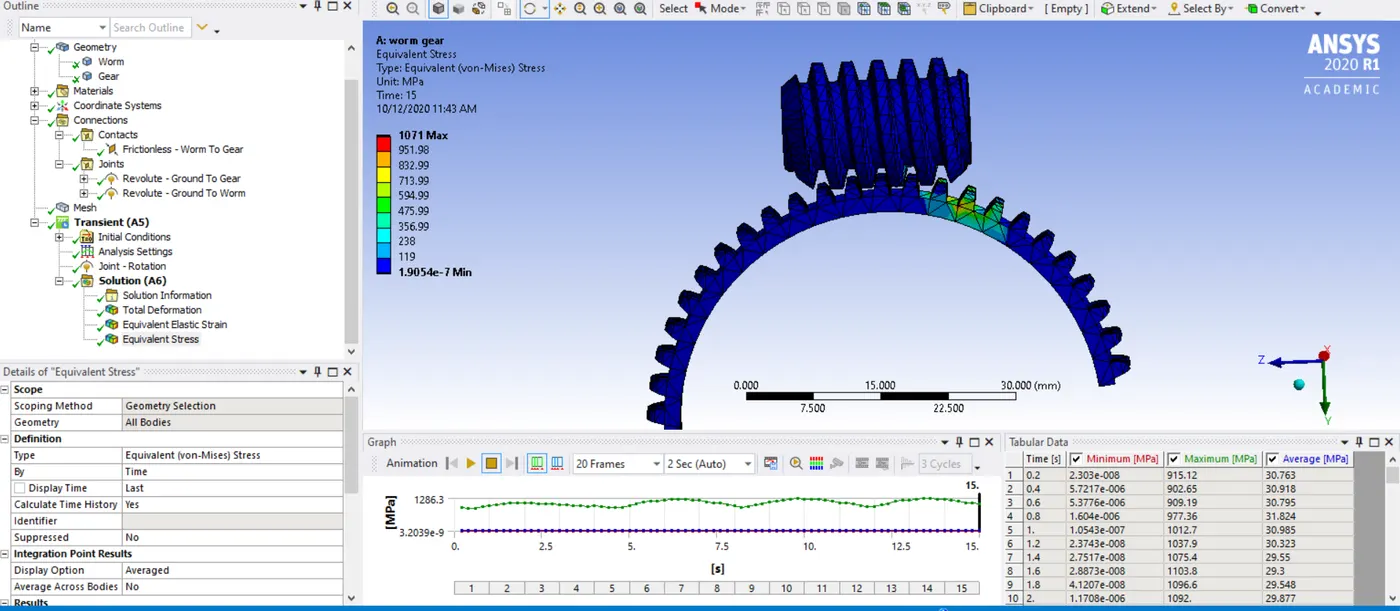

Equivalent stress:

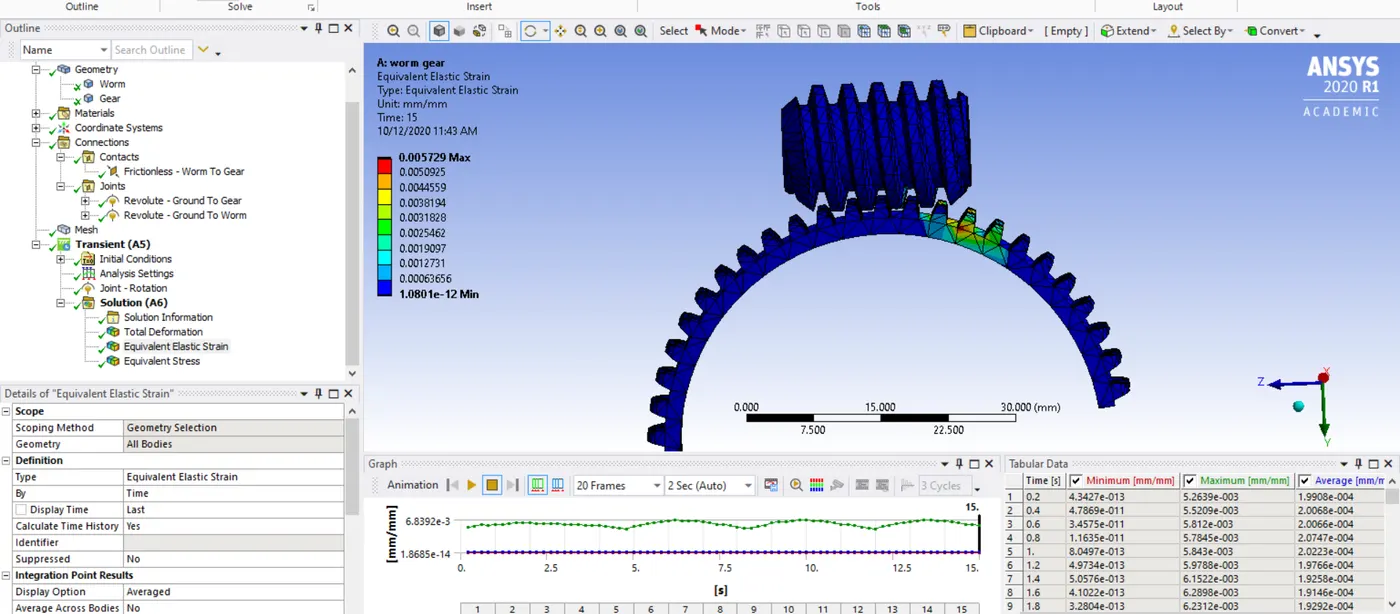

Equivalent strain:

Link for the simulation:
