Week 8 Worm Gear Challenge

Objective:

To perform a transient structural analysis on a worm gear assembly.

Tool/Software: Ansys Workbench 2022R

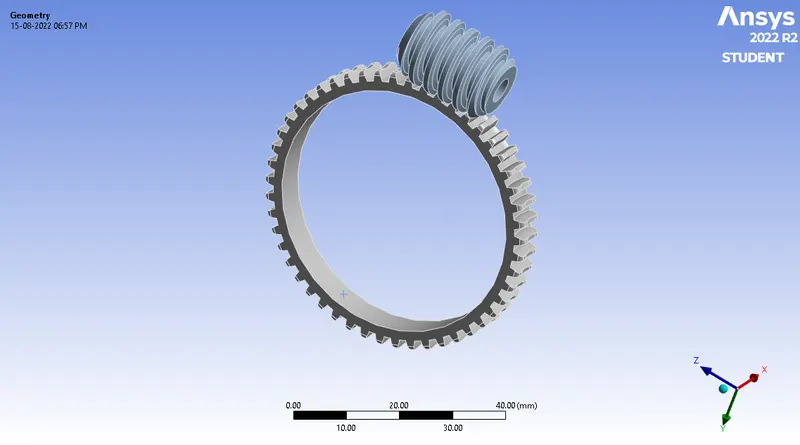

Modal: parts

1. Worm

2. Gear

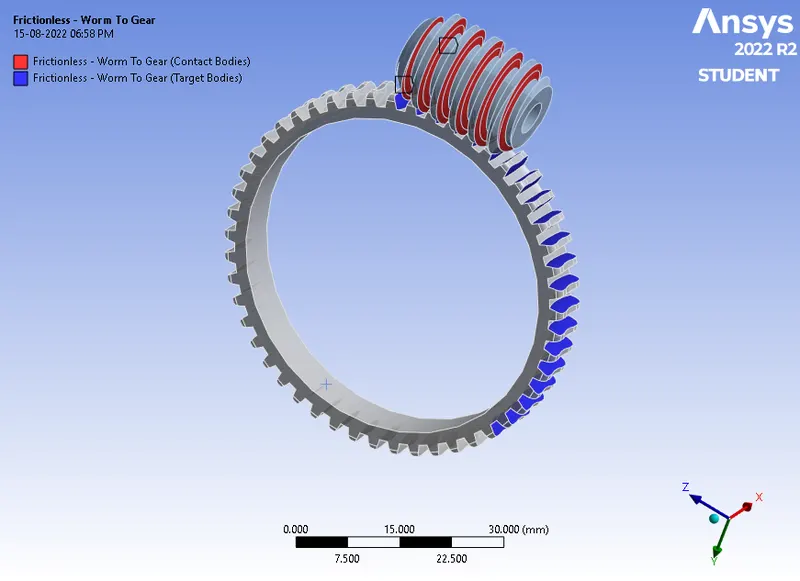

Connections:

Contact Bodies : Worm
Target Bodies : Gear

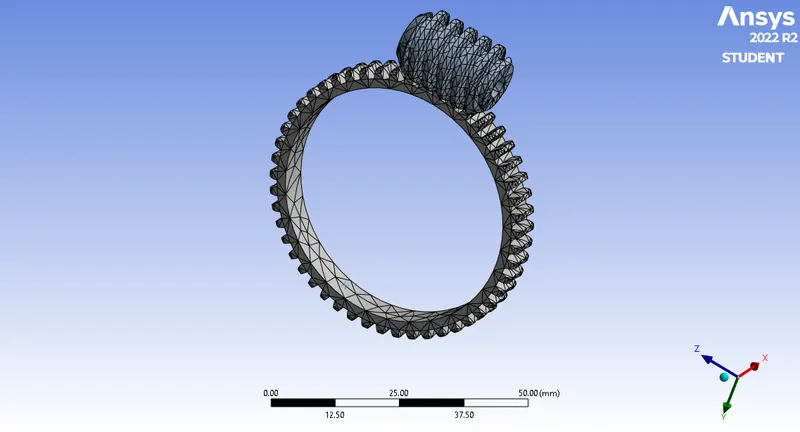

Mesh:

Element Size = 5.0 mm

Nodes = 11679
Elements = 5398

Results:

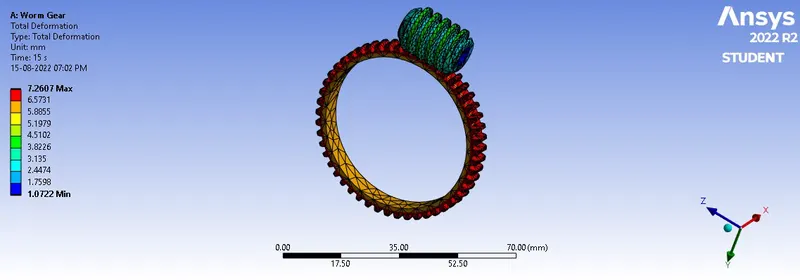

1) Total Deformation

Total Deformation Maximum 7.260692965 mm (Occurs at gear)



2) Equivalent Elastic Strain:

Equivalent Elastic Strain Maximum = 0.005271527 (Occurs at gear)

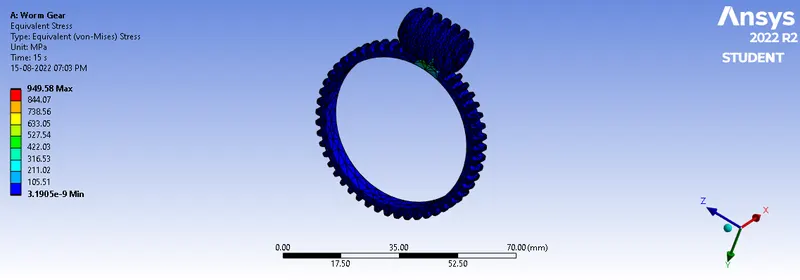

3) Equivalent Stress Maximum = 949.5763818 MPa

Conclusion:

the maximum affected part is Gear
