Week- 8 - Solid meshing

AIM: For this challenge, you will have to mesh the given geometry. Provided below are the quality parameters that you have to follow. Target Element size - 5 Units S.N Quality Criteria  Value  1 Aspect Ratio  5 2 Skewness 45 3 Warping 15 4 Taper      0.5 5 Min. Length 2 Units…

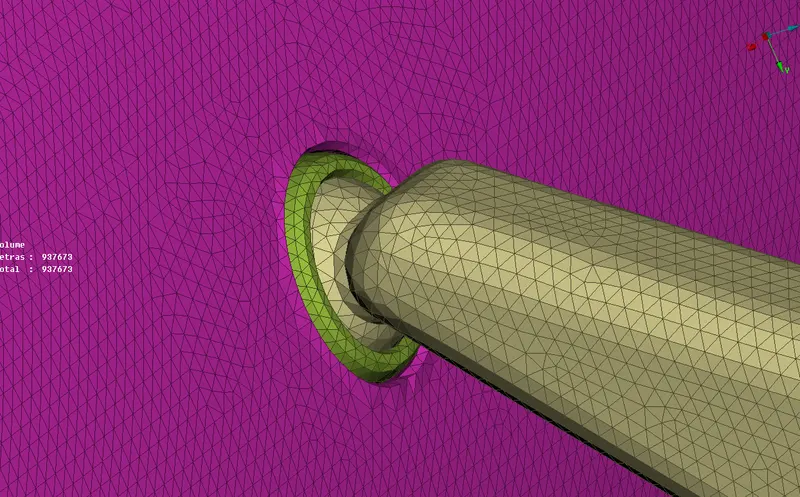

Aim:  For the given MODEL 1, Create a Teramesh for Housing component with the following quality criteria. TetraMesh Generation Method: 2D to 3D Conversion Elements sizes: Min- 2 Units, Target- 5 Units, Max- 7 Units  Tet collapse: 0.15   For the given MODEL 2, Create a 3D Tetramesh with the…

Aim : TO MESH THE GIVEN COMPONENT WITHE FOLLWING QUALITY CRITERIA AND ACHIVE GOOD MESH FLOW. Follow the Quality Criteria and mesh the following component and assign thickness:   Target Element Length = 4 Units   S.N Quality Criteria  Value  1 Aspect Ratio  5 2 Skewness 45 3 Warping 15 4 Taper …

Aim :    For this challenge, you will have to mesh the backdoor geometry of a car that is provided below. Provided below are the quality parameters that you have to follow. Target Element size - 5 Units S.N Quality Criteria  Value  1 Aspect Ratio  5 2 Skewness 45 3 Warping 15 4 Taper      0.5 5 Min. Length 3 Units 6 Max.…

Aim :  Follow the below-mentioned quality criteria, mesh the component given below and assign thickness: Target Element Length = 5 Units S.N Quality Criteria  Value  1 Aspect Ratio  5 2 Skewness 45 3 Warping 15 4 Taper      0.5 5 Min. Length 2 Units 6 Max. Length 8 Units 7 Min angle Quad 45 8 Max angle Quad 135 9 Min angle…

Aim : For the given hood model ,extract the mid surface of the model and mesh the model with follow the below mentioned quality criteria and assign thickness also. QUALITY CRITERIA FOR MESHING: S.N Quality Criteria  Value  1 Aspect Ratio  5 2 Skewness 45 3 Warping 15 4 Taper      0.5 5 Min. Length 2 Units 6 Max. Length…

Aim :  Mesh the Given component with the Size of 5 Units. Create 1D elements on the following component with given cross-section and DOF a. Rod element:- Translational DOF should be Constrained with RBE2 link. Cross-Section: BOX- Dimension a= 12 mm                               dimension b=10 mm                        …

       Aim: For the given Rear door model, create connections for all the components of model where it required.        Objectives: To check the geometrical errors in the CAD model. To check the CAD Topology and CAD Clean Up.     To extract the Mid surface for all…

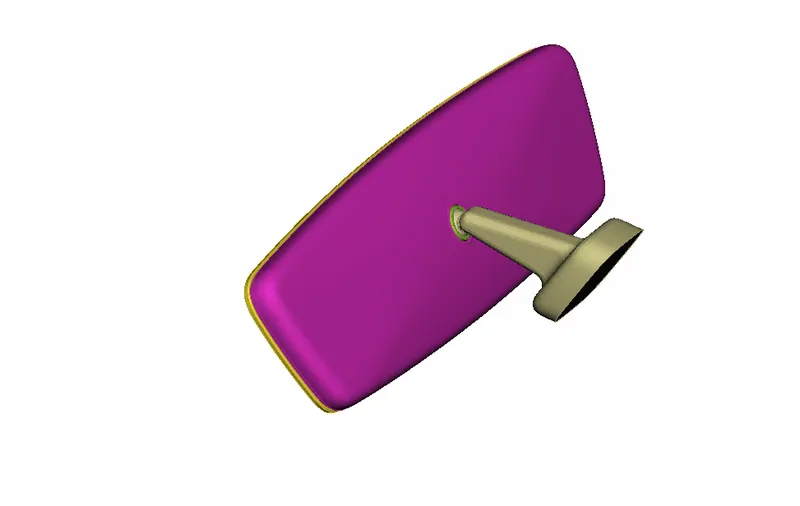

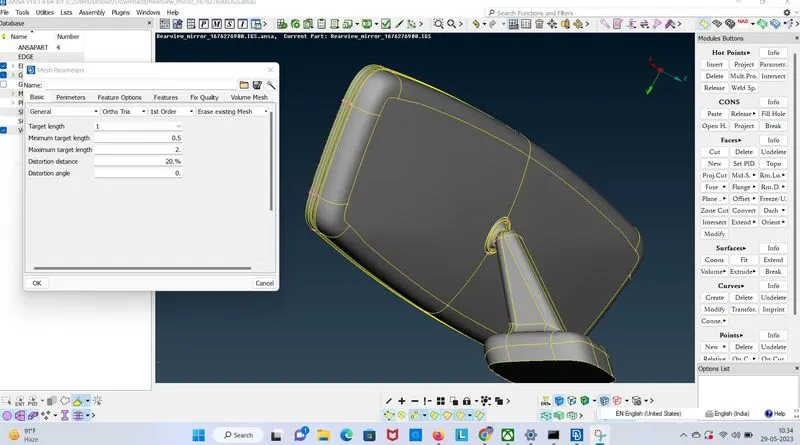

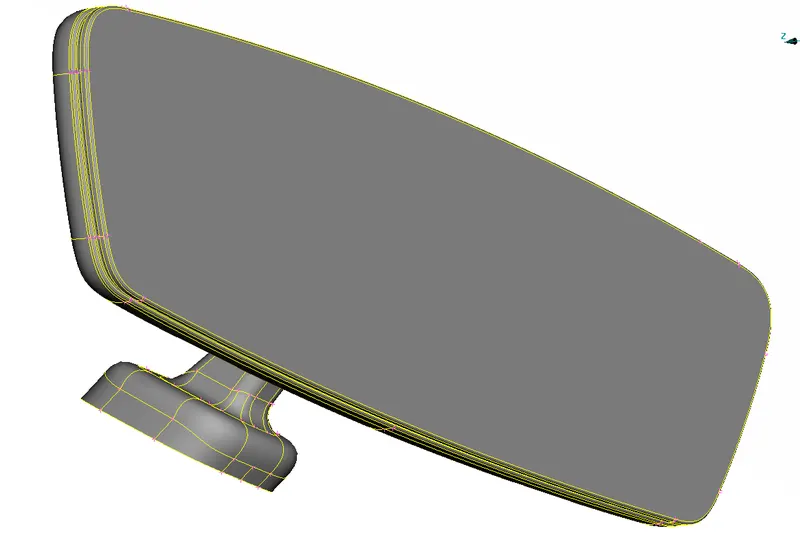

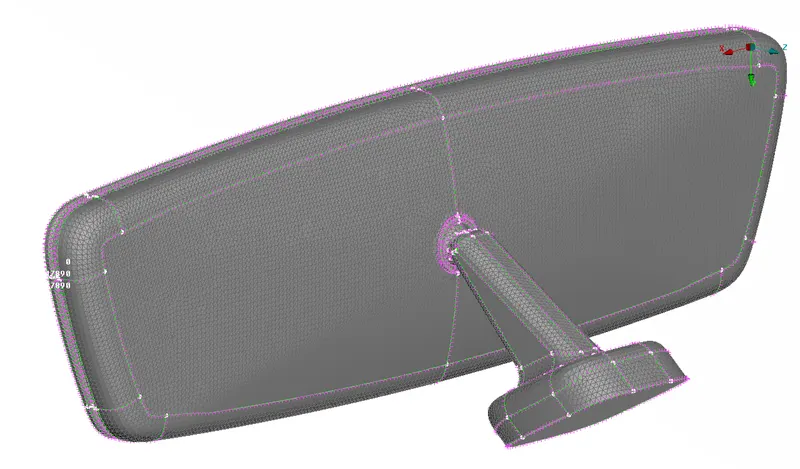

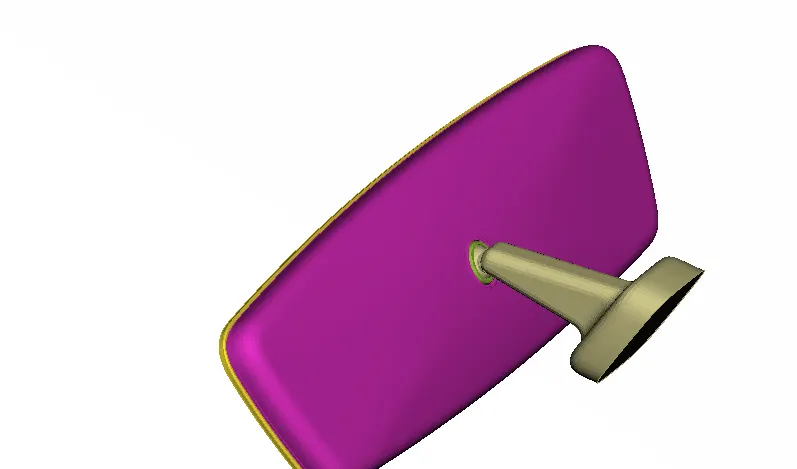

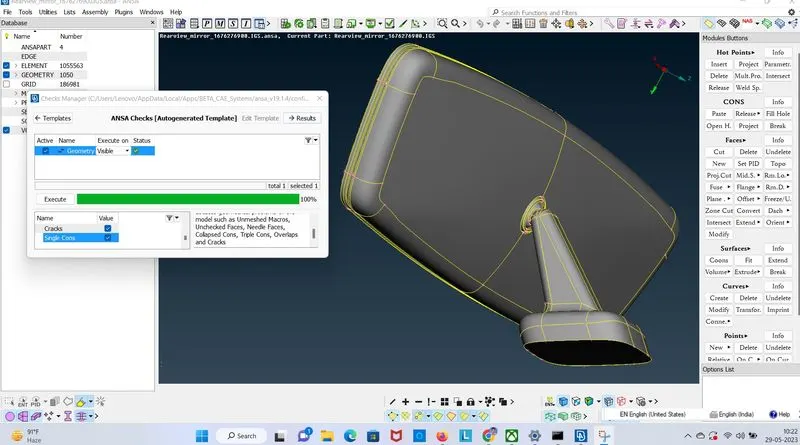

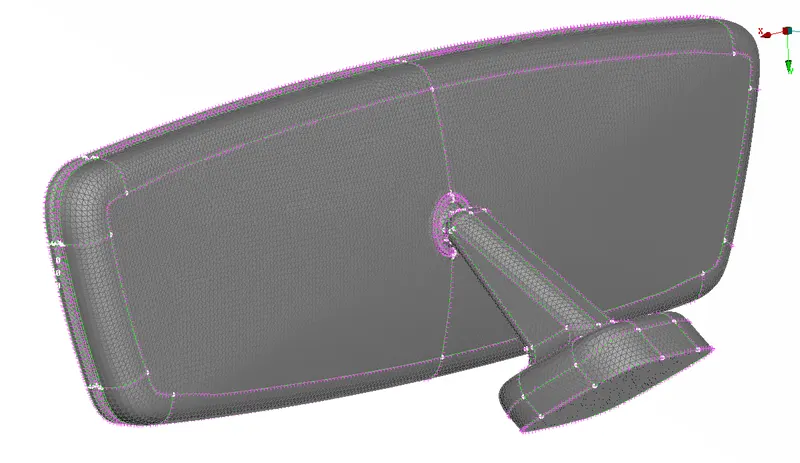

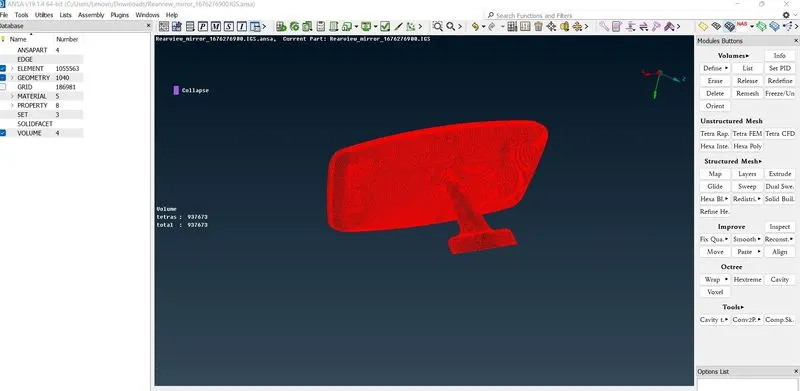

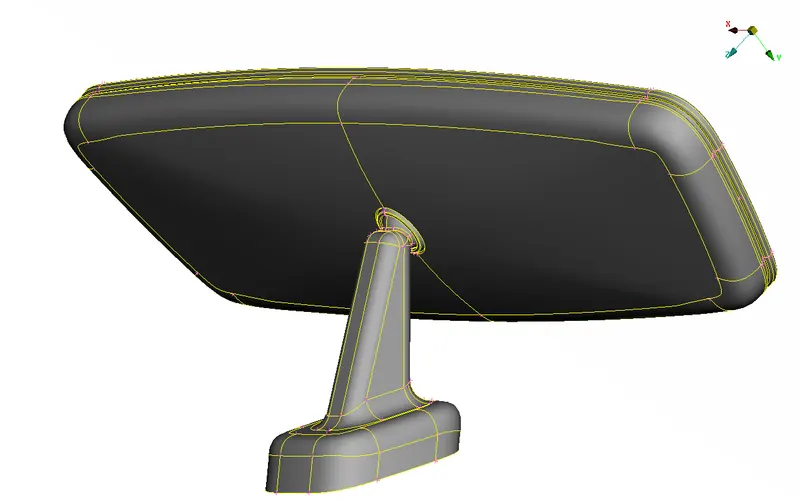

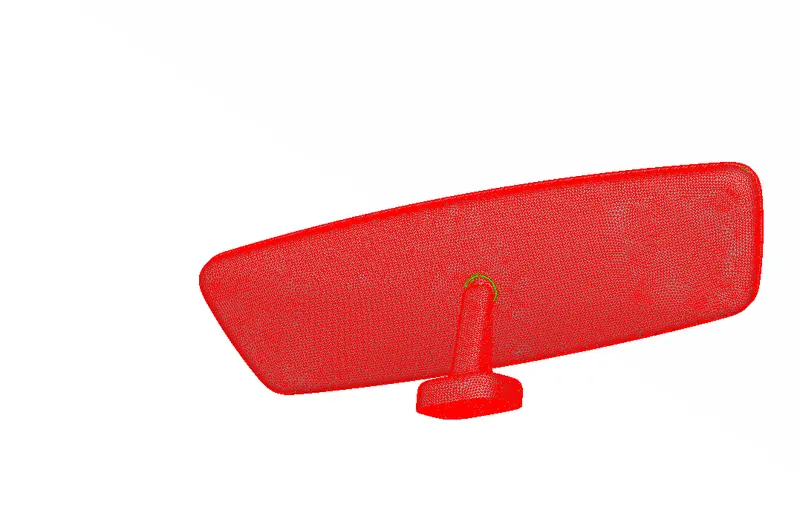

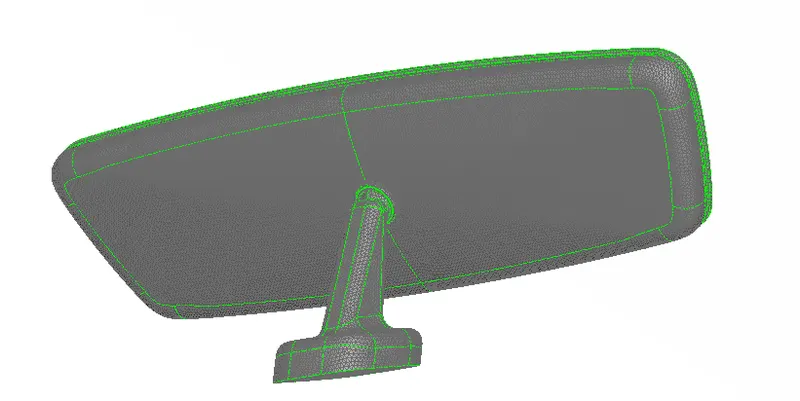

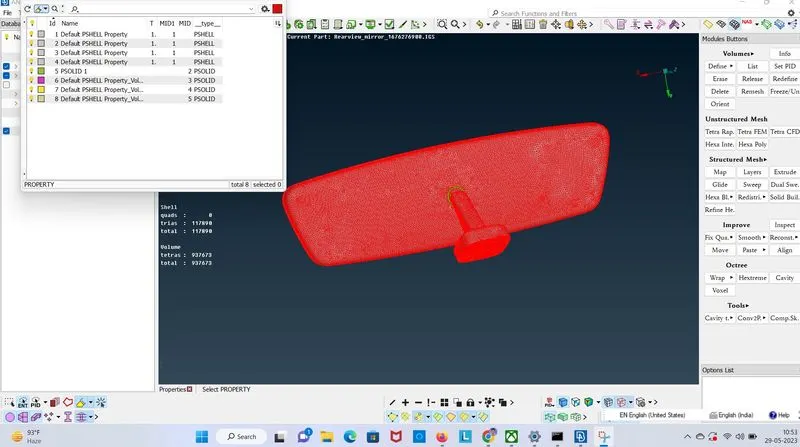

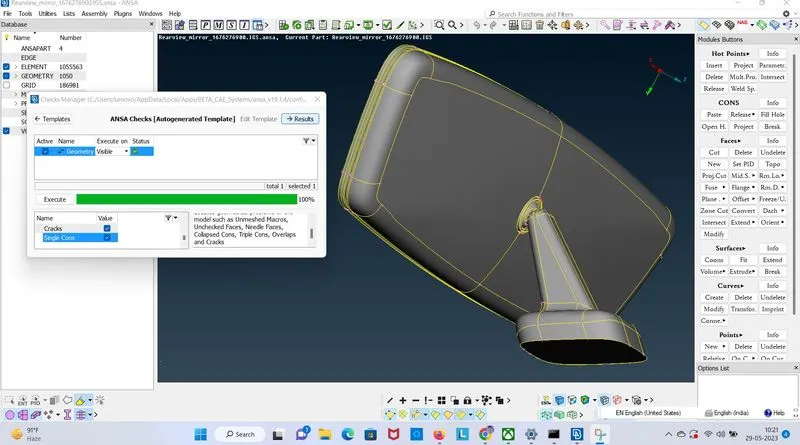

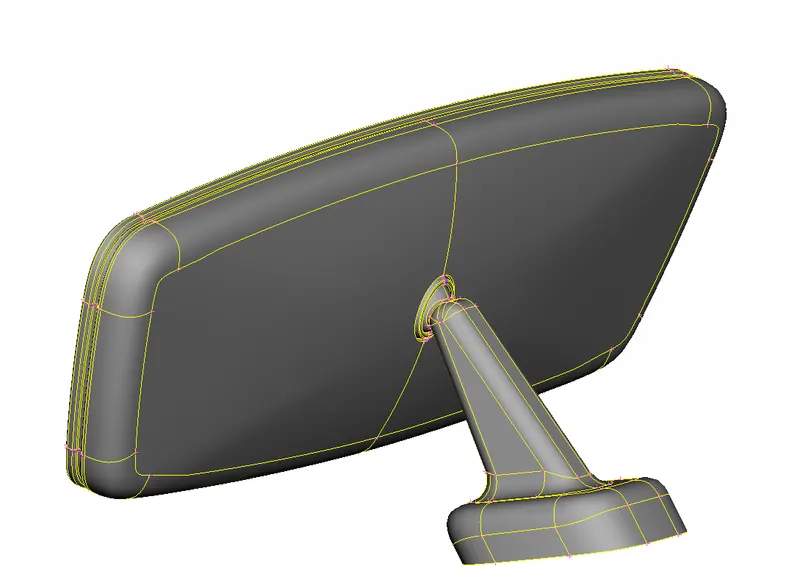

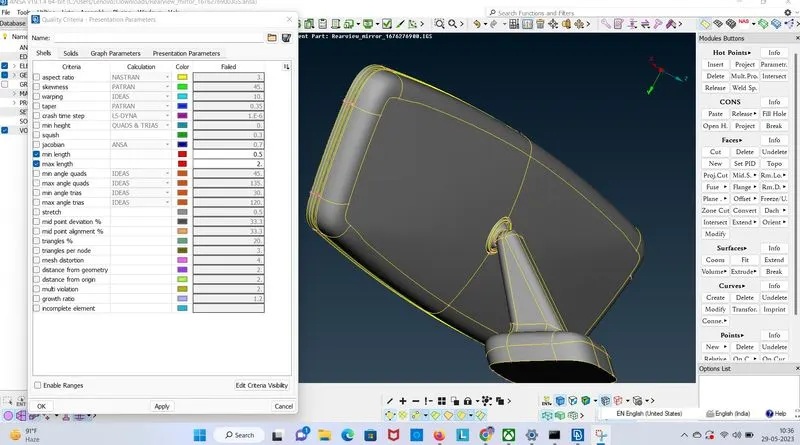

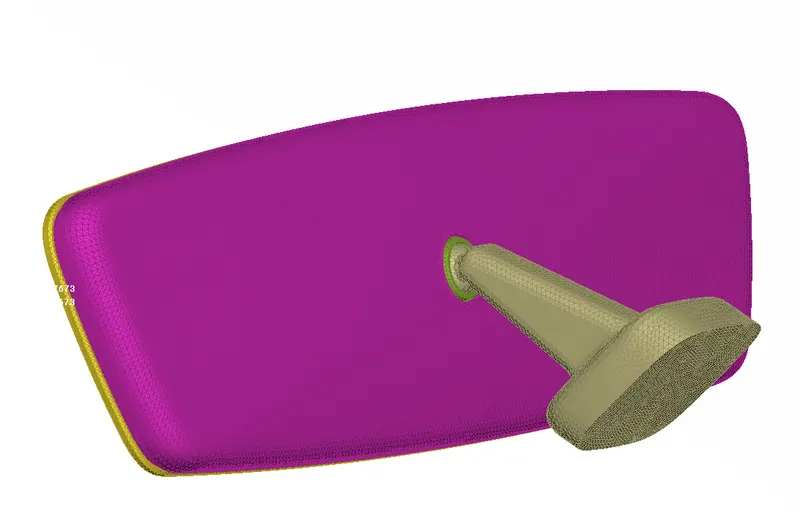

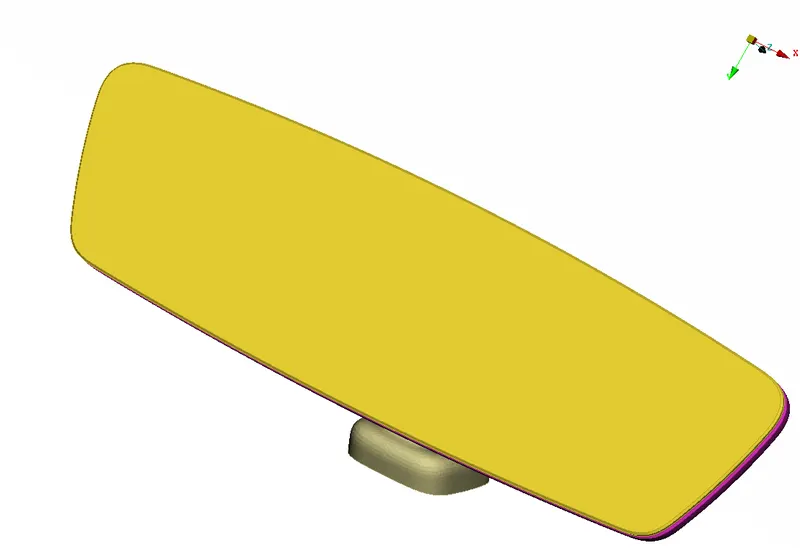

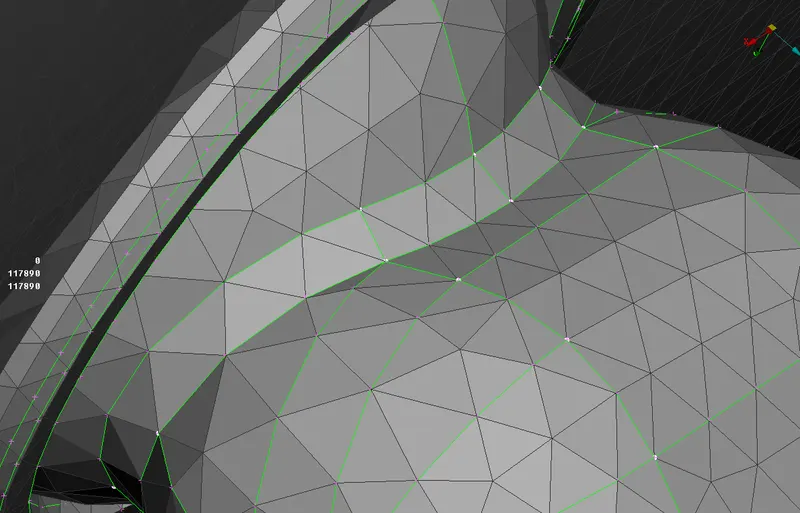

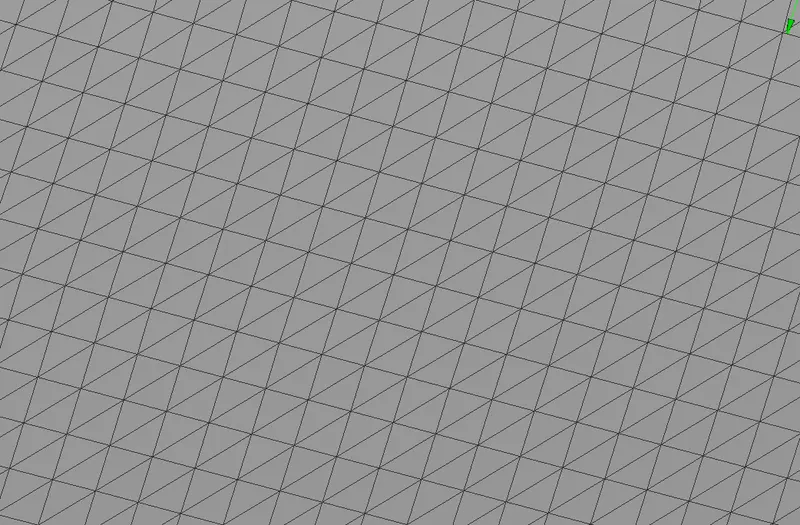

Aim: For the given rear view mirror model, apply solid meshing for all the components after checking the geometrical errors and  solid meshing with the given model.  Objectives: To check the geometrical errors in the CAD model. To check the CAD Topology and CAD Clean Up                                                                 …

Aim: For the given CCB CAD model, Check for Geometry cleanup, Take the midsurface, and mesh it with the below 2D element Quality Criteria.  S.No  Quality Criteria  Value  1 Target/Average length   1 2 Minimum Length  0.5 3 Maximum Length  3 4 Aspect  3 5 Warpage 15 6 Skewness 45 7 Jacobian  0.7 8 Minimum Quad Angle  45…

 Aim: For the given floor panel model, Take the mid surface for all the components after checking the geometrical errors and mesh the mid surface with the given model.        Objectives: To check the geometrical errors in the CAD model. To check the CAD Topology and CAD Clean Up.     To extract the Mid surface for all…

Aim: For the given CCB CAD model, Check for Geometry cleanup, Take the midsurface, and mesh it with the below 2D element Quality Criteria.  S.No  Quality Criteria  Value  1 Target/Average length   5 2 Minimum Length  3 3 Maximum Length  7 4 Aspect  3 5 Warpage 15 6 Skewness…

       Aim: For the given Hood model, Take the mid surface for all the components after checking the geometrical errors and mesh the mid surface with the given model.        Objectives: To check the geometrical errors in the CAD model. To check the CAD Topology and CAD Clean Up.     To extract the Mid surface for all components…
