Week- 8 - Solid meshing

• Aim

For the given Rear view mirror component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criteria’s given below.

Sr.No	Quality Criteria	Value
1	Target/Average length	1
2	Minimum Length	0.5
3	Maximum Length	2

Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.

Sr.No	Quality Criteria	Value
1	Tet collapse	0.2

Surface Quality after Volume mesh should be good.

• Procedure

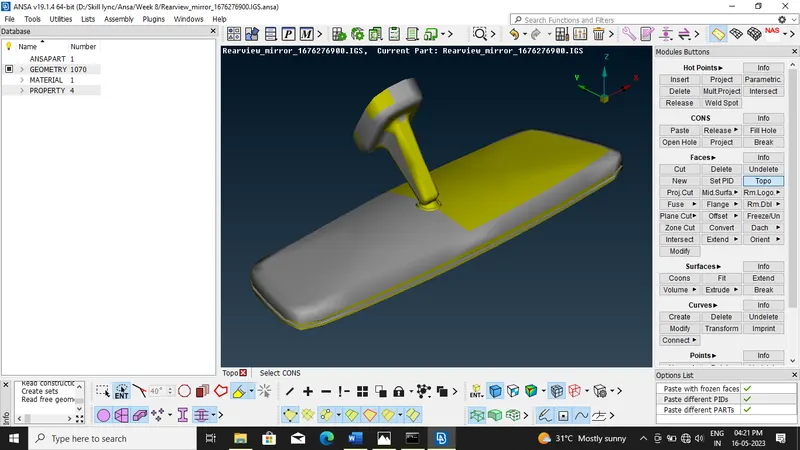

1. Cad Model Import

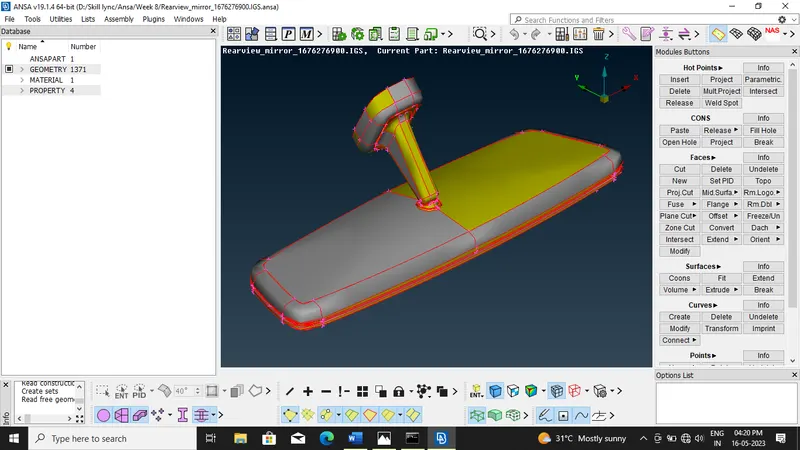

2. Topo

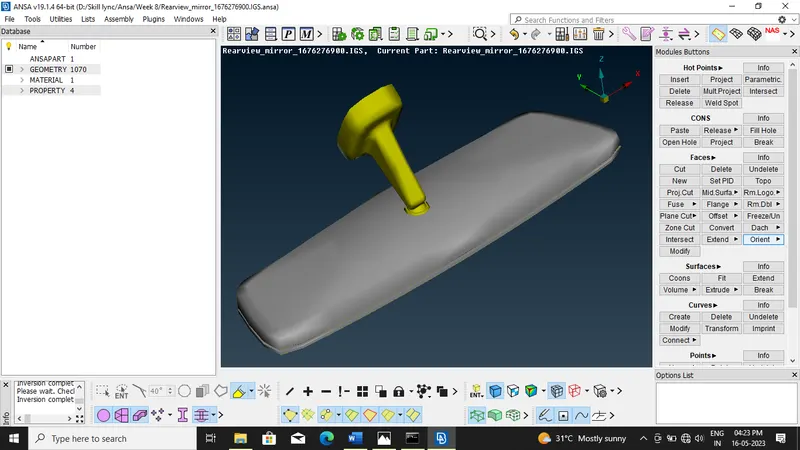

3. Orient

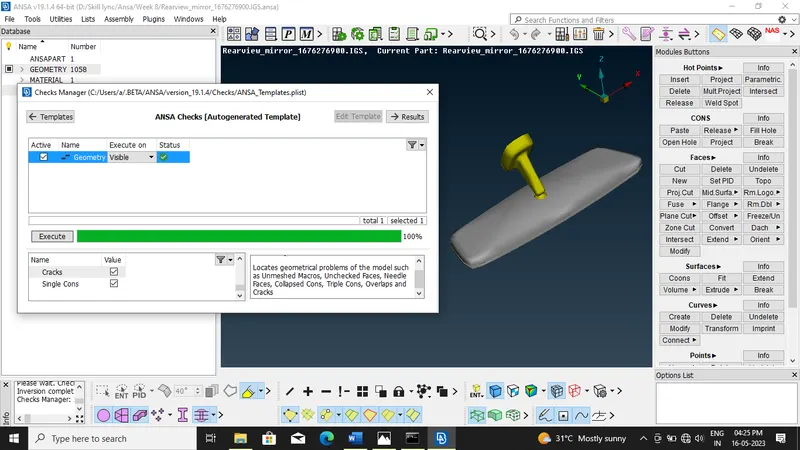

4. Geometry Clean

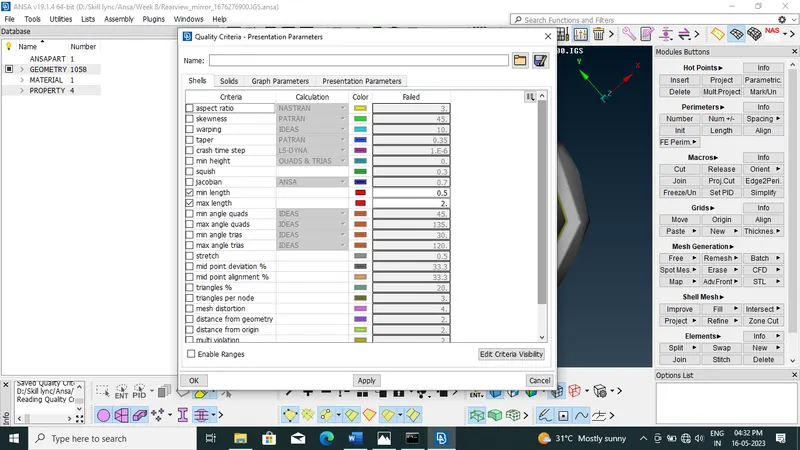

5. Quality Criteria

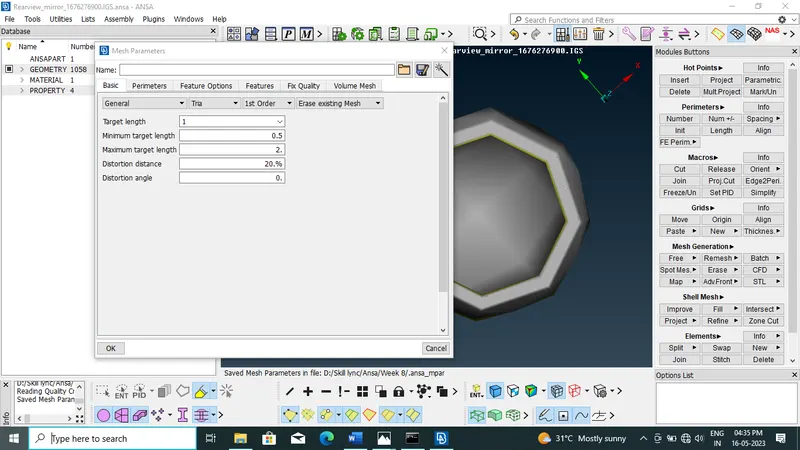

6. Mesh Parameter

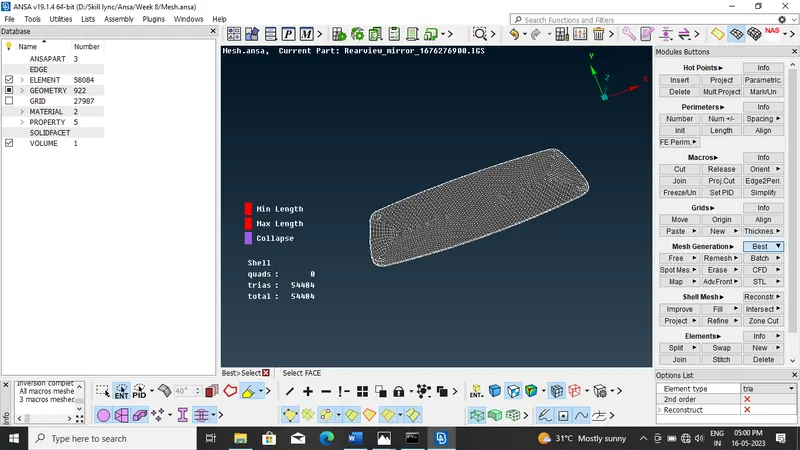

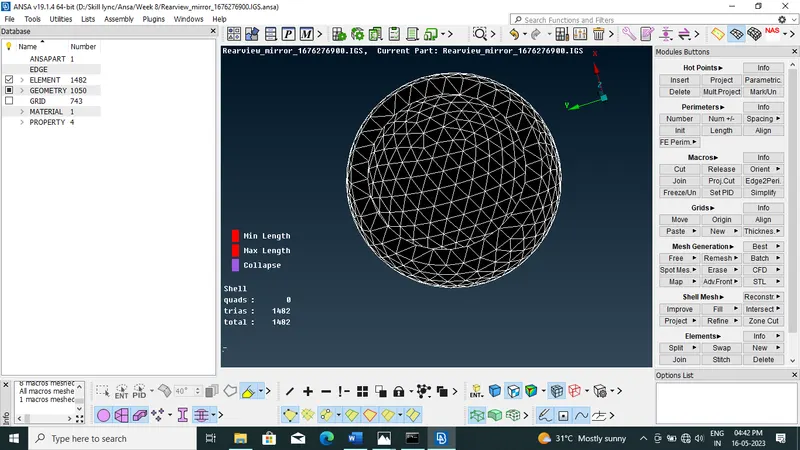

7. Mesh Generation

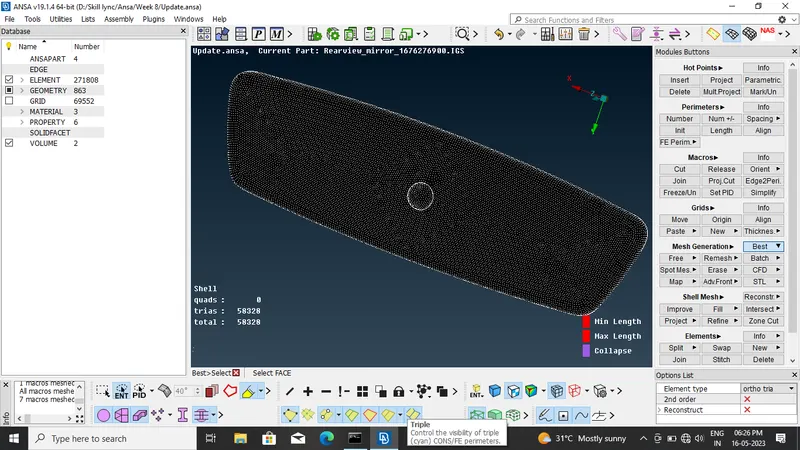

Use Best Mesh Generation Tool And Choose Ortho Tria for Curve Surface and Tria for Flat Surface.

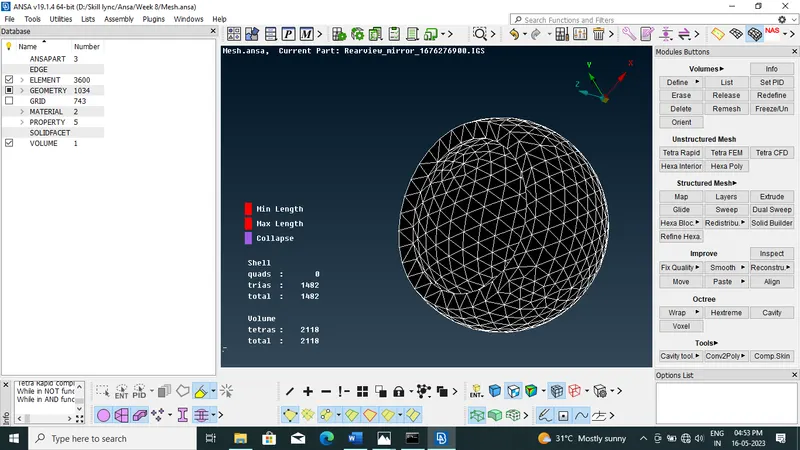

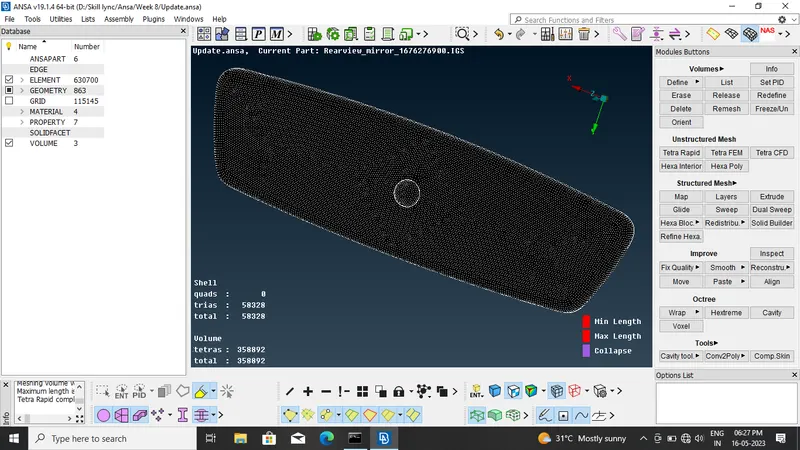

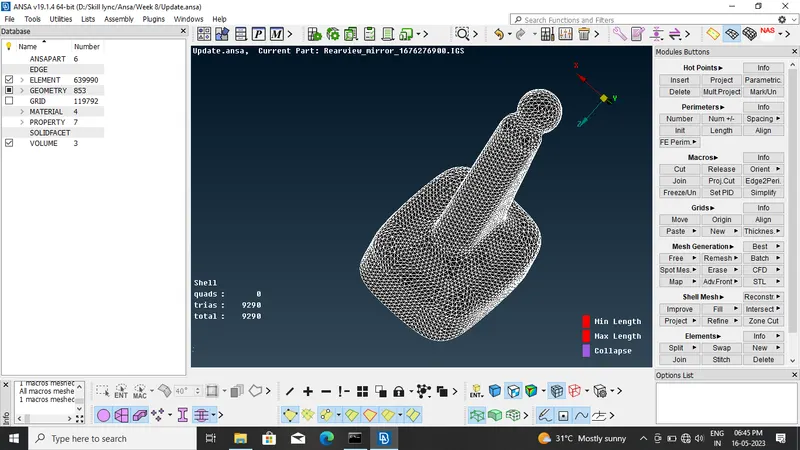

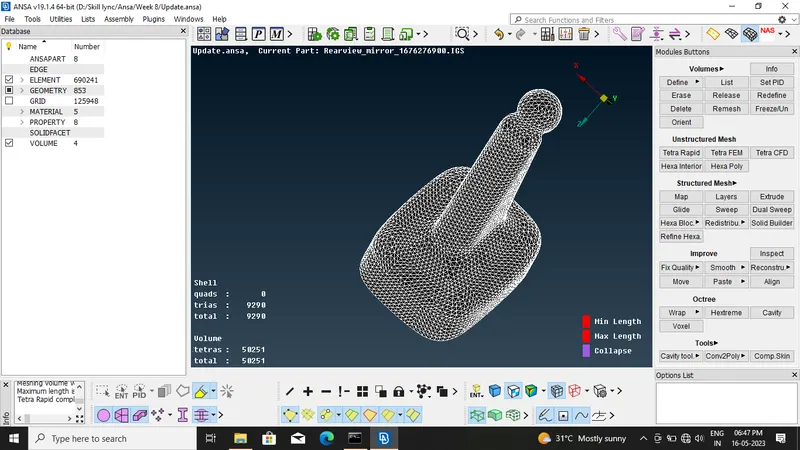

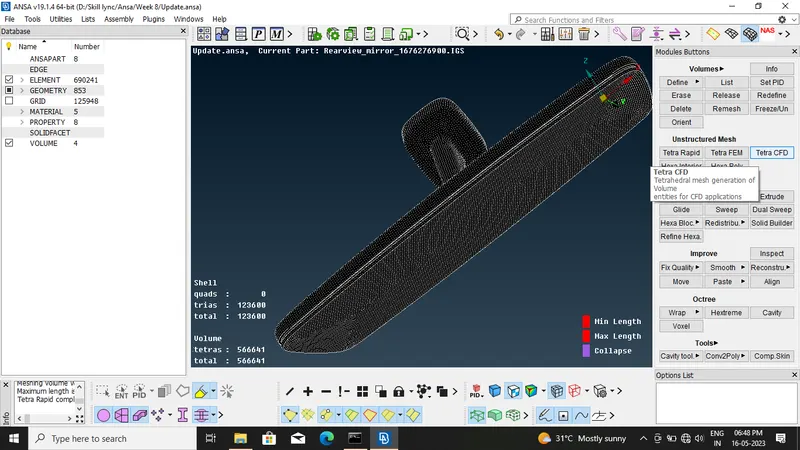

8. Volume Mesh

Define Volume Mesh and Use Tetra Rapid Tool.

• Learning Outcome

1. Mesh Generation with Tria and Ortho Tria
2. Volume mesh generation

• Conclusion

Volume Mesh generation Procedure understanding properly.
