Project 1 - Meshing of Floor Panel

Objective

1. Generating Midsurface and geometry clean up on the given component
2. Generating mesh on the given component with low tria concentration and proper mesh flow
3. Your model should pass all the given quality parameters

Target Element Length = 5 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

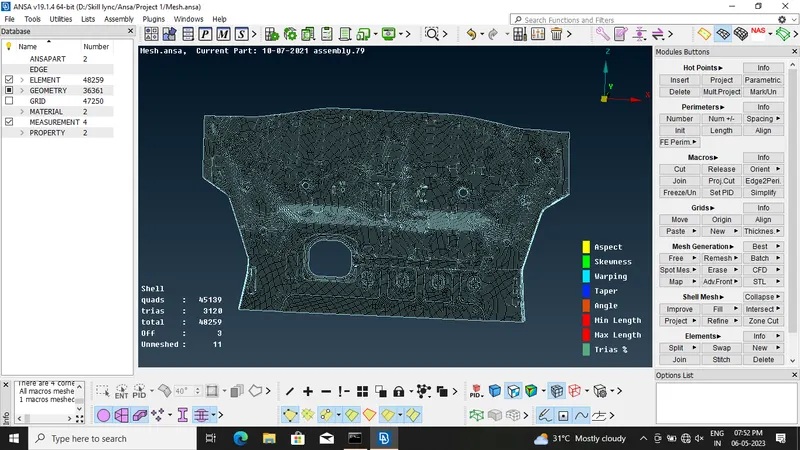

CAD Model

Procedure

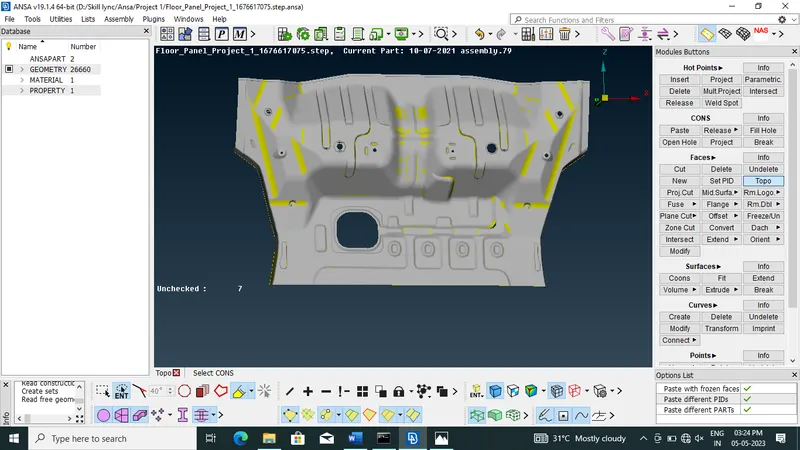

1. Topo

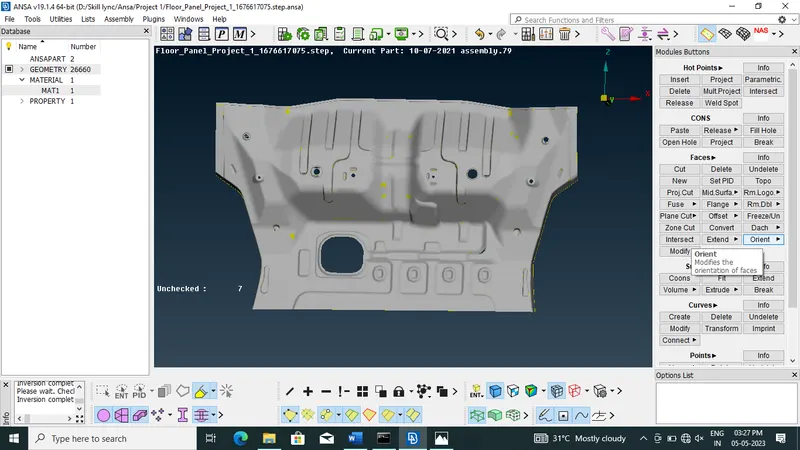

2. Orient

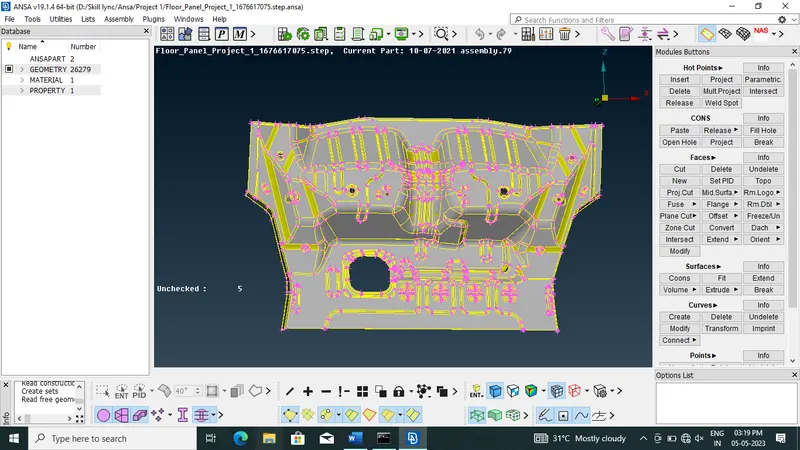

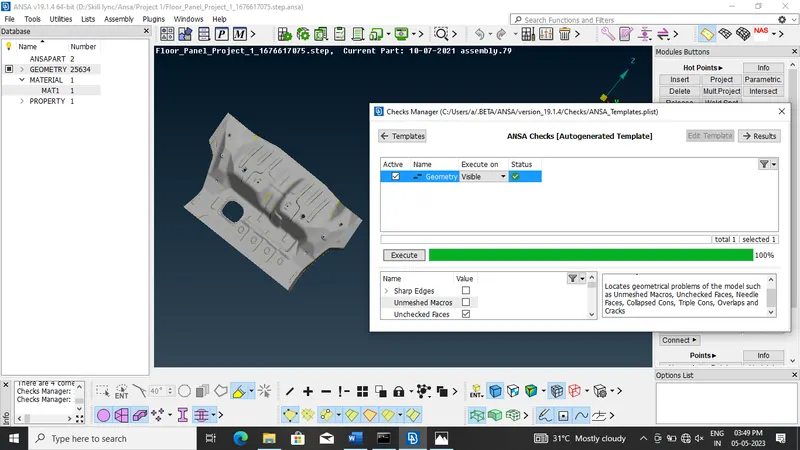

3. Geometry Cleanup

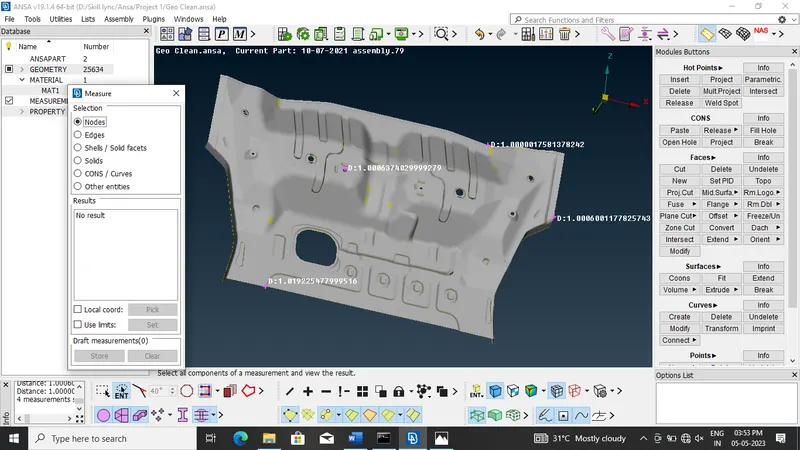

4. Measure Thickness

Thickness = 1

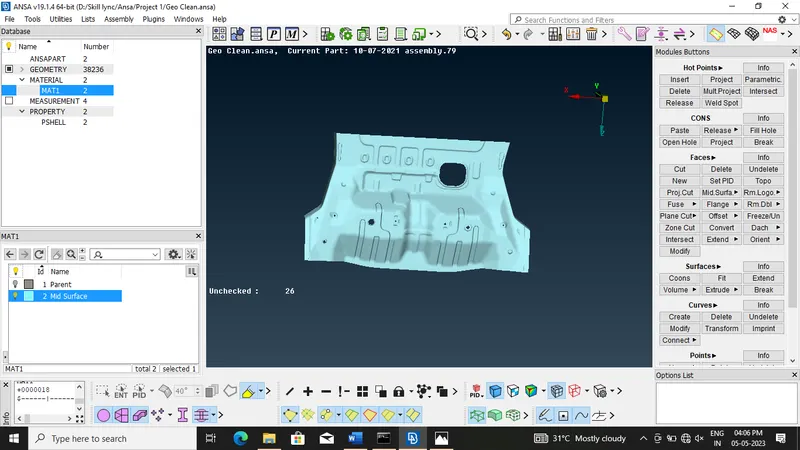

5. Mid Surface

Use Offset Tool For Mid Surface Generation. Also Assign Properties Of Mid Surface.

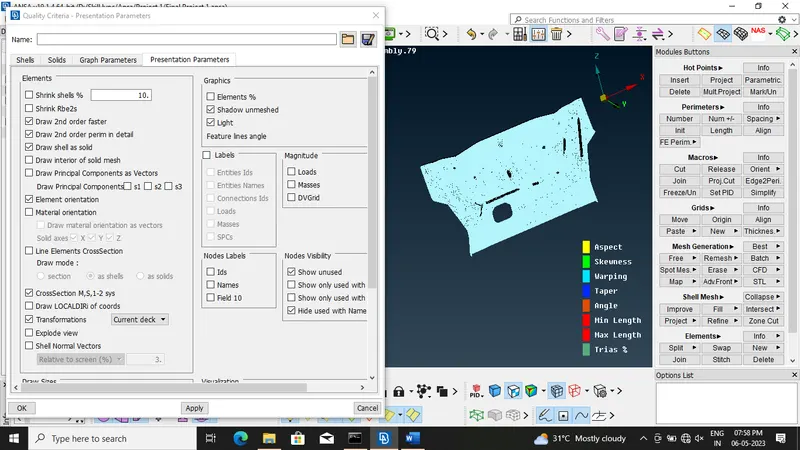

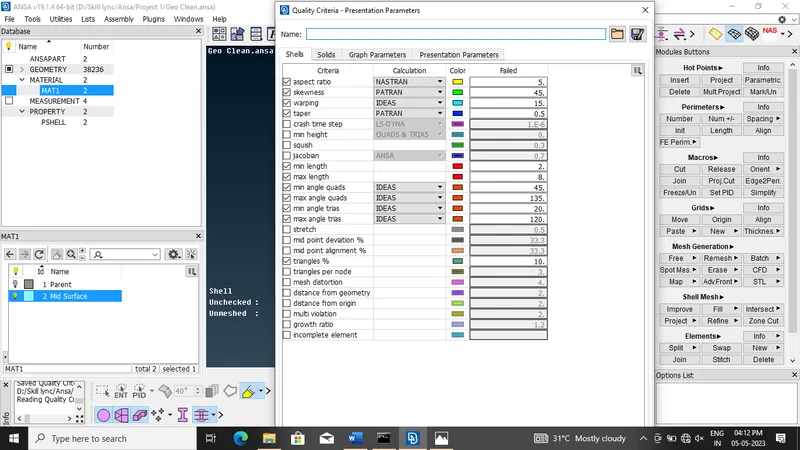

6. Quality Set

7. Mesh generation

Use Best Mesh tool for Mesh Generation and then improve mesh with quality and mesh pattern.

8. Assign thickness to Mesh
