Week- 8 - Solid meshing

open the part in Ansa.

then do geomertical check.

then provide perimeter length to 1 to all the parts.

now from PID select 1 part. in mesh parameters provide target lengh and min lenth , and ortho tria.

in quality parameters give quality parameters.

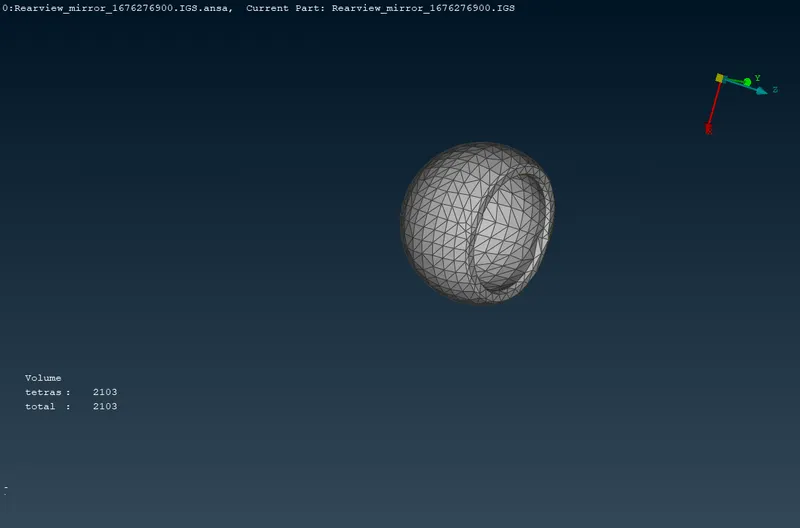

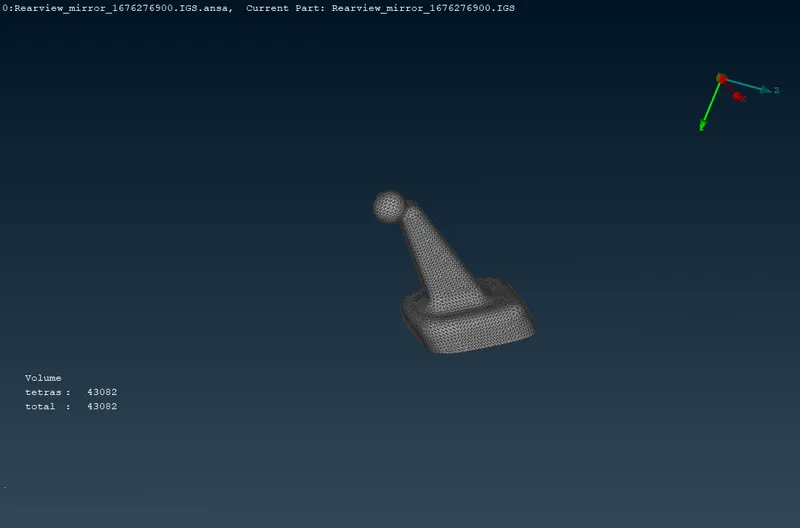

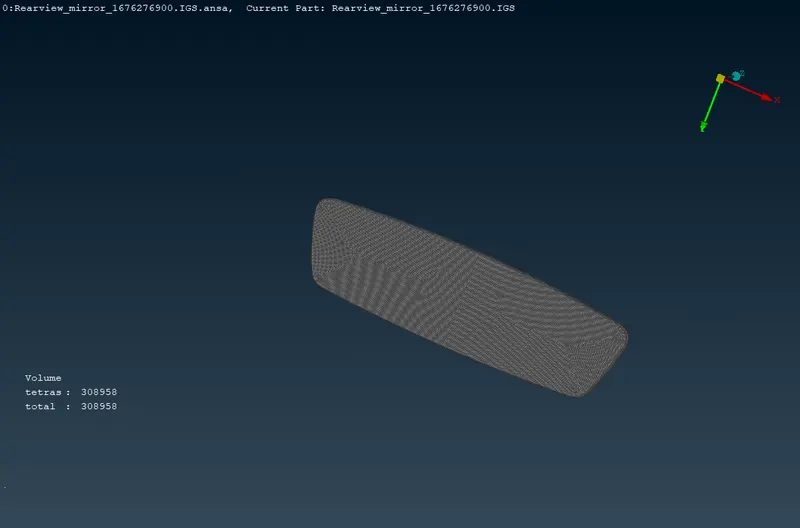

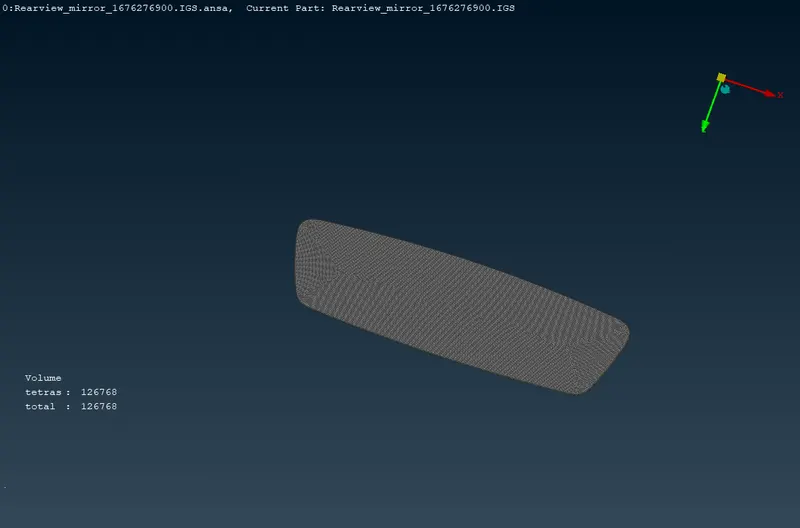

the from classic mesh mesh the 1st PID. then go to volume mesh volume define > visible > select mesh type tetrafem and remesh.

repeat same prodecure for other 3 PID.
