Week 8 Part 9 Project 4 - Surface Design

Objective:-

• Create tooling axis following the OEM standard
• Part Thickness : 2.5 mm
• Output ppt must contain the draft analysis report.

Content

Step-1:-

Creating closed body of Door Arm rest.

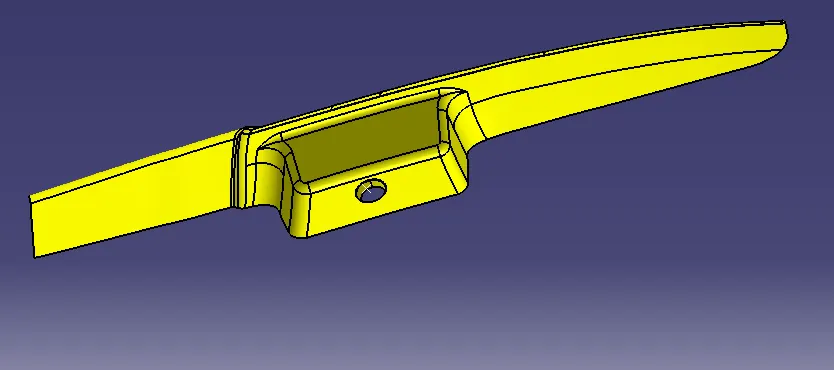

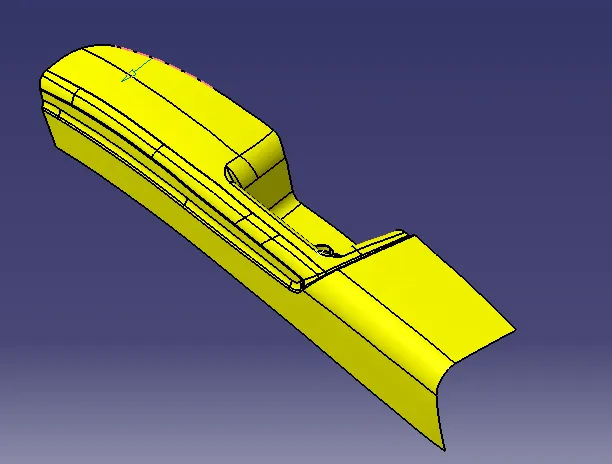

Class-A surface of Door arm rest.

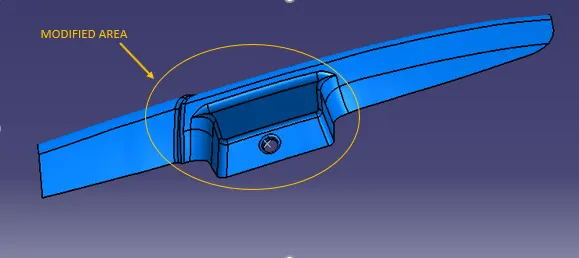

Modified Class-A surface of door arm rest.

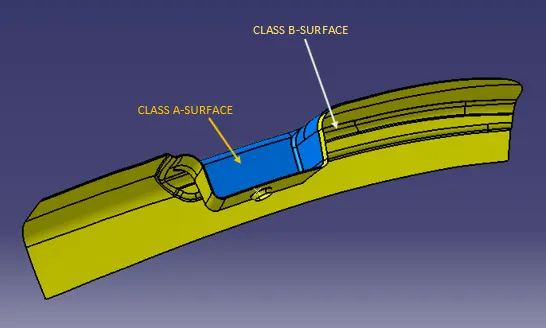

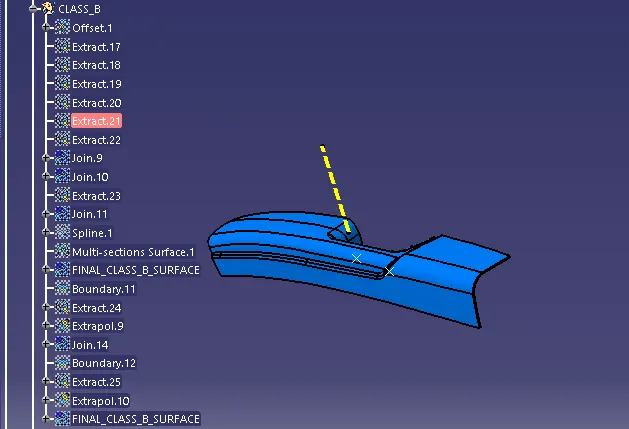

Class B-Surface of Door arm rest.

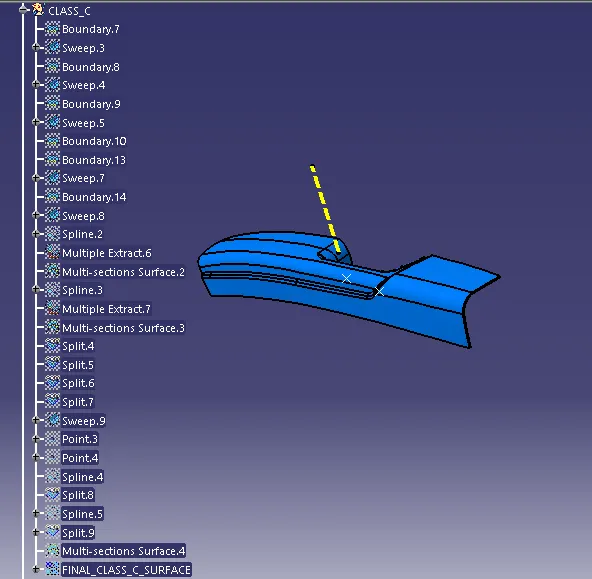

Class C-Surface of Door arm rest.

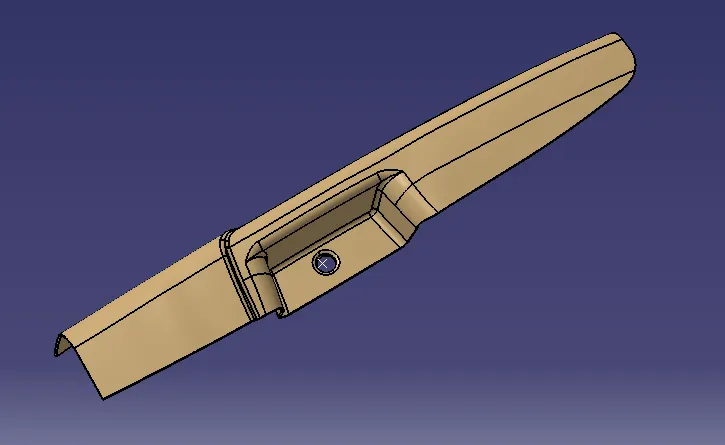

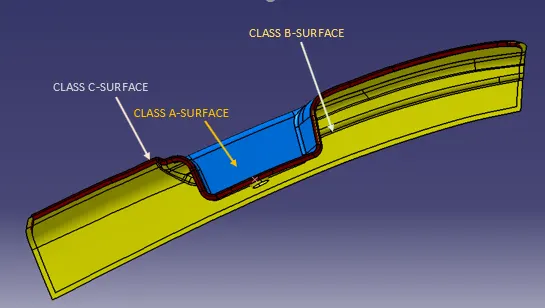

Closed body of Door arm rest.

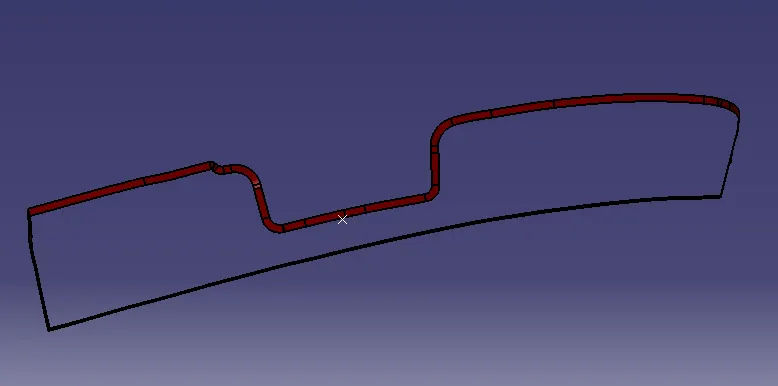

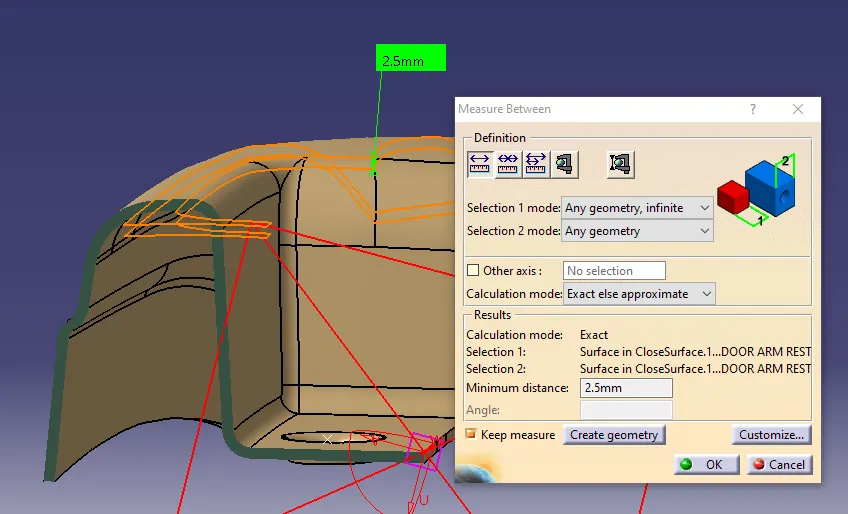

Part thickness of Door arm rest is 2.5mm.

Step-2:-

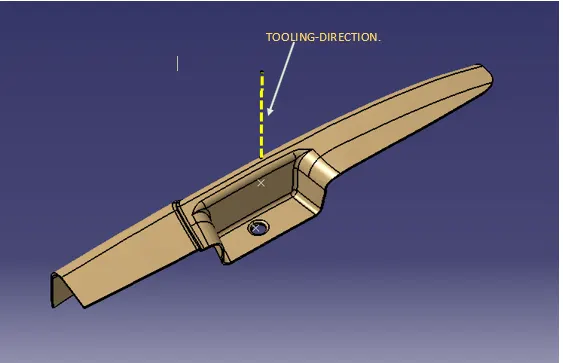

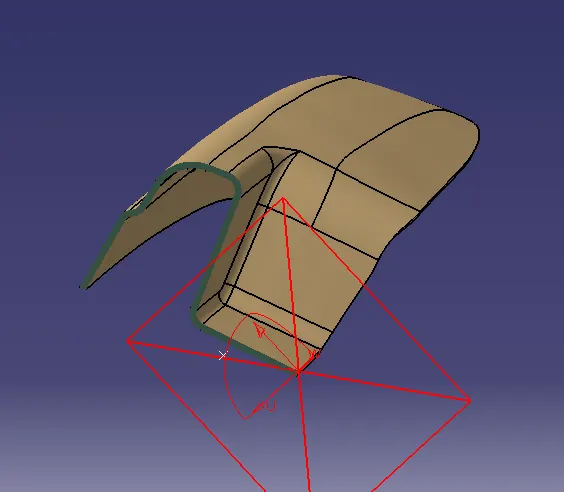

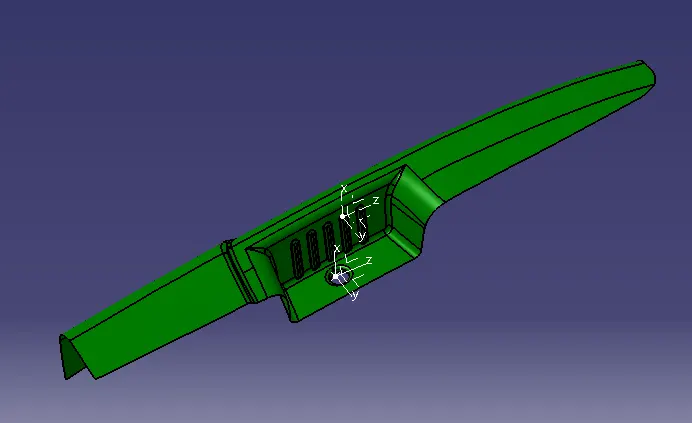

Creating Tooling Direction for Door Arm Rest.

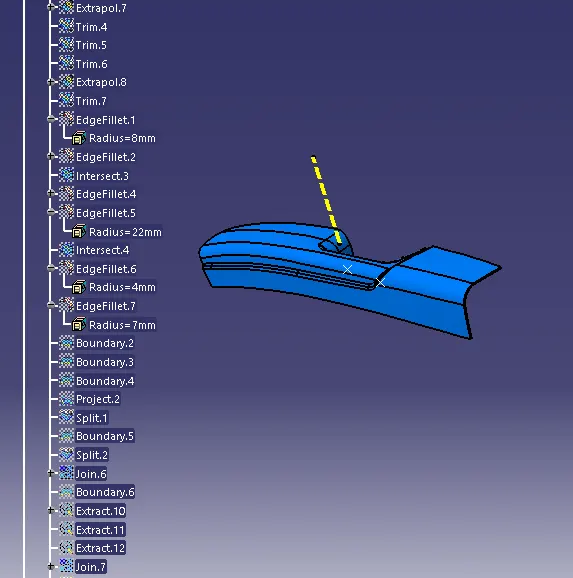

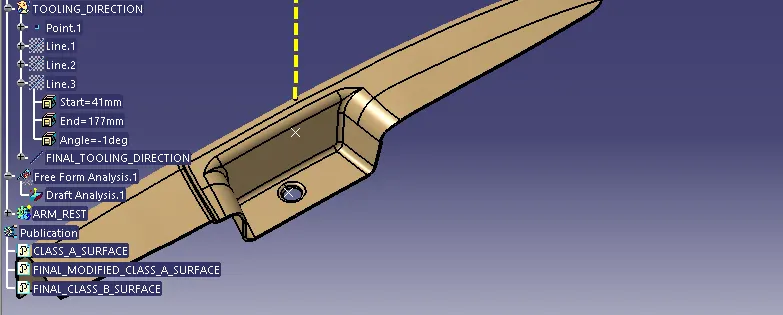

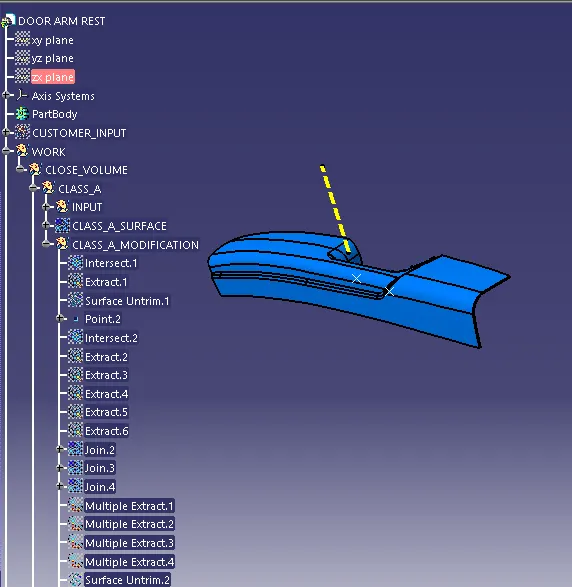

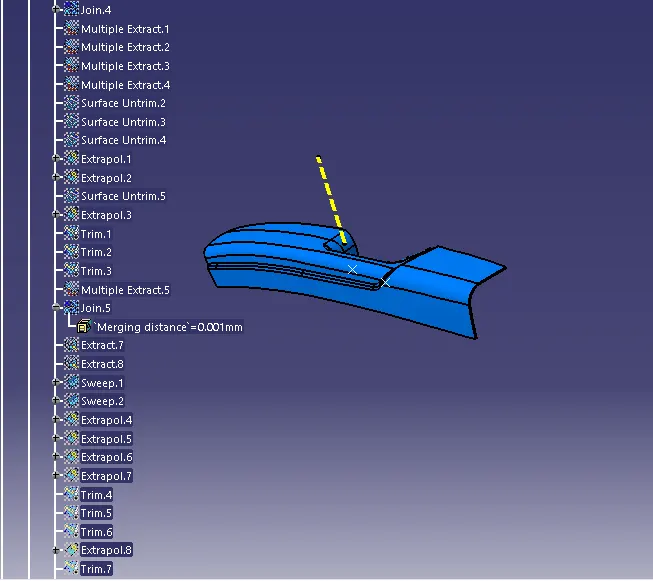

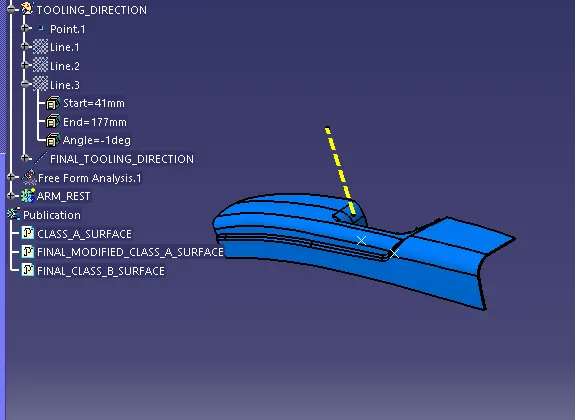

Tree structure for creating Tooling-axis.

Step-3:-

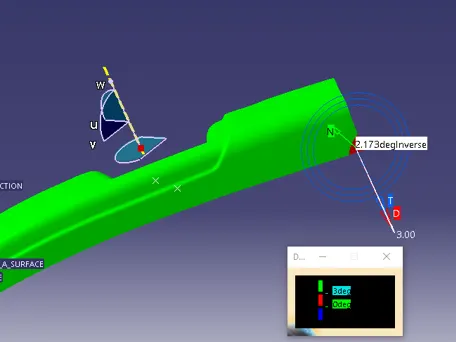

Draft Analysis of Door-Arm rest.

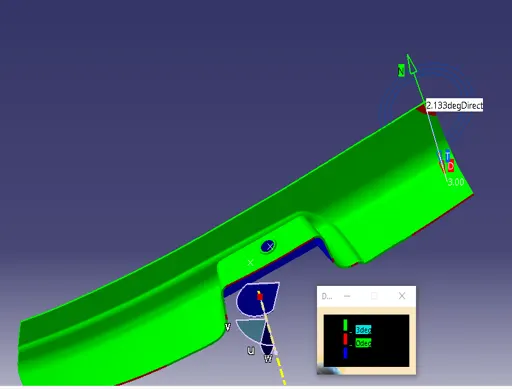

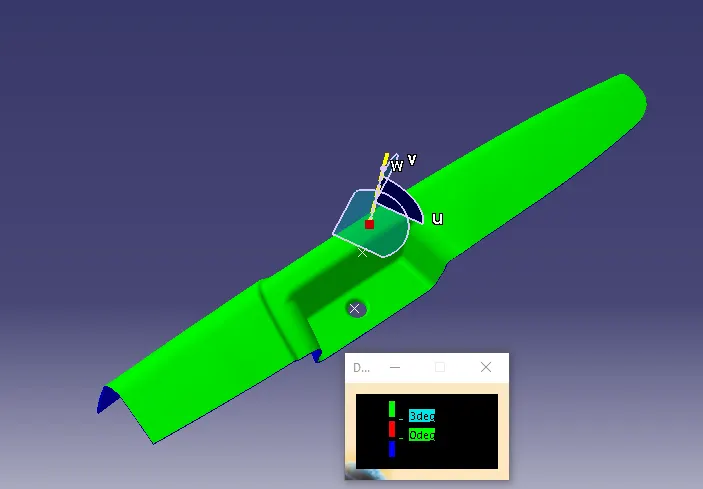

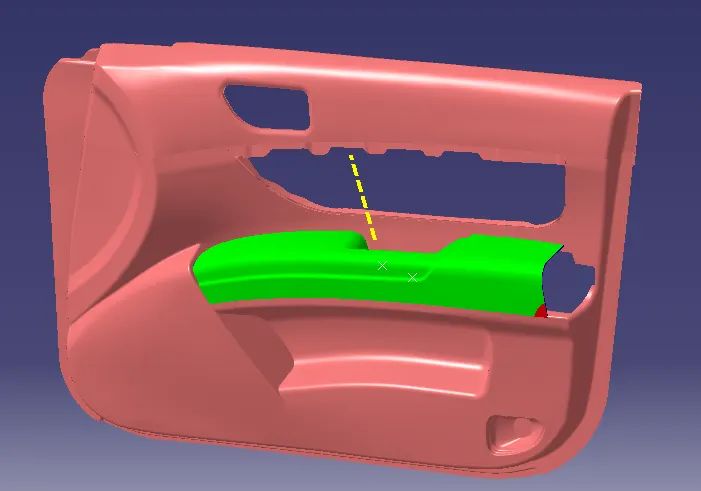

Above picture shows the draft analysis of class-A surface,nominal draft angle is 3deg,green colour shows that the part can be clear in the designed tooling direction.Red colour shows that there is an undercut and needs to be modify.

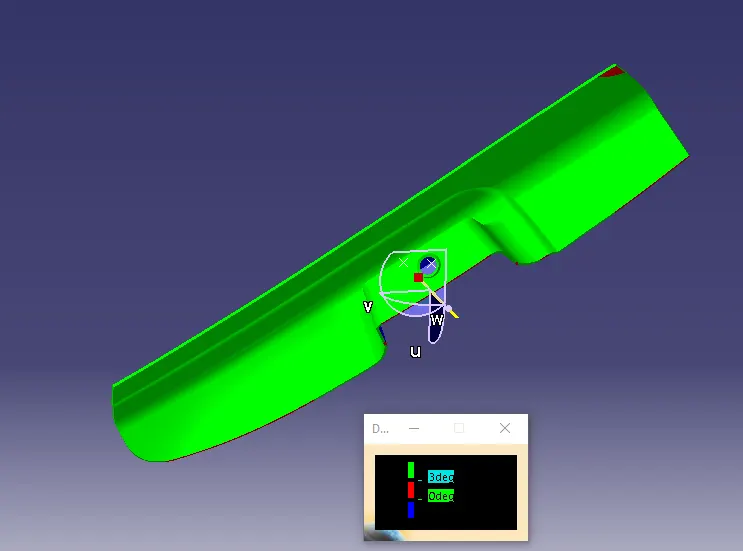

Above picture shows the draft analysis of class-B surface,nominal draft angle is 3deg,green colour shows that the part can be clear in the designed tooling direction.Red colour shows that there is an undercut and needs to be modify.

Step-4:-

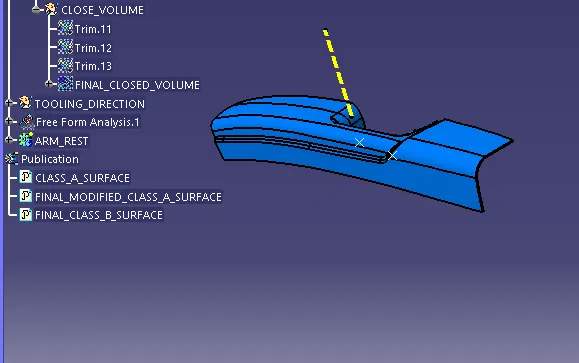

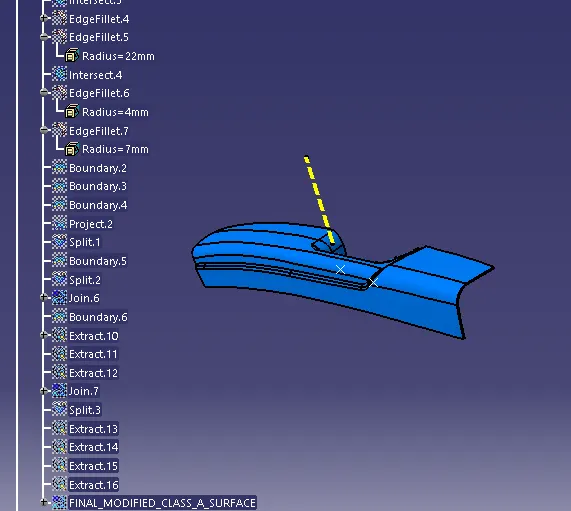

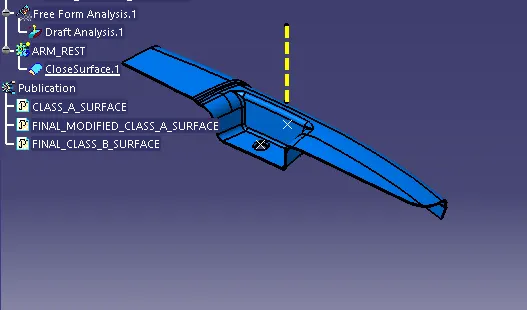

Tree structure of Door Arm Rest.

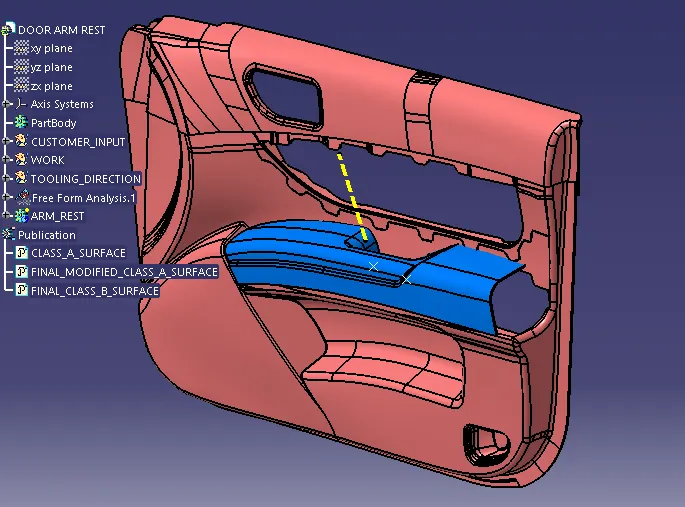

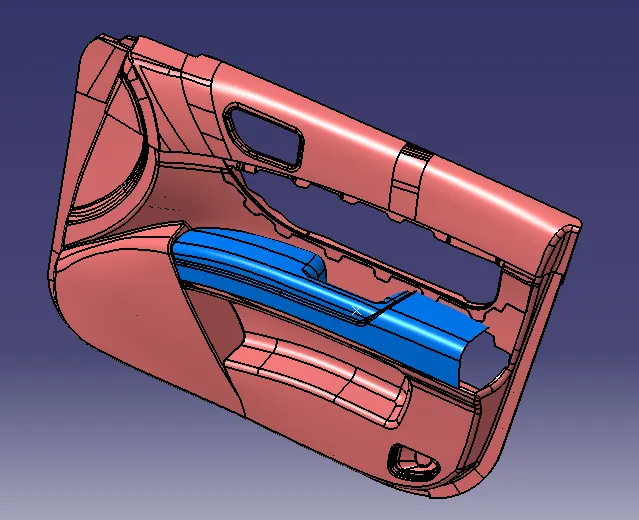

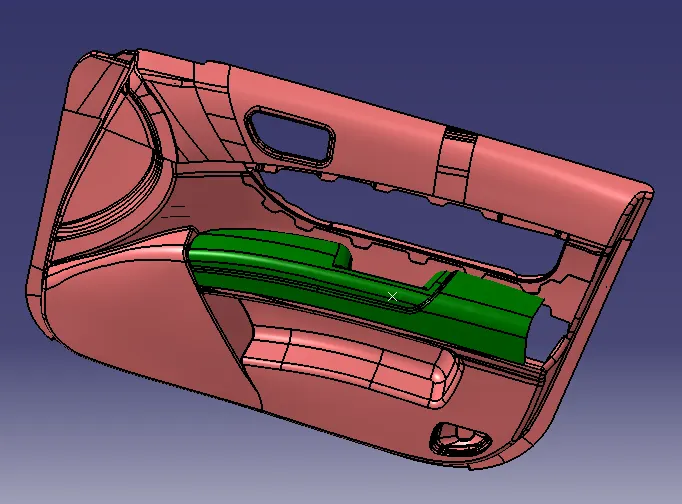

FINAL PICTURE OF DOOR ARM REST.
