Surface Design-Door Switch Bezel

                                                         A                                  …

For more go through following link   https://drive.google.com/open?id=1bk2gOIRt7R_CxapsSVjqTXR8I0PBUK0Q

    For more visit to following link   https://drive.google.com/open?id=1o0xn0FHh6inreSWM2eIHhneu5rKuBUn6

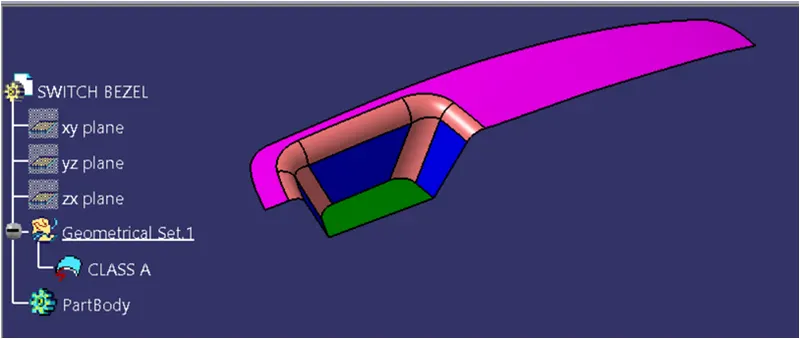

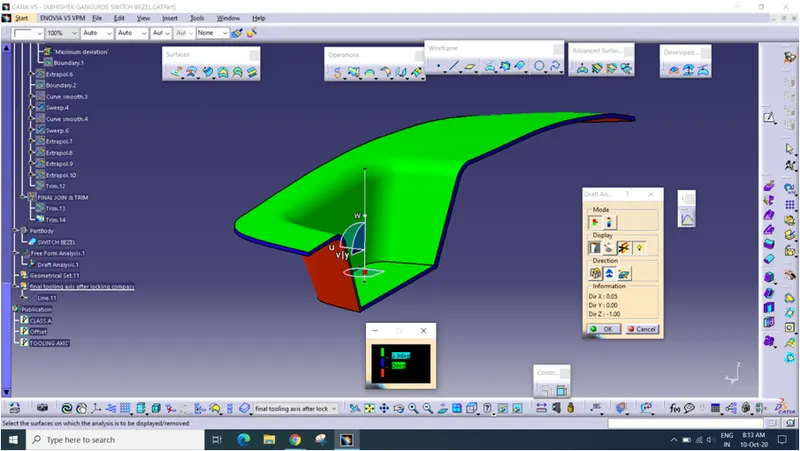

Aim: Development of inner trim- Door Switch Bezel  Input: Clas A surface Generated using software called Alias Objective:    Create tooling axis by following the OEM standard Class A to Class B Surface Creation Part Thickness : 2.5 mm Draft analysis report Class A Surface is the outer skin of the…

Objective:   1. Create a solid body from the class A surface of the Door Applique 2. Follow industrial design rules to create tooling axis and perform draft analysis on the Door Applique 3. Design attachment features like Locators and Heat Stakes for fixing the Door Applique with the Door pane   Creation of door…

    DESIGN AND DEVELOPMENT OF THE B-PILLAR THROUGH MASTER SECTION DEVELOPMENT (INTERIOR TRIM)     AIM: To design and develop B-Pillar from given Class’A’ surface and master section into a functional product design following the OEM design standards using CATIA V5 Surface workbench and Part…

                                                              A                              …

          Create a 2D drawing from the 3D created from the Part design work bench, Drawings created for all 3D exercise Drawings follows standards whichever required

I have already completed my coursework, I'm doing this re-submission as per the guidelines given by " Mr. Nirmal " https://drive.google.com/open?id=144QznIQXhdEzlELqrqT9zlCXnabpcpFg

                                                                   …

Click here to see project report Clock here to see project presentation slides Four Wheeled Montainboard Design & Development

Sectional Modulus Calculation & its optimizations    Problem Statement:Use the Section from your Hood design and calculate the section modulus using the formula S = I/y S or Z = Section Modulus I = Moment of Inertia Y = distance between the neutral axis and the extreme end of the object  Come up with…

Fender Design - Wheel Arc Challenge Criteria to pass European regulation requirements:                To satisfy the European Regulations all the section should have clearance of 5 mm from the tire when viewed from the top. Wheel guard requirements: The value…

Underbody Coating Overview Undercoating (also called Under seal ) is a thick resilient coating applied to the underbody or chassis of an automobile to protect against impact damage from small stones, which would rapidly chip ordinary paint, allowing rusting to begin.   Need of undercoating Vehicles for sale in some…
