Week - 8 - Morphing

Aim: To perform the morphing operation on given model, and change the height of the dog houses and ribs.

Working Process:

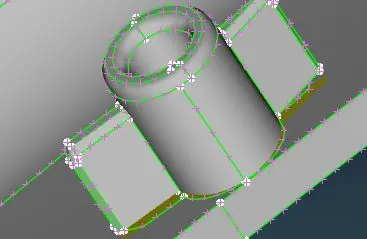

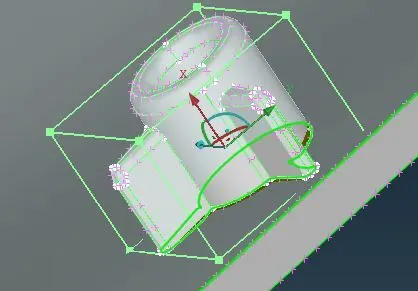

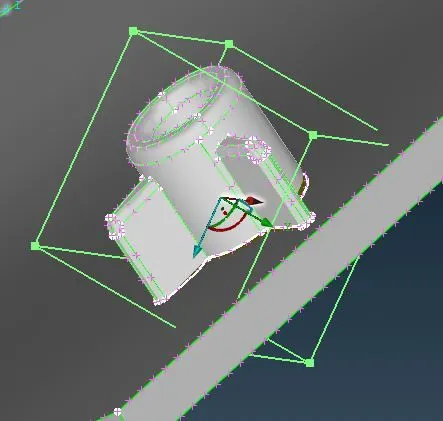

Step 1: Select the dog house and give coordinate alignment.

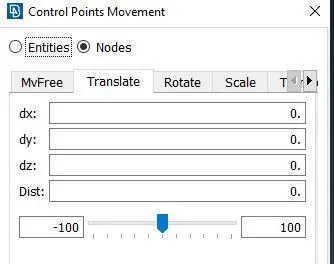

Step 2: Selection of the nodes according to moving direction.

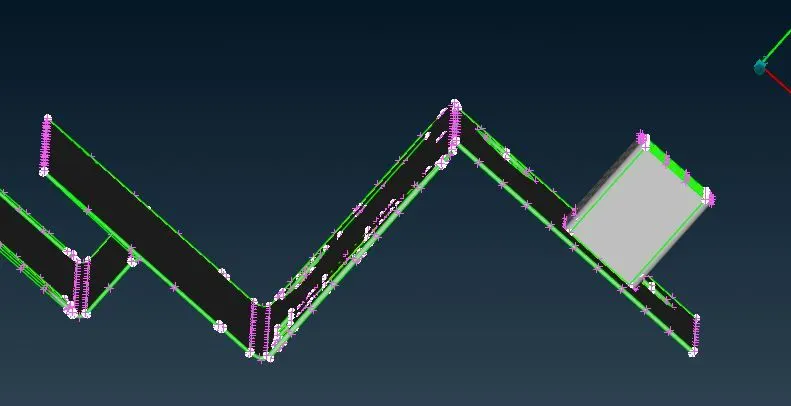

Step 3: Repeat the same process for the all the dog houses and ribs.

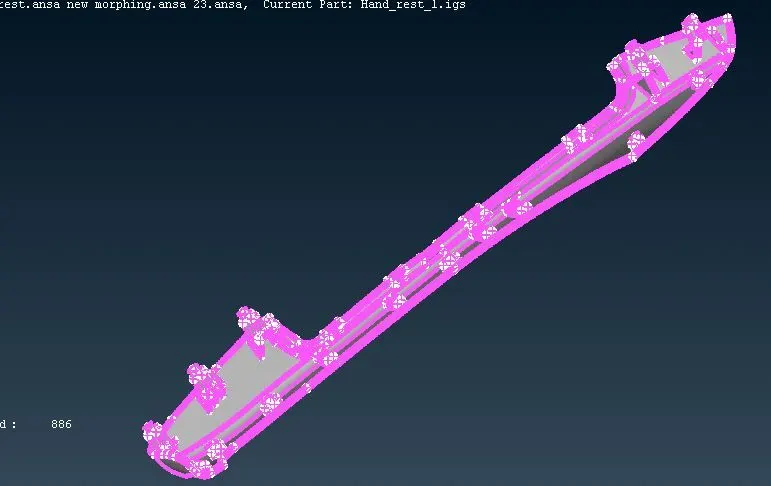

Model 1:

Learning Outcome: Applying morphing on a component and changing the dimensions.

Issue: While applying morphing geometrical feature changes occure.

Conclusion: By this method of morphing. We can easily chnage the user required dimensions.
