Week - 8 - Morphing

Aim: To perform morphing on the Object

Procedure:

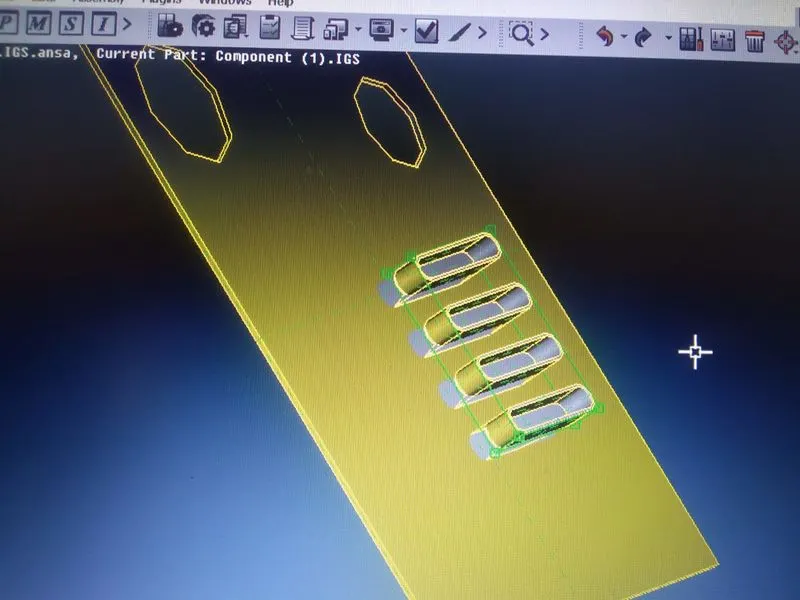

1) As shown in Fig morphing was performed on the at Seperate plate on the top side and move along transaltory axis

Fig:morphing by creating ortho Box

2. Morphing was done on the other plate so as to move it and see the possible changes that can be made without keying any numerical values

3.Bolts were not inroduced in the model while morphing as the bolts are asiigned different property and considered as connecting elemnets

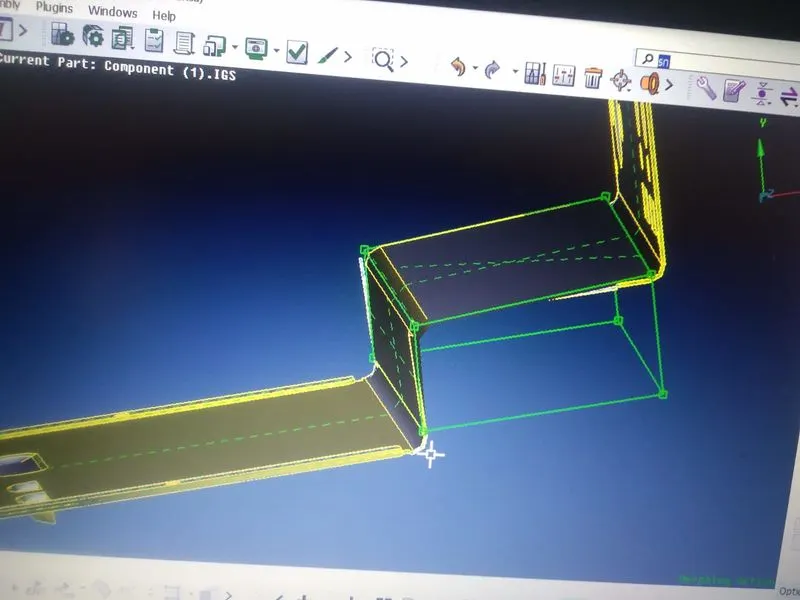

Fig:Morphing on base plate wihtou moving the Bid elments

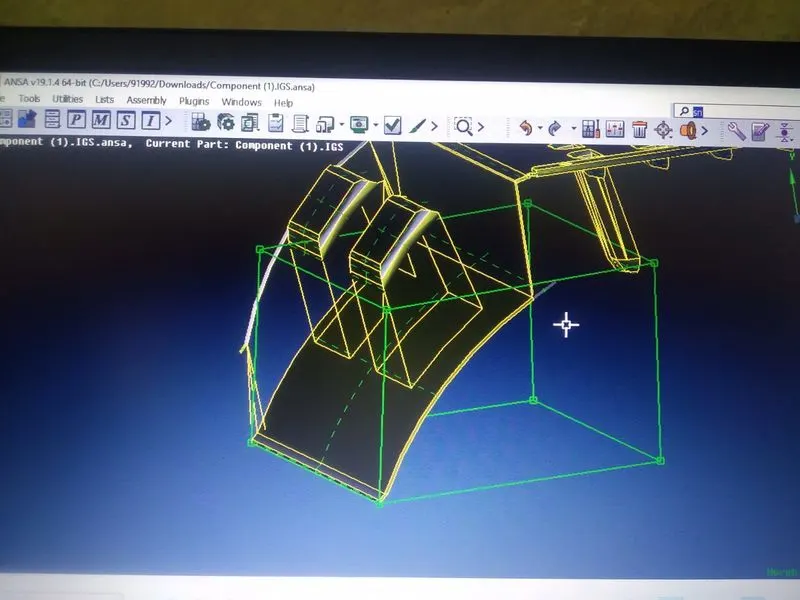

Fig: Morphing on the joint plate

Conclusion: Morphing on the objects helps in changing the geometry without any numerical conversion

Learning Outccomes: Same method can be used on any object so as to make changes and see the best possible outcomes by changing the shapes so as to acheive the CX demands according to the trending market (For EX: change of car shape from honda brio to honda amaze)
