Week - 8 - Morphing
OBJECTIVE:
The main aim of this project is to perform the basic morphing technique for a Hand rest plastic component and a sheet metal component.
PROCEDURE:
Hand rest plastic component:

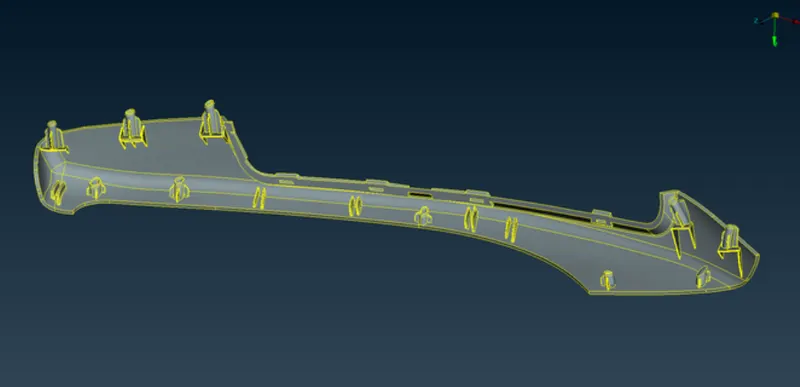

Imported the given stp file in the ANSA work page.Checked for the orientation,The issues with orientation are cleared using the topo module-->faces-->topo.

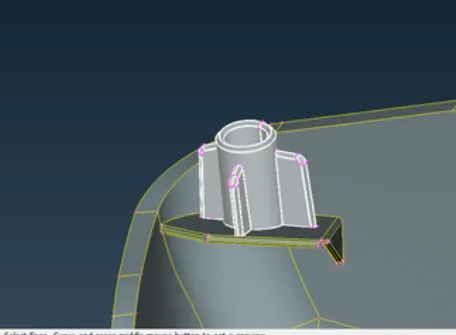

The resolution of the CONS is improved using Auxiliaries--> fine from topo module or perimeters-->length from mesh module.The model is then subjected to a geometry checkup to check any free edges between the models, duplicate surface, irrelevant CONS using the option tools--> checks-->geometry.Some geometrical errors are cleared using the Auto fix option and some are manually done using options like release hot points, release cons, topo, faces cut, etc. from the Topo module.
Morphing is performed using the morph module,when the morph module has selected the activation for morphing is done as shown below,

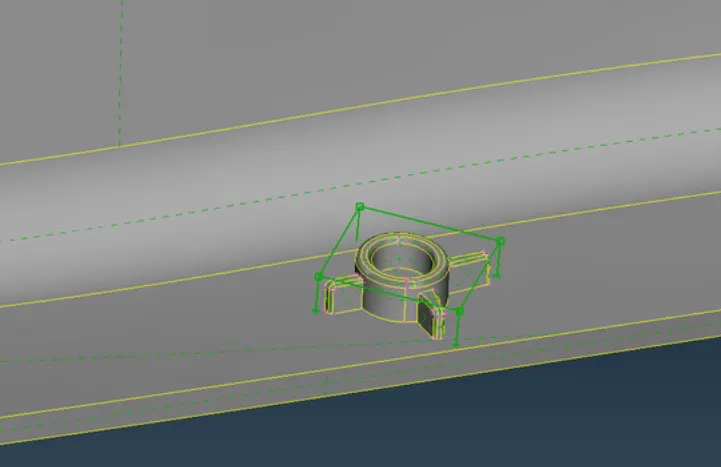

The morph region is selected by boxes --> new --> ortho option, and morph boxes,
The movements can be controlled by the global and local coordinate system,

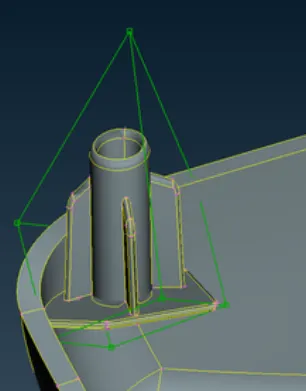

after morphing:

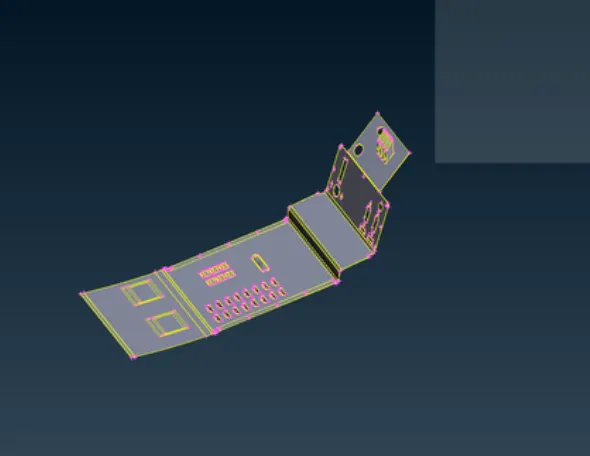

As same as for the model 2 its imported and morphed as follows,
Learning outcomes:
Learnt to do morphing.
Result :

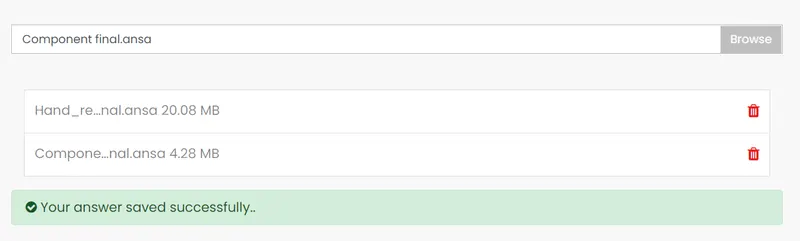

For the given model the morphing has been done and model has been attcahed,
