Week - 8 - Creating component and property

AIM:

      Create the component and property.

OBJECTIVE:

• Ask the user to enter name of a component and its thickness.
• Write a code that will automatically create components and assign thickness to it.
• The code should decide on its own what type of collector should be created depending on the user profile/deck.
• According to deck the code should decide , whether a property needs to be created or not.
• Auto color the created component and property.

PROCEDURE:

CODE:

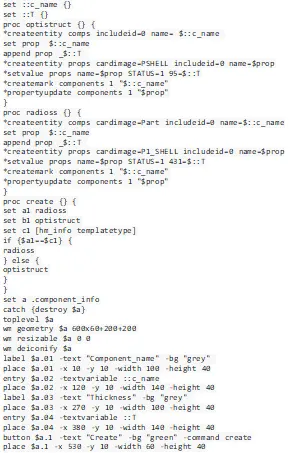

Here I have written the code to run for two profiles Radioss and optistruct in two different functions,

• The component is created using *createentitycomp with a name that user has entered in entry GUI similarly, the property is created using (*createentity prop)
• The thickness of the individual property is set using (*setvalue props ) command  with the user-defined thickness.
• now the updated property is assigned to the respective component using (*propertyupdate)
• Then in order to create components based on the profile I have implemented if condition which is assigned to button named (create) in GUI

OUTPUT:

RESULTS:

• Name of a component and thickness has been entered.
• To create components & assigning the thickness a code is been created.
• For component and property auto color is created.
