Week 8 - Challenge 6 - Core & Cavity Design

Objective: The main objective of this challenge is to design a Core and Cavity for a Switch Bezel' in CATIA V5 with the help of a surface workbench.

Cavity Design:

Initially, I have taken the boundary of the class A surface to extrapolate it. After extrapolating the class A surface I trimmed extrapolated class A surface and class C surface (join of class A and sweeped surface), after I trimmed the class B surface with Trim.5 to create the 'Parting surface'. Now I draw a rectangle, which does not exceed the boundary of the parting surface.
Now I extruded the sketch along the tooling axis, after extruding the rectangular sketch I trimmed both the parting surface and rectangular extrude to remove the lower side of the parting surface. I filled the upper surface to make a closed surface by joining the filled and trimmed surface. Now I make the closed surface into a solid body, the obtained solid part body is our cavity block.

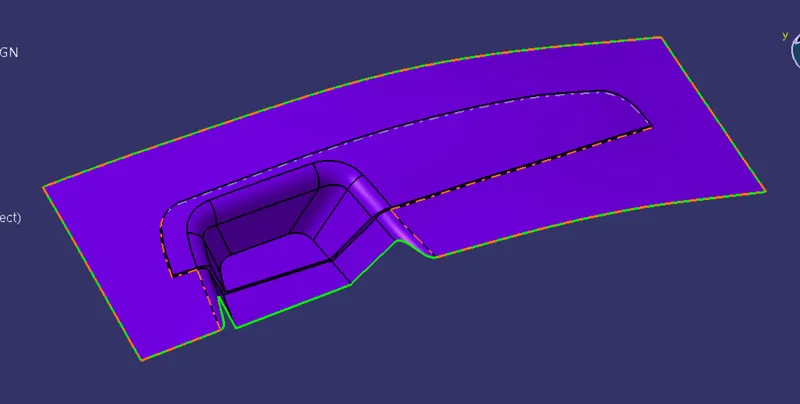

Parting surface trim:

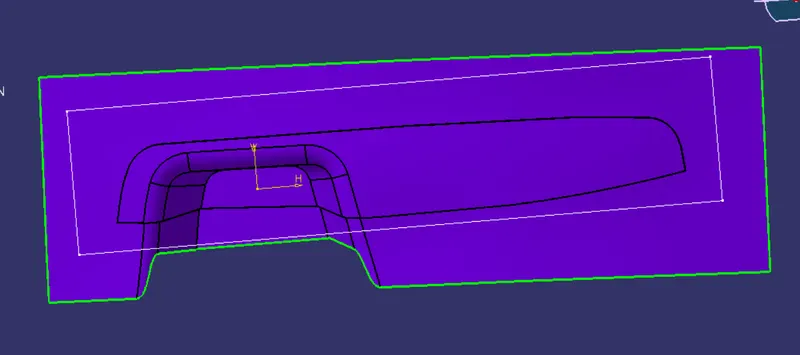

Rectangular sketch to extrude:

Rectangular extrude:

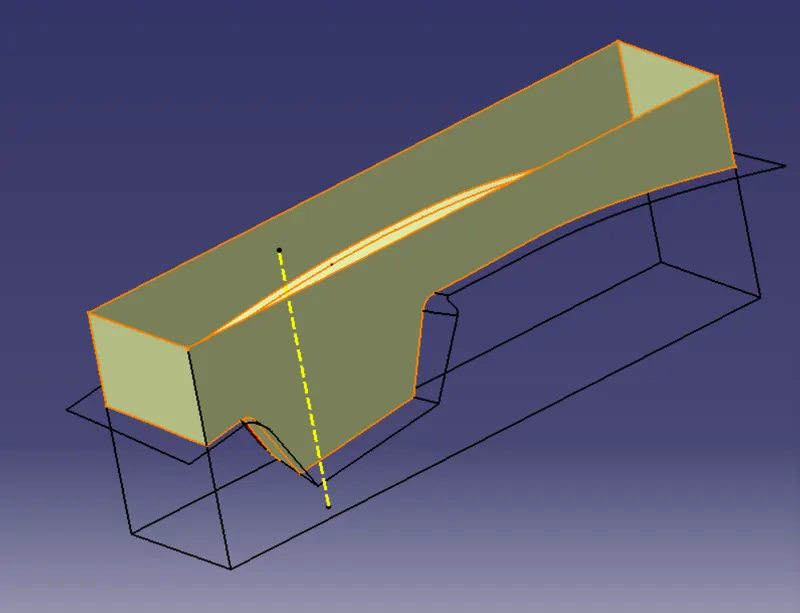

Trim for Cavity block:

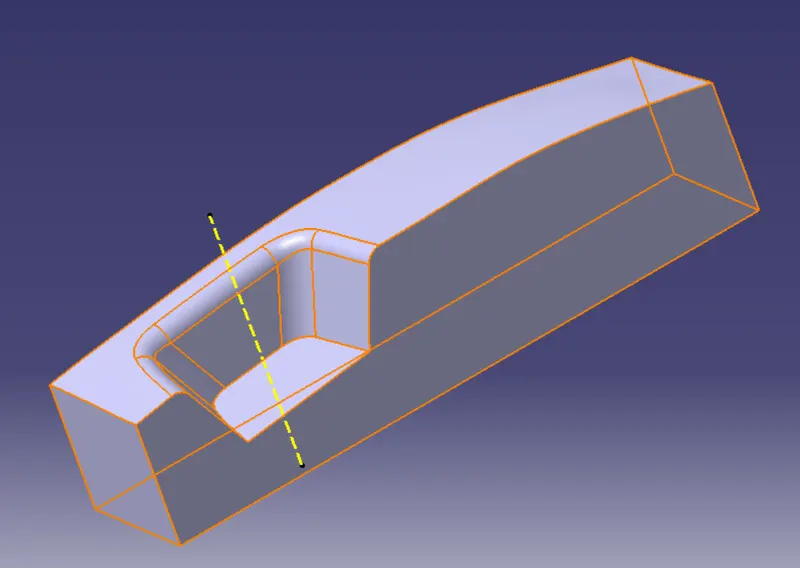

Cavity block:
Closed surface:

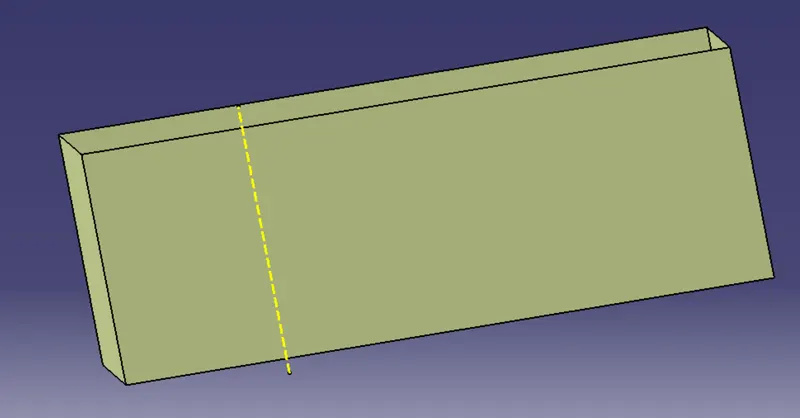

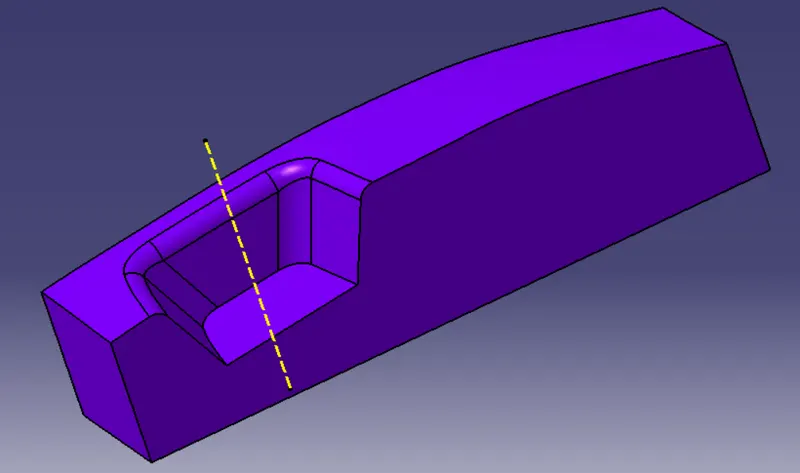

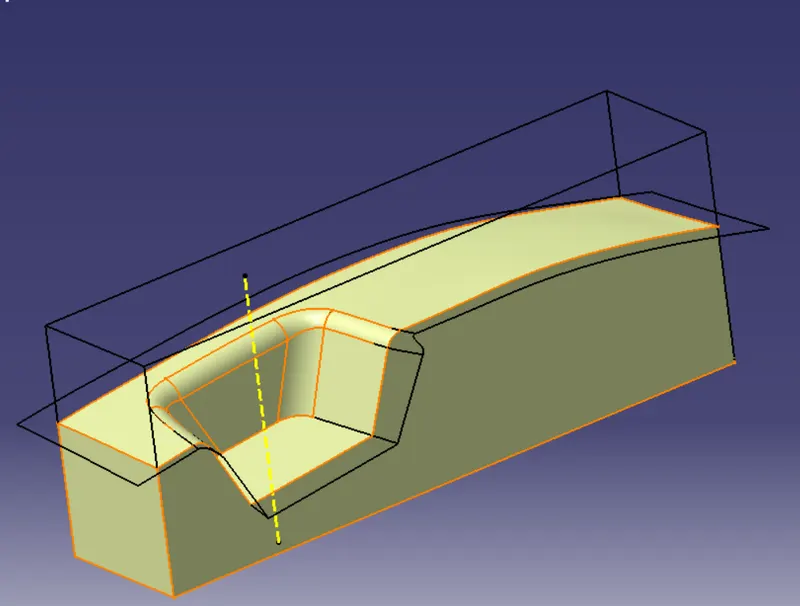

Cavity block solid:

Core Design:

To create the cavity block, I trimmed the rectangular extrude with a class B surface to remove the surface which is the upper side of it. After that, I filler the surface which is opened, to make a closed surface by joining both trim and filled surface. Now create a solid body from the closed surface by using the closed surface. The obtained part body from the closed surface is our CAVITY block.

Trin for Core block:

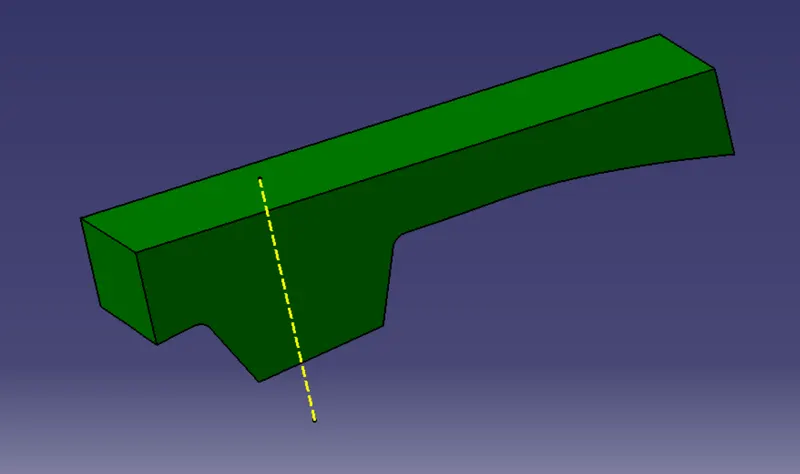

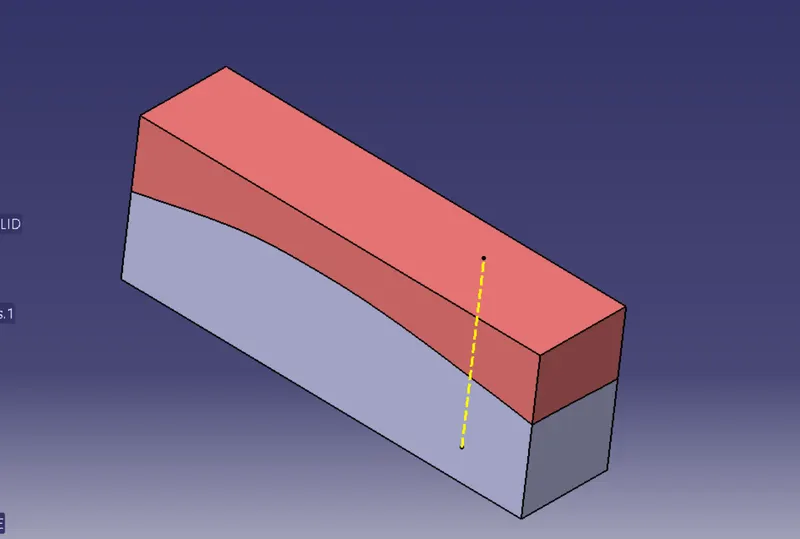

Core block:

Closed surface:

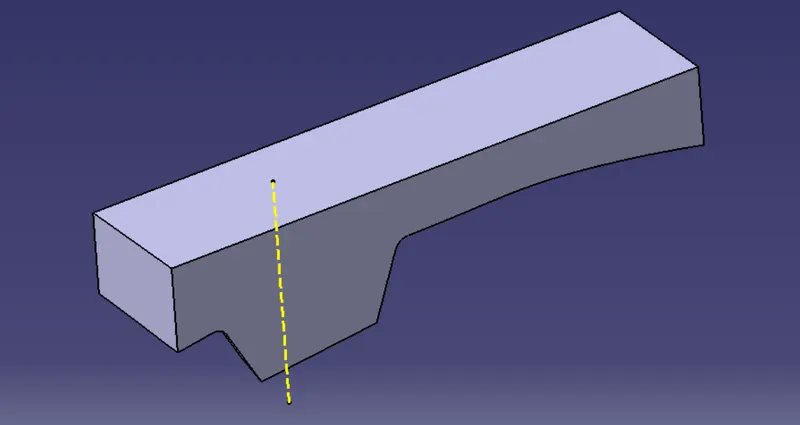

Core block solid:

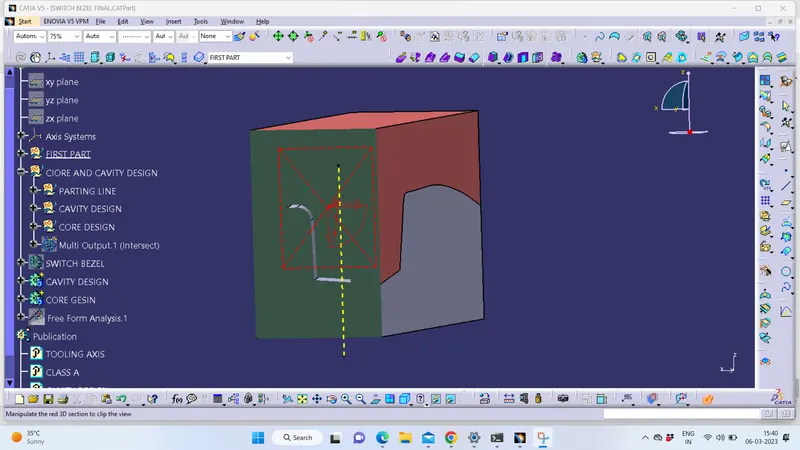

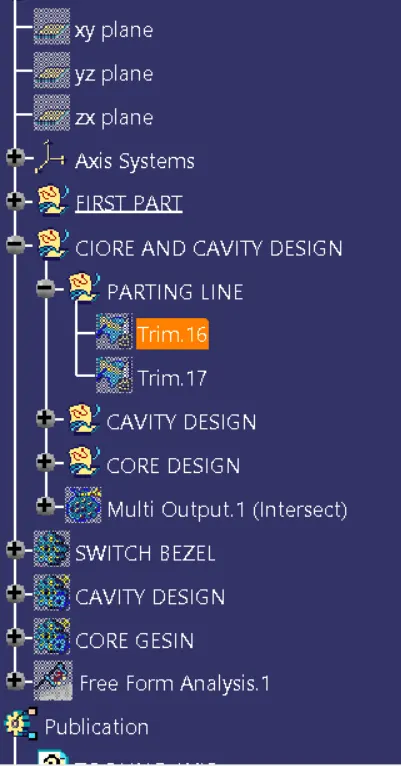

Tree Structure:

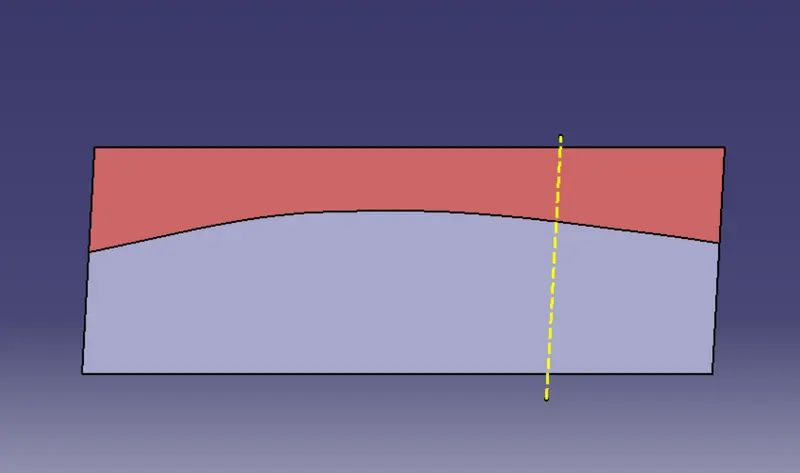

Isometric view:

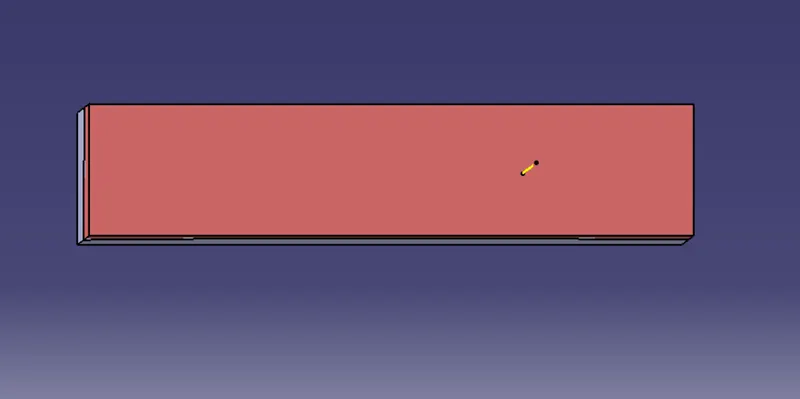

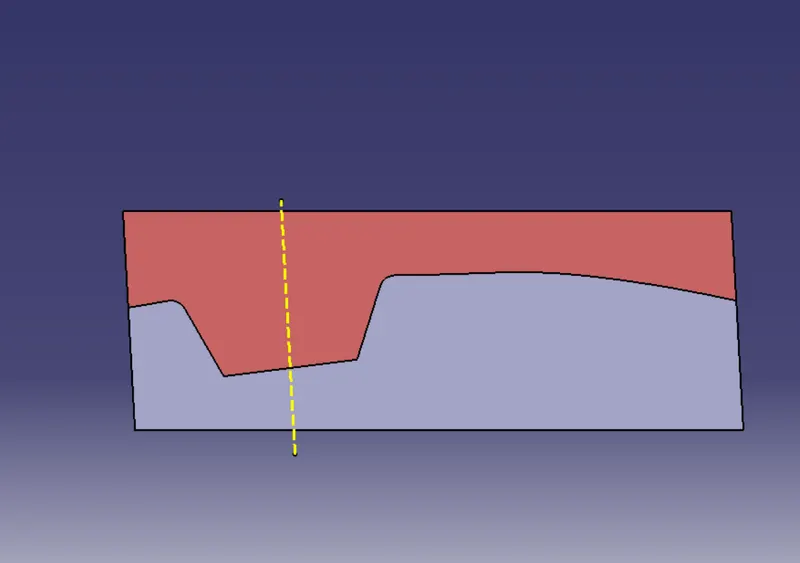

Front view:

Back View:

Left view:

Right view:

Right view:

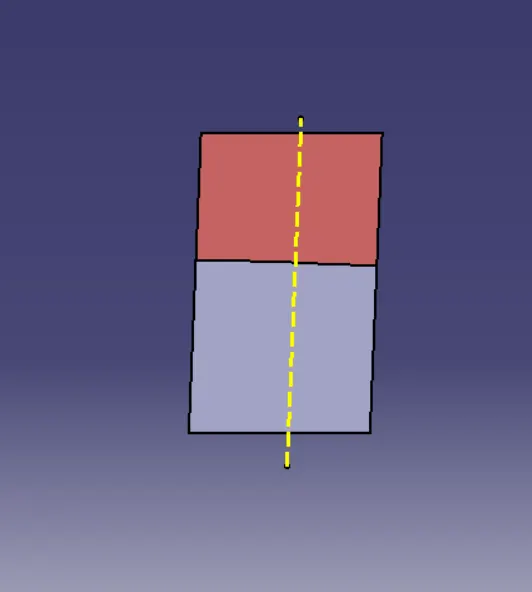

Top view:

Bottom view:

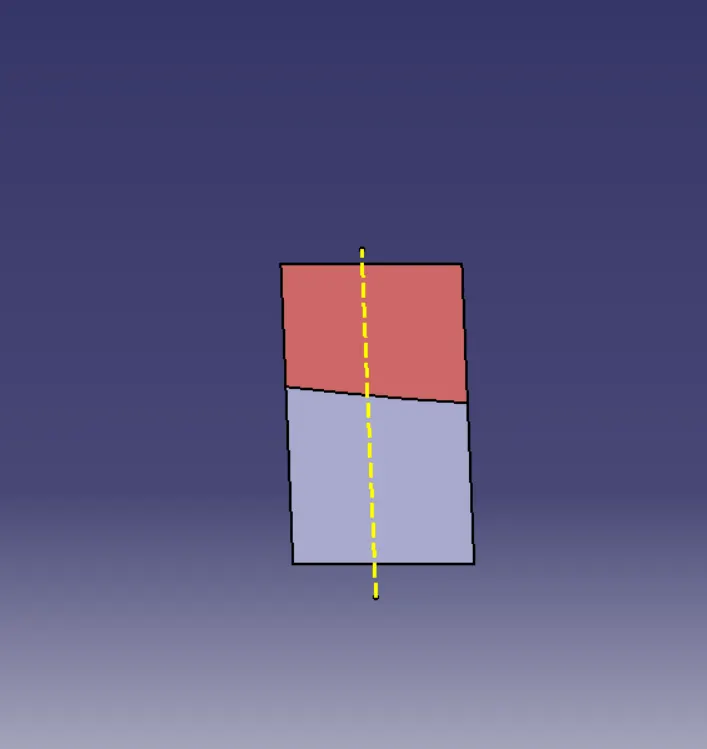

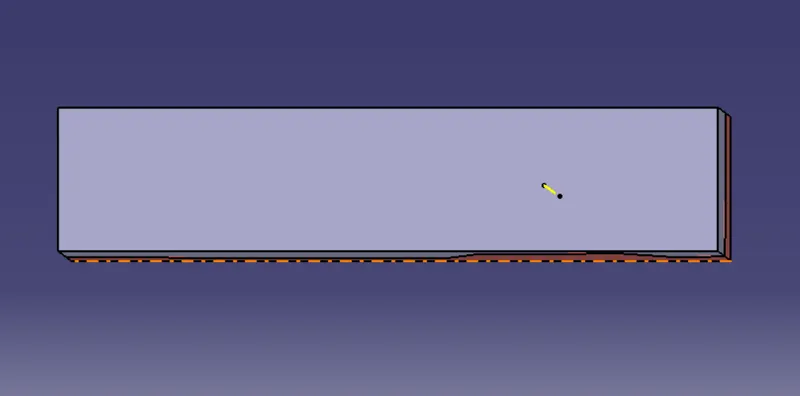

The space between the core and cavity:
