Week 8 - Challenge 6 - Core & Cavity Design

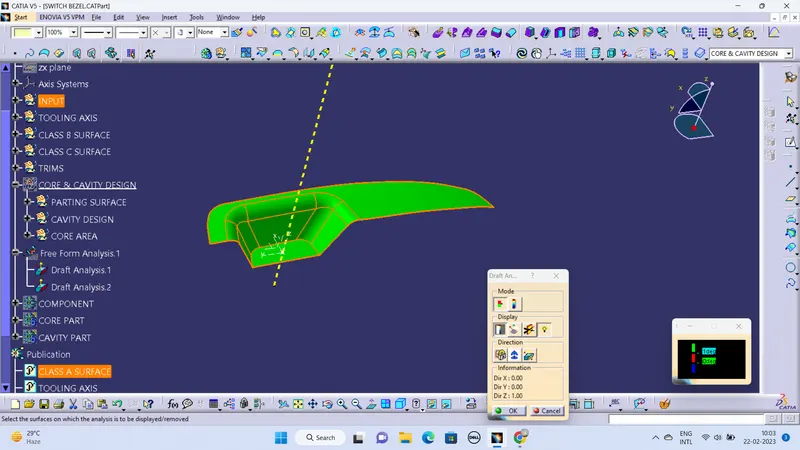

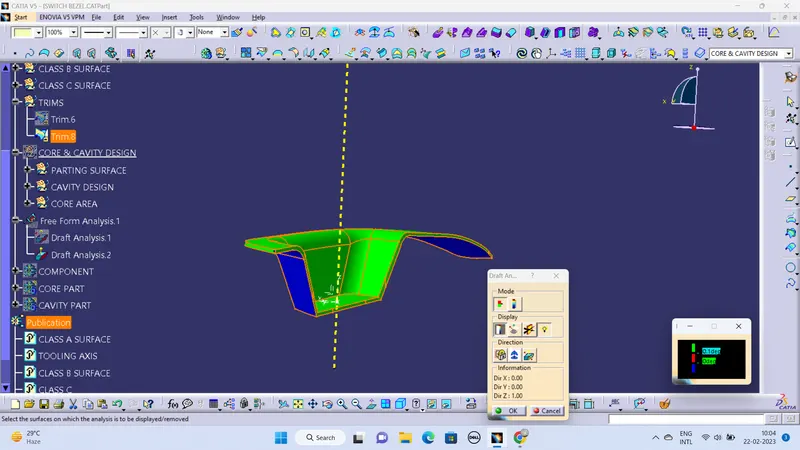

- Screenshots of the Draft analysis report for both the switch bezel plastic component
- Screenshots of the core and cavity blocks in various orientations (Isometric, Front, Side, and Top View)

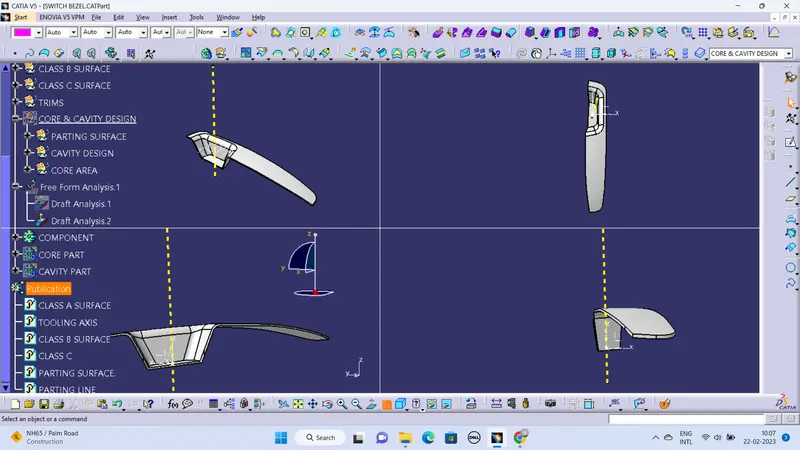

- Orientation of the component in various directions.

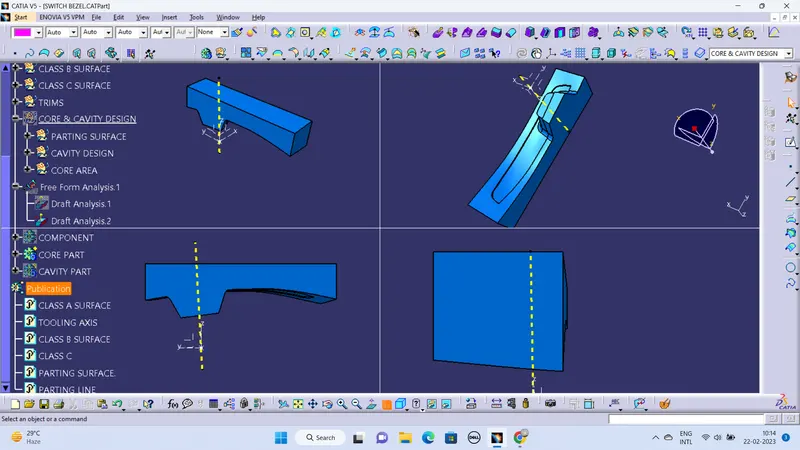

- Orientation of the core in various directions.

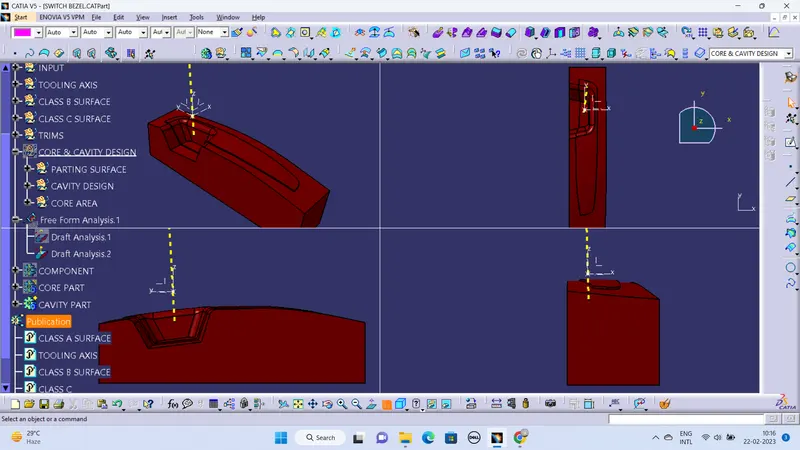

- Orientation of the cavity in various directions.

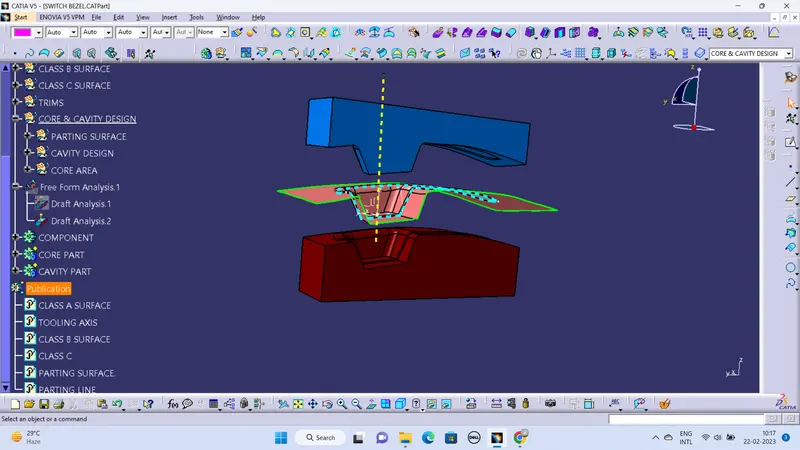

- Core, cavity, component, parting line, and parting surface.

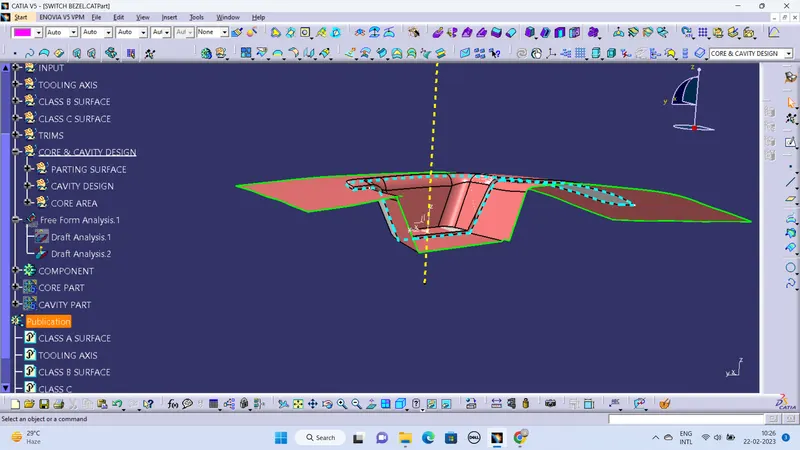

- PARTING SURFACE:
- Surface that runs on the B surface climbs up through C surface and runs along A surface is called the parting surface
- Always ensure the parting surface is on B SURFCE.
- PARTING LINE:
- It is simply obtained by the intersection of the (CLASS A SURFACE + CLASS C SURFACE) and CLASS B SURFACE
