Week 8 - Challenge 6 - Core & Cavity Design

1. From the given switch bezel design.

2. From the class A, B, C surfaces the parting surface is created.

3. The core and cavity half are created.

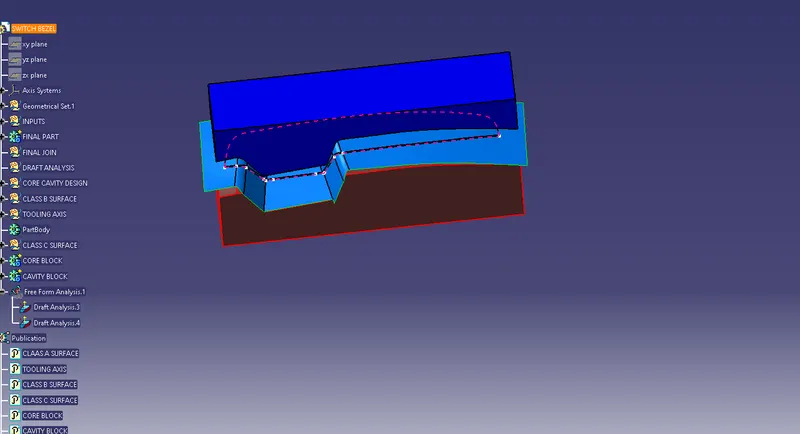

4. The core and cavity are converted to the closed body and are separated from each other.

4. Finally the parting line and surface are shown
