Week 8 - Challenge 6 - Core & Cavity Design

MAIN OBJECTIVE :

Create the Core and cavity blocks for the switch bezel designed in the earlier challenge.

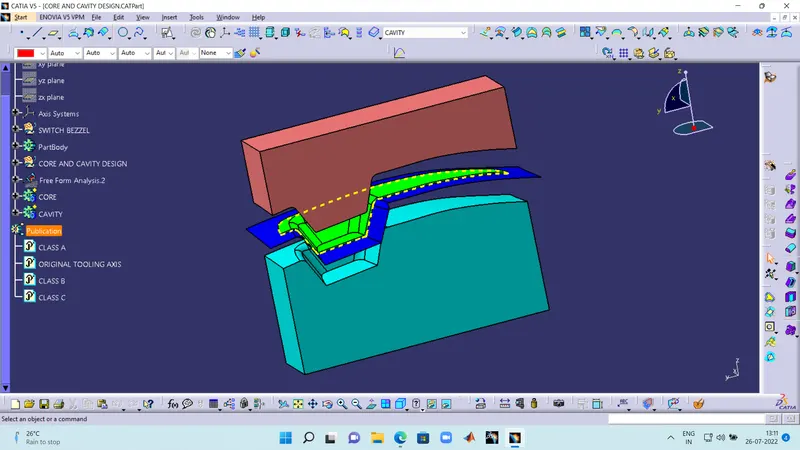

CORE AND CAVITY DESIGN FOR THE SWITCH BEZEL :

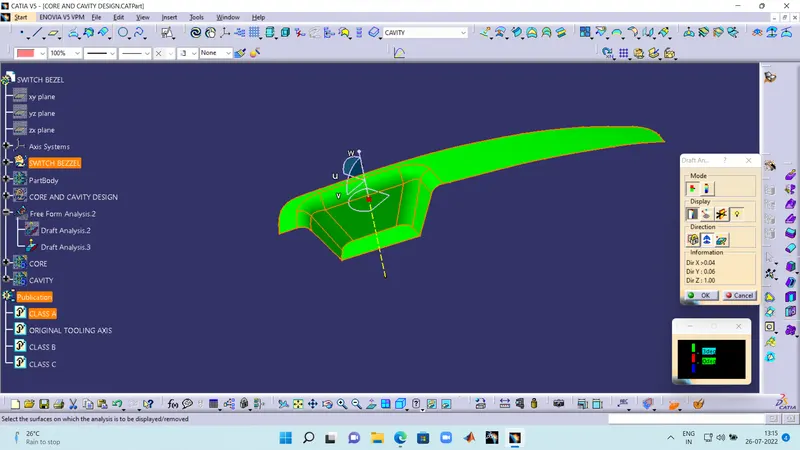

DRAFT ANALYSIS OF CLASS A :

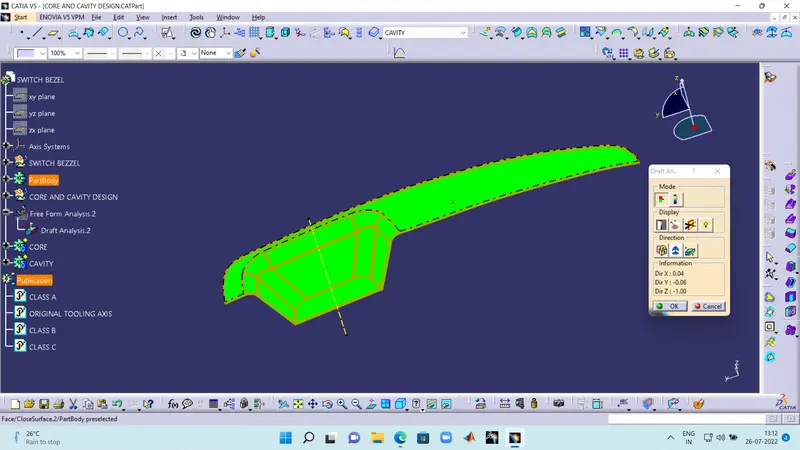

DRAFT ANALYSIS FOR THE FINAL COMPONENT :

EXPLANATION :

The class A of a cat part was given as the input. The following steps i have used BISECTING LINE method to find the tooling axis.

• I have Extracted a face of base in class A and given a point in the middle and i have given an axis reference to the point.
• I have used the intersection tool to get the border of the witch bezzel in XY plane of the axis and draw two lines on the walls of the intersect and bisected the to get and middle line.
• And i have used the same method by taking a cross section of the ZX plane draw a aline on the wall and other line on the center of axis with refernece to the point with an angle of 6 degrees.
• Now when i got the two lines using both intersects I have hidden the remaining features and used the bisecting line command to find of the original tooling axis.

NOTE : The following catpart was given below.
