Week 8 - Challenge 6 - Core & Cavity Design

                                                                                  Core & Cavity Design

AIM:

In this case we made Core and cavity for making the part.

Objective:

1. Create CORE

2. Create CAVITY

Process Summary:

• Check the Draft analysis which surface showing Green & Red.
• Extrapolate the Class-A surface
• Extrapolate the Class-C surface(Sweep surface)
• Trim above 2 Surface.

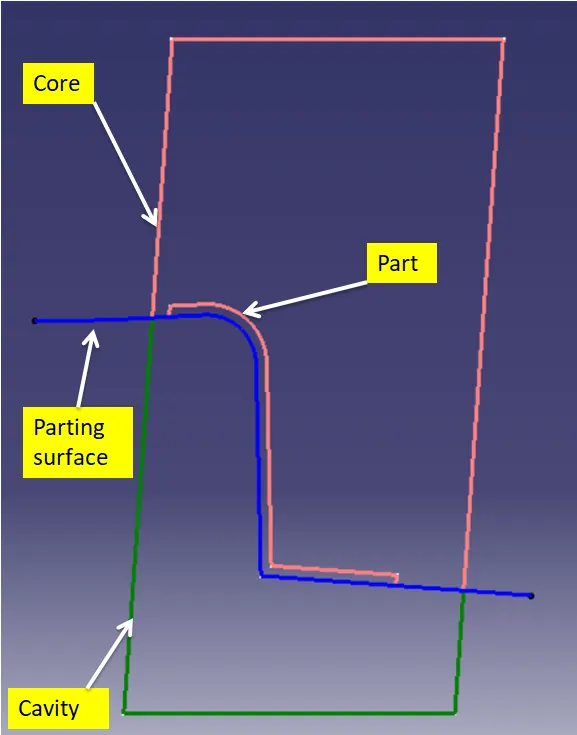

• Create the Parting surface.
• Separate the part and core block
• Separate the part and cavity block

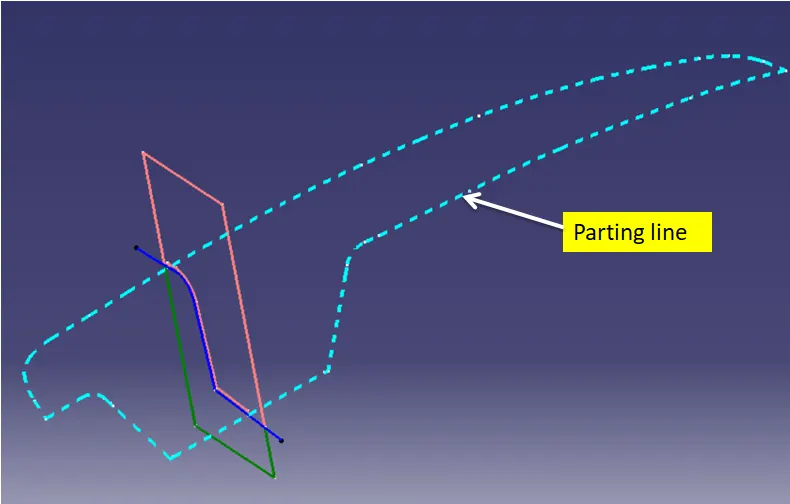

• Finally creat the parting line.

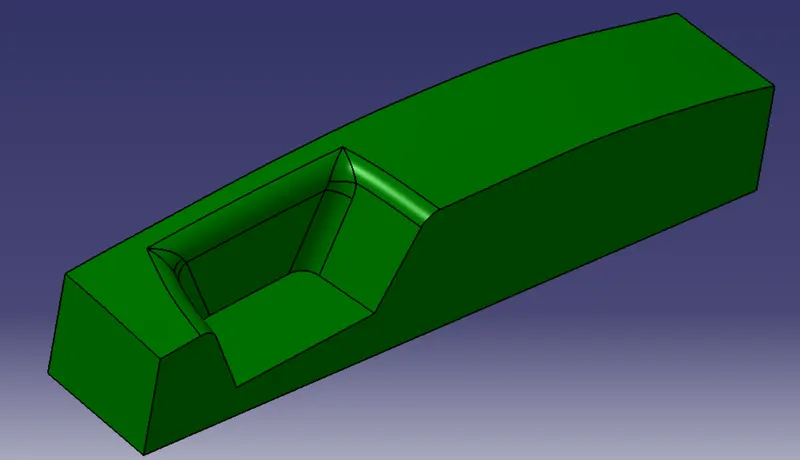

Core:

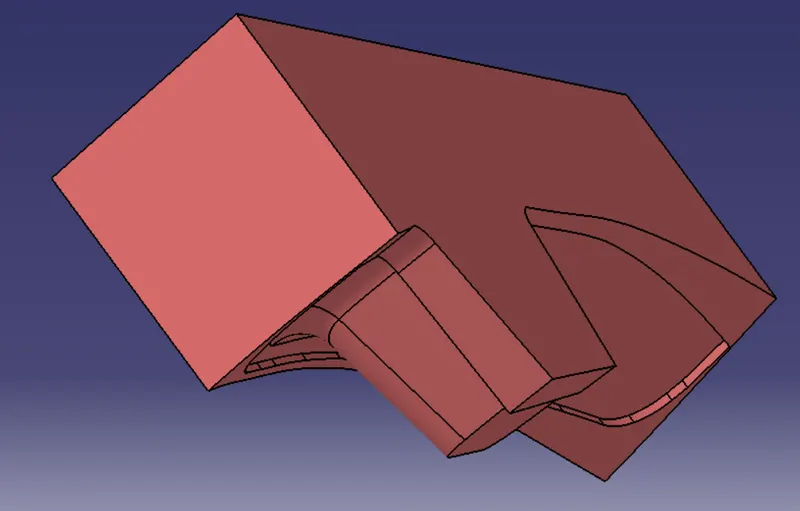

Cavity:

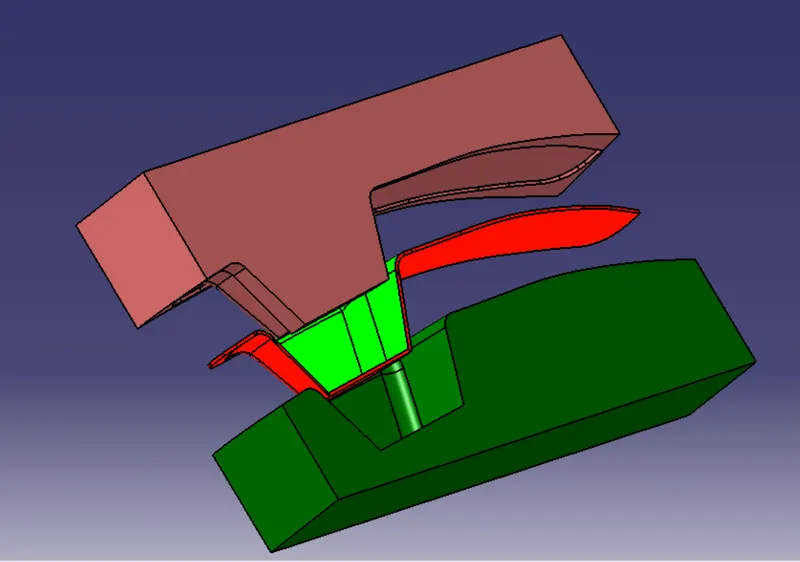

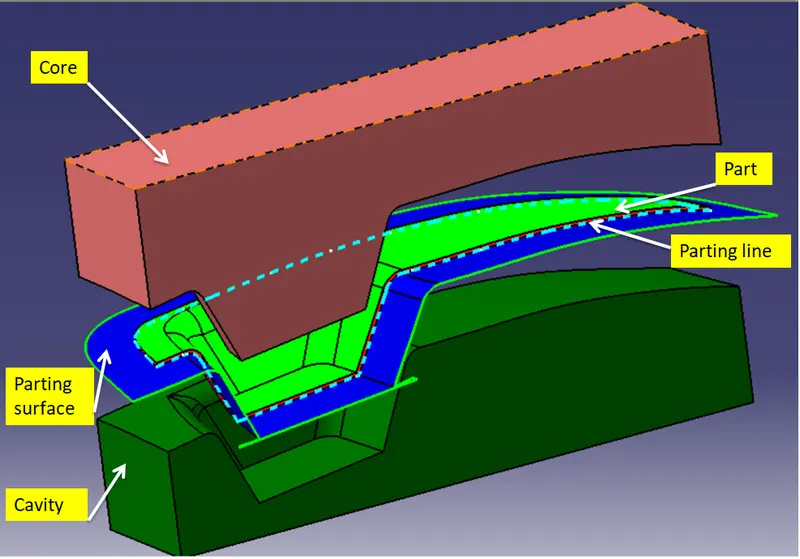

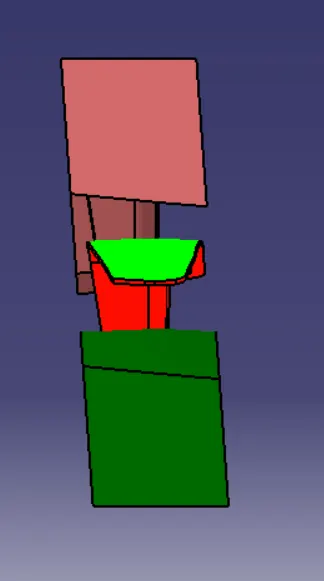

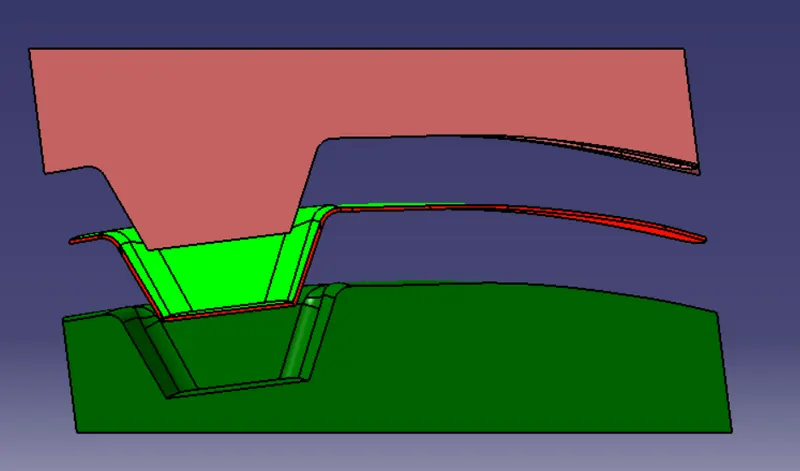

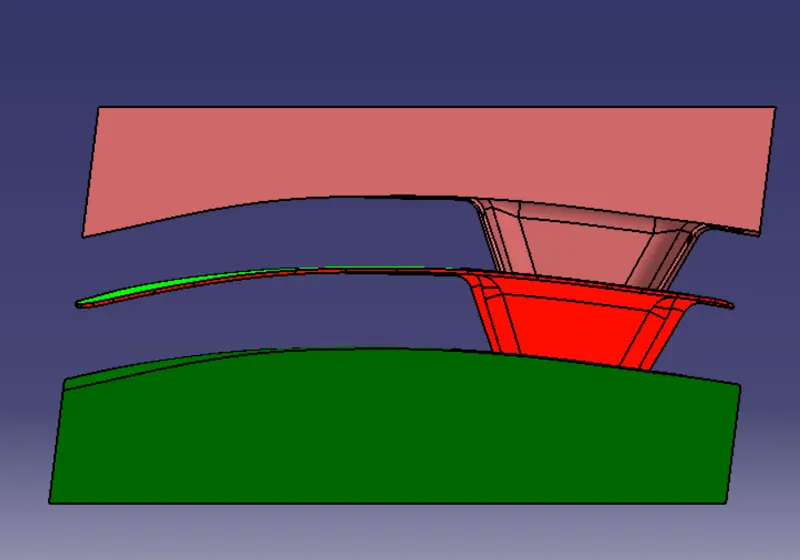

Core& Cavity:

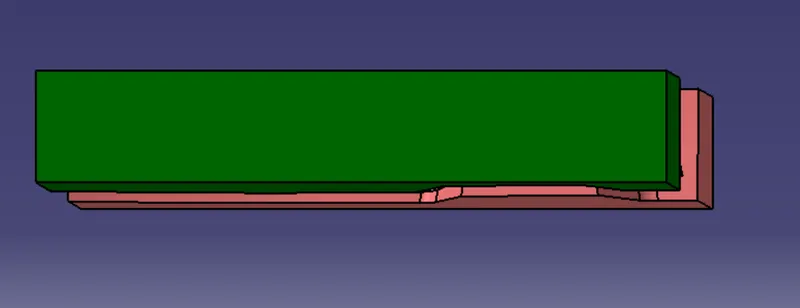

All Views:

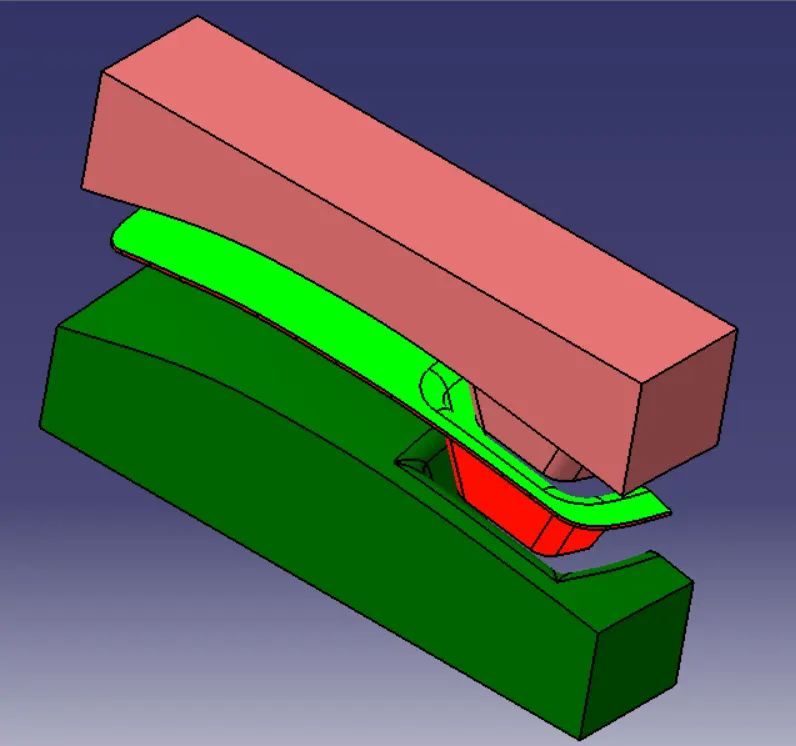

Isomeric view:

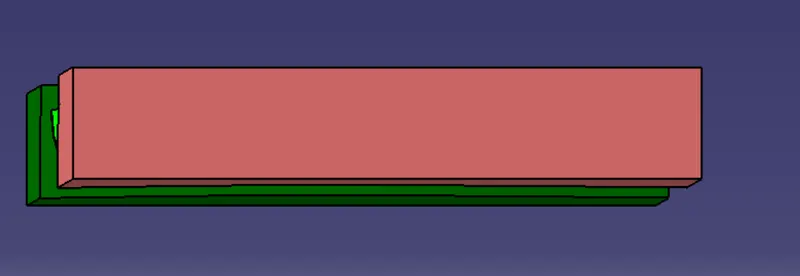

 Front View:

Back:

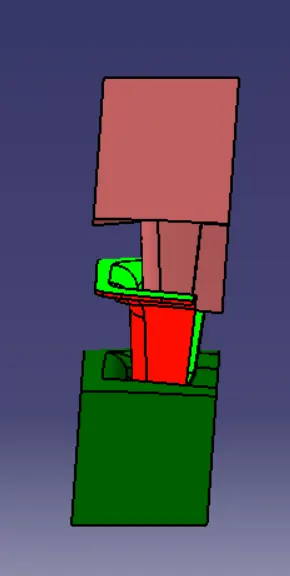

Left & Right:



 Top:

 Bottom:

Over all:

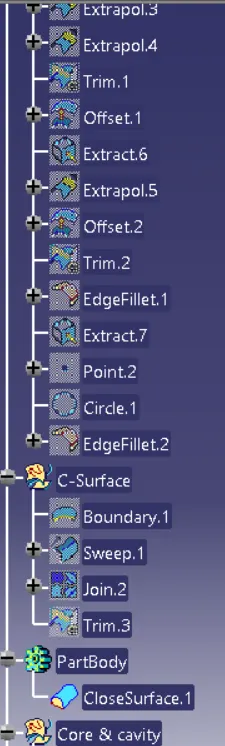

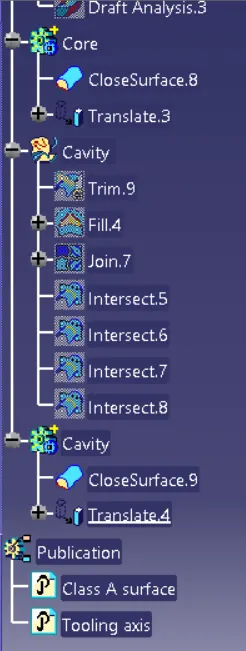

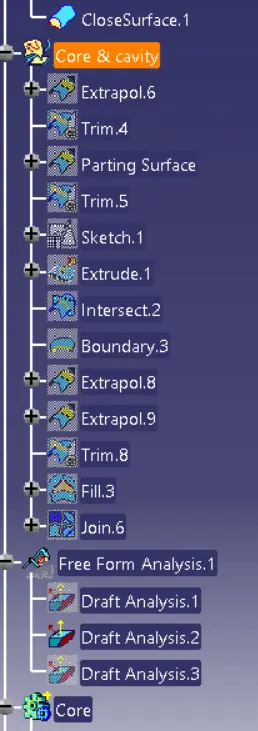

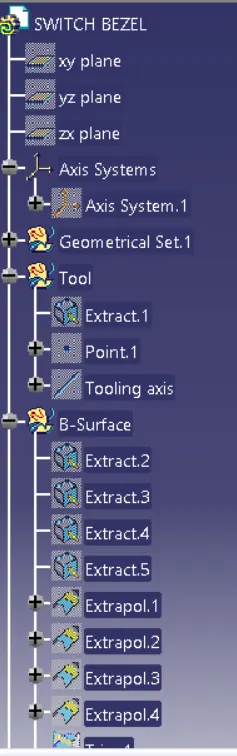

Future Tree:

Conclusion:

In this model ready to manufacturing with the help of the tool (Core&Cavity).
