Week 8 - Challenge 6 - Core & Cavity Design

AIM:

• To Create the Core and cavity blocks for the switch bezel component.

DESCRIPTION:

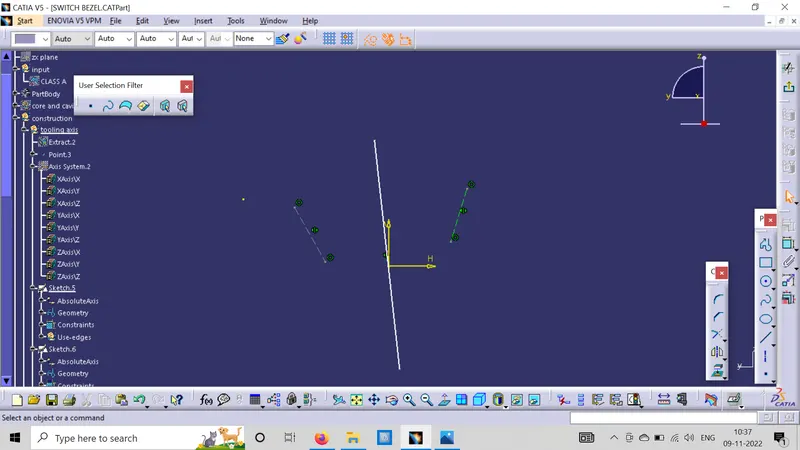

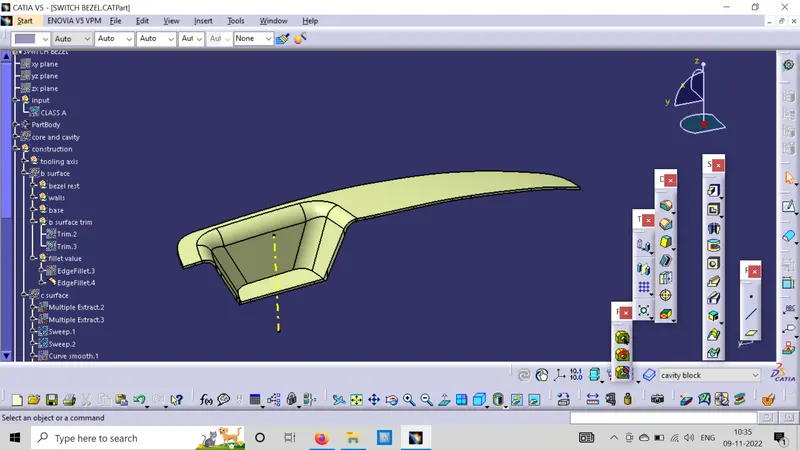

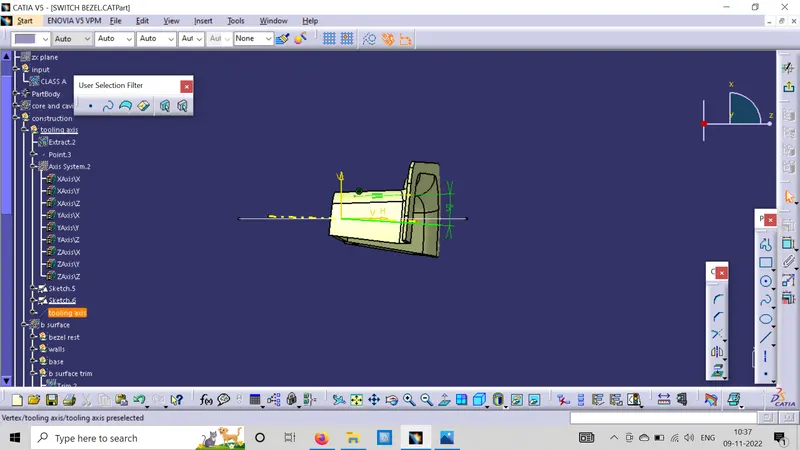

1. CREATING TOOLING AXIS -

The Tooling Direction is basically the direction that the mold pulls a part. The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dye line or the Tooling Direction.

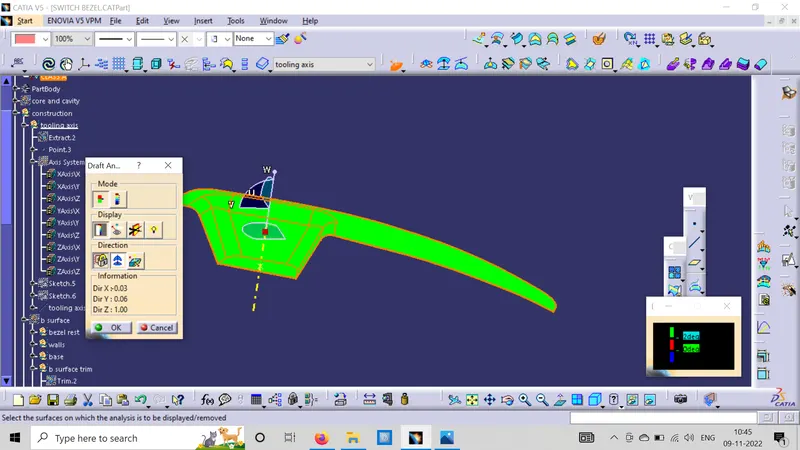

Draft analysis:

The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

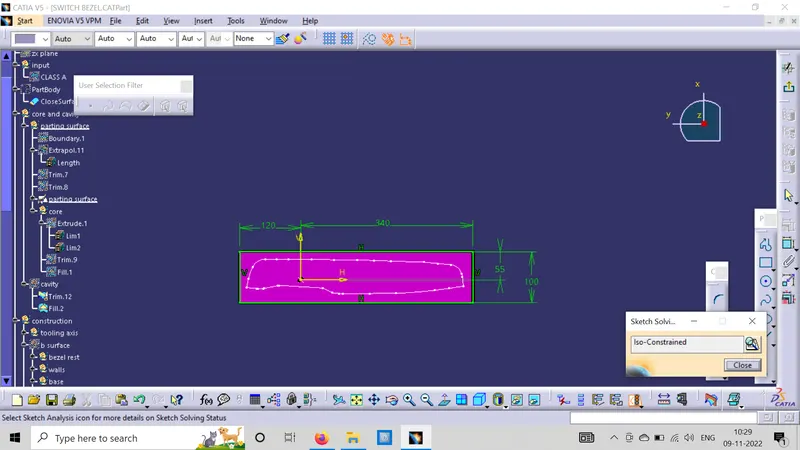

Parting surface:

Generally injection mold has two major components : the movable half and the fixed half, during the injecction molding process, these two halves are pressed tightly from a sealed hollow to avoid the melt flow leakage and maintain certain holding pressure, the pressed surface are called parting surface , usually parting surface are the biggest projection outline of the part.

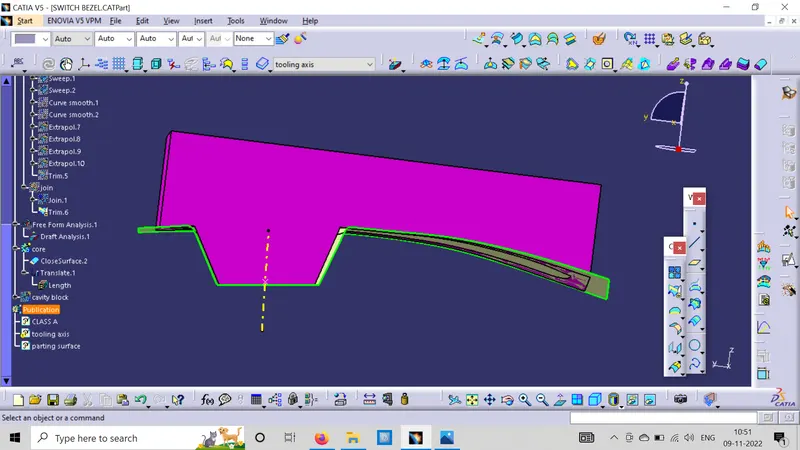

Core design:

Cavity design:

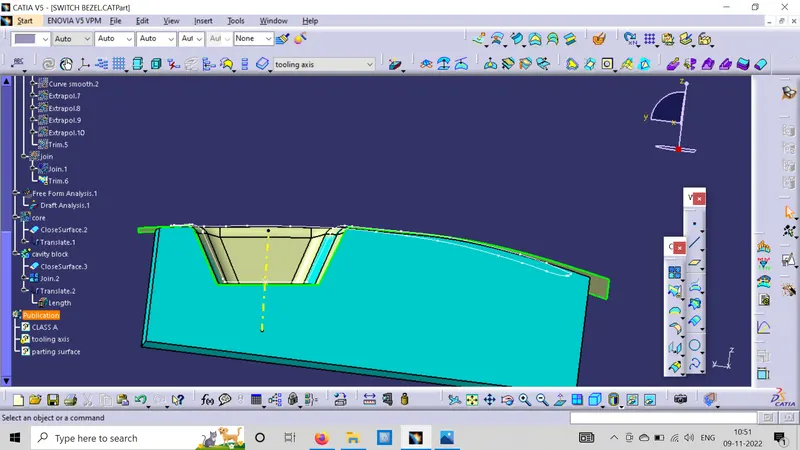

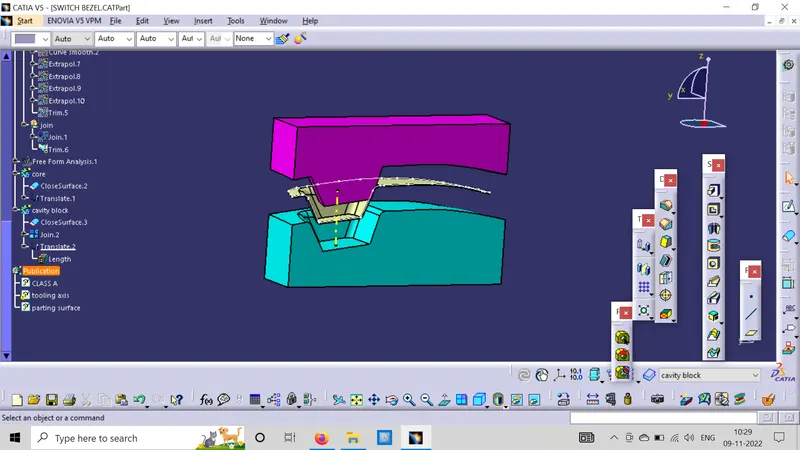

Isometic view:

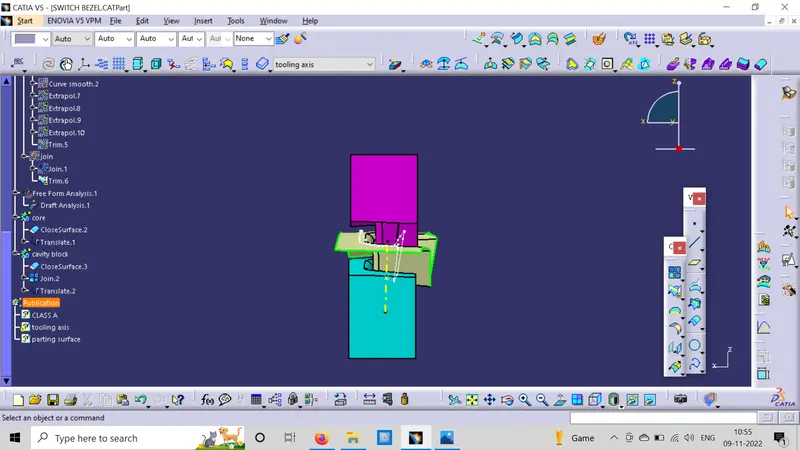

Side View:

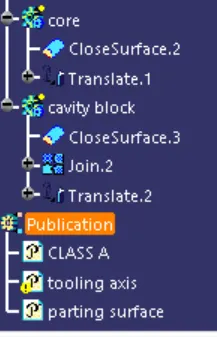

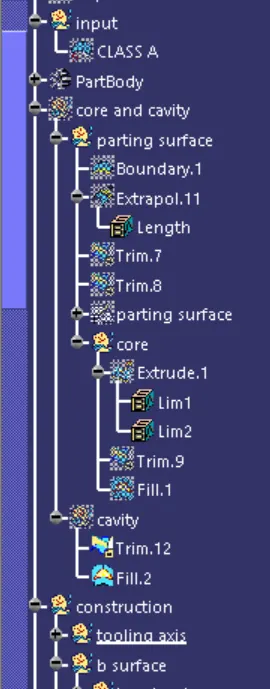

Tree view:

CONCLUSION:

• The Core and cavity blocks for the switch bezel component is created.
