Week 8 - Challenge 6 - Core & Cavity Design

AIM:

The main objective of this challenge is to design a Core and Cavity for a Switch Bezel' in CATIA V5 with the help of a surface workbench.

Before we design the core and cavity, we should perform a draft analysis on the solid part body of the switch bezel.

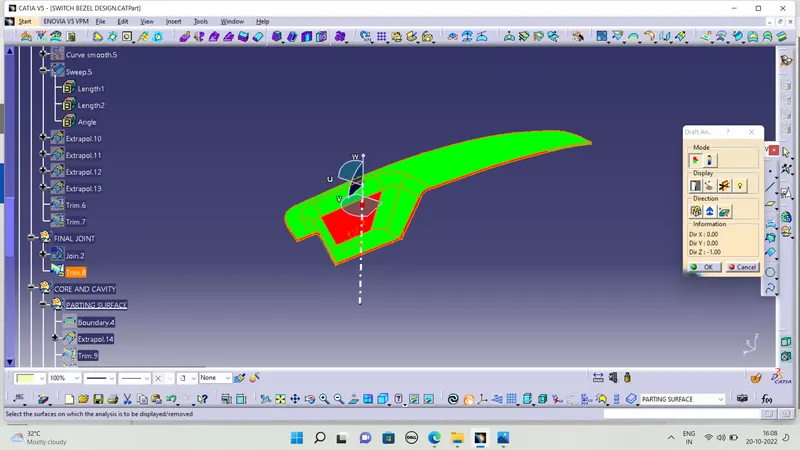

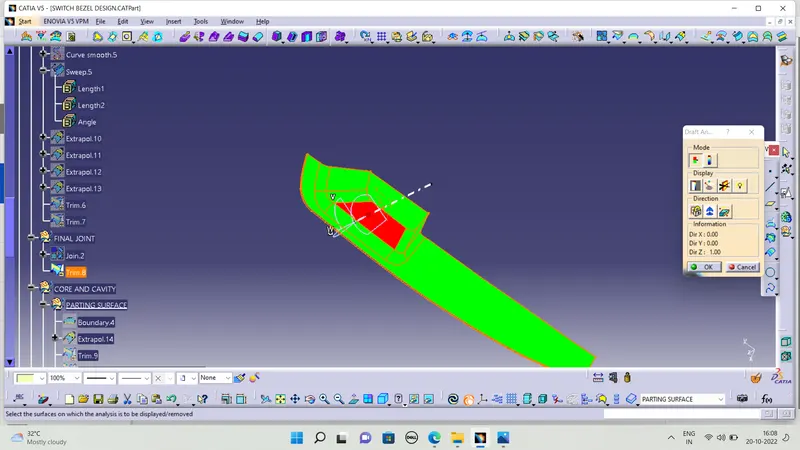

DRAFT ANALYSIS OF COMPONENT :

CORE DESIGN :

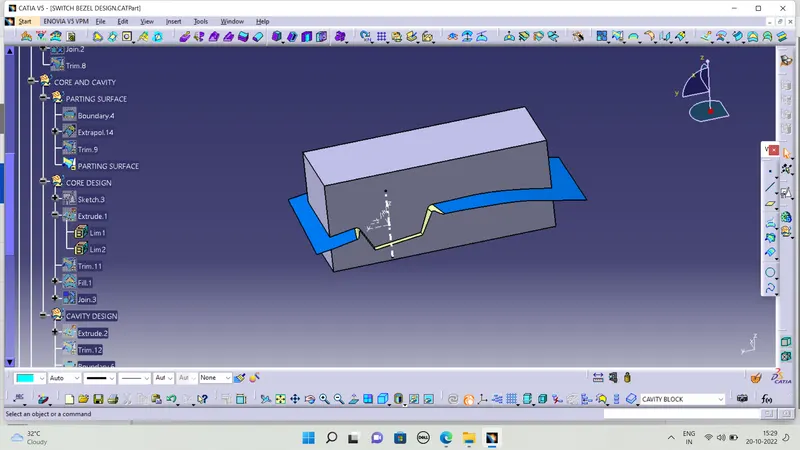

Initially, I have taken the boundary of the class A surface to extrapolate it. After extrapolating the class A surface I trimmed extrapolated class A surface and class C surface after I trimmed the class B surface with to create the 'Parting surface'. Now I draw a rectangle, which does not exceed the boundary of the parting surface.

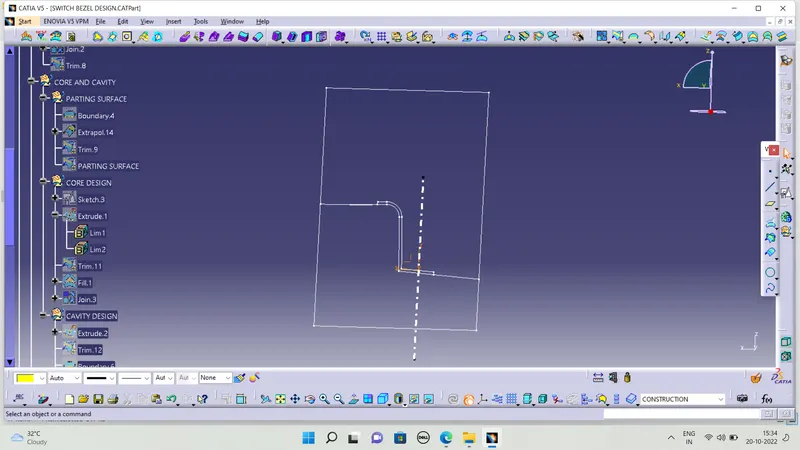

Now I extruded the sketch along the tooling axis, after extruding the rectangular sketch I trimmed both the parting surface and rectangular extrude to remove the lower side of the parting surface. I filled the upper surface to make a closed surface by joining the filled and trimmed surface. Now I make the closed surface into a solid body, the obtained solid part body is our CORE block.

Cavity Design:

To create the cavity block, I trimmed the rectangular extrude with a class B surface to remove the surface which is the upper side of it. After that, I filler the surface which is opened, to make a closed surface by joining both trim and filled surface. Now create a solid body from the closed surface by using the closed surface. The obtained part body from the closed surface is our CAVITY block.

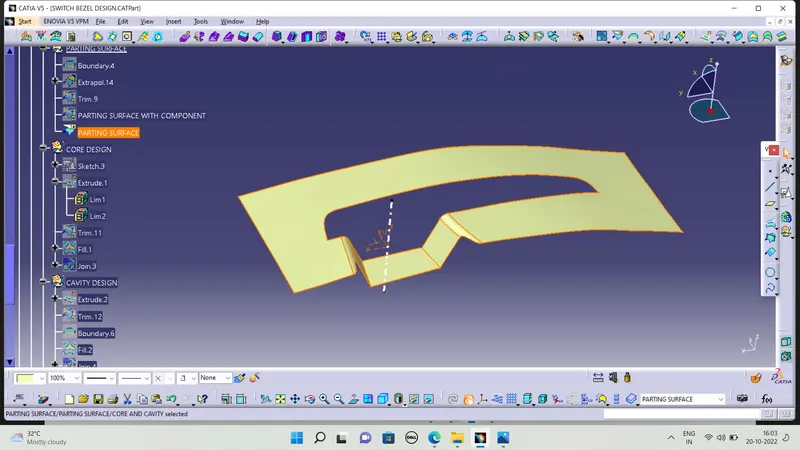

PARTING SURFACE :

First we create a parting surface extrapolate the surfce from class A surface that is our parting surface

PARTING SURFACE WITHOUT COMPONENT :

PARTING SURFACE WITH CORE AND CAVITY BLOCK :

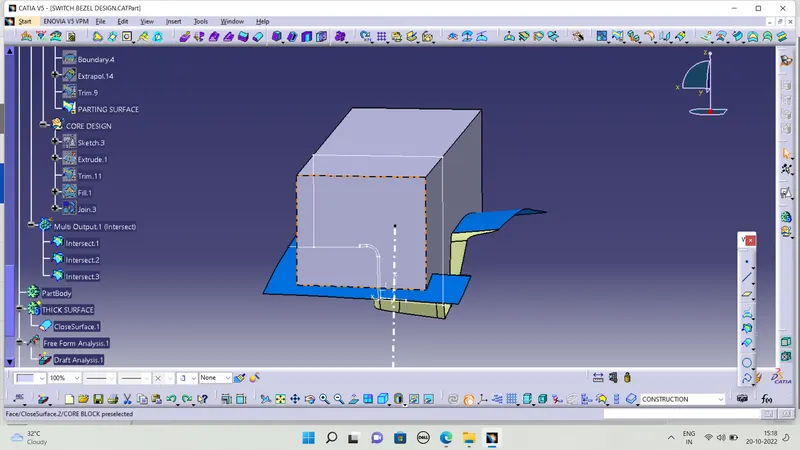

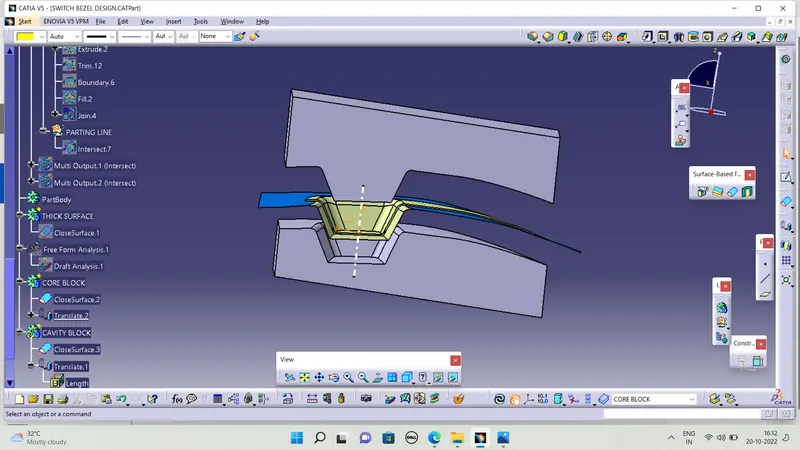

CORE BLOCK :

CAVITY BLOCK :

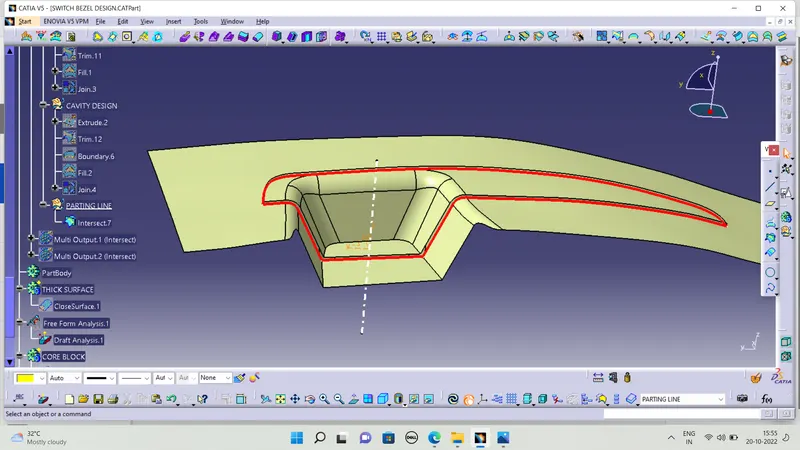

INTERSECTION LINE BETWEEN CORE AND CAVITY :

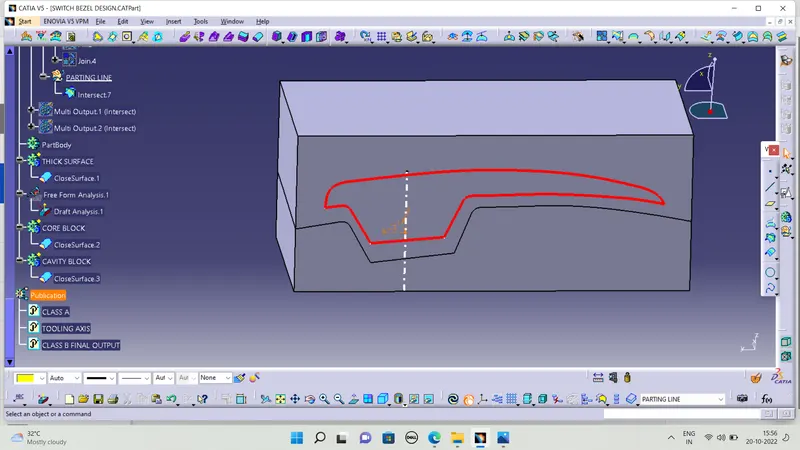

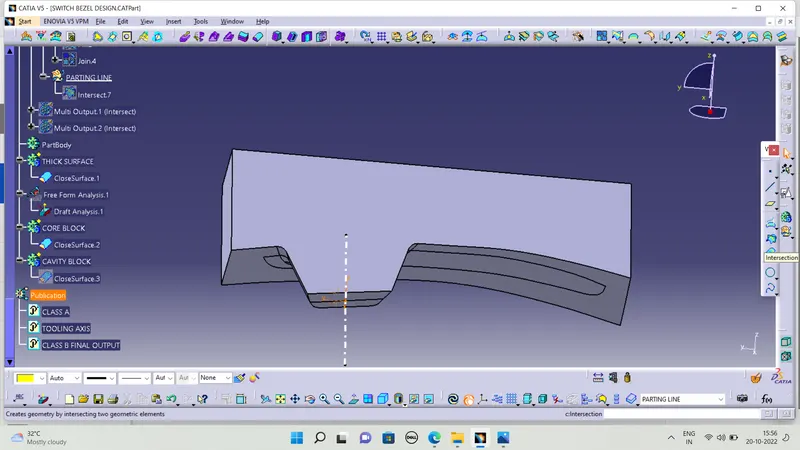

PARTING LINE :

To create a parting we need to crate the inetrsect between the parting surface and class c surface

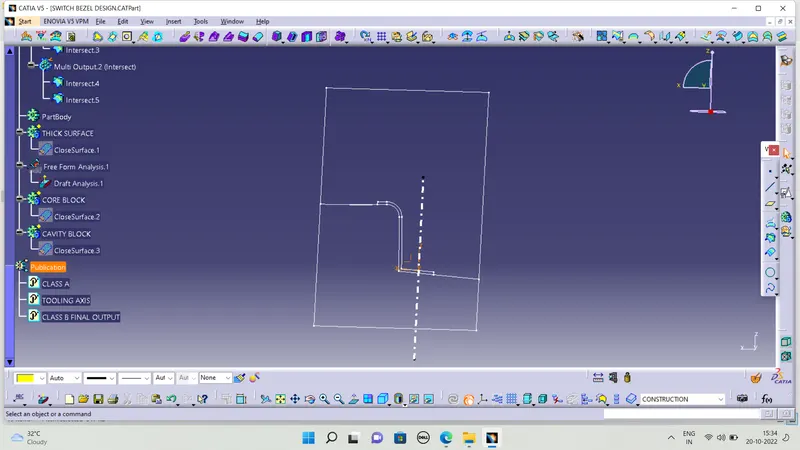

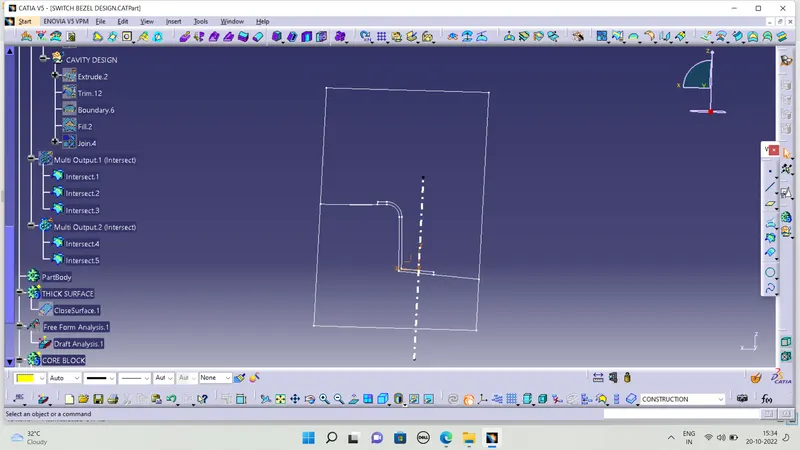

TREE STRUCTURE :

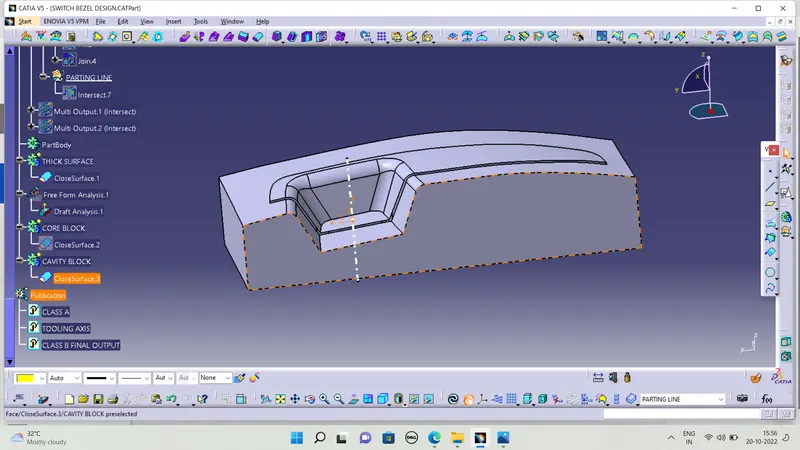

FINAL OUTPUT :
