Week 8 - Challenge 6 - Core & Cavity Design

The main objective is to design a Core and Cavity fore suitch Bezen with the help of a surface workbench. We Should perform a draft analysis on the solid body of the switch bezel

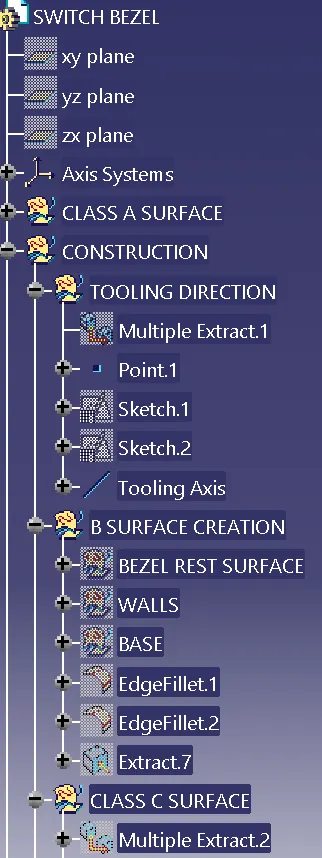

Core Design

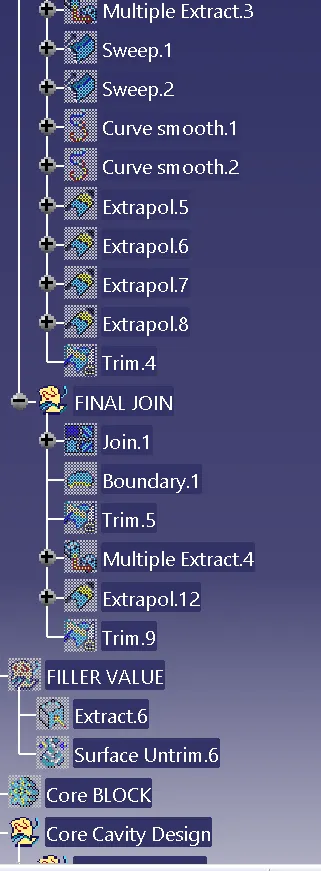

I have taken the boundary of the class A Surface to extrapolate it. After extrapolating the Class A surface by trimming extrapolated class A Surface and Class C surface , Join the classA and the Sweeped surface and trim with the class B surface with Trim to creating a parting surface. To draw a rectanglar which should not be exceed the boundary

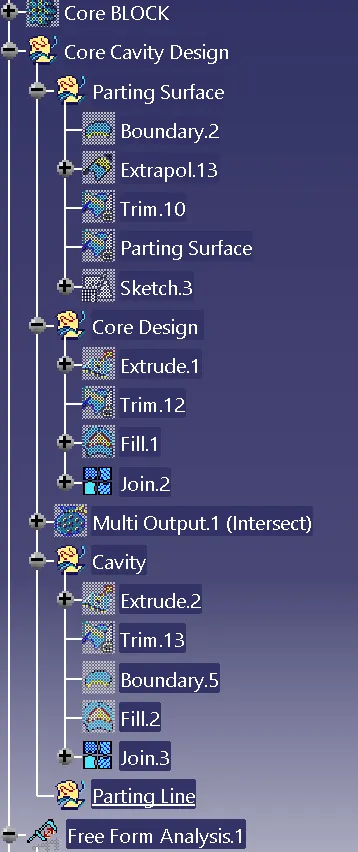

Now extrude the surface along with the tooling axis, then extruded the recangular sketch and trim both the parting surface and rectanguklar extrude to remove the lower side of the parting surface and fill the upper surface with the fill command to make a closed surface by joining the fill and the trimmed surface. Now to make the closed surface into solid body the obtained soid part body is the Core Block.

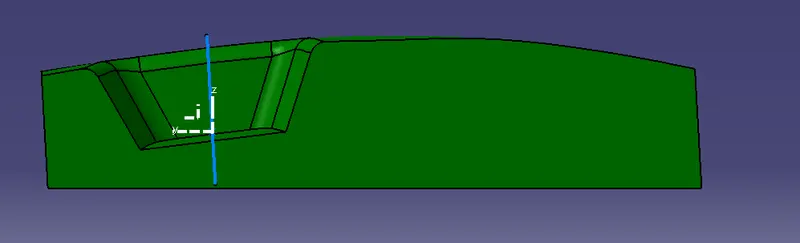

Core

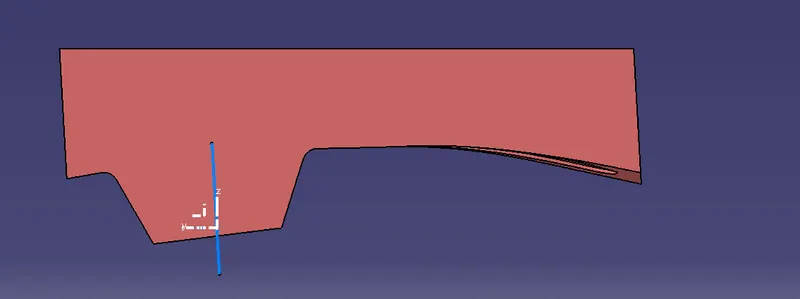

Cavity

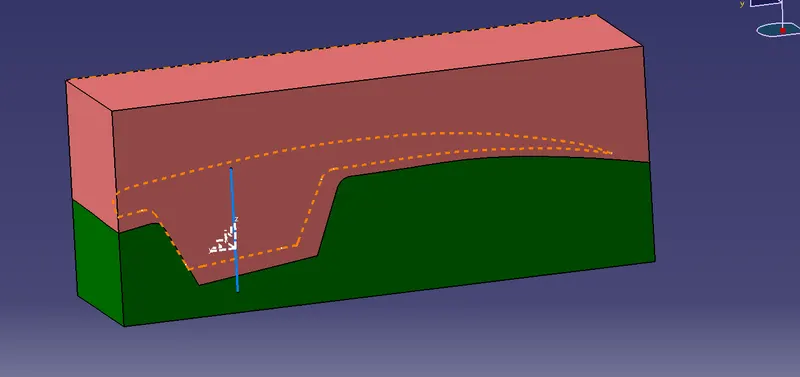

Intersecting

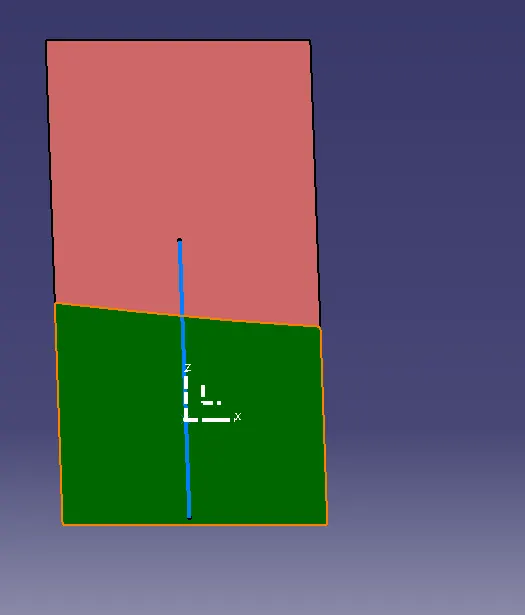

Core and Cavity

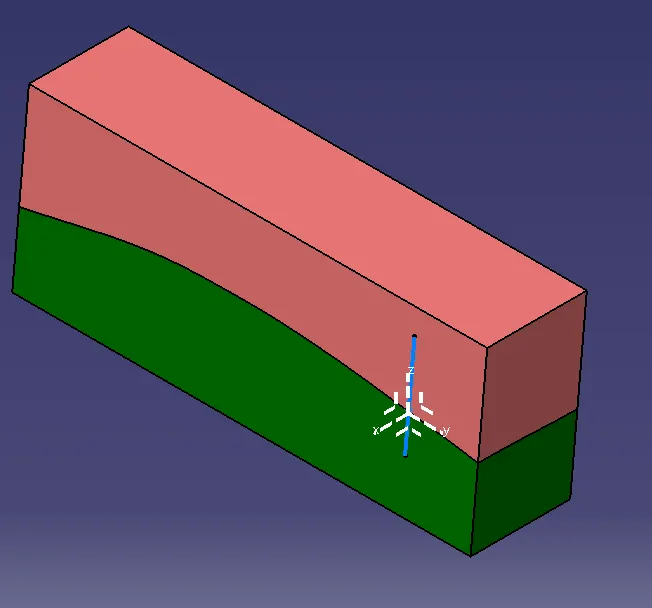

Isometric View

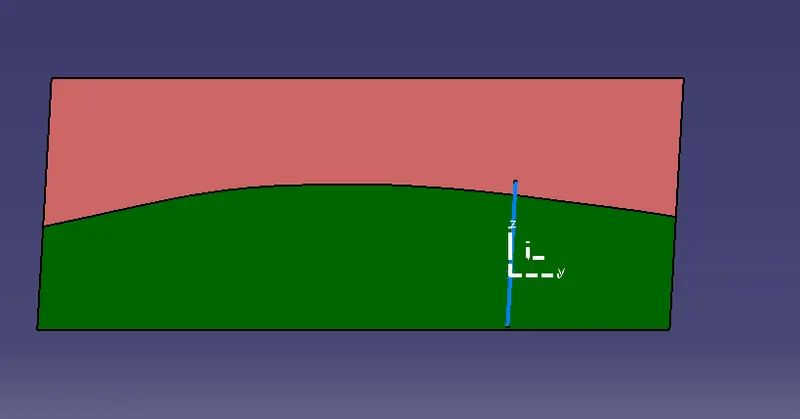

Front View

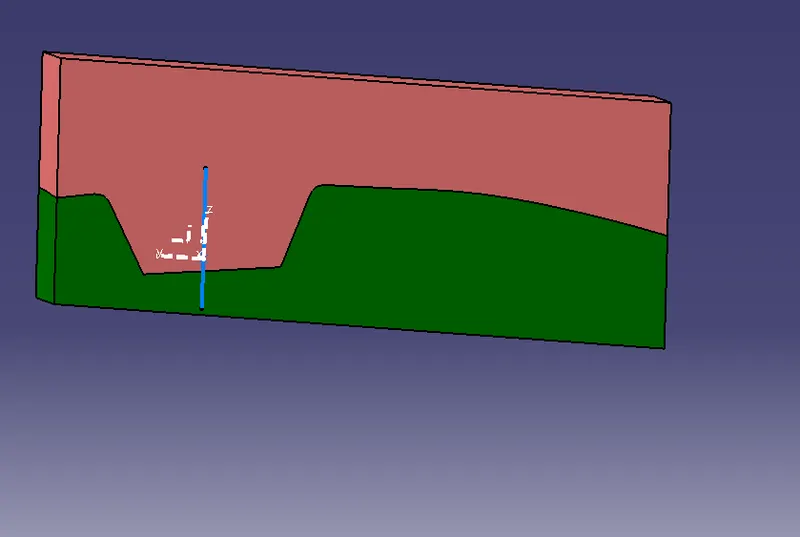

Side View

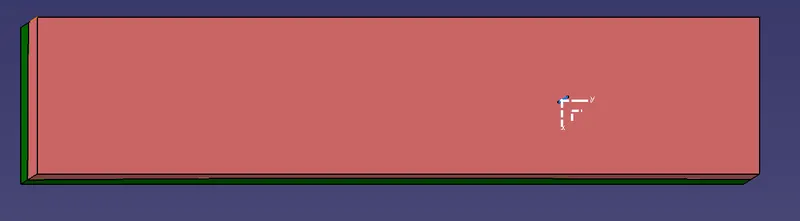

Top View

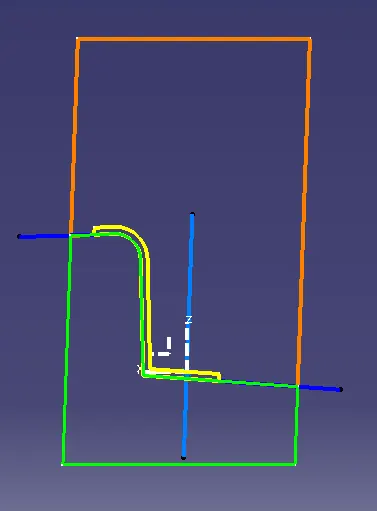

Parting Line
