Week 8 - Challenge 6 - Core & Cavity Design

Report :

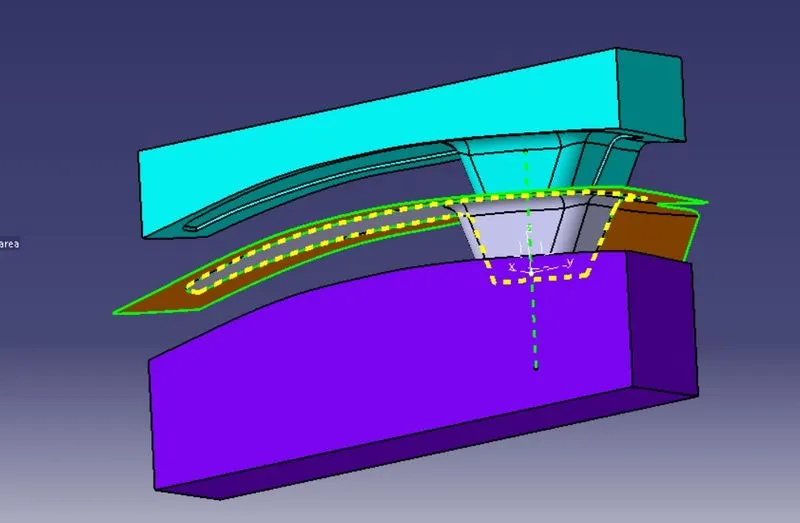

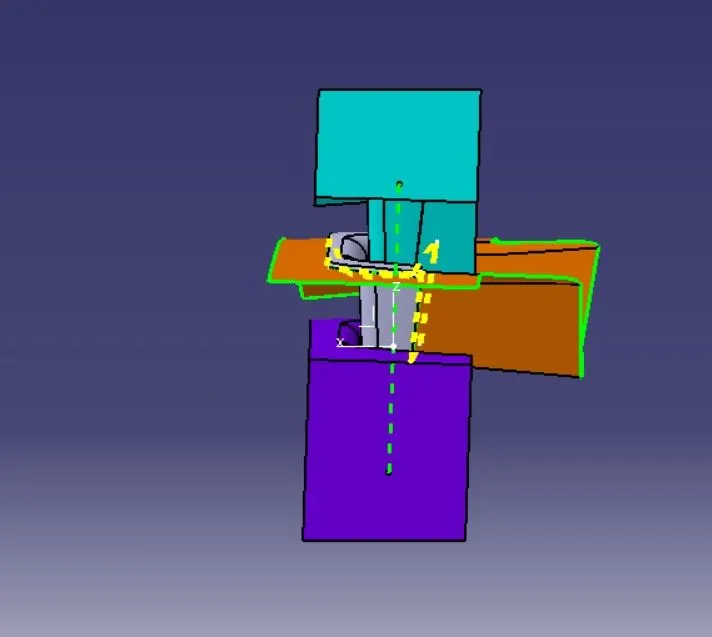

Parting Surface:Parting surface is the surface which acts as connecting between core and cavity

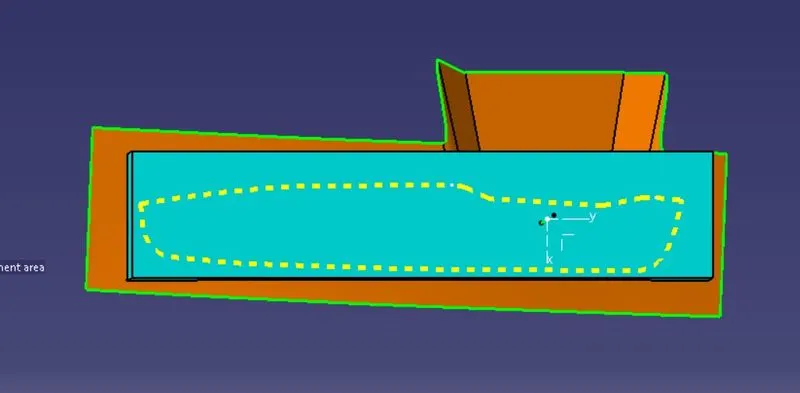

Parting Line: is the intersecting between parting surface and component , core and cavity to split each other

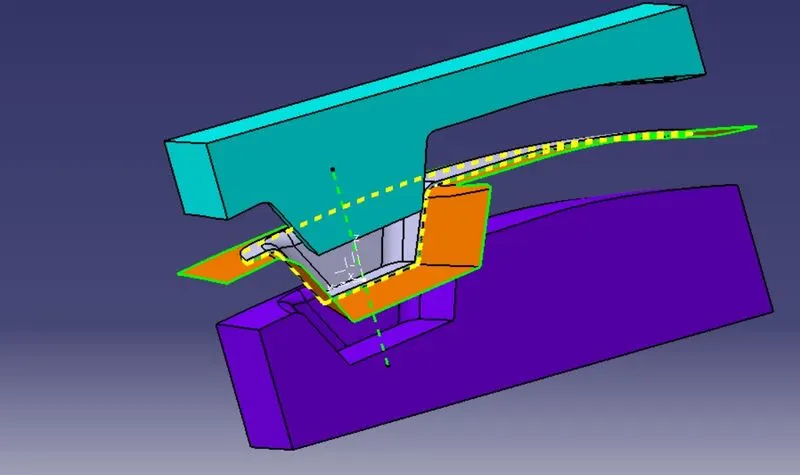

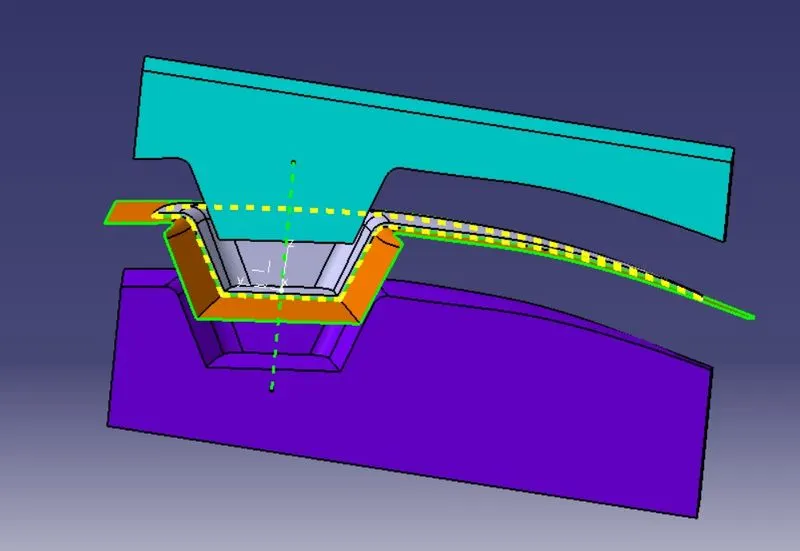

Core& cavity block: is the dipression to make a component along with the tooling axis
