Week 8 - Challenge 6 - Core & Cavity Design

AIM

To Create the 3D modelling of core cavity

using Catia v5.

Points to ensure:

Ensure Proper Tree Structure
ENSURE
Geometrical sets should have a proper name based on the sketches present inside of it
Publications: Use the publication option and publish the below

Submission Requirements

Submission is drawing file single zip file is attached for your information.

screenshots

In this module.

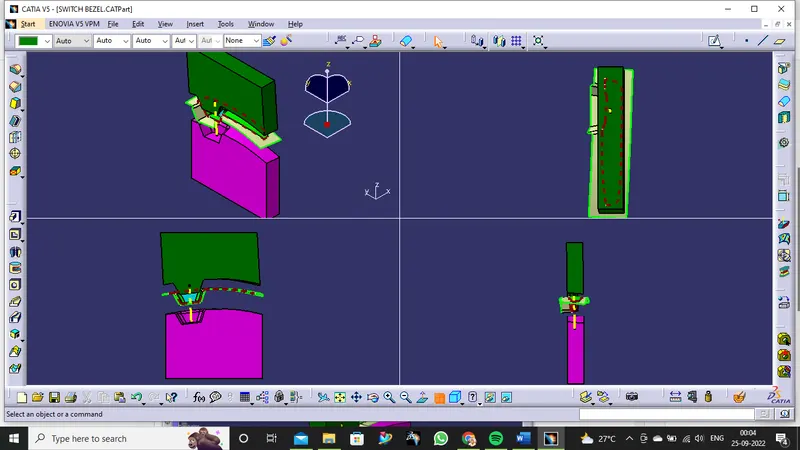

THIS SCREENSHOTS IS VIEW OF PROJETION

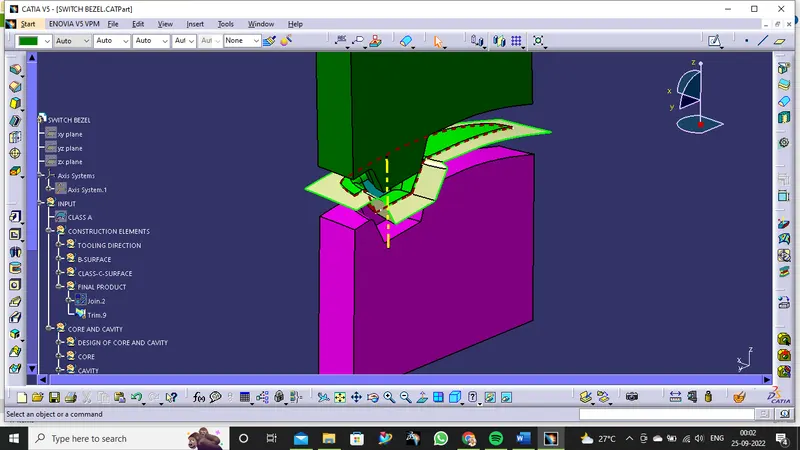

THIS SCREENSHOTS IS diplays parting line ,core ,cavity

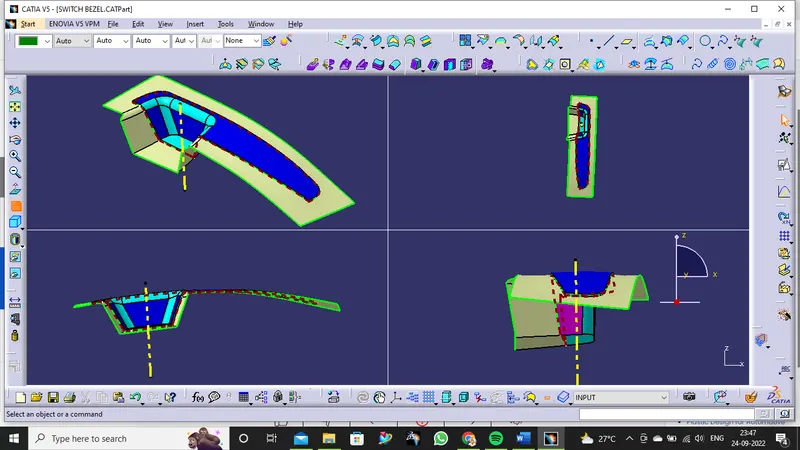

the core and cavity with various orientation

RESULT

Thus, this is the first part surface modelling is completed.
