Week 8 - Challenge 6 - Core & Cavity Design

WEEK 8 CHALLENGE 6 - CORE AND CAVITY DESIGN OF SWITH BAZEL.

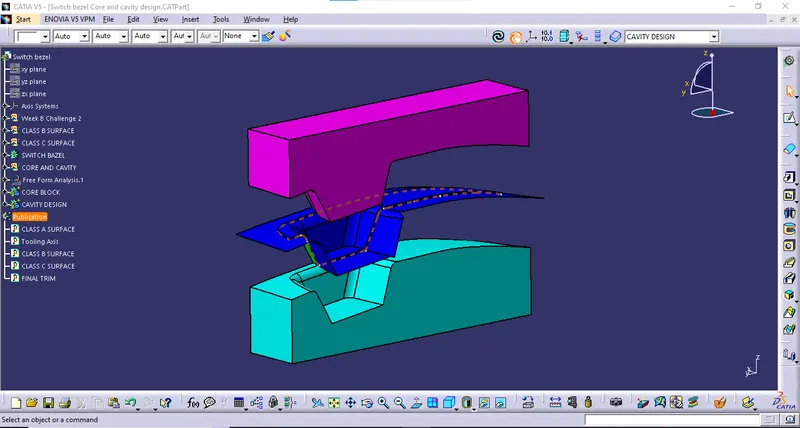

ISOMETRICE VIEW...

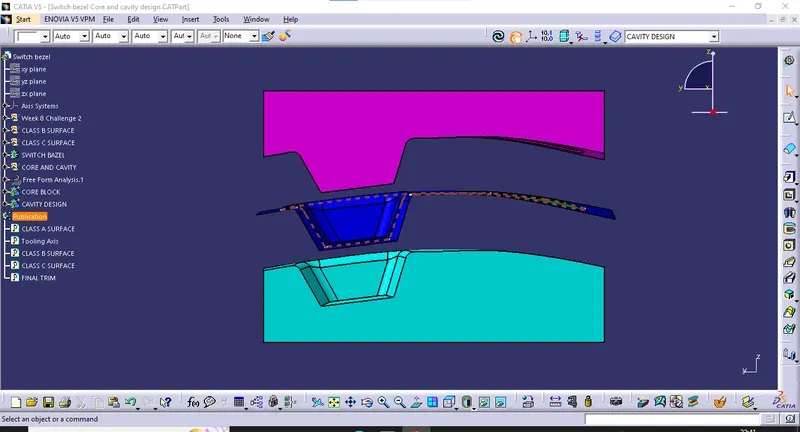

FRONT VIEW...

REPORT...

1) begin with, the Referance tooling axis for the given Class-A Surface.

2) creating the line with draft angle.

3) Creating bisecting line using two draft angle line to get the tooling axis...

4) completing the draft analysis..

5) Creatin the B surface by extracting the given A surface.

6) Publiction of Tooling axis & Surface A.

7) By using the A surafce crating the Boundry for the component.

8) Sweeping it towards B surface to create C Surface.

9) Joning the A surface and B surafce ..

10) Then trimming the joined A&B Surface with the B surface..

11) After the switch to part workbench and creating the Closed body..
