Week 9 - Attachment Feature Creation - Challenge 2

REPORT...

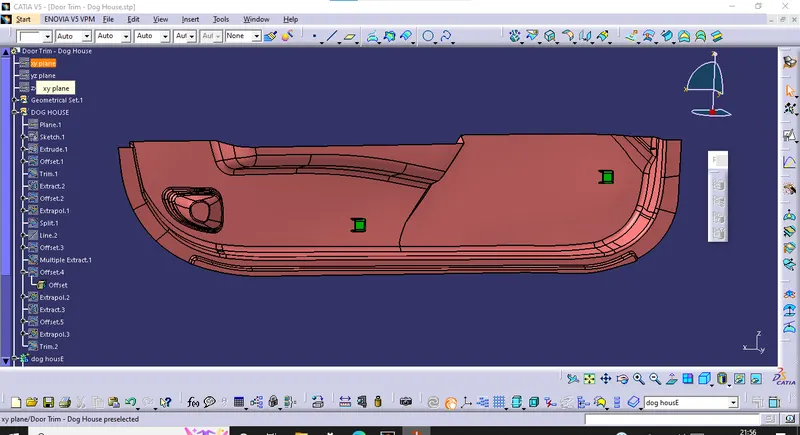

1) begin with, the Referance tooling axis for the given Class-A Surface.

2) Creating centre line by using surafce

3) Creatin the B surface by extracting the given A surface.

4) Publiction of Tooling axis & Surface A.

5) By using the A surafce crating the Boundry for the component.

6) Sweeping it towards B surface to create C Surface.

9) Joning the A surface and B surafce ..

10) Then trimming the joined A&B Surface with the B surface..

11) After the switch to part workbench and creating the Closed body.
