Week 8 - Challenge 5 - Door Trim Lower

Report to tooling axis creation and draft analysis

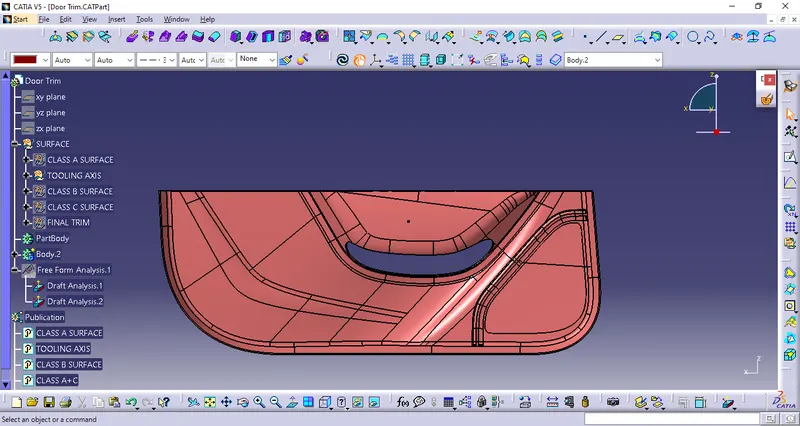

The given door trim lower part class A surface consists of three walls and a base.All the three walls are almost parallel to the Y axis by visual inspection.

The base of the surface is also irregularly at an angle to the Y axis.

Considering the walls,the tooling axis must be almost aligned to Y-axis.

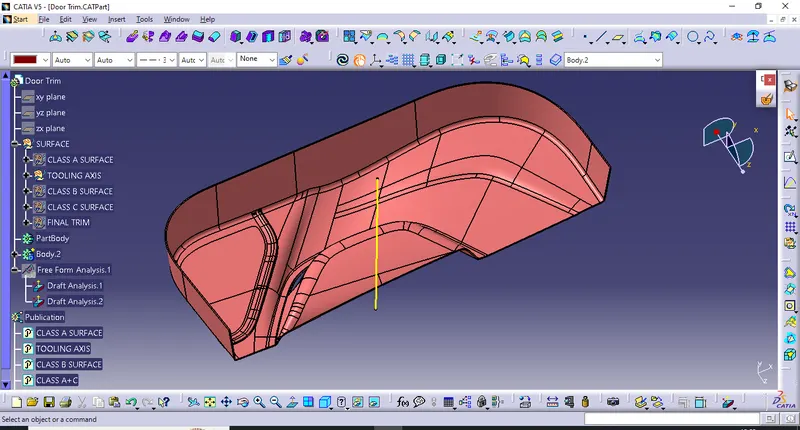

Tooling axis creation

going to the draft feature analysis the class has surface is visually inspected along the Y axis and found that all the surfaces made to the draft requirement along the Y axis.

1.insert a point on the base of the surface

2.insert the axis system

3.draw a line along the Y axis perpendicular to the base

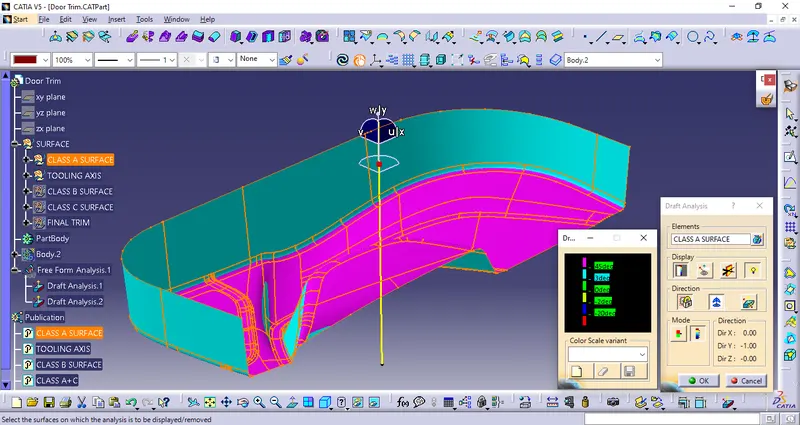

4.going to draft the feature analysis selecting the element class a surface

5.aligning the compass along the tolling axis created handle lock it.

6.selecting the mode to full analysis and choosing different colour variations at different angles

0°-3° chosen as green

3°-45° chosen as blue

>45° choose as pink.

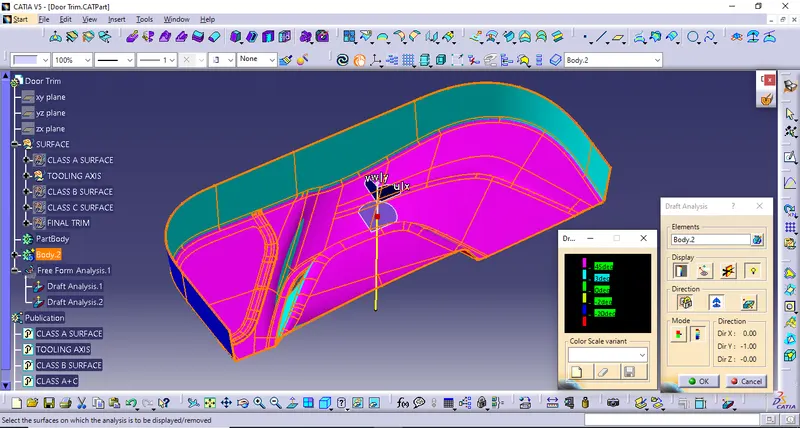

The same procedure is even conducted on the part body and the results were found to be optimum.
