Week 8 - Challenge 4 - Bumper

the tooling axis selcted as x direction for simple moulding procedure.no side mould or complex movement or mould structure is needed.

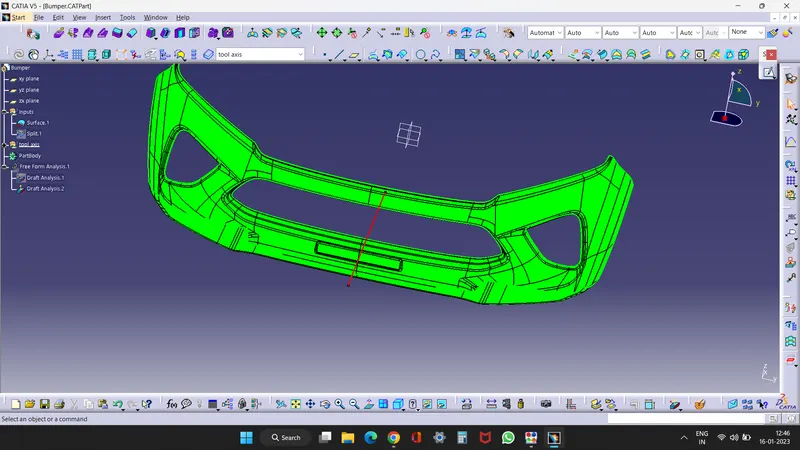

by the draft analysis of the surface i got green surface which means the surface is more than 3 degree to the tooling axis.

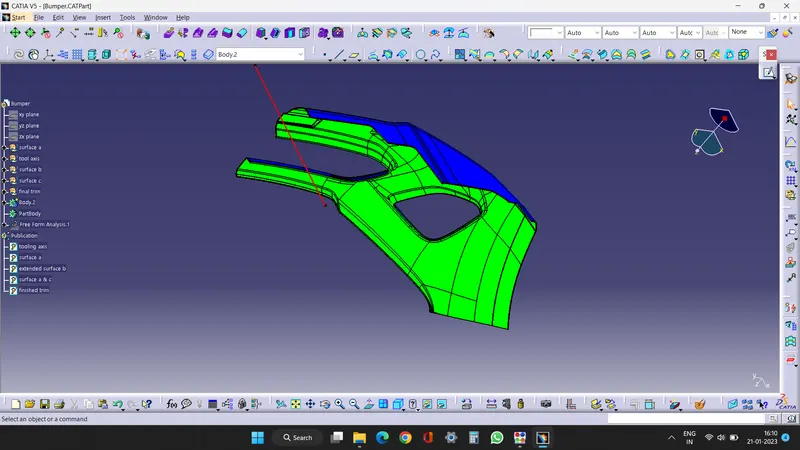

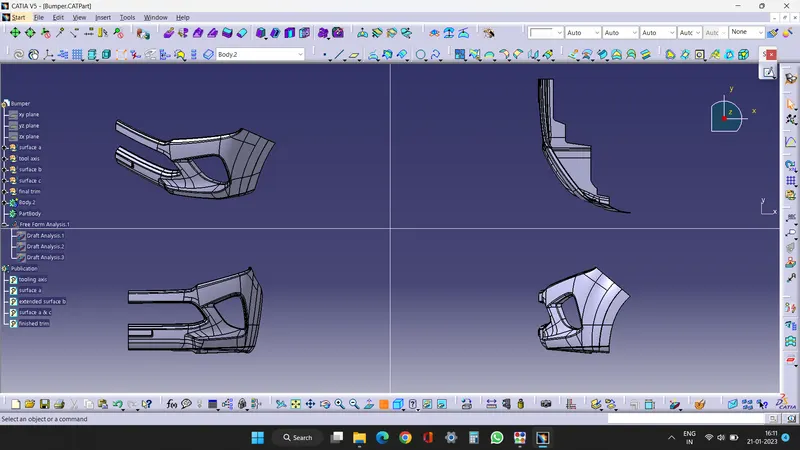

by draft analysis for the finished product i got green surface in one surface (surface more than 3 degree to tooling axis) and blue surface on opposite surface( surface less than 0 degree to tooling axis).
