Week 8 - Challenge 5 - Door Trim Lower

Week 8 - Challenge 5 - Door Trim Lower

Aim
The main objective is to create the solid Door Trim Lower using the given Class-A surface through Tooling axis and Draft analysis.

Contents

• Class A surface (given)

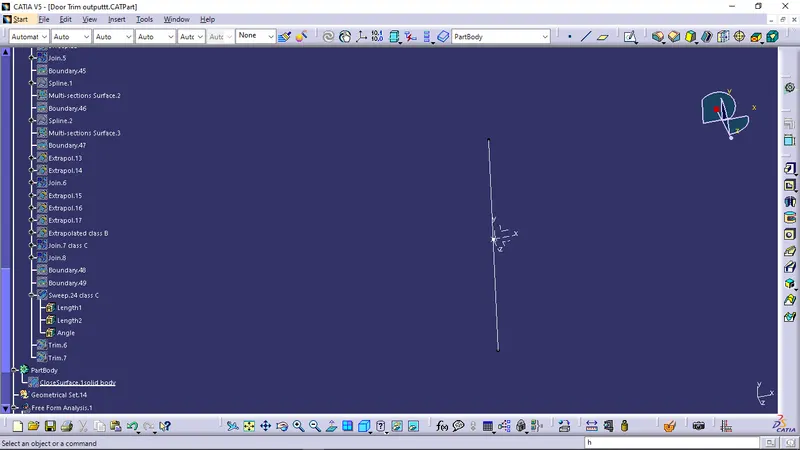

• Tooling axis

To create the 'Tooling Axis', the given class A should be observed thoroughly, Since this class A has a lot of various sloped surfaces and edges It is difficult to choose the parallel surface to use the bisecting method, while observation it was found that the X axis is giving the complete view of the class A surface. So it was determined that the X axis will be the tooling direction.

• Draft analysis of class A surface

To perform the draft analysis of class A surface, click on Insert >Analysis > Feature Draft Analysis

Once the draft analysis toolbar is opened, The compass was selected and placed on the tooling axis, Then go to the display block and select the 'Analysis under the running point' command to check the angle for different sides on the class A surface. The color scale on the bottom visualizes, whether the draft angle meets the requirements or not (3 deg) by indicating the colors Green, Blue and Red.

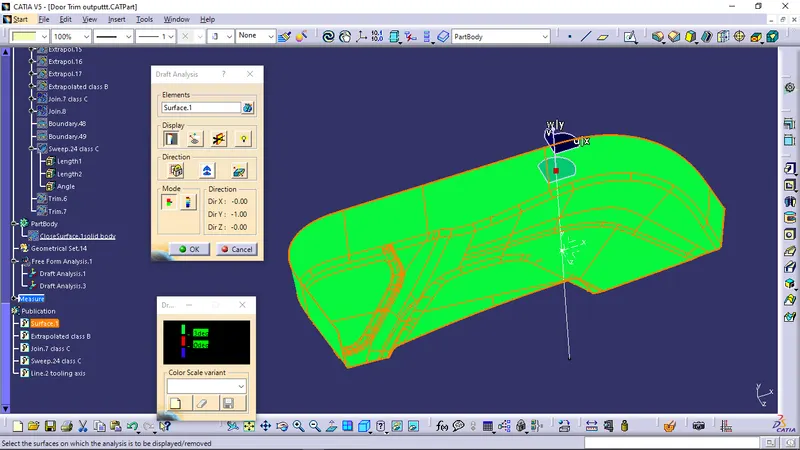

Screenshots of the Draft analysis for the given Class-A surface with colour scale variant

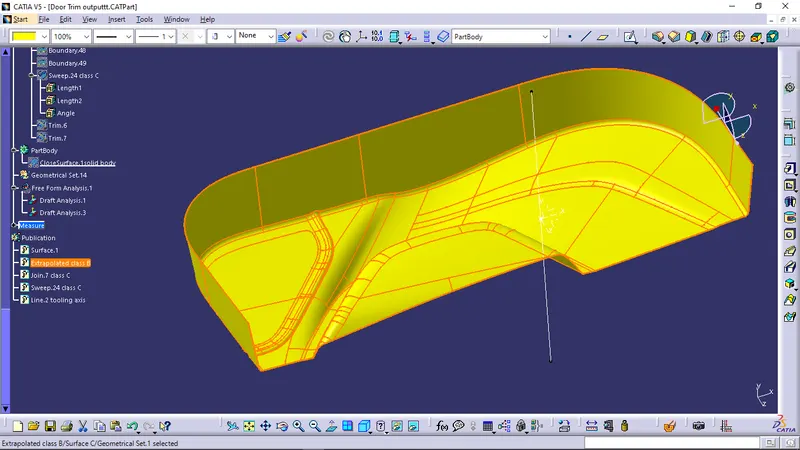

• Class B surface

To create the class B surface from the class A, The class A was offset to 2.5 mm as required. There are some of the patches as issues. mostly those patches are from the fillet areas. So i used the multiple extract in complimentry mode to avoid the patched fillets by considering the entire class B as several parts. After further operations, The class B was successfully created.

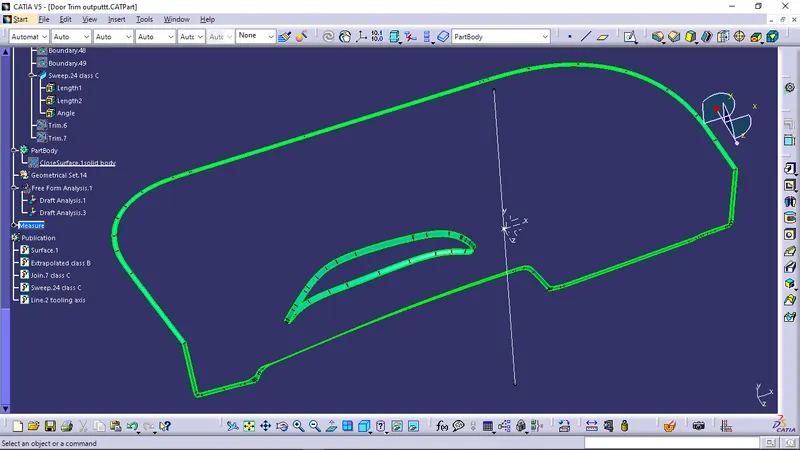

• Class C surface

To create a class C surface, I used the sweep command thrice to avoid the continuity issue by considering the outer boundary of the class A surface. In the sweep command > 'with reference surface', select the outer boundary and adjacent surface, give 90 deg and select the direction to sweep & it was done thrice as i have three bondaries, in this condition the class B surface is under the class A surface so select the inside down arrow to sweep.

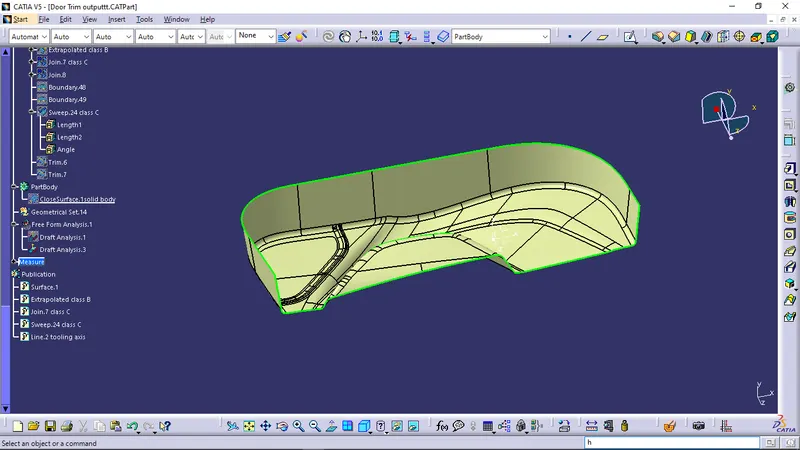

• Surface output of Door trim lower

Then the closed surface was created by using the 'Trim' operation consisting the Class A, C and Class B surfaces.

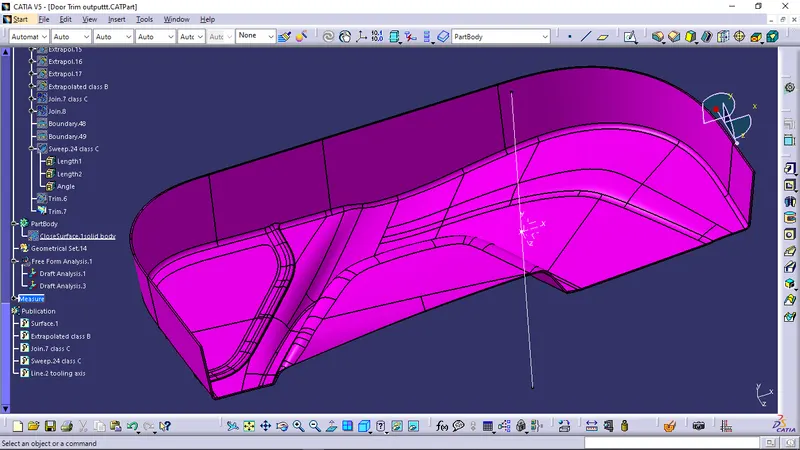

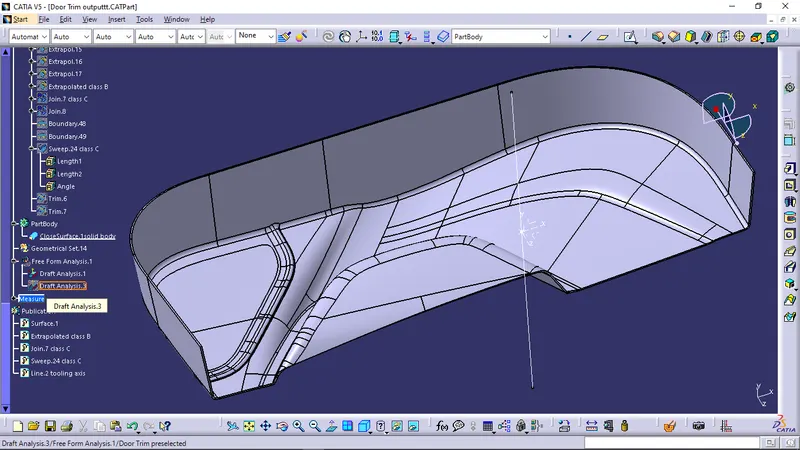

• Solid Door trim lower

To create the solid Door trim lower, Jump to part design workbench and select the closesurface option in the Surface based feature.

• Draft analysis of Solid Door trim lower

To perform the draft analysis of solid Door trim lower, click on Insert >Analysis > Draft Analysis

Once the draft analysis toolbar is opened, The compass was selected and placed on the tooling axis, Then go to the display block and select the 'Analysis under the running point' command to check the angle for different sides on the coin holder. The color scale on the bottom visualizes, whether the draft angle meets the requirements or not (3 deg) by indicating the colors Green, Blue and Red.

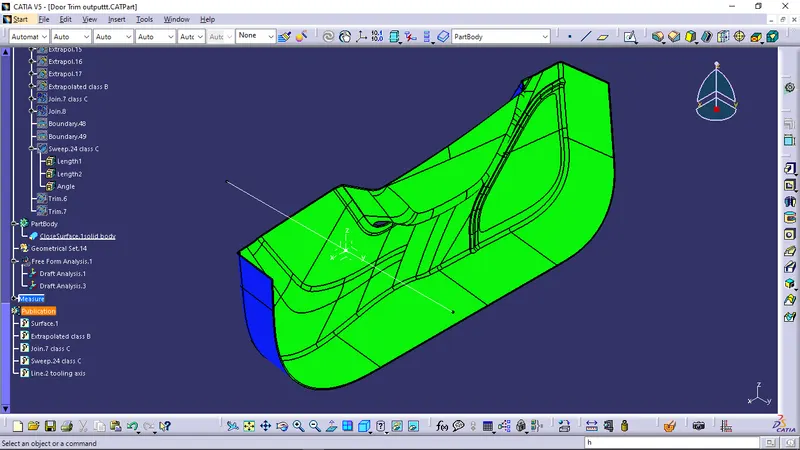

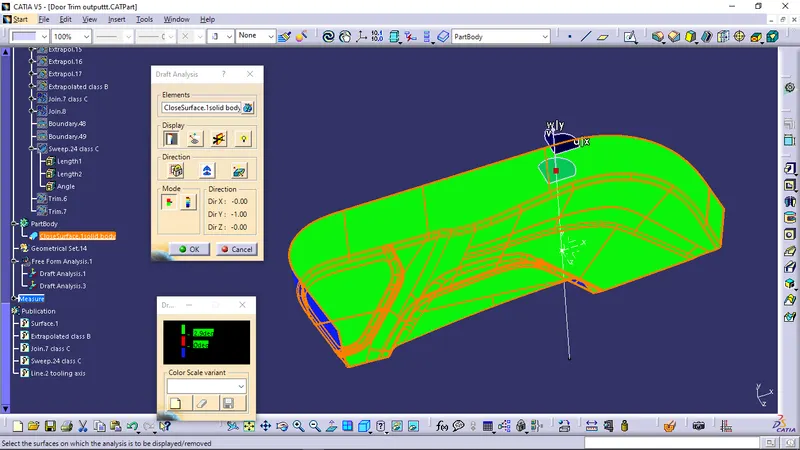

Screenshots of the Draft analysis for the solid Door trim lower with colour scale variant

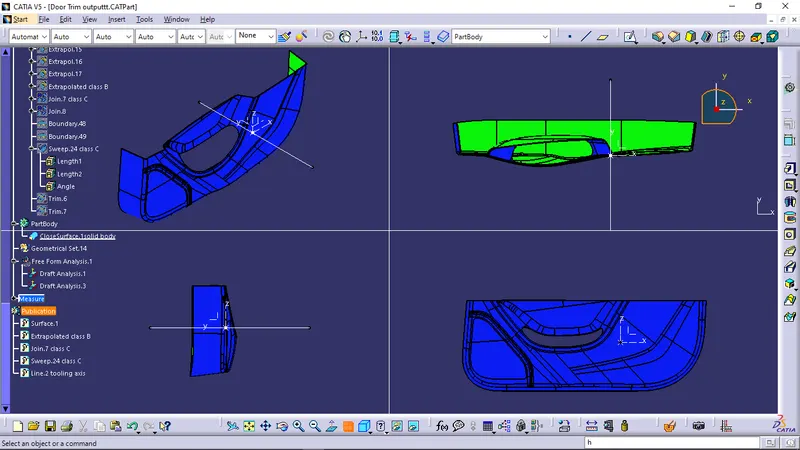

• Screenshots of the solid model with the proper colour code of the draft angle in various orientations (Isometric, Front, Side, and Top View)
