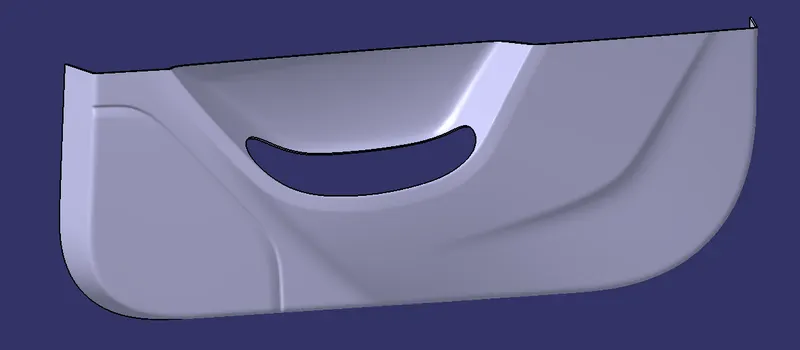

Week 8 - Challenge 5 - Door Trim Lower

Report

Tooling direction- The Tooling Direction is the direction in which the mold pulls apart. The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dyeline or the Tooling Direction.

Creation of tooling axis

Bisecting method

• Take a good look at the Class A surface and find the tooling direction. If there is a hole in the class A surface start from that. consider a dummy tooling axis perpendicular to that hole.
• if the is no hole then rotate the class A surface in different views so that you can find a good view of all surfaces in the particular view.
• after you identified the tooling direction create a dummy tooling axis with the help of surface extraction or point. the line must be in the direction of the tooling.
• create an intersection of Class a surface they find the lines that may create problems during manufacturing.
• draw the lines intersecting with these lines
• then draw a line that bisects these lines
• and perform this process in both X-Y directions. so at the end of this, you got 2 lines
• final step is to create a bisecting line between them

Draft analysis- Draft analysis is a common tool used in CAD (computer-aided design) software to determine the angles of sloped surfaces in a 3D model. The purpose of the draft analysis is to identify surfaces that do not have a uniform angle of inclination or draft angle, which can cause manufacturing and production issues in processes like injection molding, casting, or stamping.

steps

• open the CAD you want to do draft analysis on
• put materials option active inside customize view
• Then navigate the draft analysis (insert - analysis - draft analysis)
• Drag the compass and place it over the tooling axis
• select the compass option in the draft analysis and place it over the tooling axis
• select the part anywhere
• the appearance of that part will change
• it shows the colors for the draft
• green -ok (means the value you set for the draft is ok in the tooling. part can be manufacturable) Ex 3 deg
• Red - less than the given draft ( less than 3deg, greater than 0deg)
• Blue - not able to draft. the draft is negative (less than zero)

color is for representation we can change them according to our preference

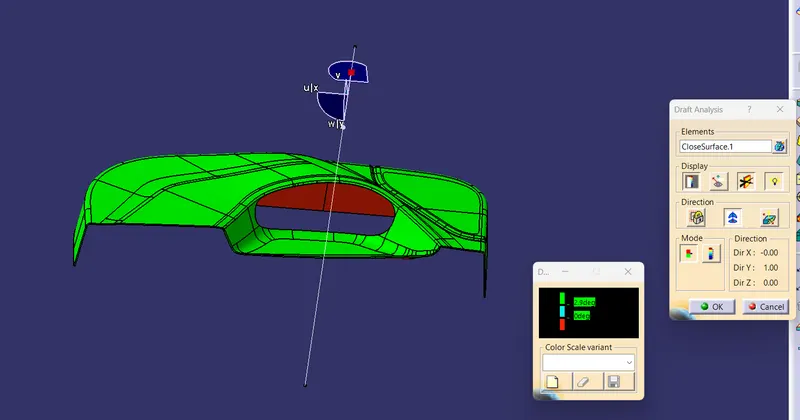

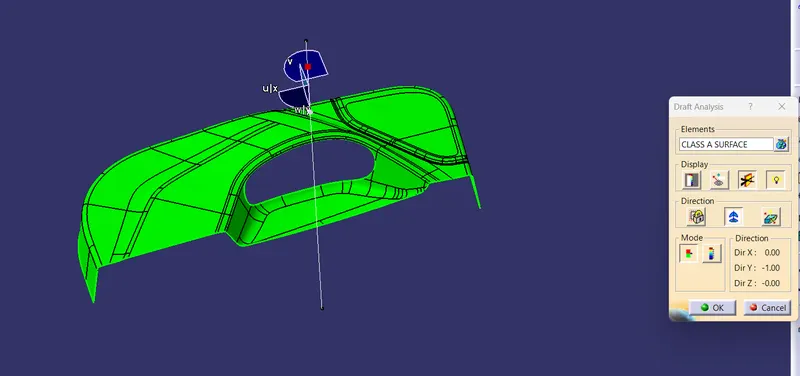

Tooling Axis & Draft analysis

for this particular, I go with a different method ( I create the point on the surface and create a line in the Y direction )

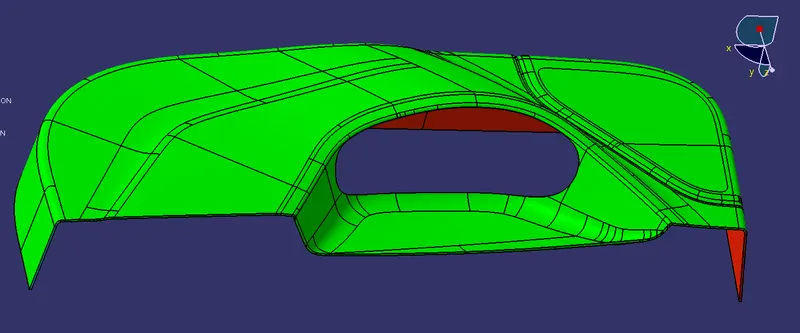

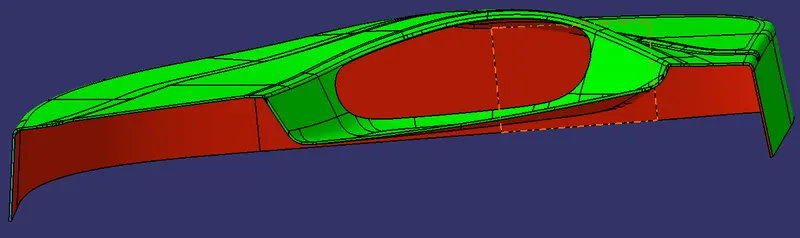

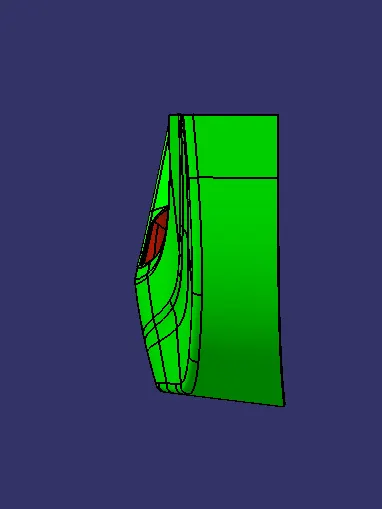

Draft analysis for Class A surface

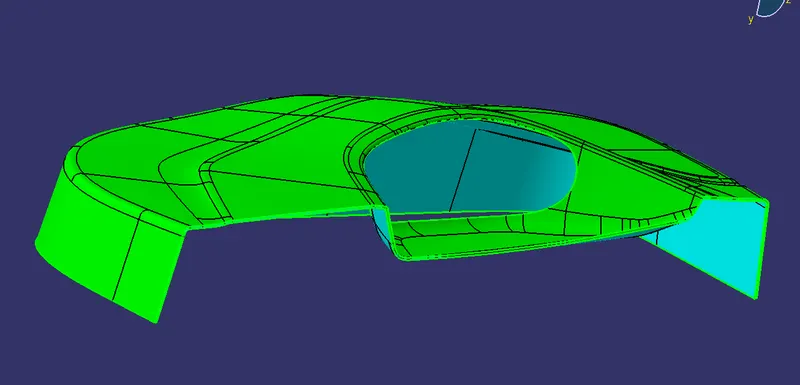

Draft analysis for Part body

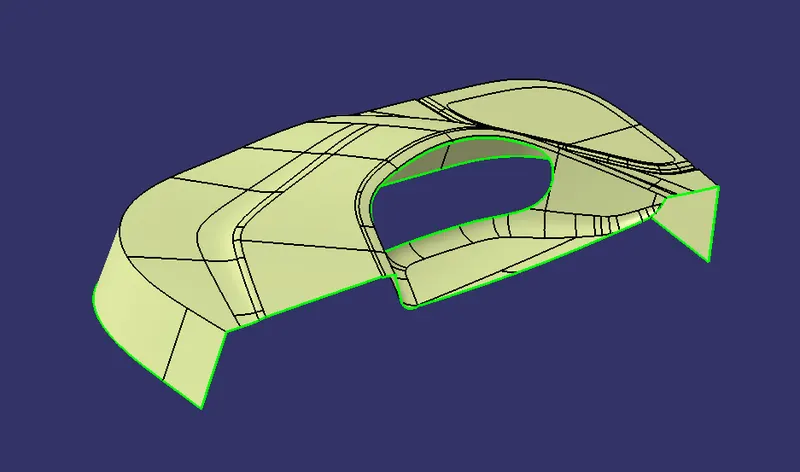

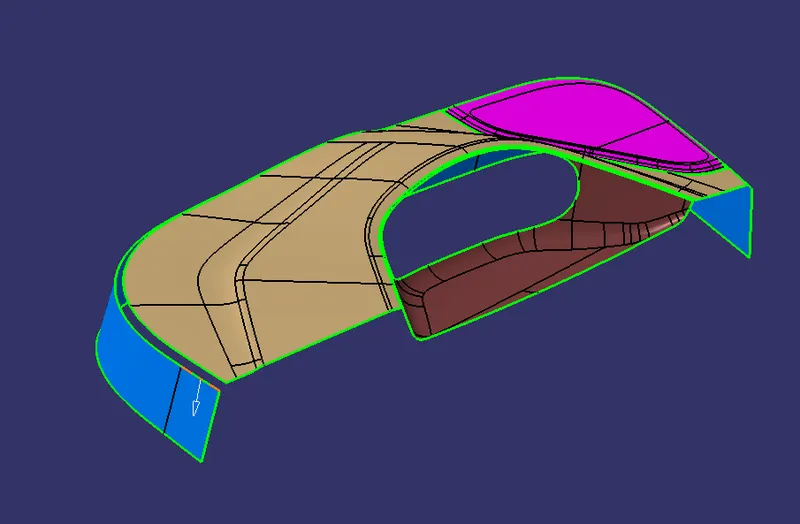

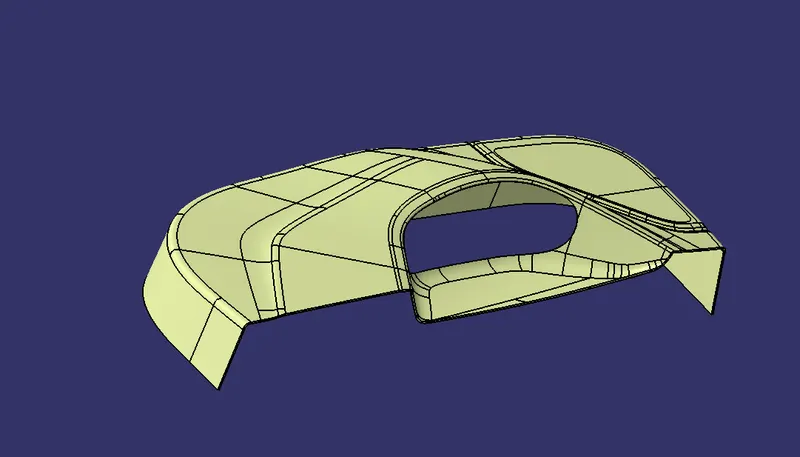

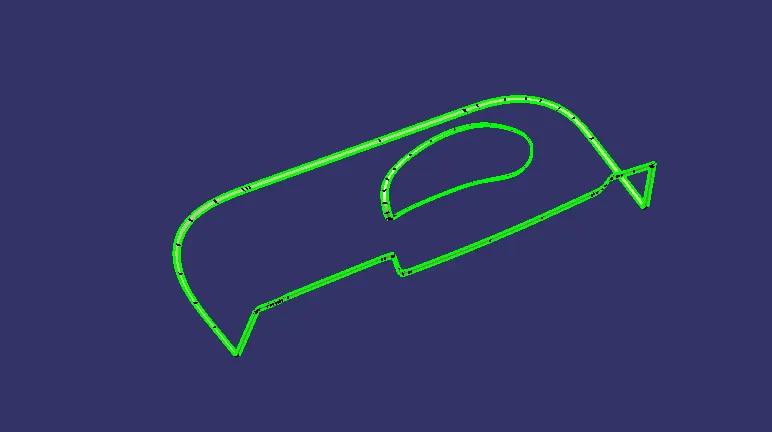

Class A surface

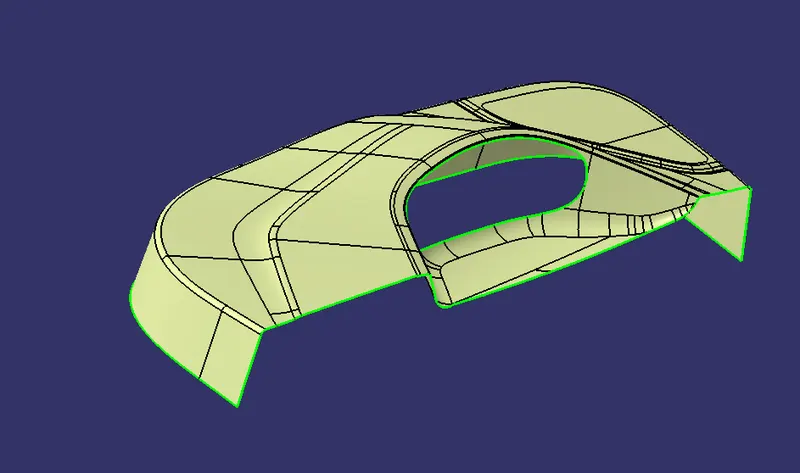

offset

multisection extract

trim

fillet

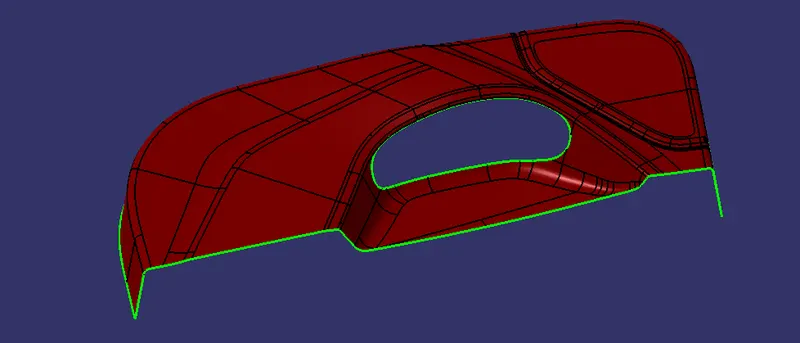

Class C surface

A+C

AC+B

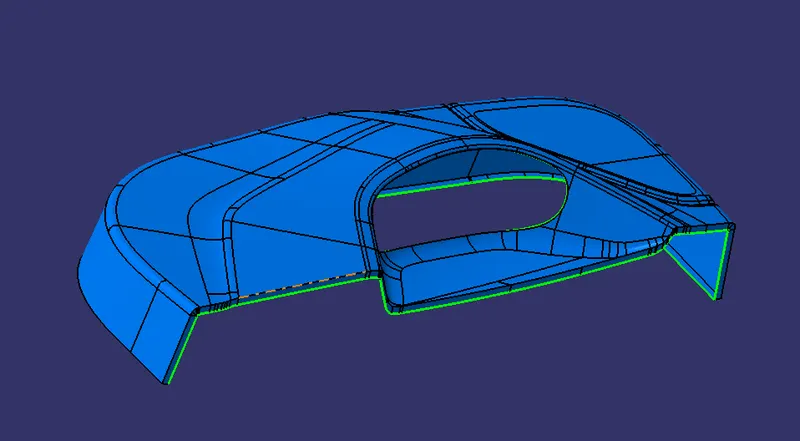

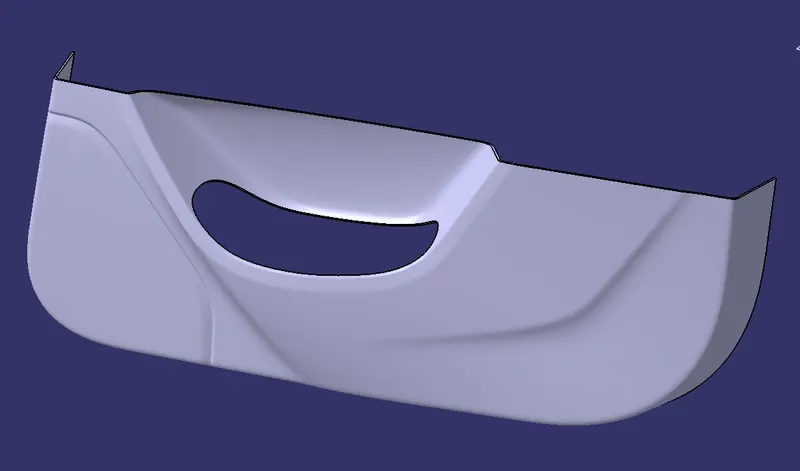

part body creation by close surface command

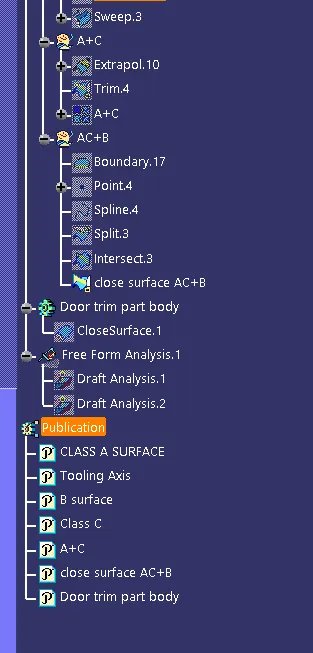

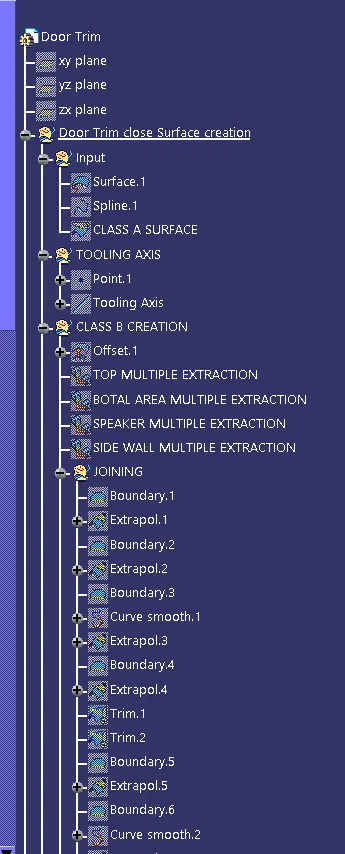

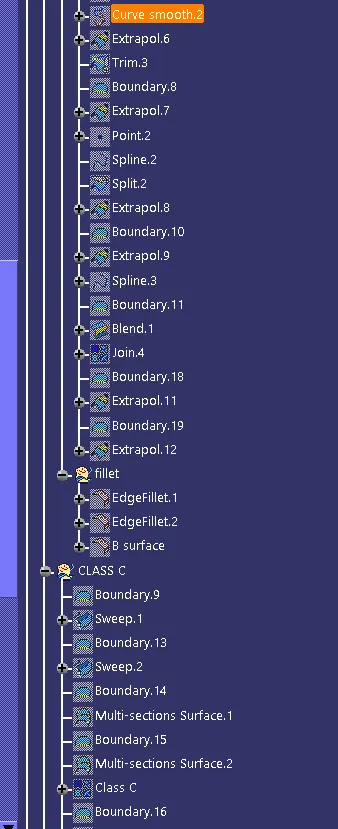

Tree
