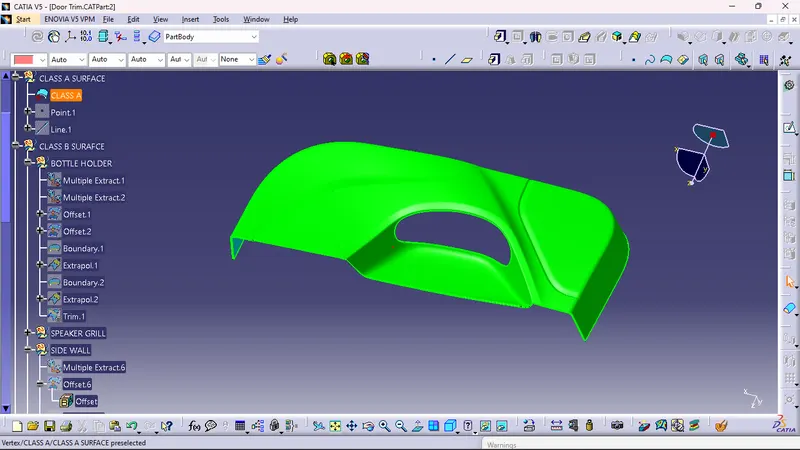

Week 8 - Challenge 5 - Door Trim Lower

first creating a dummy tooliing axis because we are not in a position to understand which is a set direction.

for creating a tooling axis- first multiple axtract of the base and then create a point on the base by selecting on surface of direction compound and distance 0.

then axis system craetion then insurt a sketch positinig plane of ZY plane and reference point 1
