Week 8 - Challenge 5 - Core & Cavity Design

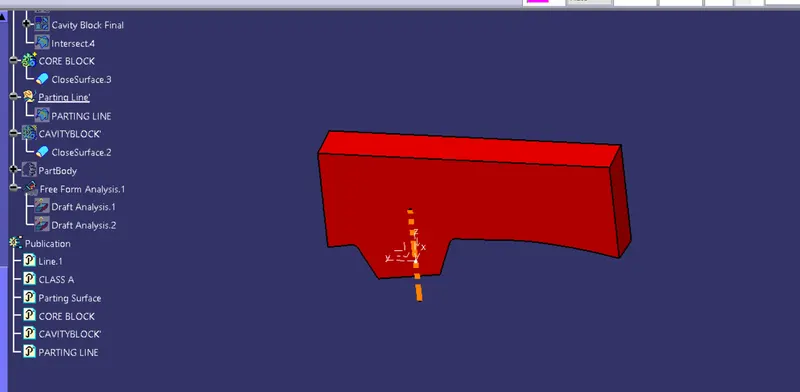

Core BLOCK Design:

Trimming (A- C) surfce with the Parting Surface which is the Crated B surface

and then trimming with the rectangular Extrude in the direction of tooling Axis

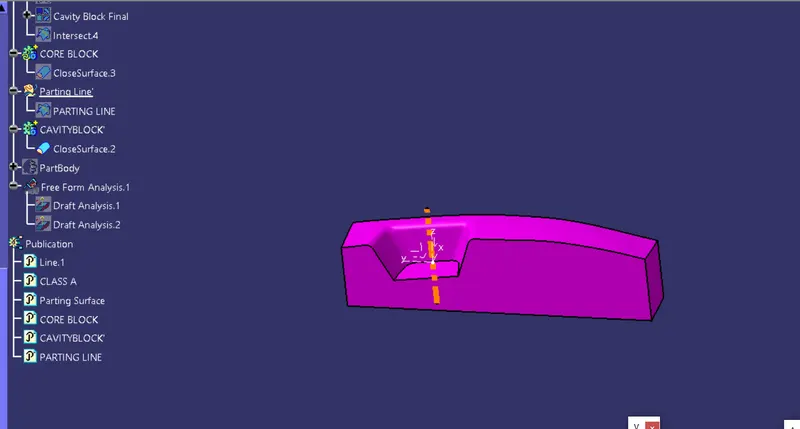

Where as the Cavity Block is the Trim Between the Rectsngular extrude and the Parting Surface

Parting Surfce has t be at the B side as at the parting Srface Flash occurs it should not be at

the aethetic face of part

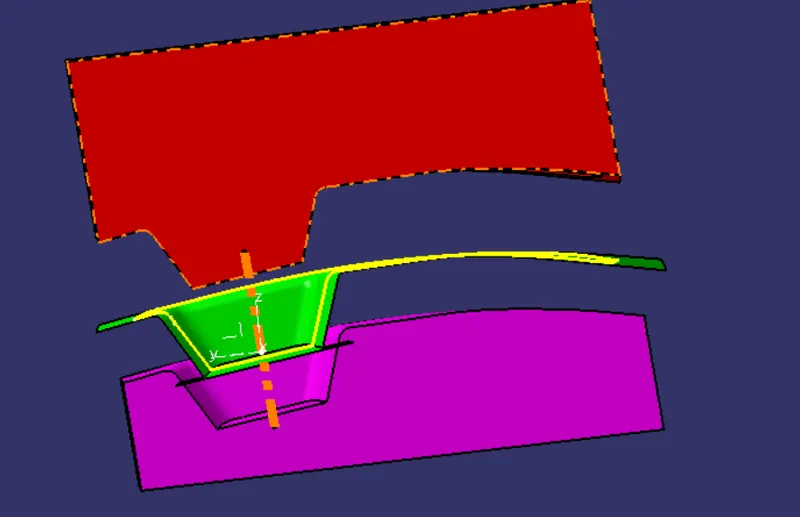

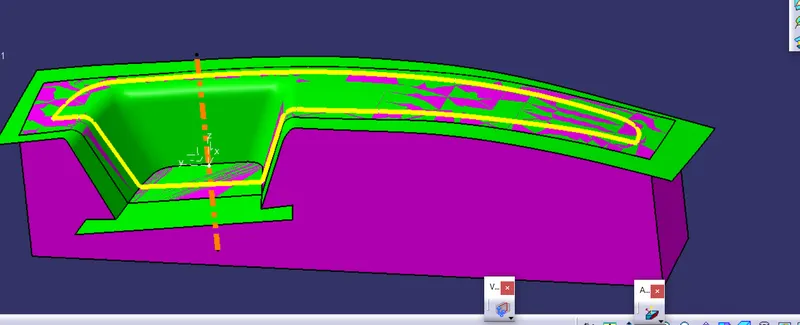

Parting Line is the Junction between two halves of the Mould
