Core & Cavity design

1. Tooling axis drawn in bysecting method and with reference of Two plans.
2. Draft analysis is shown surface full green,this Tooling axis is right for surface core and cavity direction.
3. I design Core, Cavity , Partian surface and Partician line with proper tree structure.

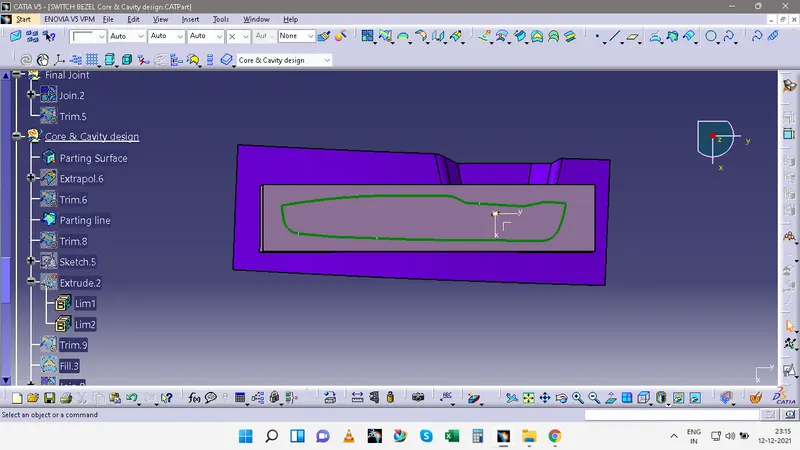

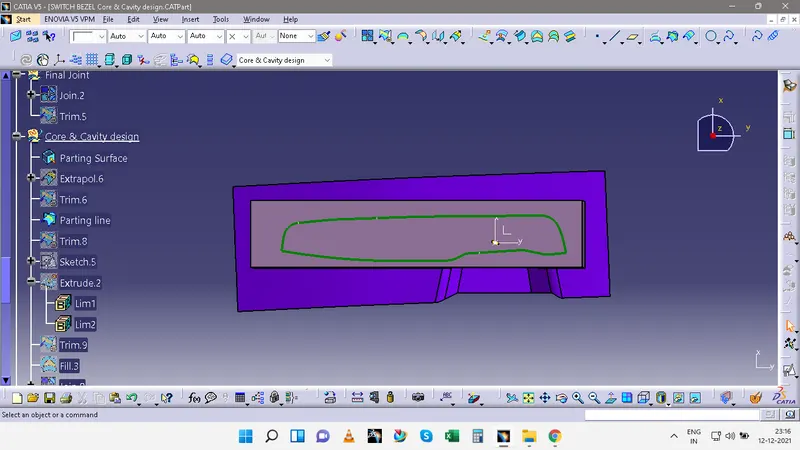

4. And mensioned different colours to them.

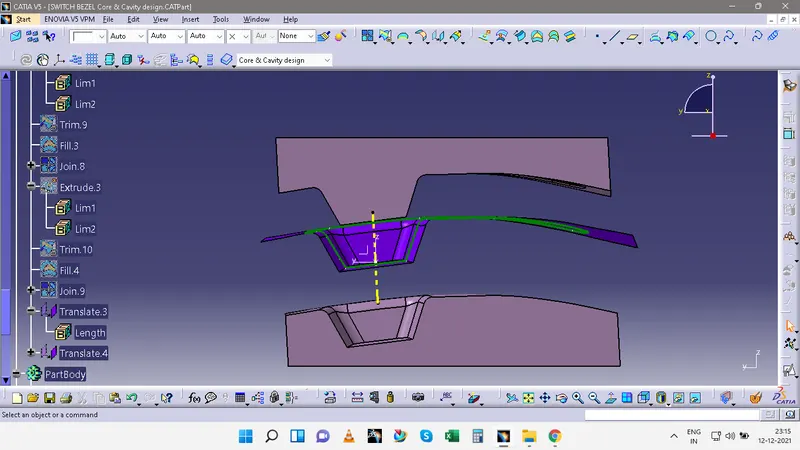

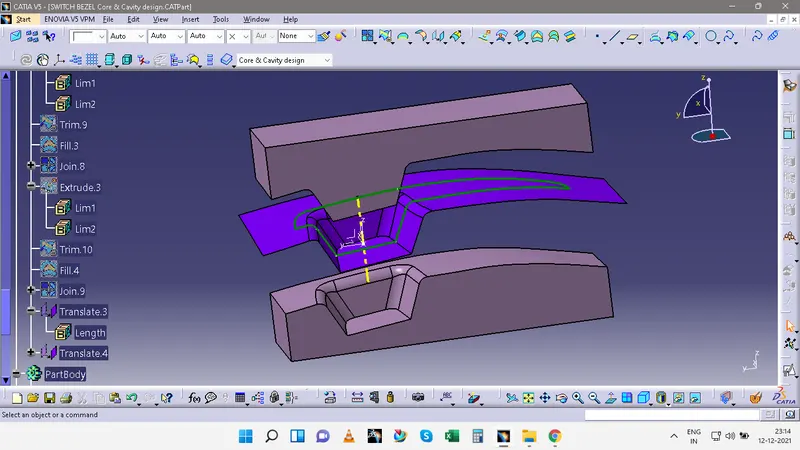

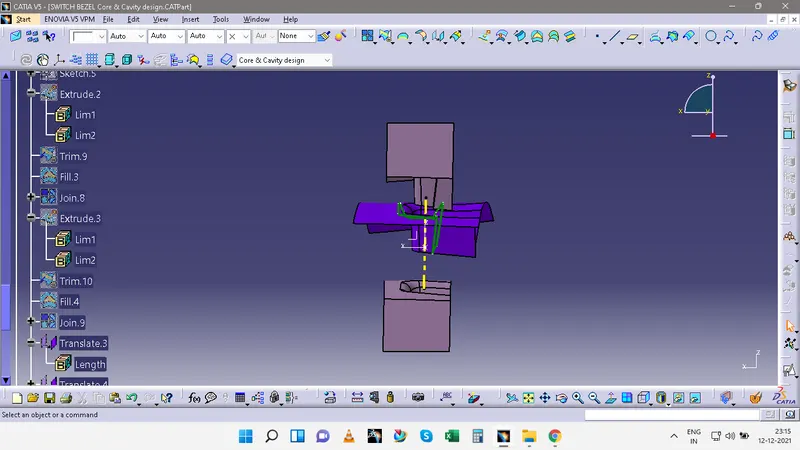

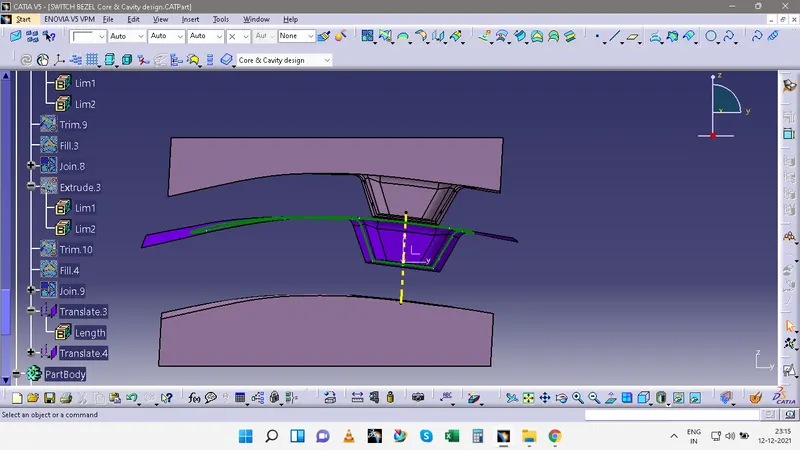

5. Core and Cavity are designed in Tooling axis direction.
