Week 8 - Challenge 5 - Core & Cavity Design

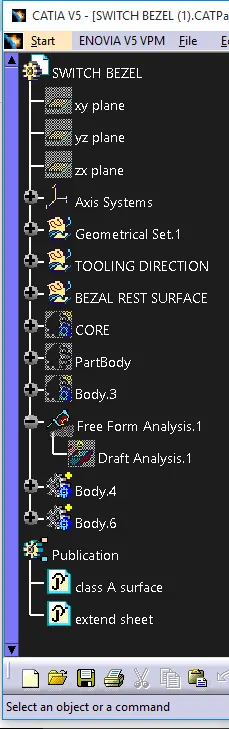

Tree Structure :
- Switch Bezel Solid / Surface body
- A detailed report should be done explaining the draft analysis and the tooling axis creation.
An explanation should be given on the way of creating the tooling axis particularly the Bisecting method.
PROCDURE FOR CREATING A CORE AND CAVITY :
1)creat drafting angle for the componet
2)creating a part a,b,c surface for part
3) creating a core projection
4)creating a cavity desprtion

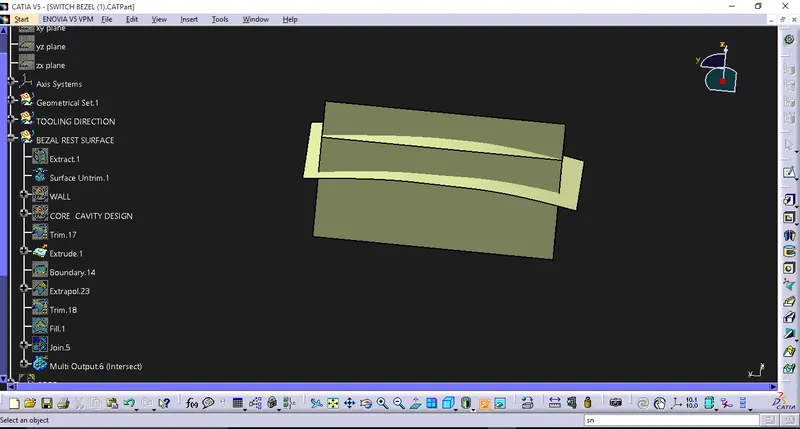

5)creating a parting surface for a part
6)Draft analysic for the componet

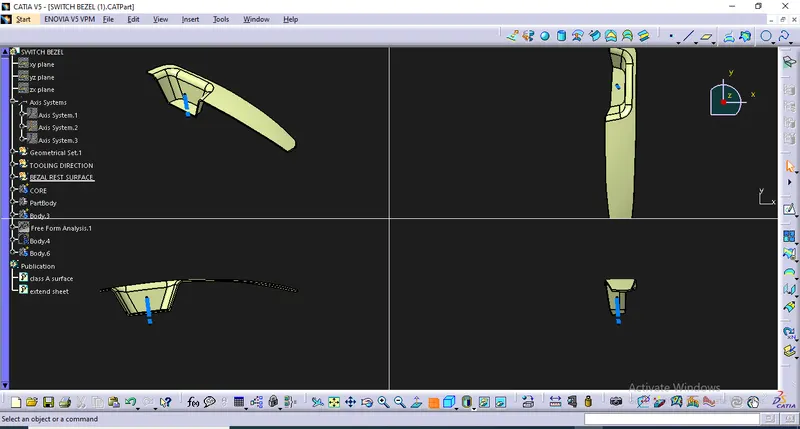

1) creat drafting angle for the componet
creating a surface for the model first creat the tolling axis direction for the part then creat the mind point for the part draw the line for the axis of direction the component
2) creating a part a,b,c surface for part :
The a surfce is the top of the component and the product plastic componet thickness is 3mm it is creat the broder and and extrplode the compont and the offest the commoment for the 3mm and then the c surface is extrplode the component and then trim the A surface of the componet then B surface is created .

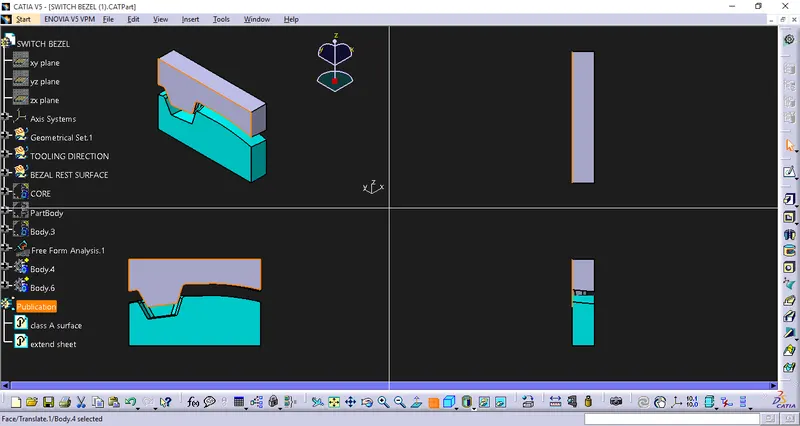

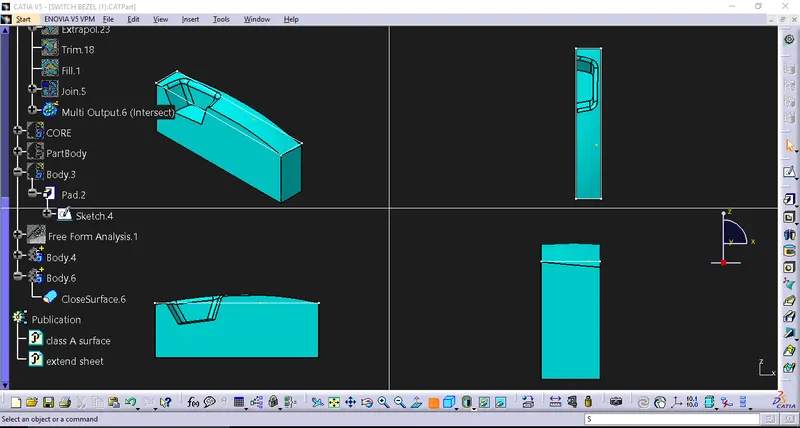

3) creating a core projection
CORE IS THE projection of the is the top of the part as we creat the a A,B,C surface of the part as creat the axis and shape of part a creat the rectangle for the part for the axis as parting creat surface explode along the 2 direction and trim with block the sureafce with componet and surface is filled with core of plastic compount the product the same procdurde for the cavity
creating a cavity desprtion
